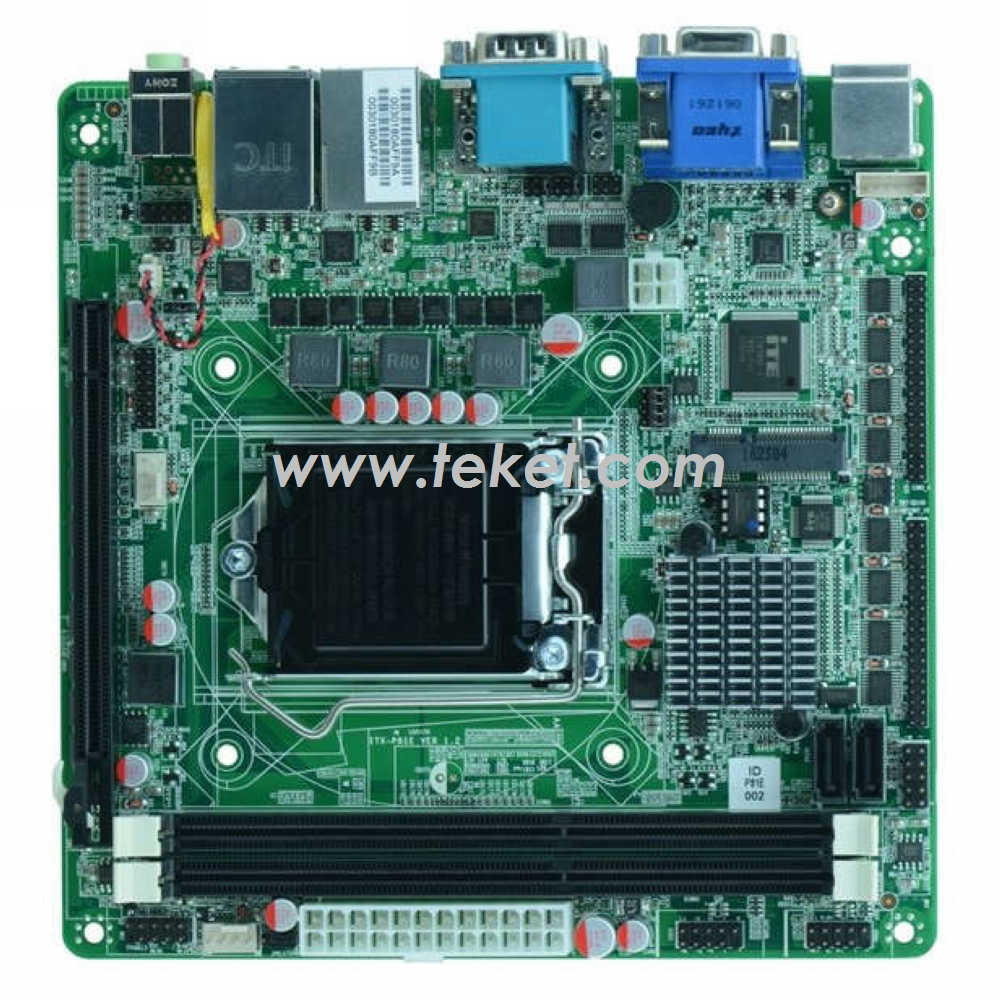

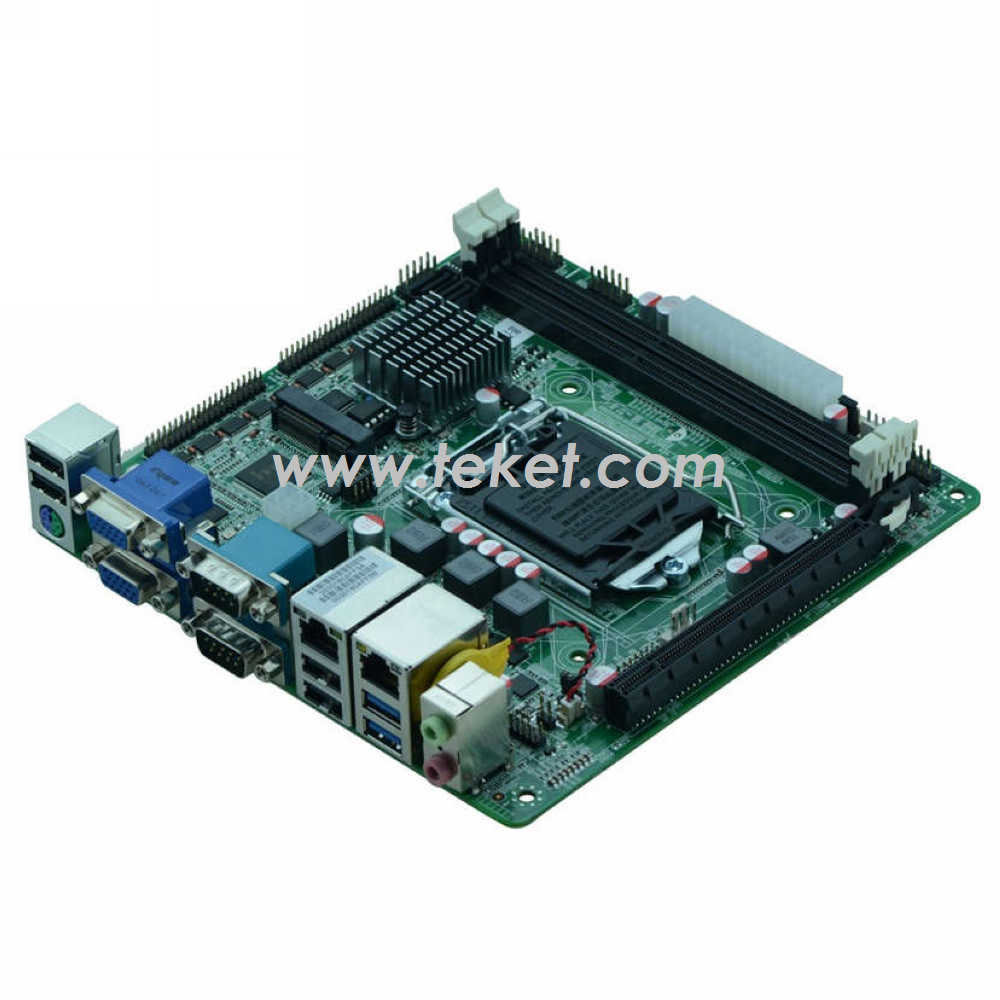

Haswell H81 Chipset LGA1150 socket i3/i5/i7 Pentium 22nm CPU MINI-ITX Motherboard H81PE

For Industral application

H81PE VER:1.2
Support LGA1150 Intel? Core? i3/i5/i7/Celeron/Pentium processor
Intel? H81 Express chipset(Compatible Intel? 8/9 Series chipset)
2* DDRIII DIMM Memory slot,Support double channel 1600/1333MHz Memory,Up to 16GB


Model No. H81PE VER:1.2
CPU Support LGA1150 Intel? Core? i3/i5/i7/Celeron/Pentium processor
Chipset Adopt Intel? H81 Express chipset(Compatible Intel? 8/9 Series chipset)
Memory 2* DDRIII DIMM Memory slot,Support double channel 1600/1333MHz Memory,Up to 16GB
Graphics Integrated Intel? HD Graphics SupportDirectX11.2,OpenGL4.3
Support 2*VGA,1*HDMI2.0 display output,Support,VGA/HDMI synchronous / asynchronous display
LAN 2* RTL8111F Gigabit Ethernet,Support wake on LAN/PXE
Storage 2* SATA(SATA1 support vSATA3.0,the transfer rate up to 6Gbps)
Audio Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out
Expansion Slots
1* PCIE X16
1* MSATA,Support SSD(Default),WIFI, SSD transfer rate up to 6Gbps

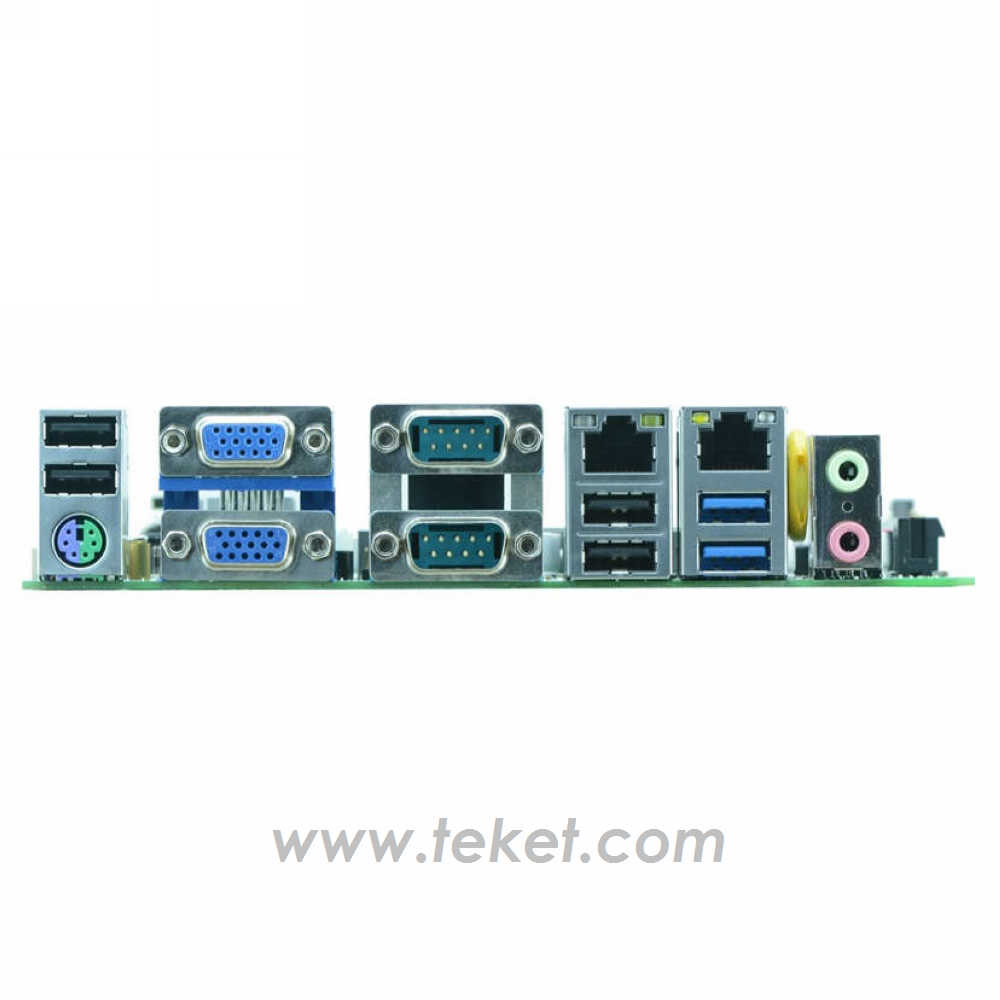

Rear I/O
1* PS/2 (Expandable keyboard and mouse)
2* VGA
2* DB9 COM serial port ,the 9th pin of COM1 support
5V/12V charged function
4* USB 2.0
2* USB 3.0
2* RJ-45 Gigabit Ethernet connector
1*Line-out(Green ),1*MIC(Red)
Internal I/O
1* 24pinATX power input ,1*4pin ATX power input
1* HDMI(2*8Pin)
1* PS/2 KB/MS connect1*6Pin
8* RS232 serial port(COM3 supportRS232/RS485/RS422)
1* front panel audio connector 2*5pin
1* HDMI 2*8Pin
4* USB 2.0 2*5Pin
1* front panel function buttons and indicator connector 2*5pin
FAN interface
1* 4pinCPUFAN ;1* 4pin System FAN
BIOS
64Mb Flash ROM
GPIO
Support 4 way input and output GPIO
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power Input
Adopt ATX 24Pin and4pin Power input
Operating Temp. -10°C~60°C
Storage Temp. -20°C~70°C
Humidity 5%-95% (relative humidity; non-condensing)
Dimension 170mm x 170mm

Order information:
H81PE-A210 Ver1.2 LGA1150,2*DDR3,2*VGA,1*HDMI,2*LAN(RTL8111F),10*USB,10*COM,1*RS485/422,ATX
H81PE-A26 Ver1.2 LGA1150,2*DDR3,2*VGA,1*HDMI,2*LAN(RTL8111F),10*USB,6*COM,1*RS485/422,ATX
H81PE-A22 Ver1.2 LGA1150,2*DDR3,2*VGA,1*HDMI,2*LAN(RTL8111F),10*USB,6*COM,1*RS485/422,ATX
