>>Your Current Position: Intel Motherboard

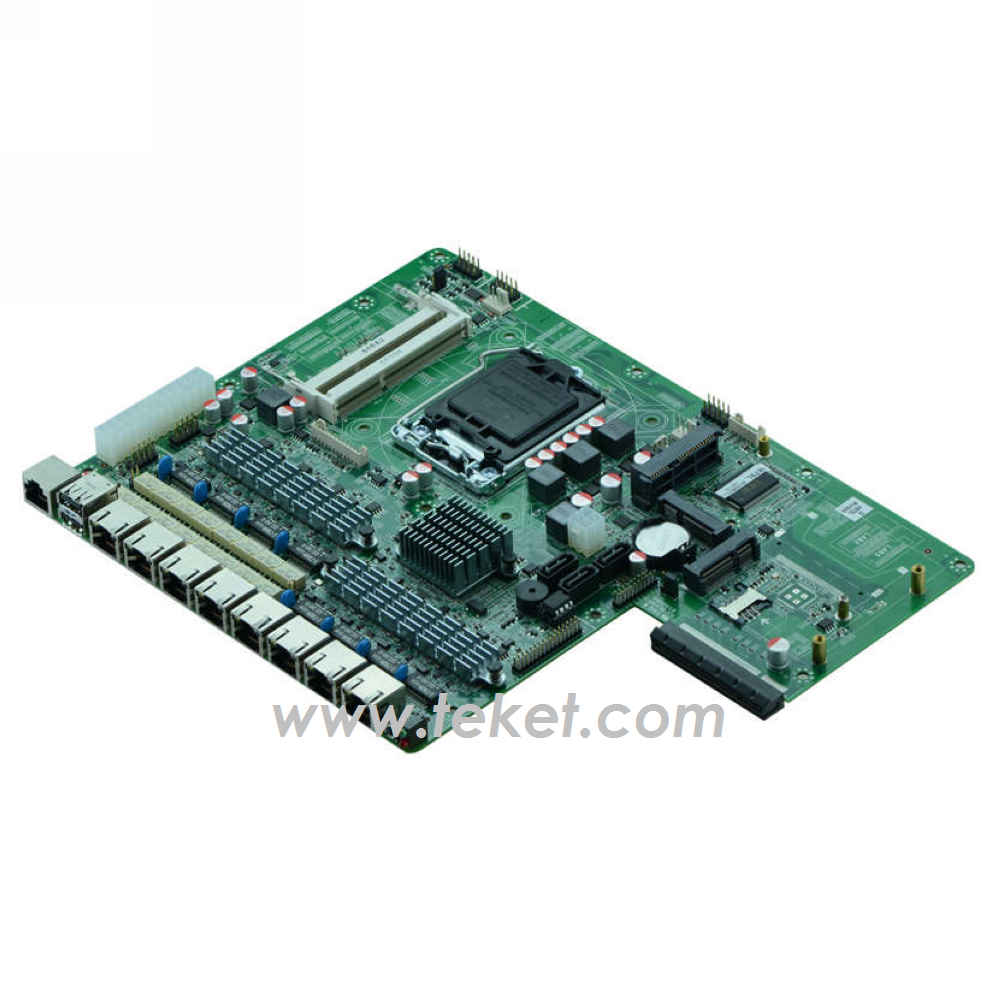

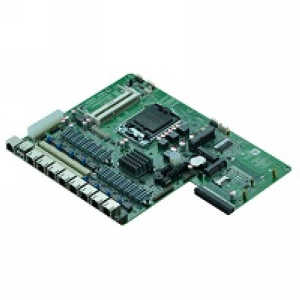

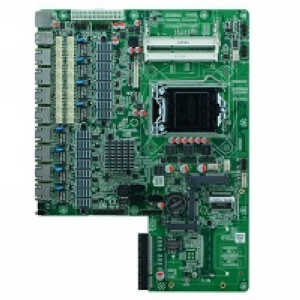

Intel H87 LGA1150 Motherboard H87LE H87LEB bypass with Intel 8 LAN PORTS ATX POWER

H87LE V1.3, H81,LGA1150,INTEL HD,8*INTEL 82583V,VGA,mSATA,mini PCIe,x8 PCIe,GPIO,SIM,6*USB 2.0,2*USB3.0,PS/2,280X209MM

Firewall, Gateway, Network Security ROS,Hi-Spider Router
Intel LGA1150 i7/i5/i3 H61 chipset 6 LAN Gigabit Ethernet BYPASS, Network Security ROS

H87LE VER:1.3
Support LGA1150 Intel? Core? i3/i5/i7 Pentium 22nm Core processor
Intel? H87 High-speed chipset
2* SODDR3,Support 1600/1333MHz Memory,Up to 16GB
8* Intel 82574L/82583V Gigabit Ethernet., support wake on LAN/PXE

Support 4th Intel? Core? i7/i5/i3/Pentium/celeron LGA1150 processor
Adopt Intel? H87 Express chipset,Compatible Intel 8 series chipset
2* SODDR3 memory slot ,support 1600/1333MHz memory,up to 16GB
Integrated Intel? HD Graphics,support 1*VGA display output
Integrated 8* Intel 82574L/82583V Gigabit Ethernet., support wake on LAN/PXE
can support two sets of BYPASS functions(Management1,2 and 3,4 network ports)
Provide 1* SATA3.0 2.5 inch Notebook hard disk,can be installed the hard disk directly,the transfer rate up to 6Gbps
1* MSATA slot,support SSD ,the transfer rate up to 6Gbps
Expansion slots
1* 8X PCIE expansion slot ,can expand Gigabit /10Gigabit Fiber port
Provide 1* Mini-PCIE slot,support WIFI/3G Module

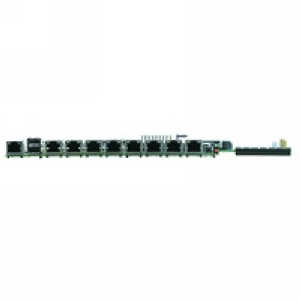

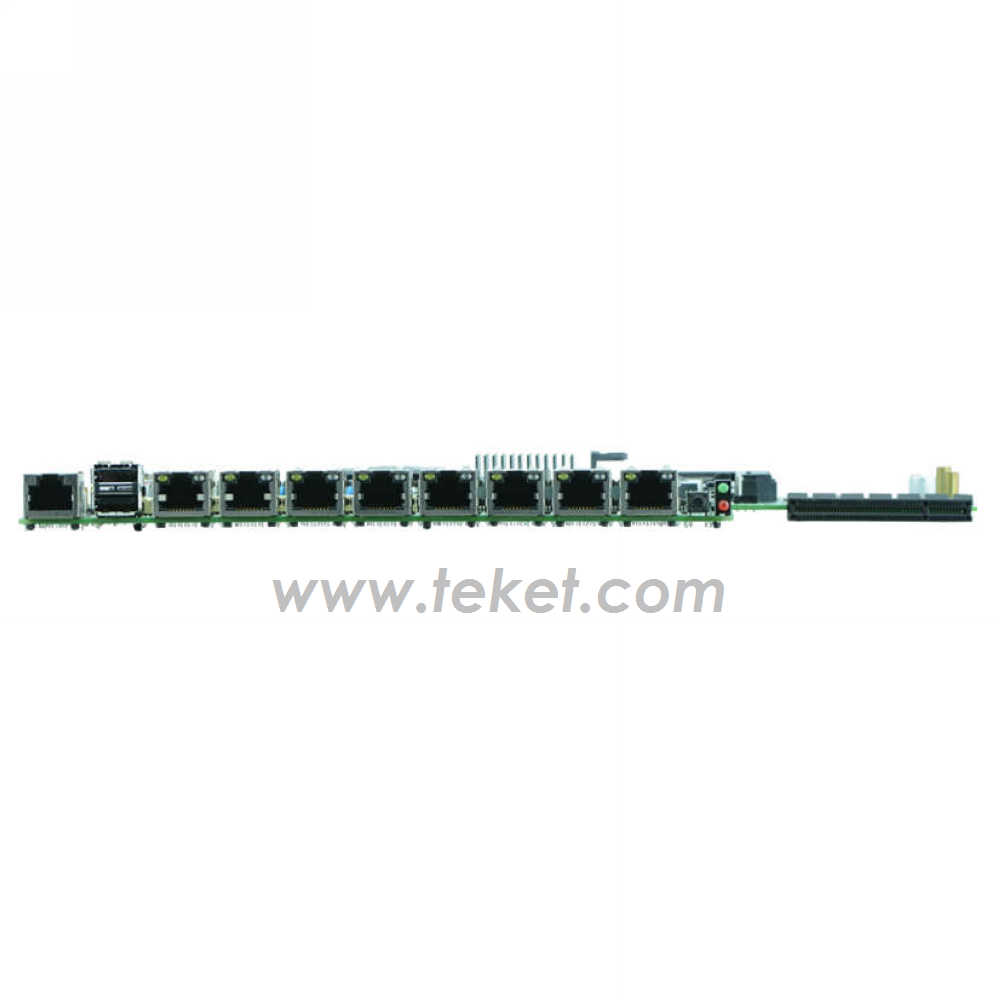

Rear I/O
8* RJ-45 Gigabit Ethernet connector
2* USB2.0
1* CISCO serial port
1* power switch
1* power/HDD LED
Internal I/O
1* JVGA1 1*12pin
1* RS232 serial port2*5Pin
1* Network indicator interface2*16Pin
1* PS/2 KB/MS connector 1*6Pin
4* USB2.0 2*5Pin
2* USB3.0 2*10Pin
1* front panel function buttons and indicator connector 2*5Pin
1* 24pin ATX power input
1* 4pin ATX power input
1* SIM card socket
FAN interface
2*4pin CPUFAN,1* 4pin system FAN
Support 4-way input/output GPIO
AMI 64Mb Flash ROM
Support hardware reset function (L256, 0~255 seconds)
Power input
ATX power input
Operating Temp.
Storage Temp.
5%-95% (relative humidity; non-condensing)
280mm x 209mm

Order Information:
H87LE VER:1.3,LGA1150,2*SODDR3,1*VGA,8*LAN(82574L),6*USB,2*COM,no BYPASS,ATX
H87LE_B VER:1.3,LGA1150,2*SODDR3,1*VGA,8*LAN(82574L),6*USB,2*COM,2*BYPASS(2*group),ATX

Order Information

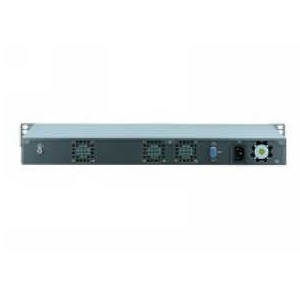

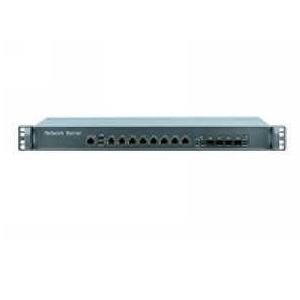

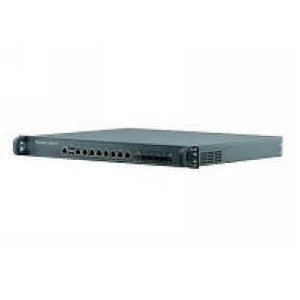

1U-H87LE(4*1000M SFP) LGA1150+H87 chipset,2*SO-DDR3,8*LAN(82574L),2*BYPASS,1*COM,VGA,2*USB2.0,0*SFP(1000M)
1U-H87LE(4*1000M SFP) LGA1150+H87 chipset,2*SO-DDR3,8*LAN(82574L),2*BYPASS,1*COM,VGA,2*USB2.0,2*SFP(1000M)
1U-H87LE(4*1000M SFP) LGA1150+H87 chipset,2*SO-DDR3,8*LAN(82574L),2*BYPASS,1*COM,VGA,2*USB2.0,4*SFP(1000M)
