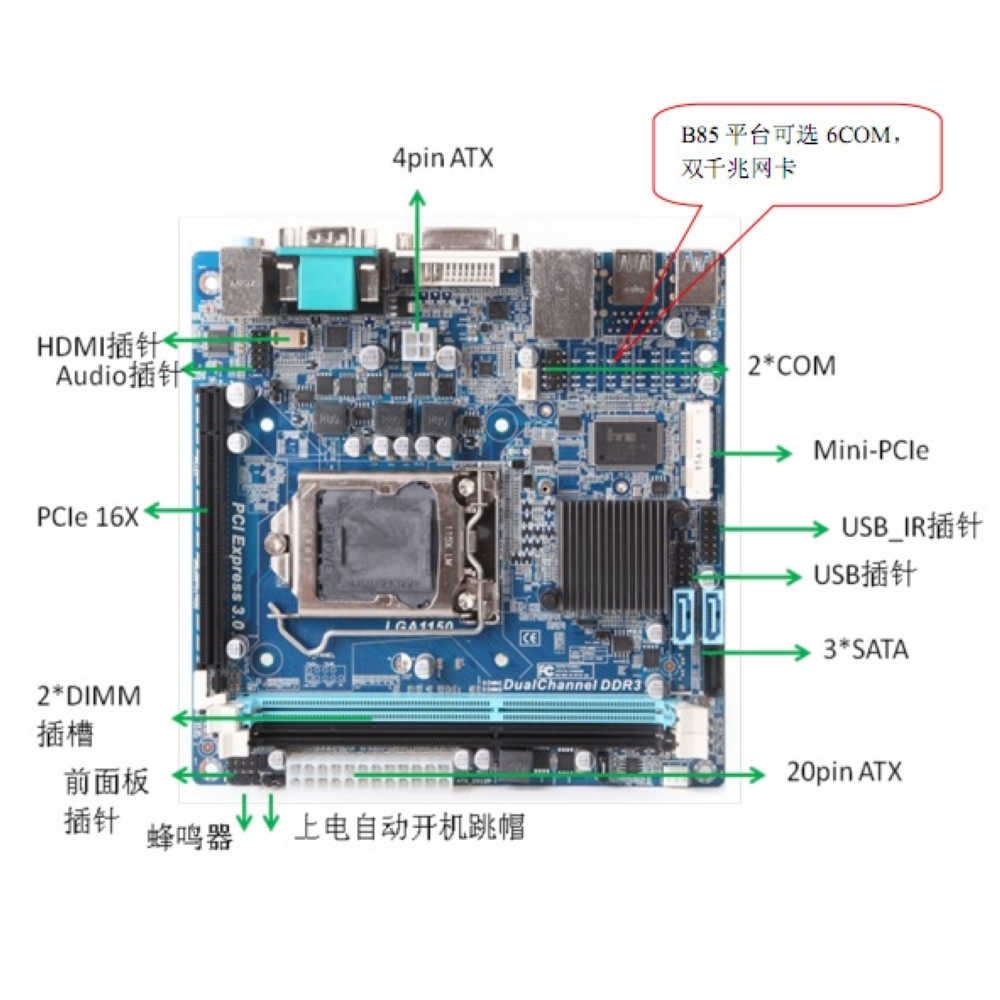

H87 Chipset LGA1150 socket MINI-ITX Motherboard H87QM ATX power supply

Overview:
H87QM intel H87 chipset, the ultra-compact Mini-ITX motherboard to support four-generation Intel Core i3/i5/i7 central processing unit, a high-definition graphics acceleration technology, support HDI, VGA, DVI and HD output interface, a 8XPCIe slot, scalable discrete graphics. The board is equipped with two DDR3 DIMM memory slots. Maximum support 8G.

Features:
Support for the second generation of Intel Core i3/i5/i7 central processing unit
Has an 8X PCIe slots, scalable graphics card
1 full-high and half-high MINI-PCIe slot, wireless network expansion equipment
Two DDR3 SO-DIMM slots, maximum support 8GB dual channel memory



CPU: Intel haswell core i3/i5/i7
ChipsetL Intel 8 seris H81 and H85
Memory: 2*DDR3 DIMM up to 16gb
Display: CPU intergrated display
Lan: dual lan ports(optional)
Sound: 6 channel ALC662 chip
Display: VGA,DVI, 2 channel HDI (internel head), support 4K*2K playback
PCI slot: 1*PCIe 16x
MINI-PCIe: 2pcs half height support USB+PCIe, full height support mSATA + PCIe
Disk: 2*SATA 3.0, 1*SATA 2.0
USB: 10 usb

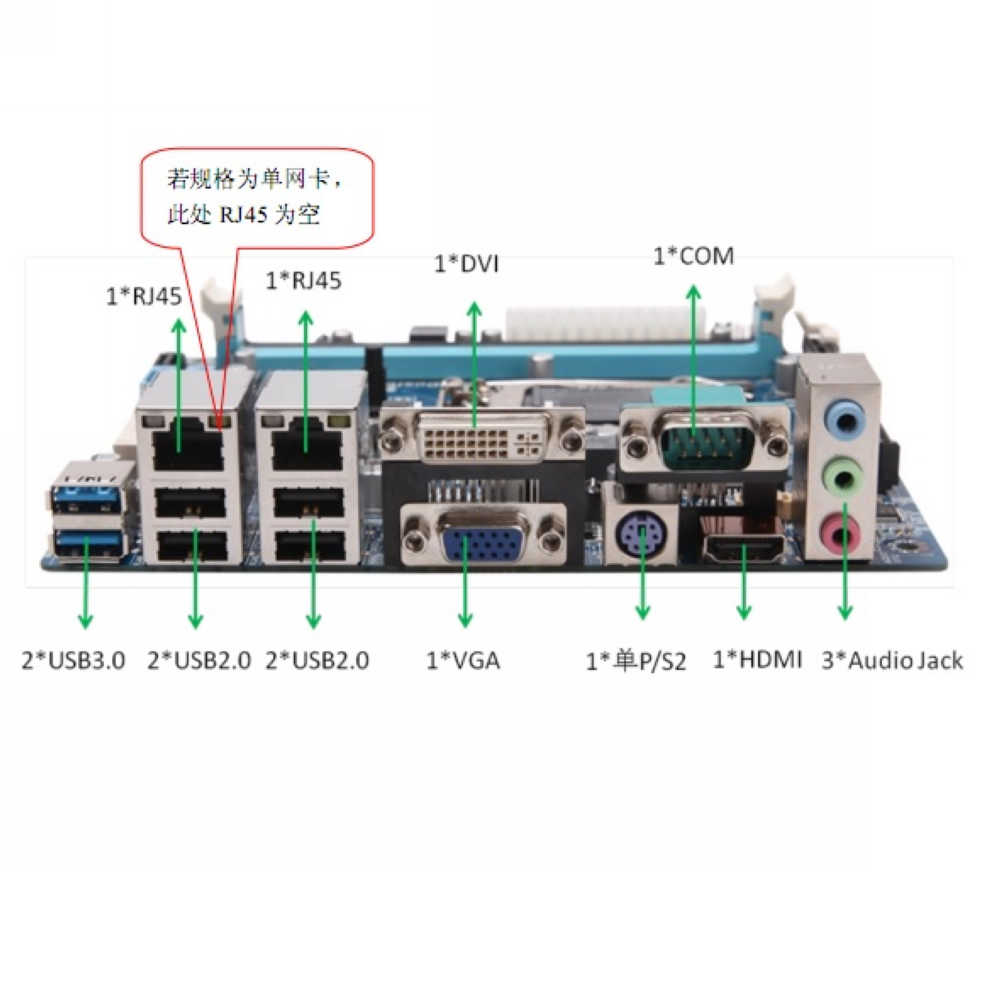

I/O
2*USB3.0
2*USB2.0,1*RJ45
2*USB2.0,1*RJ45
1*VGA*DVI
1*HDI,1*COM,1*PS/2
3*JACK

internal
2*USB2.0
HDI header
5*AUDI 9pin COM
1*front
1*back
1*boot
Power: 24+4pin ATX power suppply
size: 170x170mm
Cool: cpu * chipset

Ordering information
H87QM
