Intel Slim All-in-one Mini-ITX board Skylake-U 3855u,3955u,Core i3-6100U,i5-6200U,i7-6500U,SO-DDR3L,12/19VDC
Intel Slim All-in-one Mini-ITX board Kabylake-U 3865u,3965u,Core i3-7100U,i5-7200U,i7-7500U,SO-DDR3L,12/19VDC

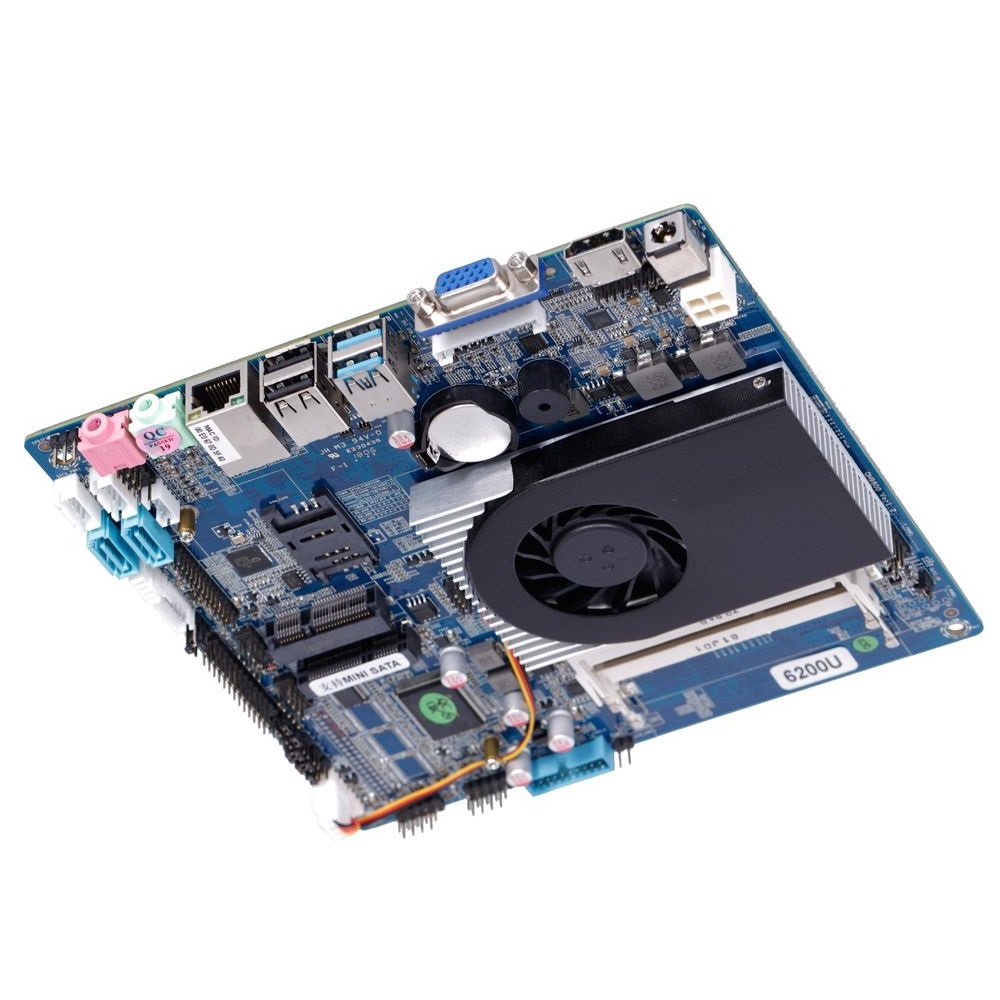

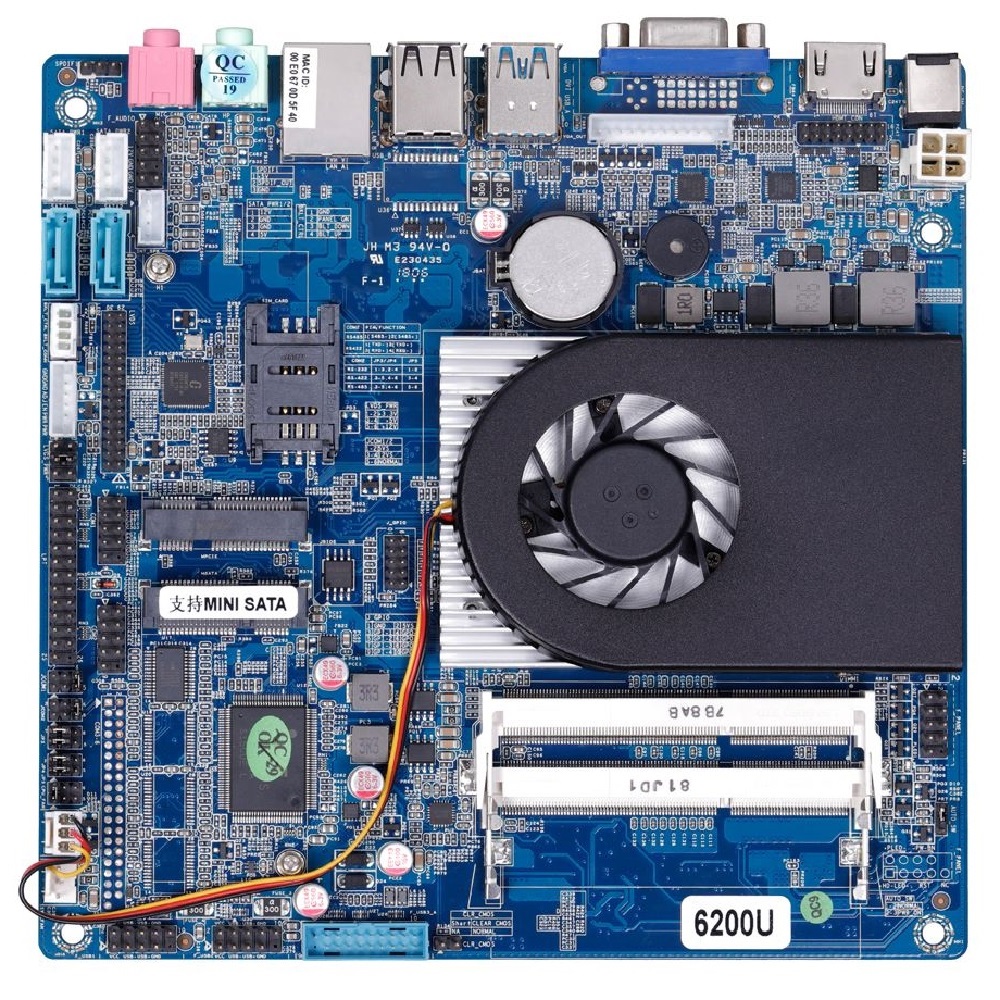

Nodel: H96QM

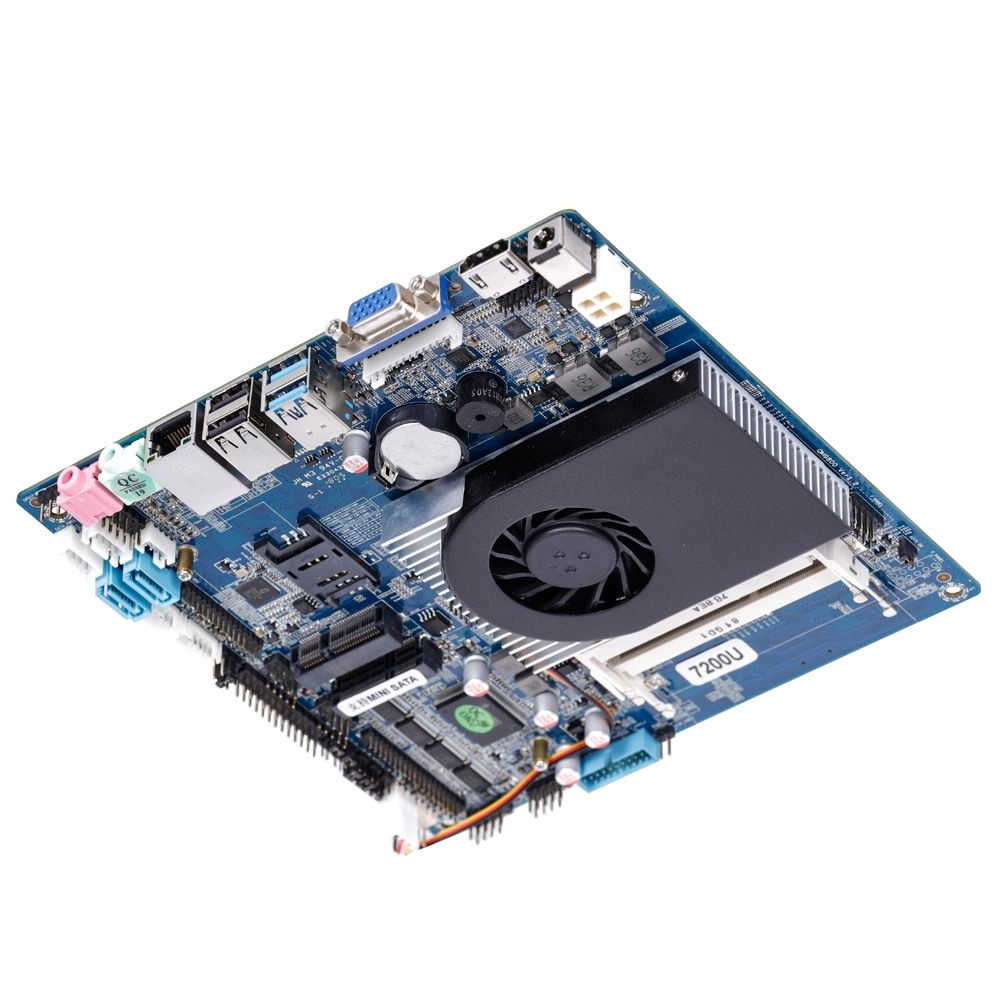

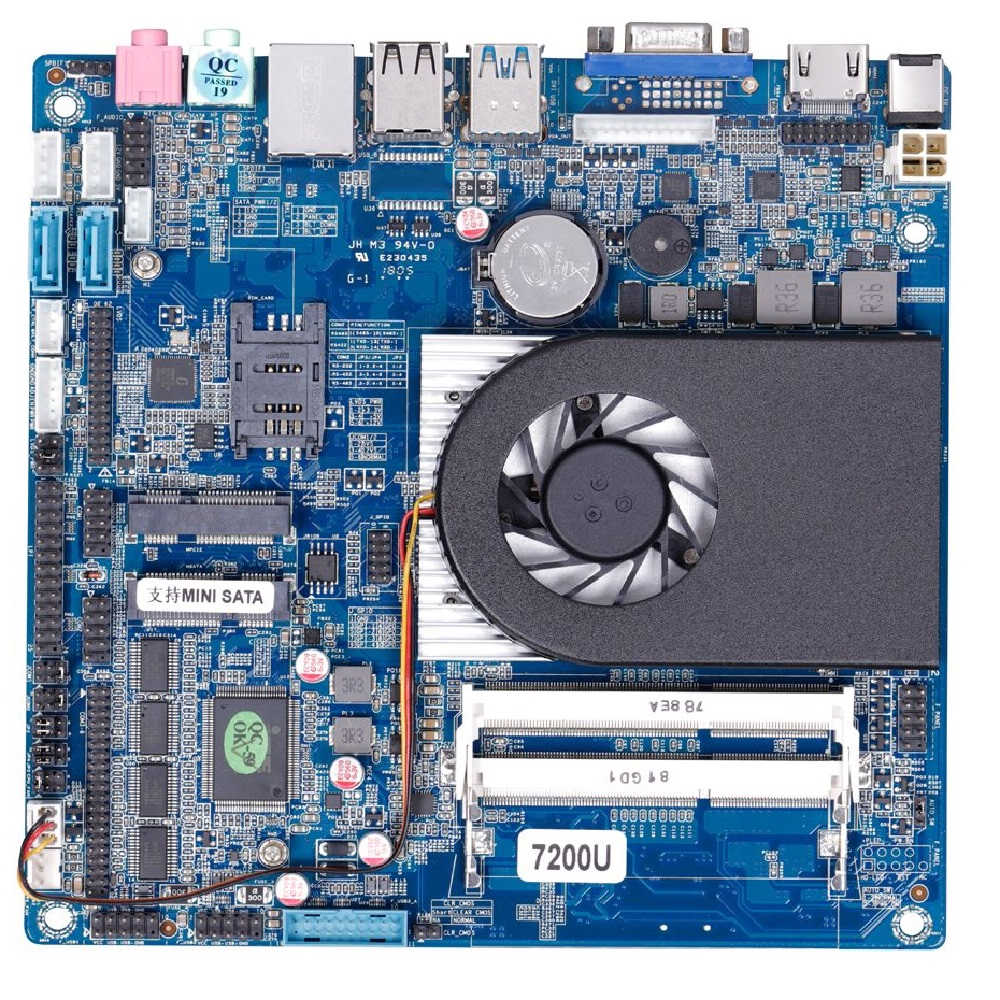

Model: H97QM

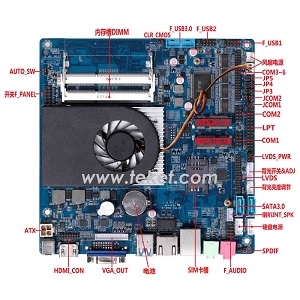

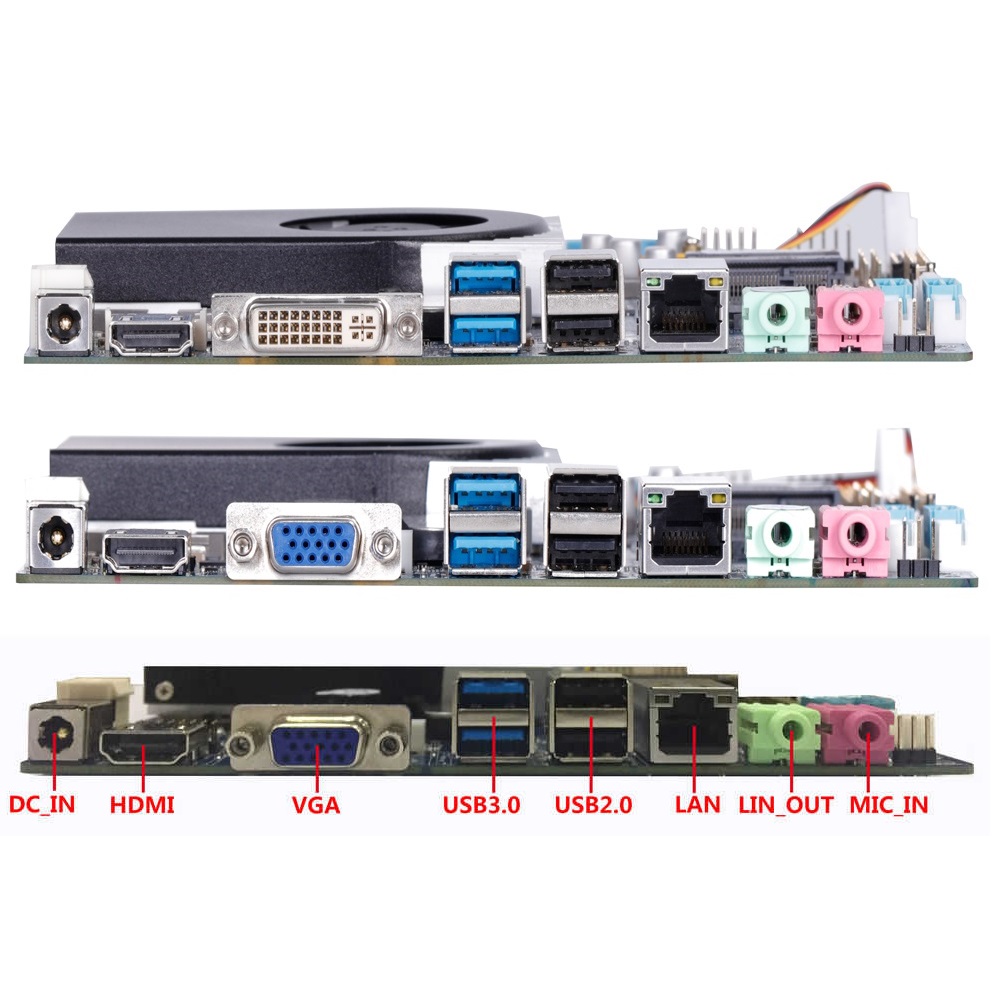

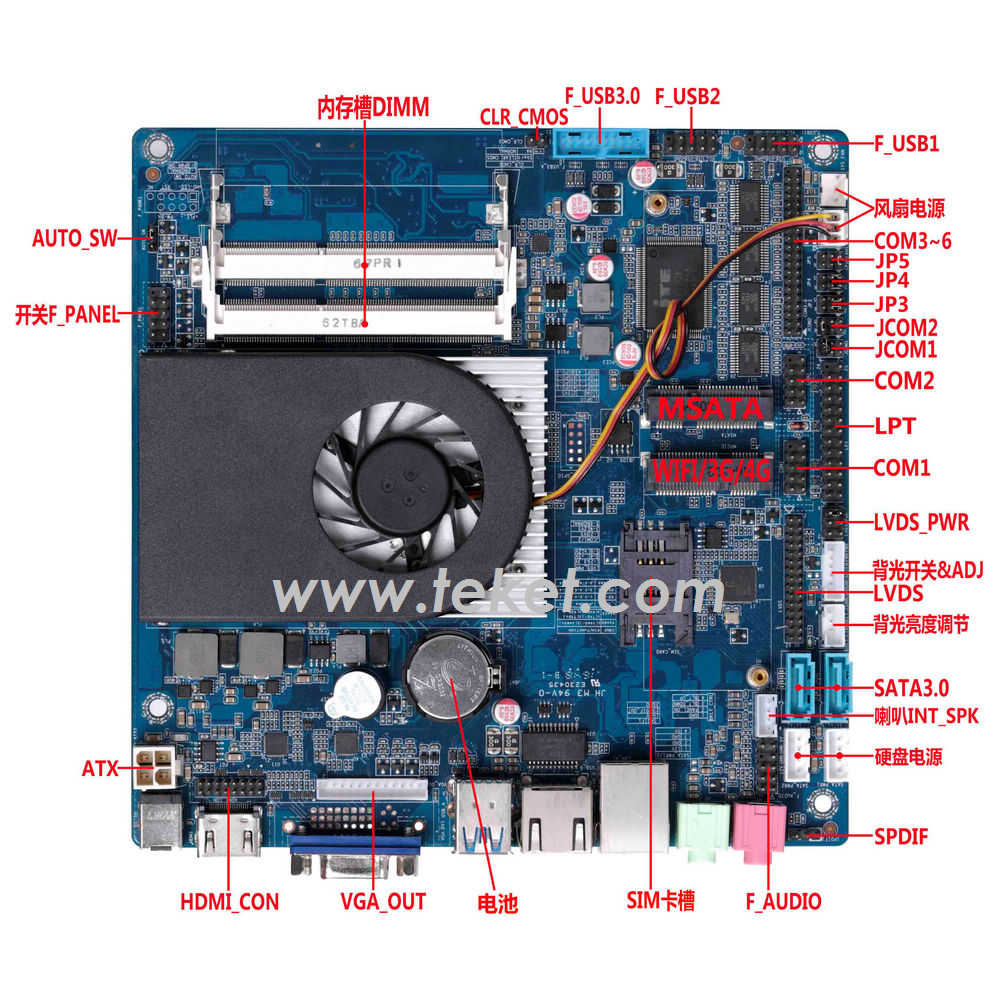

I/O Shield and Connector&PIN define



Spec
mini-itx, 170x170mm,slim, all-in-one
CPU
H96QM support 6th Gen CPU such as 3855u,3955u and Skylake i3/i5/i7(Core i3-6100U,i5-6200U,i7-6500U)
H97QM support 7th Gen CPU such as 3865u,3965u and Kabylake i3/i5/i7(Core i3-7100U,i5-7200U,i5-7300U,i7-7500U)
Chipset
Intel SOC
RAM
2*SO-DDR3L 1600/1866 up to 16GB
Windows 8/Windows 10, linux
Display
Intel HD510/HD610 core, support DVMT
support HDI,VGA,LVDS, three panels display
HDI support 4K
support dual 8bit 24bit LVDS
Storage
1*SATA3.0(Celeron processors)/2*SATA3.0(Core i3/i5/i7 processors)
1*MSATA 3.0
Networks
1 or 2 LAN(RTL8111F)
AUDIO
Realtek ALC662 HD
Supoort line-in,line-out, 3w/5w speaker
I/O
4*USB3.0 6*USB2.0,2/6*RS232(COM),1*RS485,support COM 5V/12V power
watch dog
extended BUS
2*MINI PCE support WIFI/3G/MSATA/GPS
POWER
DC12V/19V
Operating Environment
Working temperature :-20℃~60℃;
Relative humidity:5%~95%,non-condensation.
BIOS
AMI BIOS
OS

Order Information
H96QM-3855U 3855U,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC
H96QM-3955U 3955U,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC
H96QM-I36006U i3-6006U,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC
H96QM-I56200U/6300U i5-6200U,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC
H96QM-I76500U i7-6500U,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC

H97QM-3865U 3865U,1.8G,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC
H96QM-3965U 3965U,2.2G,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC
H96QM-I37020U/7130U i5-7020U,2.4G,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC
H96QM-I57200U/7300U i5-7200U,2.5G,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC
H96QM-I77500U/7600U i7-7500U,2.7G,2*SODDR3L,1*VGA(DVI),1*HDI,2ch24bitLVDS,1/2*LAN(RTL8111F),8*USB,6*COM(RS485/422),12-19VDC
