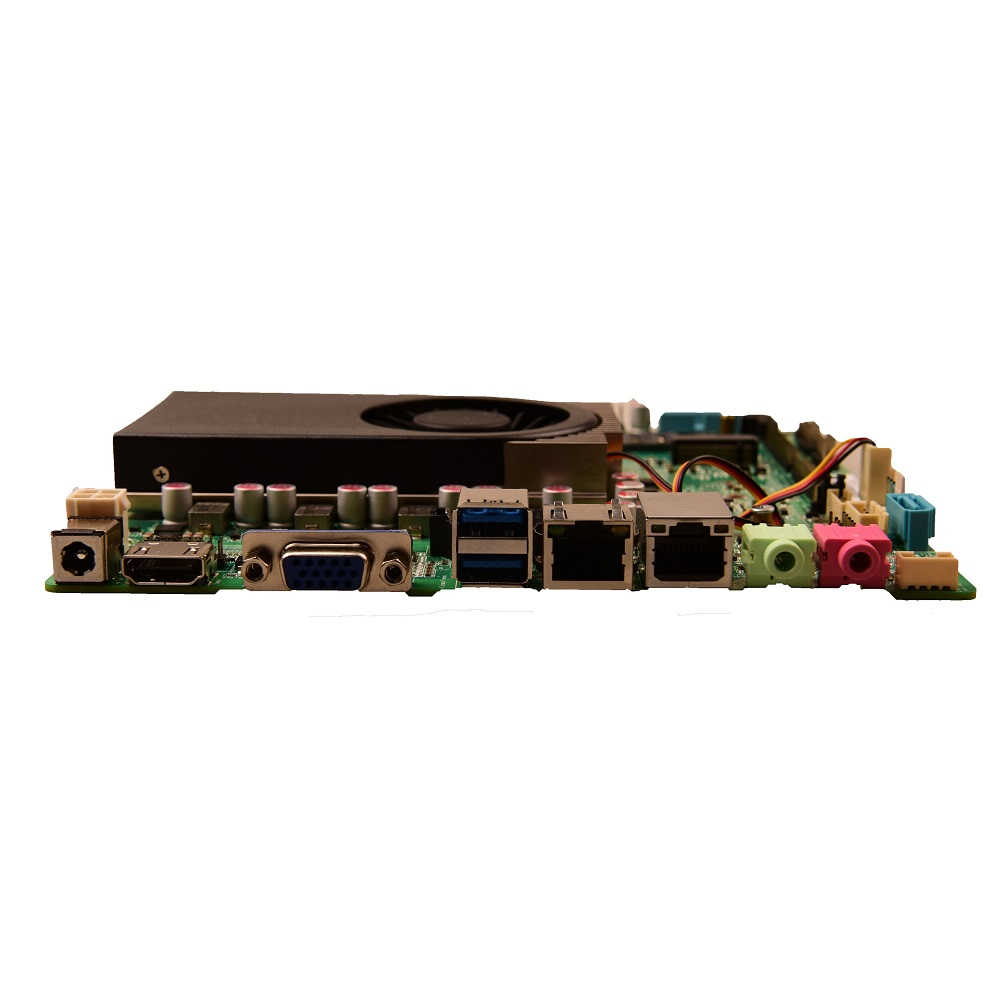

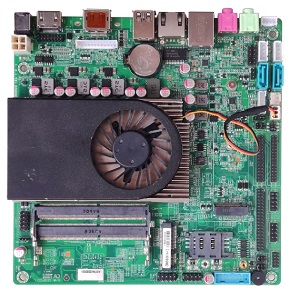

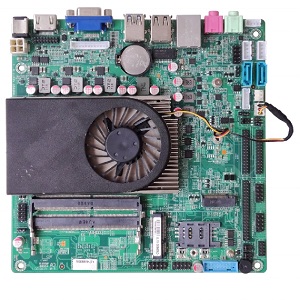

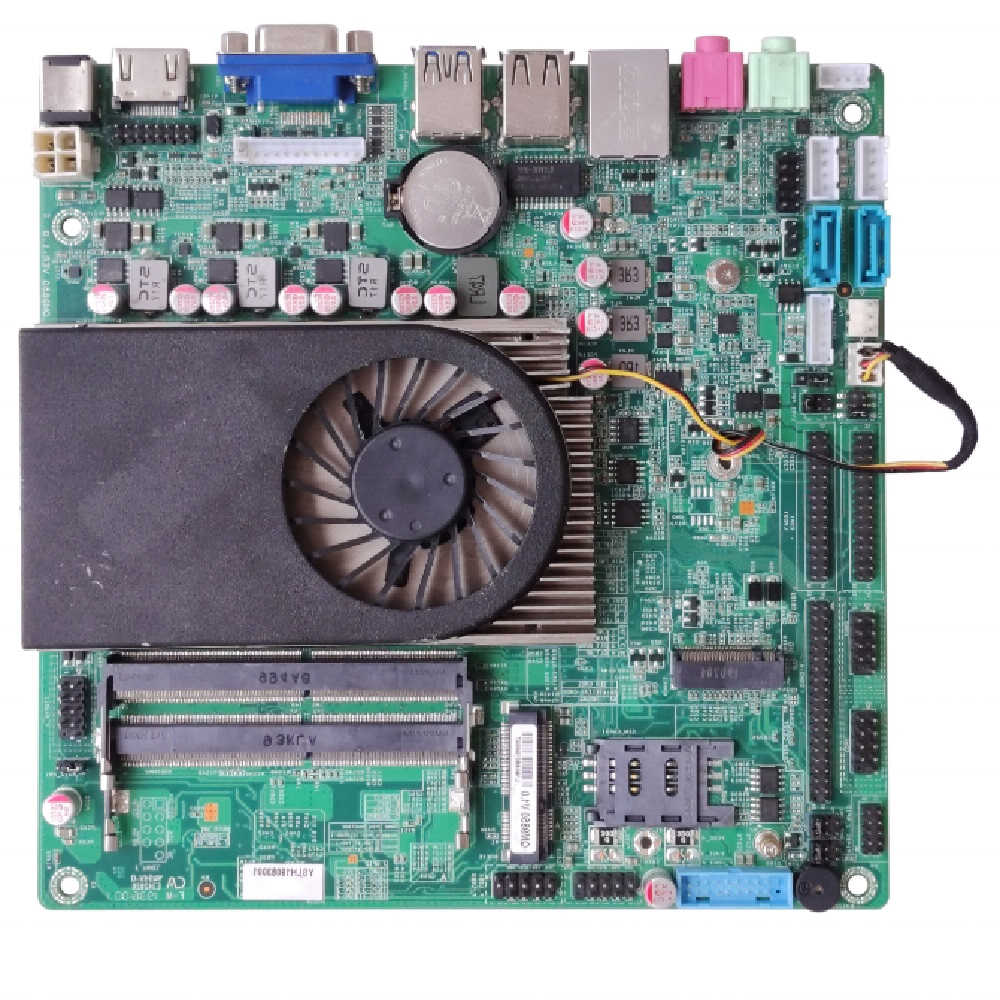

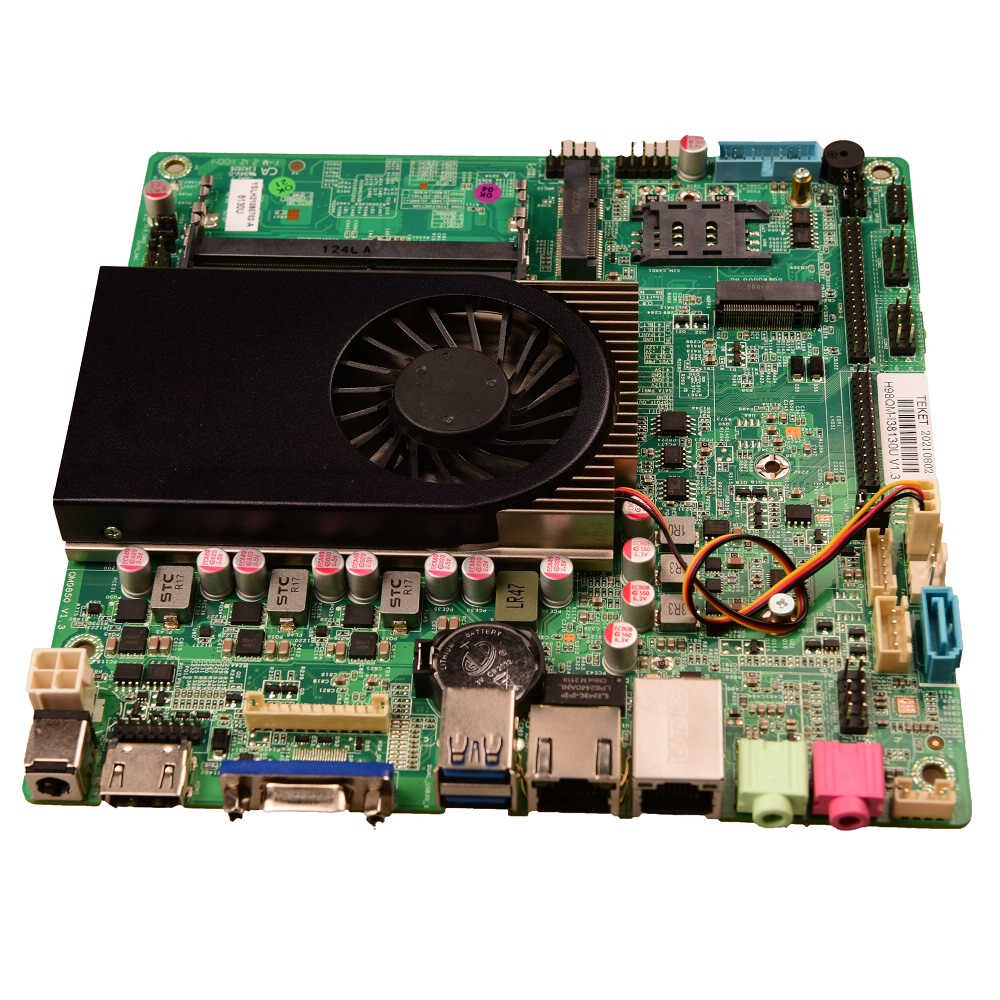

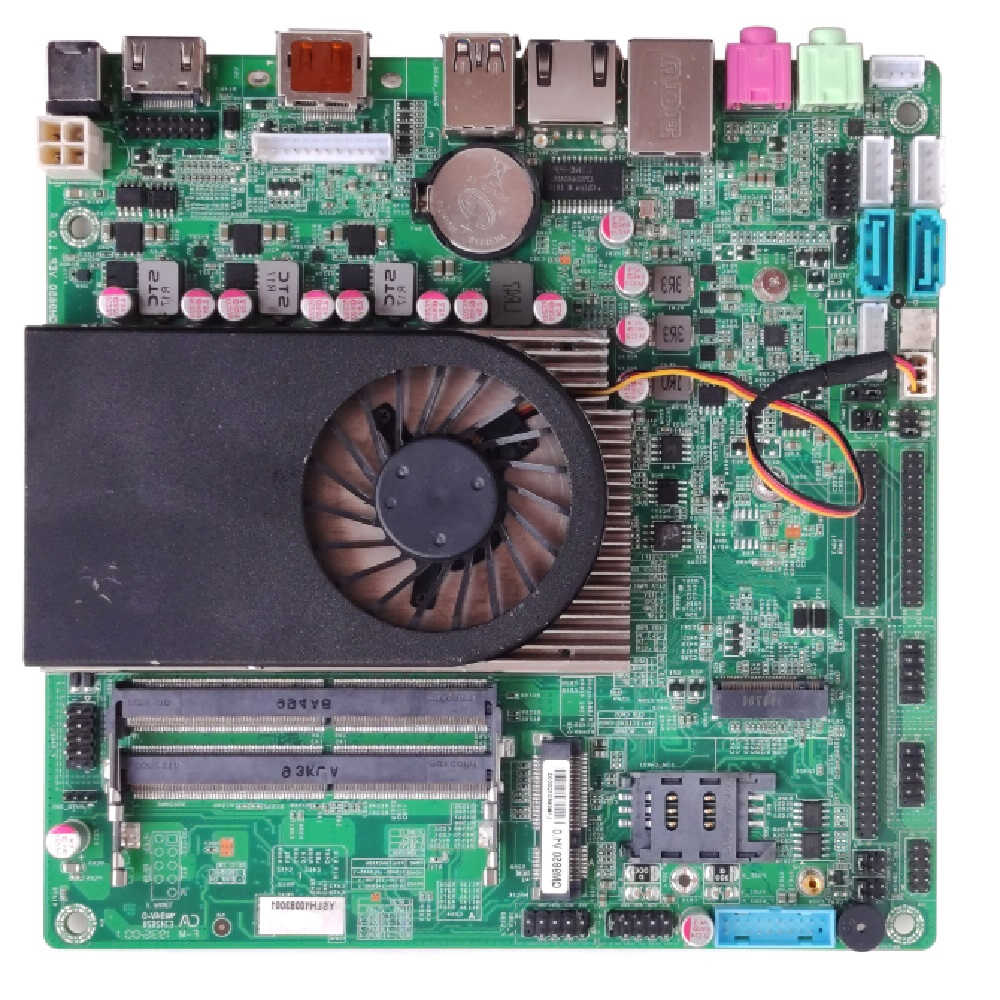

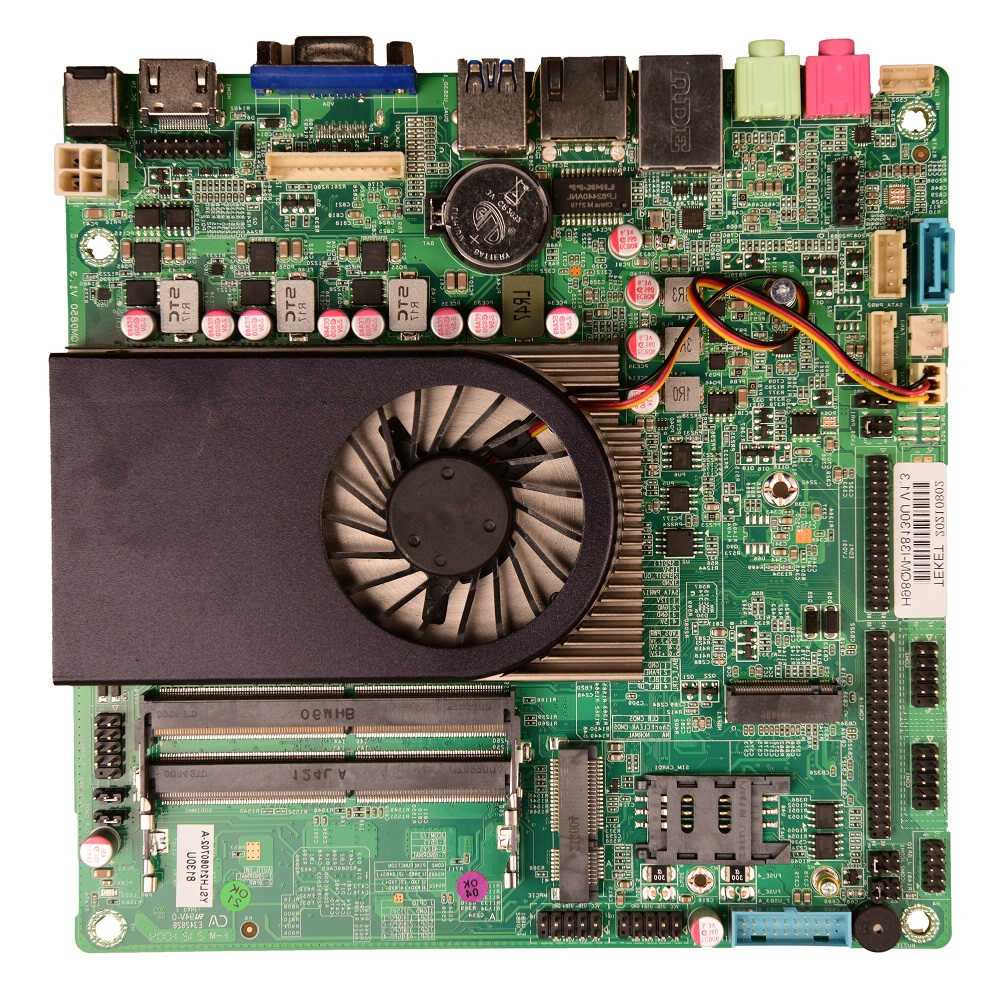

Nodel: H98QM

Spec
mini-itx, 170x170mm,slim, all-in-one
CPU
H98QM support Kaby Lake and Kabylake R i3/i5/i7
Chipset
Intel SOC
RAM
2*SO-DDR4 up to 32GB
Windows 8/Windows 10, linux
Display
Intel HD core, support DVMT
support HDI,VGA,LVDS, three panels display
HDI support 4K
support dual 8bit 24bit LVDS and EDP
Storage
2*SATA3.0, 1*MSATA 3.0
Networks
1 or 2 LAN(RTL8111F)
AUDIO
Realtek ALC662 HD
Supoort line-in,line-out, 3w/5w speaker
I/O
4*USB3.0l 6*USB2.0,6*RS232(COM),1*RS485,support COM 5V/12V power
watch dog
extended BUS
2*MINI PCE support WIFI/3G/MSATA/GPS
POWER
DC12V/19V
10-60c
5%-95%
BIOS
AMI BIOS
OS

Order Information
H98QM-I37020U KabyLake i3-7020U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC
H98QM-I57200U KabyLake i5-7200U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC
H98QM-I77500U KabyLake i7-77500U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC
H98QM-I38130U Kaby Lake R i3-8130U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC
H98QM-I58250U Kaby Lake R i5-8250U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC
H98QM-I58265U Kaby Lake R i5-8265U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC
H98QM-I58259U Kaby Lake R i5-8259U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC
H98QM-I78550U Kaby Lake R i7-8550U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC
H98QM-I78650U Kaby Lake R i7-8650U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC
H98QM-I78665U Kaby Lake R i7-8665U,2*DDR4,1*LVDS/1*VGA/EDP,1*HDMI,1/2*LAN,8-10*USB,6*COM,12-19VDC

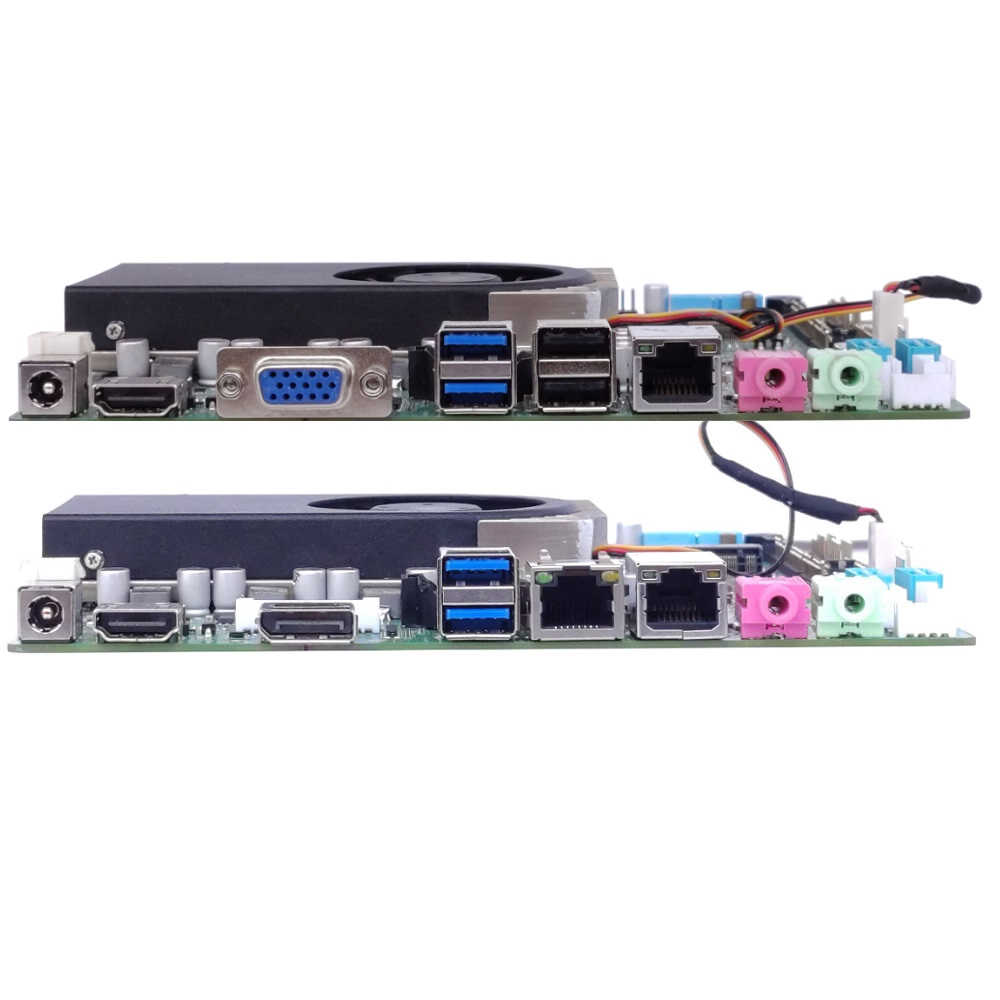

Notice: Optional VGA/HDMI,LVDS/EDP,1/2*LAN， default: VGA,LVDS,1*LAN
