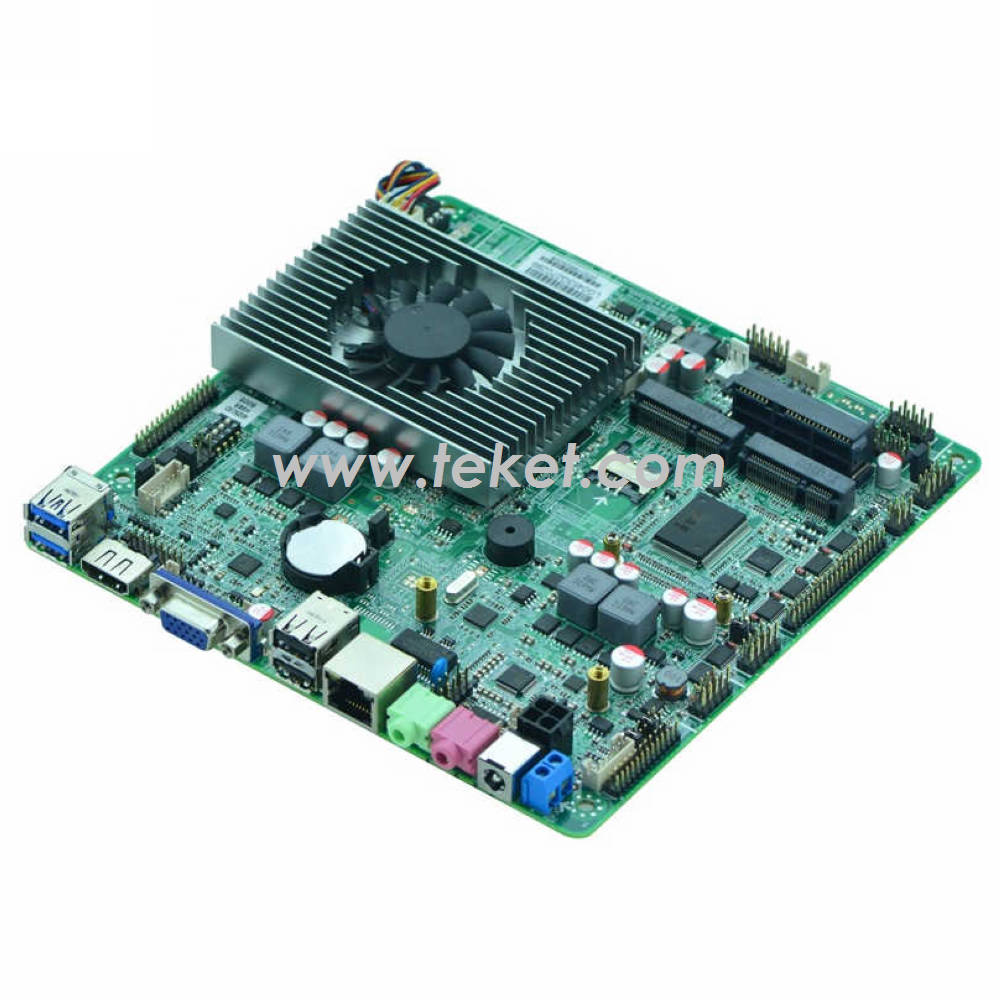

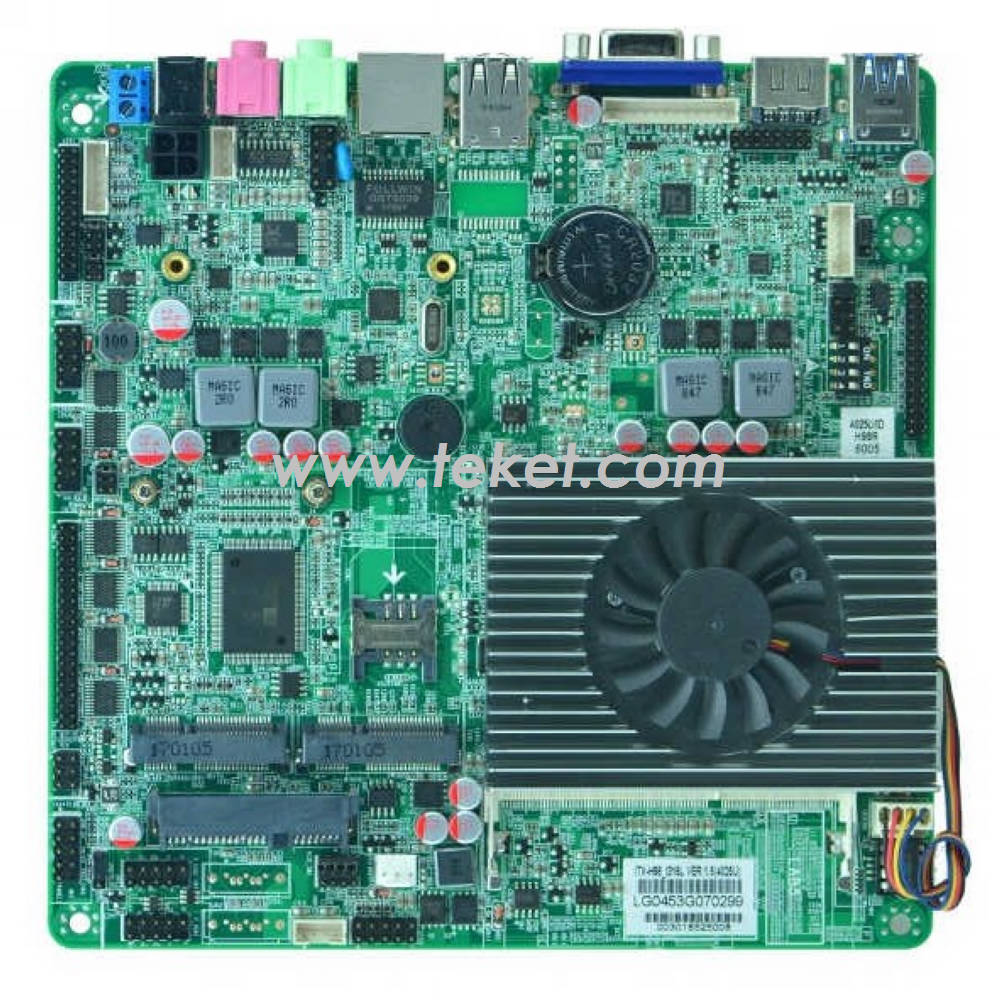

Haswell SOC Chipset i3/i5/i7 Pentium Thin ALL-IN-ONE MINI-ITX Motherboard H98UT

For Industral application

Haswell-U
H98UT VER:1.5
Intel? 4th Haswell_U/I3-4025UU/1.9GHz dual core four thread processor TDP 15W
Intel?Haswell-U/Broadwell-U SOC platform
1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory.up to8GB



Model No. H98UT VER:1.2
CPU
Support Intel? 4th Haswell_U/I3-4025U/1.9GHz dual core four thread processor TDP 15W
Compatible Intel Celeron,Pentium,core?I3/I5/I7 Haswell/Broadwell-U Processor
Chipset
Based on Intel?Haswell-U/Broadwell-U SOC platform
Memory
Support 1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory.up to8GB
Graphics
Integrated Intel?HD Graphics4400
Provide 1*VGA,1*HDMI,1*LVDS (support dual channel 24BIT)
Support VGA;HDMI;LVDS synchronous/asynchronous display
LAN
Integrated 1* Realtek RTL8111F Gigabit Ethernet(LAN1 andUSB1 two choose one),support wake on LAN/PXE
Storage
Provide 2*SATA 7pin HDD interface (whether to support the 2* SATA interface depending on the CPU model,4025U do not have the 2* SATA HDD interface)
1*SATA3.0 2.5 inch Notebook hard dis place
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier
Amplifier proposed using 2Ω5W speakers
Expansion slots
1* Mini-PCIE slot support WIFI/3G module
1* MSATA slot support SSD/WIFI ,the transfer rate up to 6Gbps

Rear I/O
1* 12V DC JACK input
1* 2pin 12V DC power input(can do 12V power input/output interface)
1* HDMI
1* VGA
2* USB 3.0,2*USB2.0
1* RJ-45 Gigabit Ethernet connector(LAN1 andUSB1 two choose one)
1* Line out (Green)
1* MIC (Red)

Internal I/O
1* 4pin ATX power input(can do 12V input/output power interface)
1* PS/2 KB/MS connector 1*6Pin
1* JVGA1 1*12Pin, , same signal with DB15
1* J_HDMI 2*8pin, , same signal with HDMI
6* RS232 serial port(can do 2* or 6* serial port), COM3 supportRS485/RS422
1* LVDS 2*15pin, support dual channel24bit(double 8)
1* LVDS Backlight power supply connectore 1*6pin
1* front panel audio connector 2*5pin
1* Front panel power amplifier connector 1*4Pin
3* USB 2.0 2*5Pin( F_USB3 andUSB1 two choose one), F_USB2 only supports 1 USB2.0 interface
1* front panel function buttons and indicator connector 2*5pin
1* LPT 2*13pin
1* PWROUT(HDD power supply connector) 1*4pin
1* SIM card socket
1* GPIO
FAN interface
1*4pin CPUFAN,1* 3pin system FAN
GPIO
Support 4 way input and output GPIO
BIOS
AMI 64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
DC_12V power input
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm

Order information:
H98UT-I75550
H98UT-I74650-D16 (4650U), i7-4650U,1.7G,1*SODDR3L,1*VGA+1*HDMI,2*24bitLVDS,1*LAN(RTL8111F),7*USB,6*COM(COM3_RS485/422),12VDC
H98UT-I74510-D16 (4510U), i7-4510U,2.0G,1*SODDR3L,1*VGA+1*HDMI,2*24bitLVDS,1*LAN(RTL8111F),7*USB,6*COM(COM3_RS485/422),12VDC
H98UT-I54300-D26 (4300U), I5-4300U,1.9G,1*SODDR3L,1*VGA+1*HDMI,2*24bitLVDS,2*LAN(RTL8111F),7*USB,6*COM(COM3_RS485/422),12VDC
H98UT-I55200-D16 (5200U), I5-5200U,2.0G,1*SODDR3L,1*VGA+1*HDMI,2*24bitLVDS,1*LAN(RTL8111F),7*USB,6*COM(COM3_RS485/422),12VDC
H98UT-I54300-D16 (4300U), I5-4300U,1.9G,1*SODDR3L,1*VGA+1*HDMI,2*24bitLVDS,1*LAN(RTL8111F),7*USB,6*COM(COM3_RS485/422),12VDC
H98UT-I54200-D12 (4200U), I5-4200U,1.6G,1*SODDR3L,1*VGA+1*HDMI,2*24bitLVDS,1*LAN(RTL8111F),7*USB,2*COM,12VDC
H98UT-I54278-D12 (4278U), I5-4278U,2.6G,1*SODDR3L,1*VGA+1*HDMI,2*24bitLVDS,1*LAN(RTL8111F),7*USB,2*COM,12VDC
H98UT-I34025-D12 (4025U), I3-4025U,1.9G,1*SODDR3L,1*VGA+1*HDMI,2*24bitLVDS,1*LAN(RTL8111F),7*USB,2*COM,12VDC
