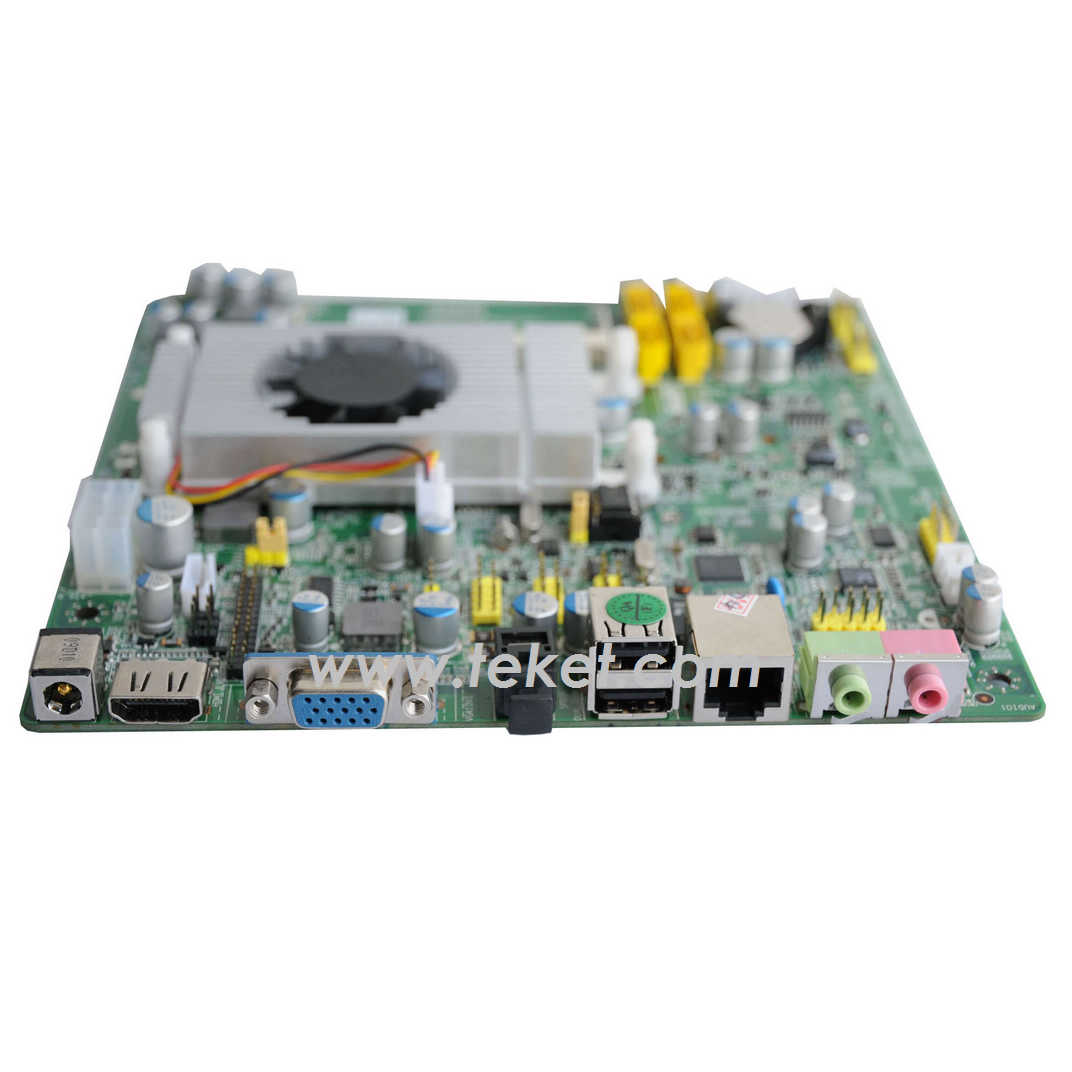

Intel Atom N330 Mini-ITX Motherboard IONN3M7A with nVidia MCP7A

For HTPC



Product Description:
Specification

CPU: Intel Atom 1.6GHz N330 fanless CPU onboard
Chipset: nVIDIA MCP7A
BIOS: RPL/PXE support

Memory: tw0 200-pin DDR2 SDRAM Small Outline Dual Inline Memory Module (SO-DIMM) sockets
Support for DDR2 667/800 MHz SO-DIMM
Support for up to 4GB of system memory

Display Core: Nvidia GF9400M£¬Support DirectX 10

Video(N3M7A): 0*VGA, 1*HDMI,1*LVDS,1*DVI
Video(N3M7A-C): 1*VGA, 1*HDMI,0*LVDS,0*DVI (simplified version for OEM)

Resolution:
Display memory: Share up to 256M of system memory
HDMI+SPDIF/1080P FULL HD support(H.264¡¢MPEG-2¡¢VC-1 etc.)

Storage Interface:
2*SATA2

Expansion Slots:
0*PCI
2*MINI PCI-E

LAN: 1*Realtek8111C, support Integrated 10/100/1000 network connection

Audio: Realtek ALC662, 6 channel Intel High Definition Audio

USB: 6 Hi-Speed USB 2.0 ports (2 back panel ports, 4 ports via header)

0*PS/2 ports(keyboard+mouse)
2*Serial headers(RS232)
0*Parallel header(LPT)
1*SPDIF
1*IR

Power Supply: 12vdc in (bulitin ATX power supply)
Form Factor: Mini-ITX(170*170mm)

Ordering Information
ITEM:
N3M7AD: Video 0*VGA, 1*HDMI,0*LVDS,1*DVI
N3M7AL: Video 0*VGA, 1*HDMI,1*LVDS,1*DVI

N3M7AV: Video 1*VGA, 1*HDMI,0*LVDS,0*DVI
N3M7AVL: Video 1*VGA, 1*HDMI,1*LVDS,0*DVI
