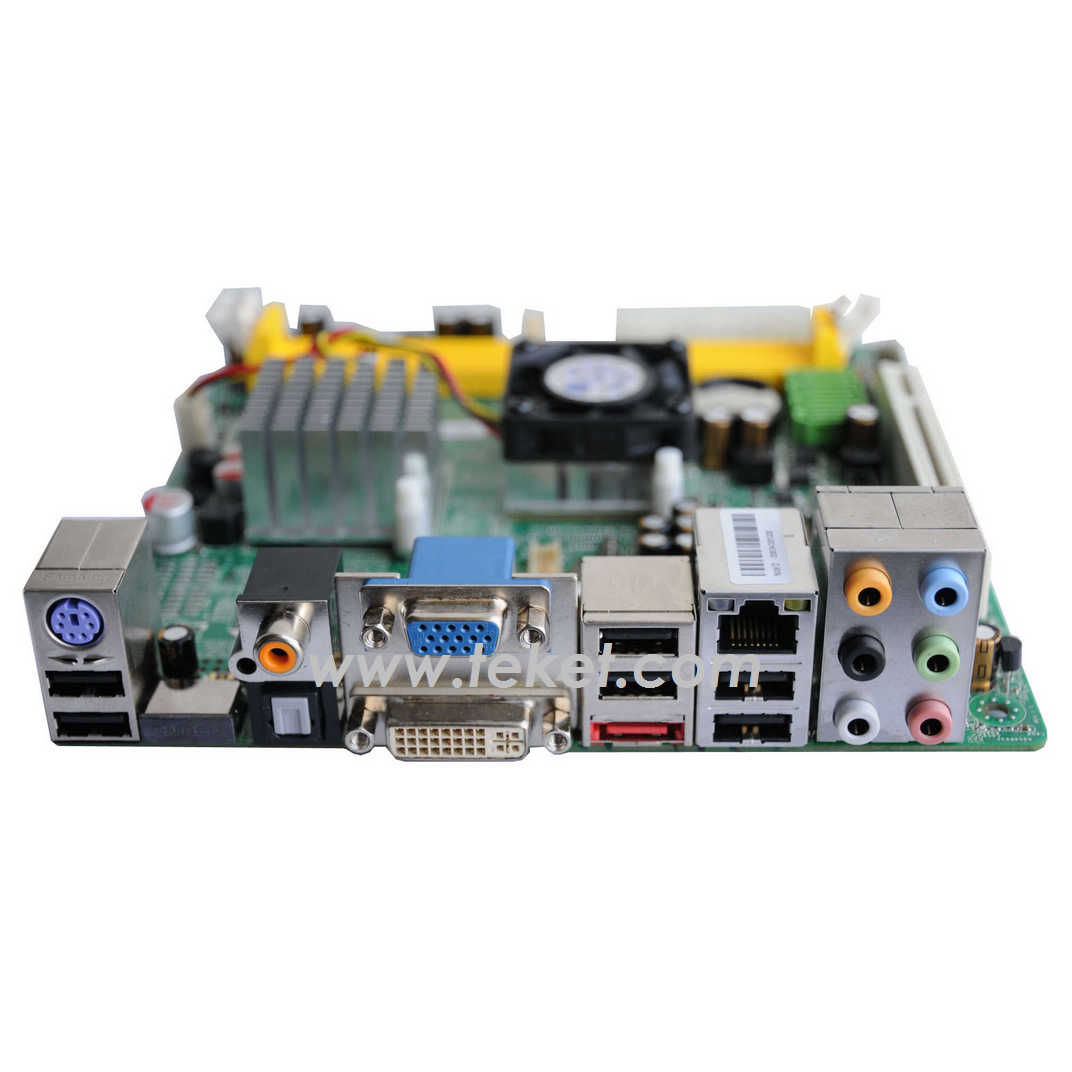

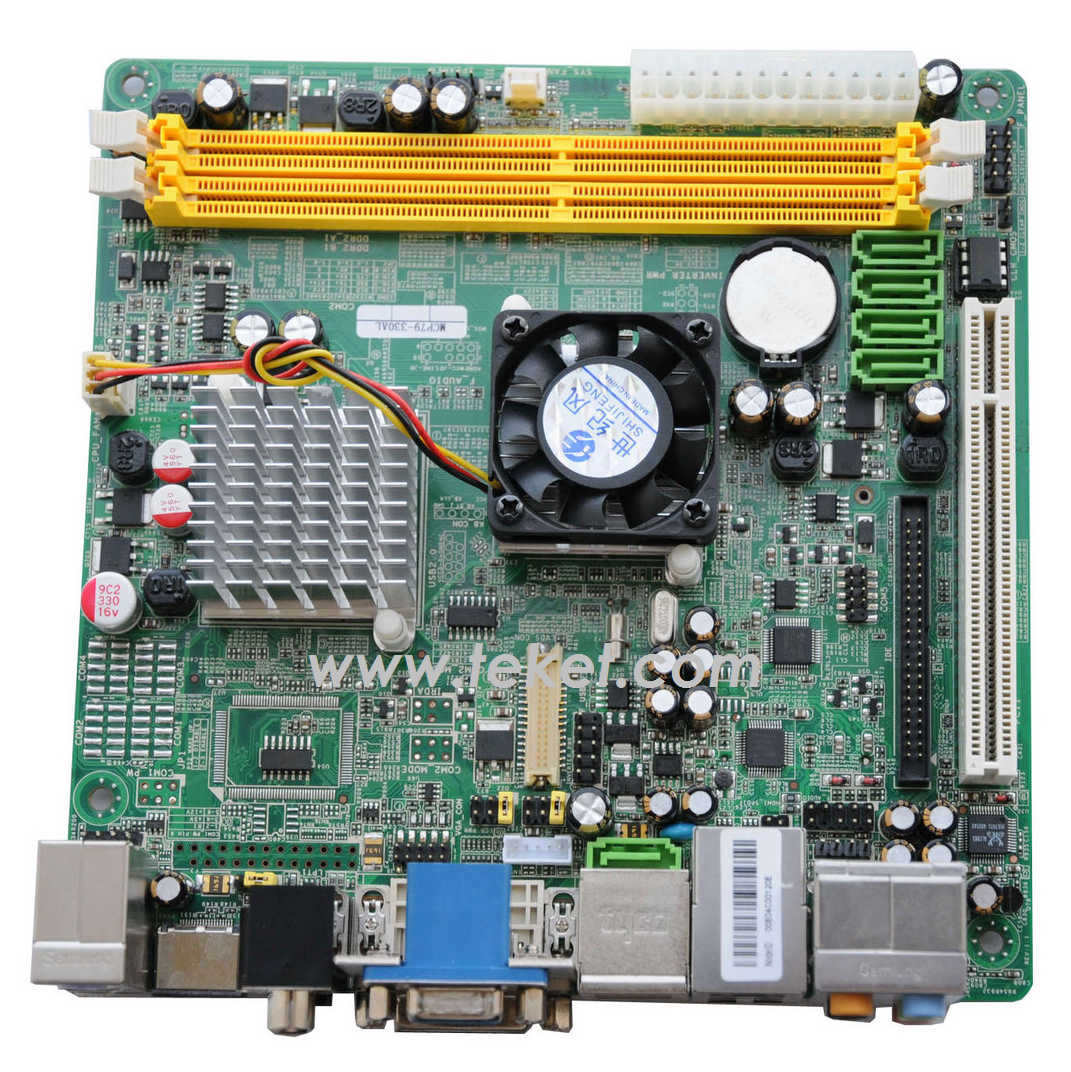

Intel Atom N330 Mini-ITX Motherboard ION-N3ZR with nVidia MCP79/7A

For HTPC

--ION-N3ZR: (ATOM N330+Nvidia MCP79(GF9400))+3*COM
--ION-N3ZR-L: (ATOM N330+Nvidia MCP79(GF9400))+1*COM+LVDS


Product Description:
Specification

CPU: Intel Atom 1.6GHz N330 CPU onboard
Chipset: nVIDIA MCP7A
BIOS: RPL/PXE support

Memory: two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for up to 4GB of system memory, Dual channel DDR2-800

Display Core: Nvidia GF9400M£¬Support DirectX 10
Shader Model 4.0,Pure Video HD

Resolution:
Display memory: Share up to 256M of system memory
HDI+SPDIF/1080P FULL HD support(H.264¡¢MPEG-2¡¢VC-1 etc.)

Storage Interface:
4*SATA2

Expansion Slots:
1*PCI
1*MINI PCI-E

LAN: 1*Realtek8111C, support Integrated 10/100/1000 network connection

Audio: Realtek ALC883, 8 channel Intel High Definition Audio

USB: 6 Hi-Speed USB 2.0 ports (6 back panel ports, 2ports via header)

1*PS/2 ports(mouse)
1*Serial headers(RS232)
0*Parallel header(LPT)
1*IDE
1*IR
1*DVI
1*VGA
1*HDI
1*SPDIF(Fiber+RCA)
0*LVDS

Operation System support: Windows 2000 SP4,Windows XP SP2,Windows Vista and Linux Ubuntu 7.1 (with Device Driver)

Power Supply: 2*12pin ATX connector
Form Factor: Mini-ITX(170*170mm)

Order informatio:
ION-N3ZR (NO_LVDS+3*COM)
ION-N3ZRL (LVDS+1*COM)
