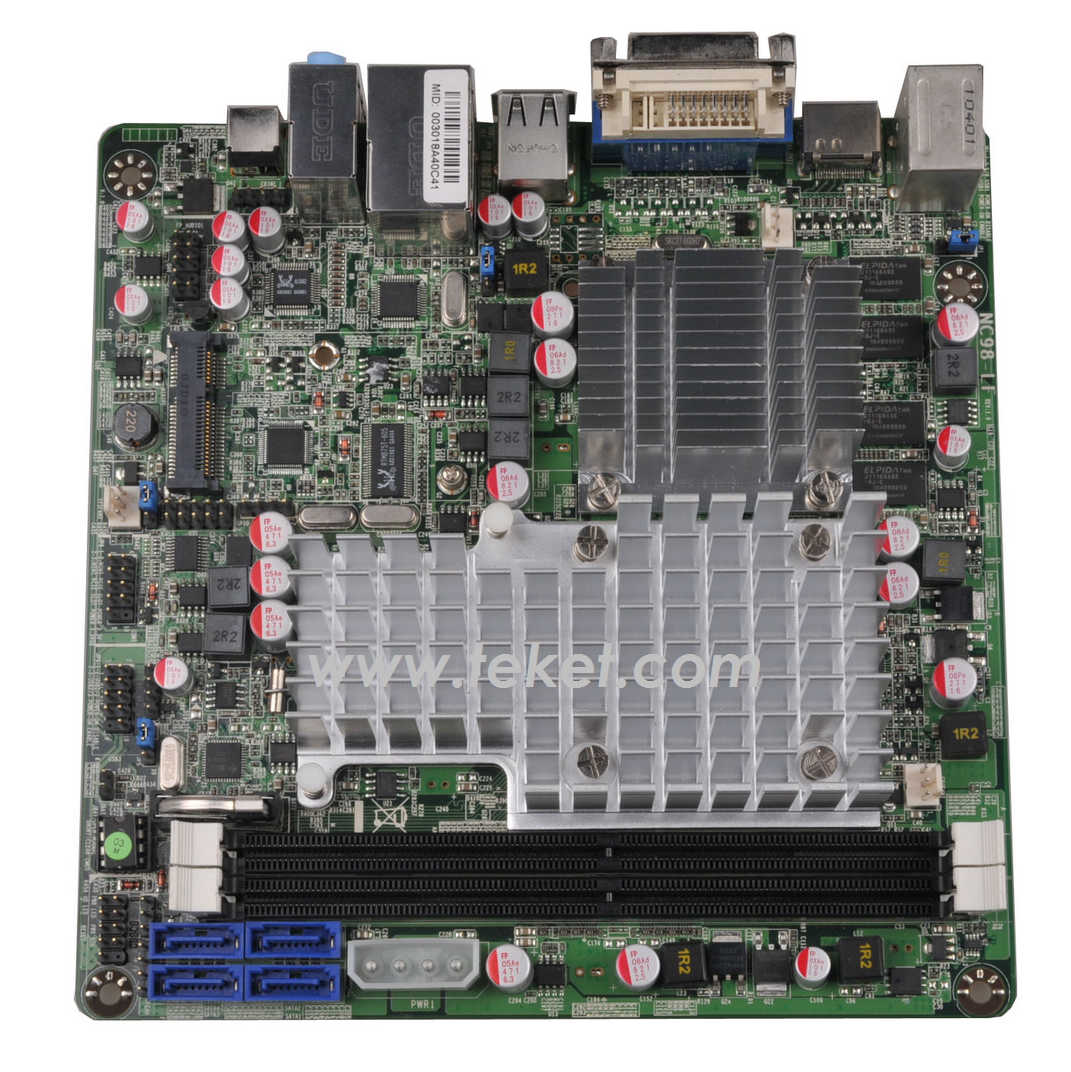

Atom D525 Mini-ITX Motherboard D525JW with Nivida GT218

INTEL? Atom Processor D510/D525 + NM10 Express Chipset +NVIDIA? ION2 GPU
Support INTEL? Atom Processor D510 / D525
Support Single Channel DDR 800 / 667
Supports 10 / 100 / 1000 LAN
Integrated ALC662 HD Audio CODEC with 6-CH
Compliance with EuP standard
Support CPU Smart FAN
Support ACPI S3 Function
Support Power on board



CPU
INTEL ? Atom Processor D510 (45nm, 1.66GHz,1024MB L2 Cache)
INTEL ? Atom Processor D525 (45nm, 1.80GHz,1024MB L2 Cache)

Chipset
INTEL? Atom Processor D510 / D525 +NM10 Express Chipset

Memory
2 * 240-pin DIMM Sockets for un-buffered Single Channel DDR2 800/667 SDRAM up to 4 GB

Storage
4 * Serial ATA2 3Gb/s connectors. SATA 3 & 4 Support RAID 0, 1, JBOD

Audio
Realtek ALC662 6-Channel HD Audio CODEC

Ethernet LAN
Realtek 8111DL 10/100/1000 LAN

USB
Embedded 7 * USB 2.0/1.1


Special Features
Intel Atom Processor D510 / D525
Support DC FAN
Support CPU Smart Fan

Rear Panel I/O
4 * USB 2.0/1.1 ports
1 * PS/2 KB/MS Connector
1 * Audio I/O ports ( Line-in, MIC and Line-out ) & 1 * Optical Out
1 * VGA port / 1 * DVI-D port / 1 * HDMI port
1 * 12V DC in
1 * Gigabit LAN

Internal I/O
2 * USB 2.0 headers for 3 * USB 2.0 ports
3* FAN headers
1 * CD IN /1 * GPIO
1 * AUDIO header
1 * CIR header
1 * COM header
1 * MINI PCI-E connector

BIOS
AMI Flash ROM Write protect

Functional
Data Storage, medical Equipment, Media Center application, Networking, General Application, Gaming Machine

Certificate
CE, FCC, RoHS

Temperature
Operating within 0~50 centigrade (Suggest to use system FAN)
Storage within -20-85 centigrade

Form Factor
Mini ITX Form Factor(17cmx17cm)

PCB Form Factor Mini-ITX
Dimensions 170mm*170mm
