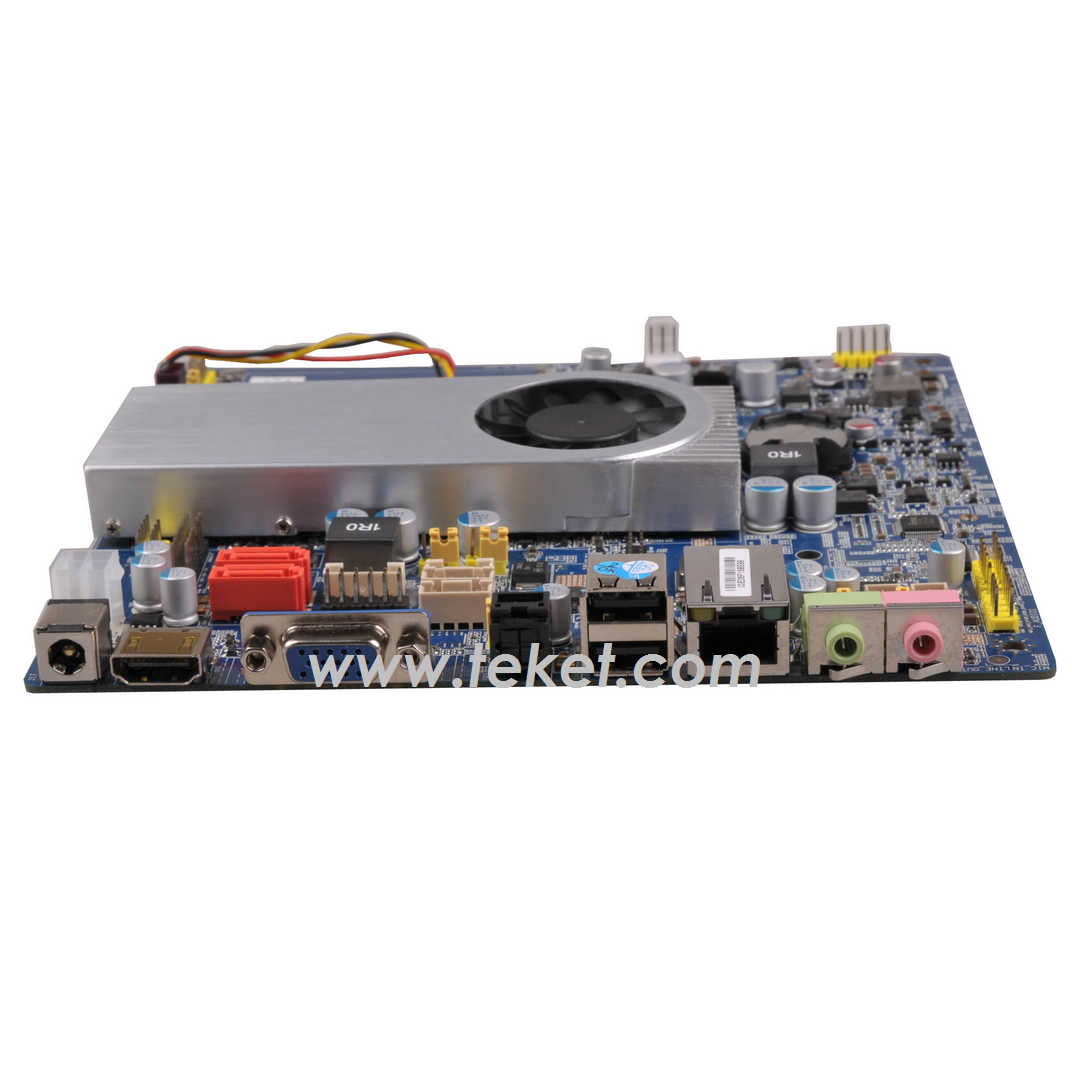

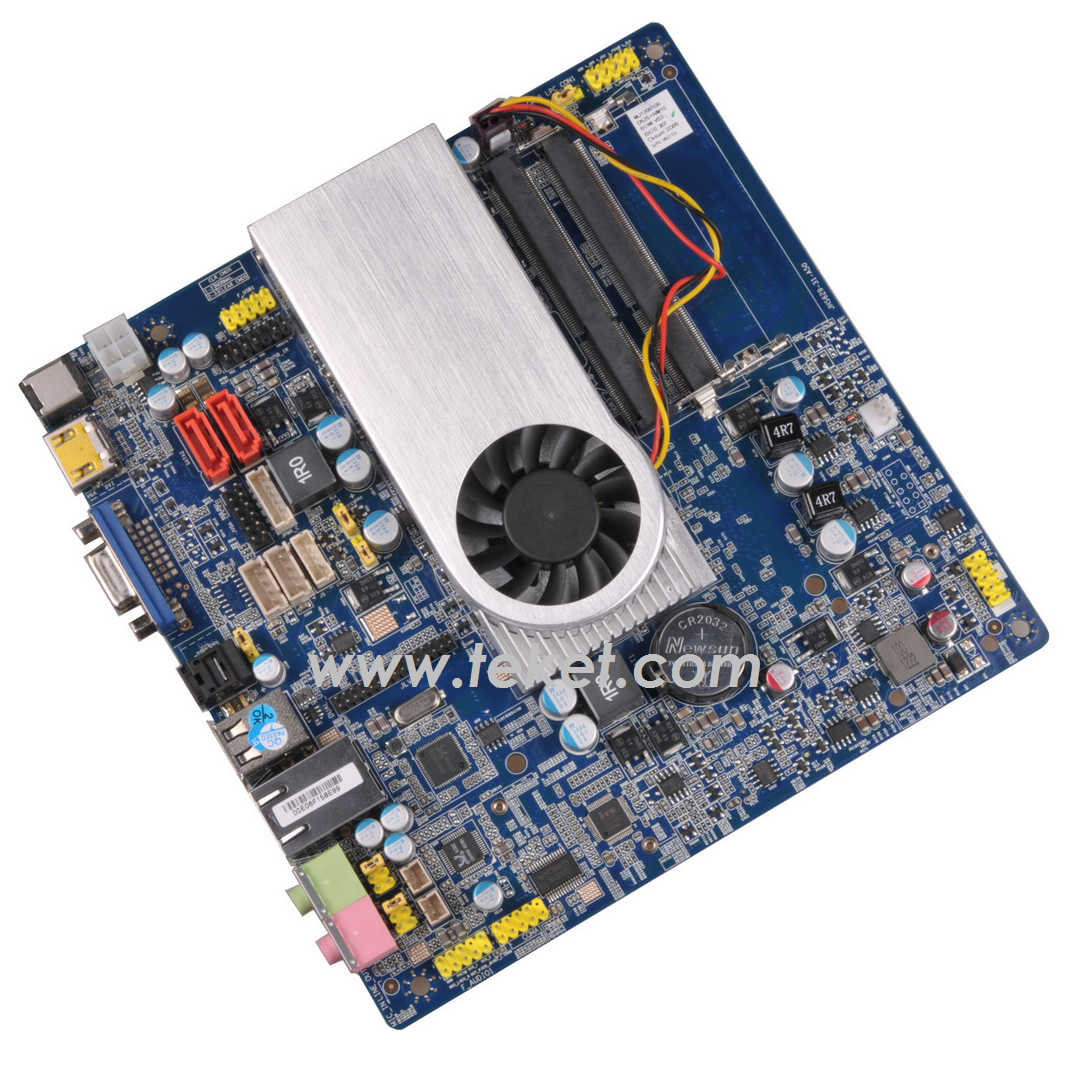

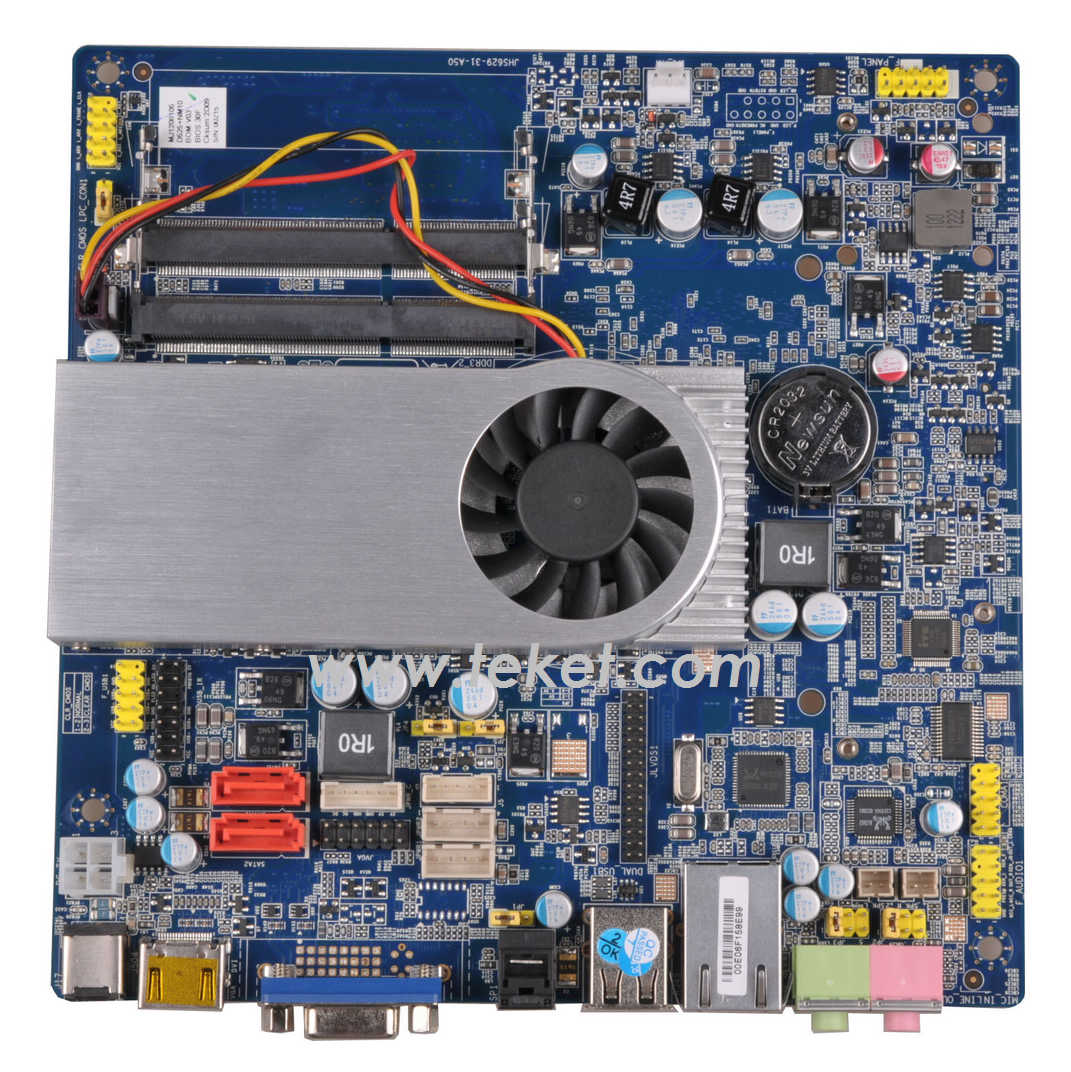

Intel Atom D525 Mini-ITX Motherboard ION2MI with nVidia ION2

For HTPC

MODEL: ION2MI
Chipset:
Processor:INTEL ATOM D525
Graphics:NVIDIA ION
Memory:SO-DIMM DDR3




CPU Intel® CPU on Board
Dual-core Intel® Atom™ D525/D425 processor (optional)
Chipset Intel® NM10 Express

GPU NVIDIA® GT218-ION

System Memory 2 x SO-DIMM, DDR3-800MHz, Max. 4 GB
512MB VRAM on board
Expansion Slots 2 x Mini PCIe (1 x Mini-PCIe, 1 x mSATA)

Storage Intel® NM10 Express Chipset built-in
2 x SATA Ⅱ 3.0 Gb/s ports
LAN Realtek RTL8111D Gigabit LAN controller

Audio High Definition Audio CODEC
Supports Optical S/PDIF out ports on rear
USB 6 USB 2.0/1.1 ports (4 ports on board, 2 ports on back panel)

Back Panel I/O Ports 2 x USB 2.0/1.1
1 x HDI port
1 x DVI port
1 x LAN port (RJ45)
1 x Optical S/PDIF-out port
1 x 2 Jack audio interface
1 x DC-in power Jack (For 12V/19V adapter)
Internal I/O Connectors 2 x USB headers support for 4 USB 2.0 ports
2 x SATA Ⅱ connectors
1 x COM header
1 x 4-pin ATX 12V Power connector
1 x 24-bit LVDS connector

Form Factor Mini-ITX Form Factor
6.75inch x 6.75inch (17.1cm x 17.1cm)
