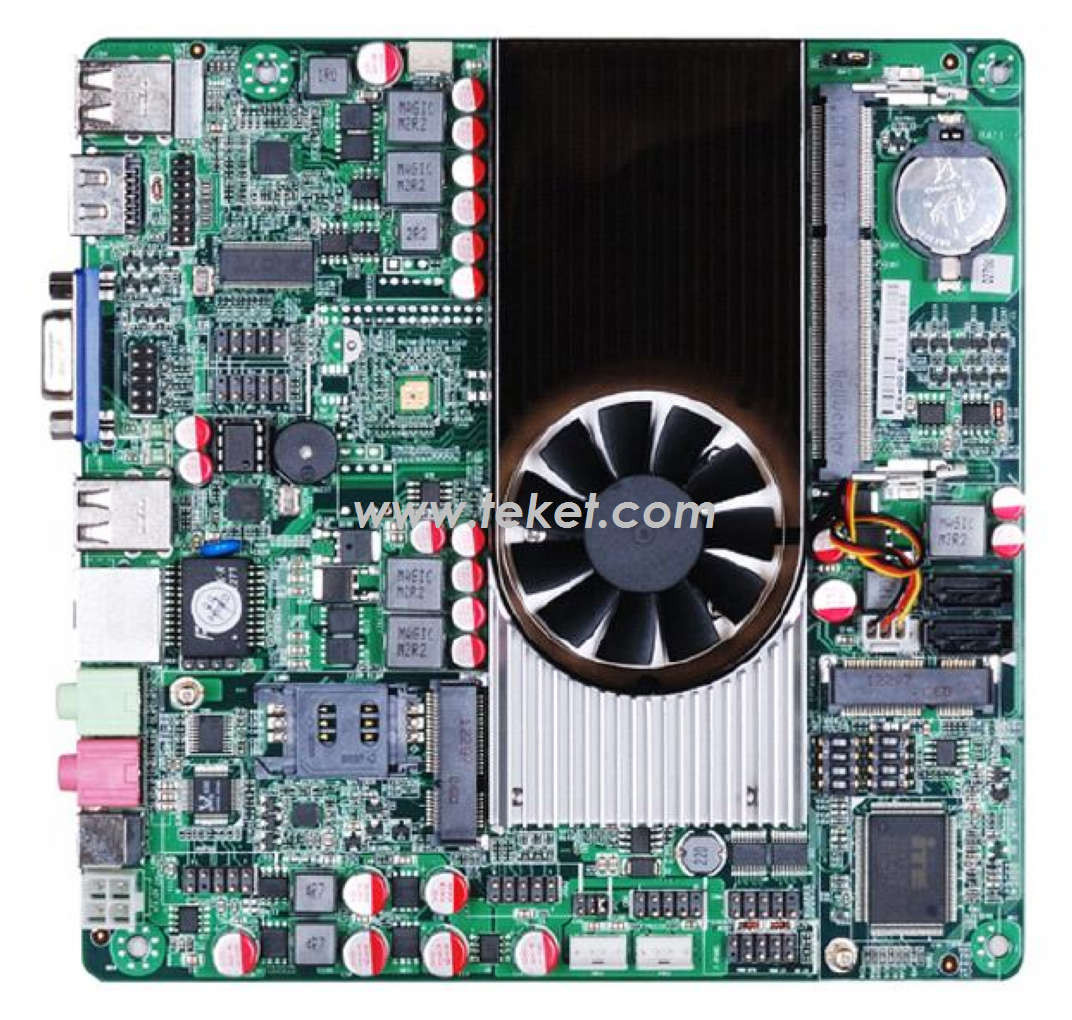

Intel Atom D2700 Mini-ITX Motherboard ION3-D2700ZX with nVidia ION3 GT520

For industral or HTPC, slim board

MODEL: ION3D2700XZ
Chipset:
Processor:INTEL ATOM D2700
Graphics:NVIDIA ION GT520
Memory:SO-DIMM DDR3

CPU Intel ATOM dual core D2700 2.13Ghz
Intel ATOM dual core D2560 2.00Ghz
Chipset: Intel NM10 chipset
RAM: 1*SO-DOMM DDR3 800/1066Mhz, up to 4GB
Display: Built-in Nvida GT520, 2GB chache, 1080p playback, 2*VGA,1*HDMI
Audio: Realtek ALC662, 6 channel,, support MIC,Line_out
Lan; 1*RTL8111E, 10/100/1000Mpbs, Wake-up, PXE
Expansion: 1*MINI-PCIE (support WIFI/3G)
Storage: 2*MINISATAT (suport SSD)
Back I/O shield:
1*DC12V_IN
4*USB 2.0
1*RJ-45
2*MIC,Line_out
1*HDMI
1*VGA
Built-in I/O:
2*PWROUT(for HDD,pin1:12v,pin4:5v)
4*USB 2.0 (2*USB if mini-pcie in USB mode)
2*RS232
1*Audio (2*5),CD_IN
1*CPUFAN,1*SYSFAN
2*VGA(2*5pin)
1*HDMI (2*8pin)
1*PS/2 (keyboard, mouse)
1*ATX_12V(2*2pin,supprt 12v in/ouput)
BIOS: AMI 16MB Flash ROM
Watch Dog: hareware reset (256degree,0-255sec)
Power Supply: DC_12V single input
Work Temp: -10~60c
Work Humidity: 0-95%
Factor: 170x170mm,MINI-ITX






CPU Intel® CPU on Board
Dual-core Intel® Atom™ D2700 processor
Chipset Intel® NM10 Express

GPU NVIDIA® GT520-ION

System Memory 2 x SO-DIMM, DDR3-800MHz, Max. 4 GB
512MB VRAM on board
Expansion Slots 2 x Mini PCIe (1 x Mini-PCIe, 1 x mSATA)


Form Factor Mini-ITX Form Factor
6.75inch x 6.75inch (17.1cm x 17.1cm)
