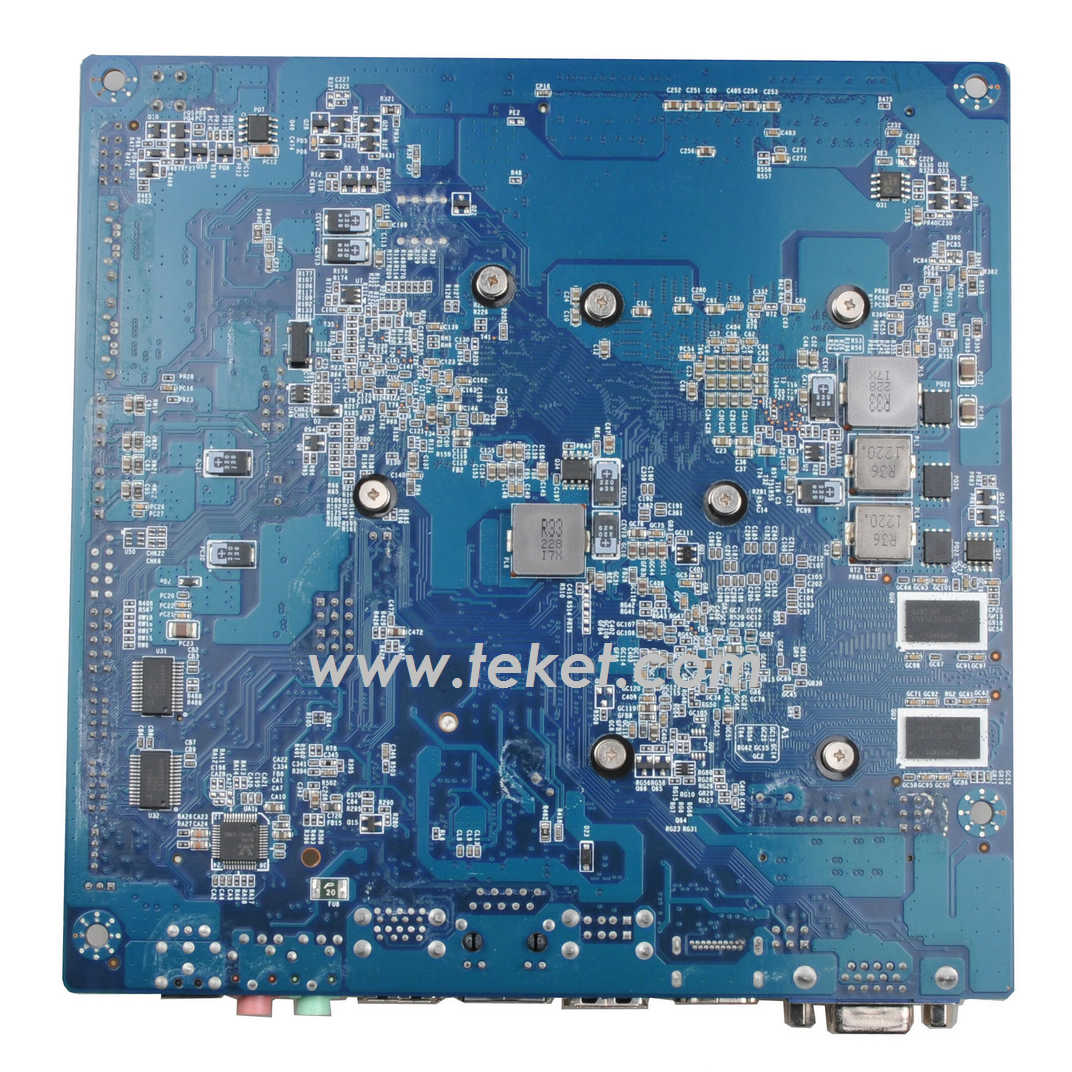

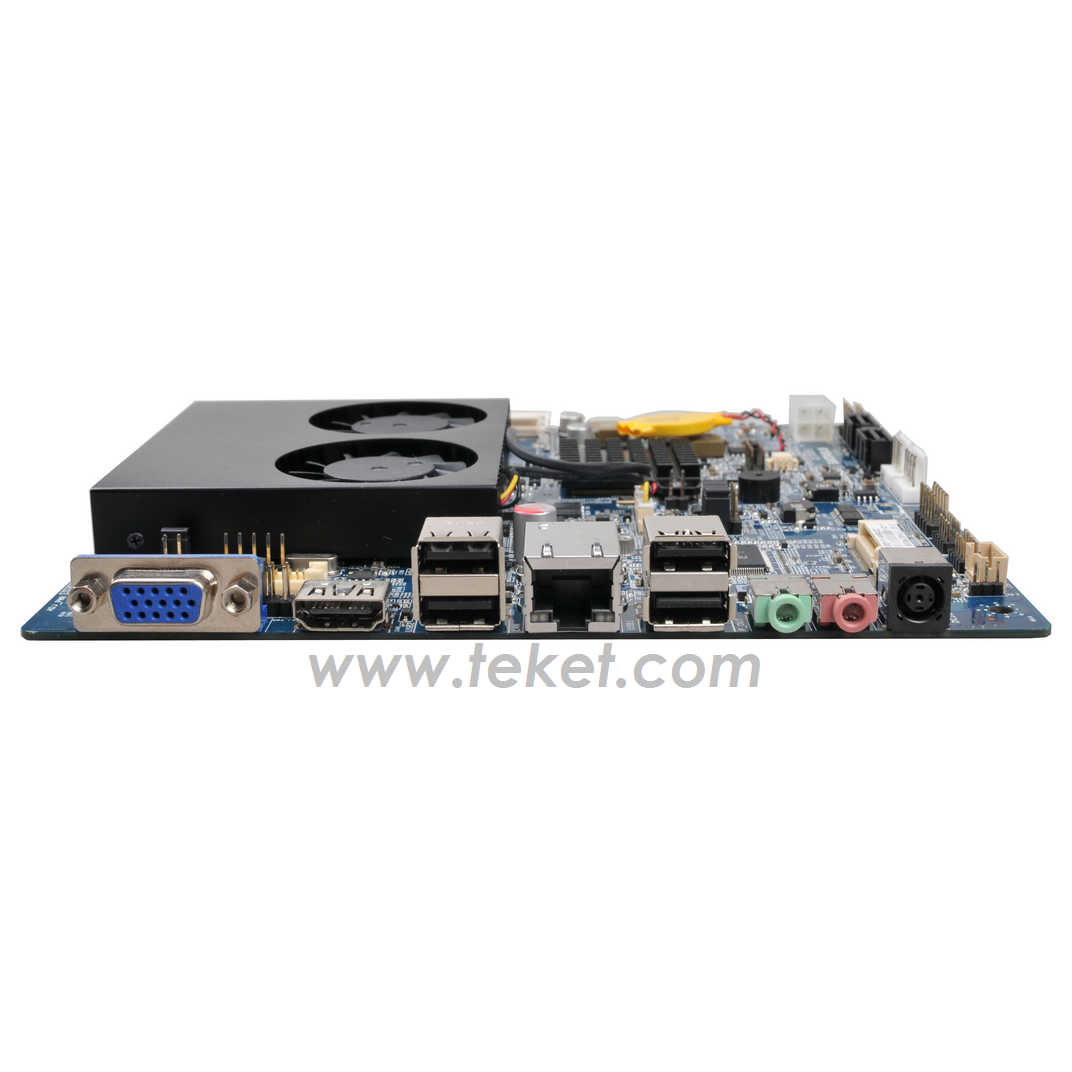

Intel Celeron 1037U Mini-ITX Nvidia GT630/GT730 onboard ION4-C1037JDG


Intel NM70 single chip
Onboard Intel® Celeron 1037 dual core 1.80G cpu,2MB L3 chache
1*SO-DOIMM slot,support DDR3 1066/1333 up to 8GB
Onboard Nvidia GF119 gracphics core,512M/1GB display cache option
VGA/HDMI/ dual channel 24bit LVDS interface, support single/dual channel 18/24 bit LVDS panel
Realtek ALC 662 , support amp function
1*Realtek 8111E 10/100/1000M adaptive network card chip



Processor: onboard Intel Celeron 1037 dual core 1.80G processor, 2MB L3 cache
The cooling system fan active cooling
The chipset Intel NM70 single chip
Memory 1 notebook memory slot, supports DDR3 1066/1333 maximum capacity of 8GB
The expansion of 1 MINI PCI-E (WIFI/SSD).
Display chip board Nvidia GF119 independent core of the show, the optional 512M/1GB memory
Output interface 1 VGA output
Output interface 2 HDMI output
3 dual channel 24bit output interface, LVDS interface, support for single and double channel 18/24 bit LVDS screen
Display mode VGA, HDMI, LVDS VGA+LVDS, VGA+HDMI, HDMI+LVDS significantly; the same /
Asynchronous dual display
Audio connector LINE-OUT (audio output (input) & MIC-IN Mike),
The sound card chip Realtek ALC 662 sound chip
Audio power amplifier function support
1 Realtek 8111E 10/100/1000M adaptive network card chip
The backplane interface I/O 2 COM (RS-232) pin
1 groups of LVDS interface (dual 24bit)
1 sets of power pins
2 groups of USB 2 can be connected to pin, 4 USB 2 ports
2 SATA interface
2 SATA power supply interface
1 groups of 8bit GPIO
1 groups of front panel pin
The onboard I/O port 2 COM (RS-232) pin
1 groups of LVDS interface (dual 24bit)
1 sets of power pins
2 groups of USB 2 can be connected to pin, 4 USB 2 ports
2 SATA interface
2 SATA power supply interface
1 groups of 8bit GPIO
1 groups of front panel pin
BIOS AMI 32Mbit, support diskless boot, wake on LAN, electric start, and watchdog functions
The power interface DC 19V
The working temperature of 0 ℃ ~60 ℃, 10%~90% relative humidity, no condensation
Type Mini-ITX (17 x 17 cm)

Parameters
Appearance
Structure Standard Industrial Mini-ITX motherboard (Thin)
Dimensions 170mm x 170mm
System
Chipset Intel ® NM70
Processor Intel ® Celeron 1037 1.80G dual-core processor, 2MB of level three cache
BIOS AMI BIOS
32Mbit SPI BIOS
Memory a laptop memory slots, supports DDR3 1066/1333 the maximum capacity of 8GB
Show
Nvidia GF119 GPU plate affixed independent display core, 512M/1GB optional memory
Display output VGA / HDMI Output
1x HDMI Interface
1x VGA pin
Network
NIC Realtek ® RT8111E 1x Gigabit Ethernet port
Audio frequency
Sound Realtek ® ALC661 HD audio decoding controller
4-channel audio output (3W amplifier)
Interface Line out + MIC IN Interface
SPDIF 1xSPDIF
IO
1x pin RS232 serial COM port
Onboard USB 3x USB 2.0/1.1
1x pin USB 2.0/1.1 (expandable one USB)
Storage
SATA 1x SATAII interfaces (3Gb / s)
SD SD / MMC / MS / MS pro (1 * LED for HDD)
1x Mini PCIE expansion slots
1x PCIE X1 expansion slots
1 X SIM slot (3G option)
GPIO 8Bit pin
1 X PS / 2 pins
1 X Speaker Pin (2 * 3W Amplifier for speakers)
1 X IR receiver (optional pin)
Key 1 X Push button (With LED) for Power ON / OFF (Optional pin)
Power Supply DC 19V (2.5 diameter) DC power input
Environmental Operating temperature: -10-60 degrees Celsius
Humidity: 10% -90% non-condensing
Certification 3C, FCC, CE (optional)
Accessories manual, driver CD, COM port cable, SATA cable, SATA power cable, I / O tailgate


Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269M
