>>Your Current Position: Intel Motherboard

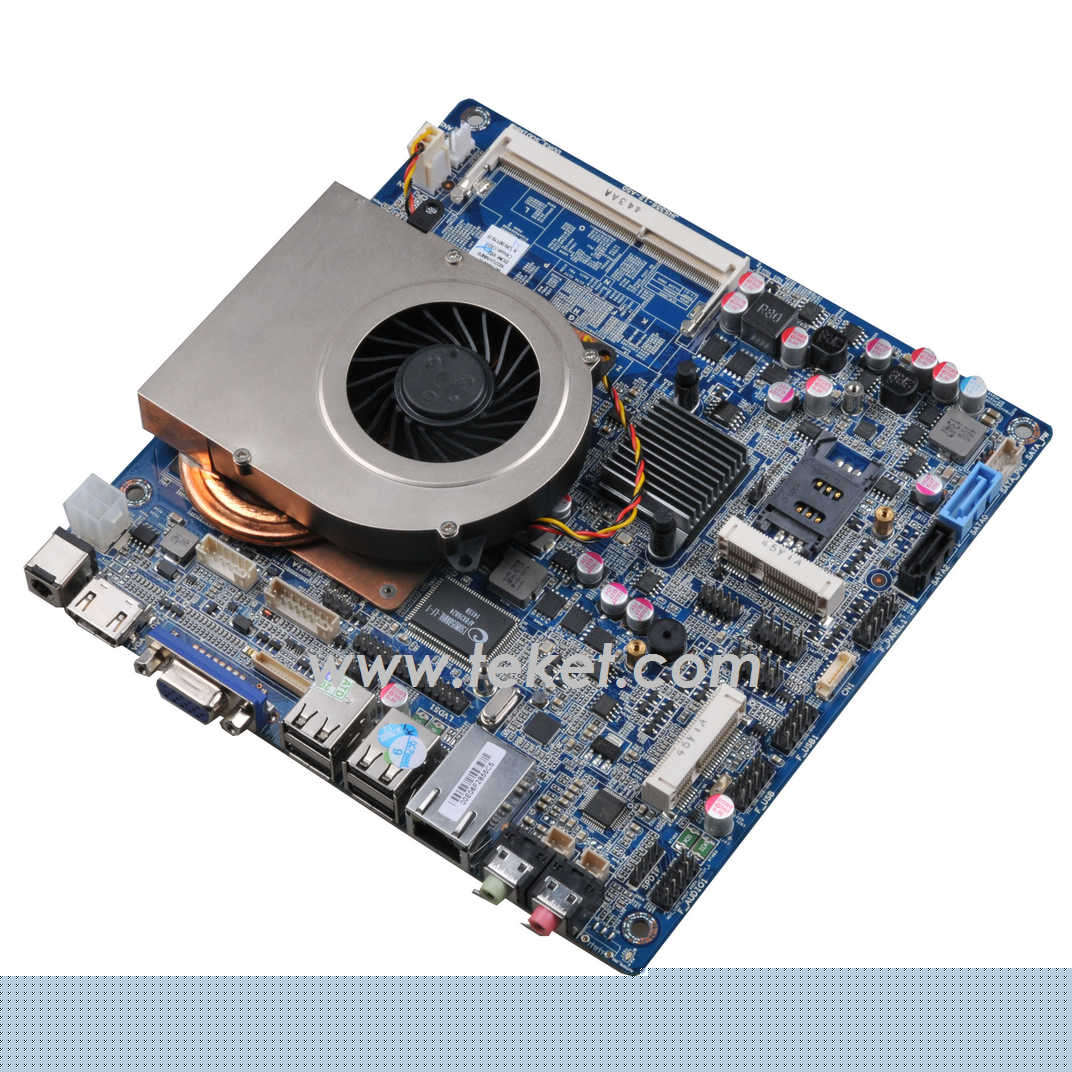

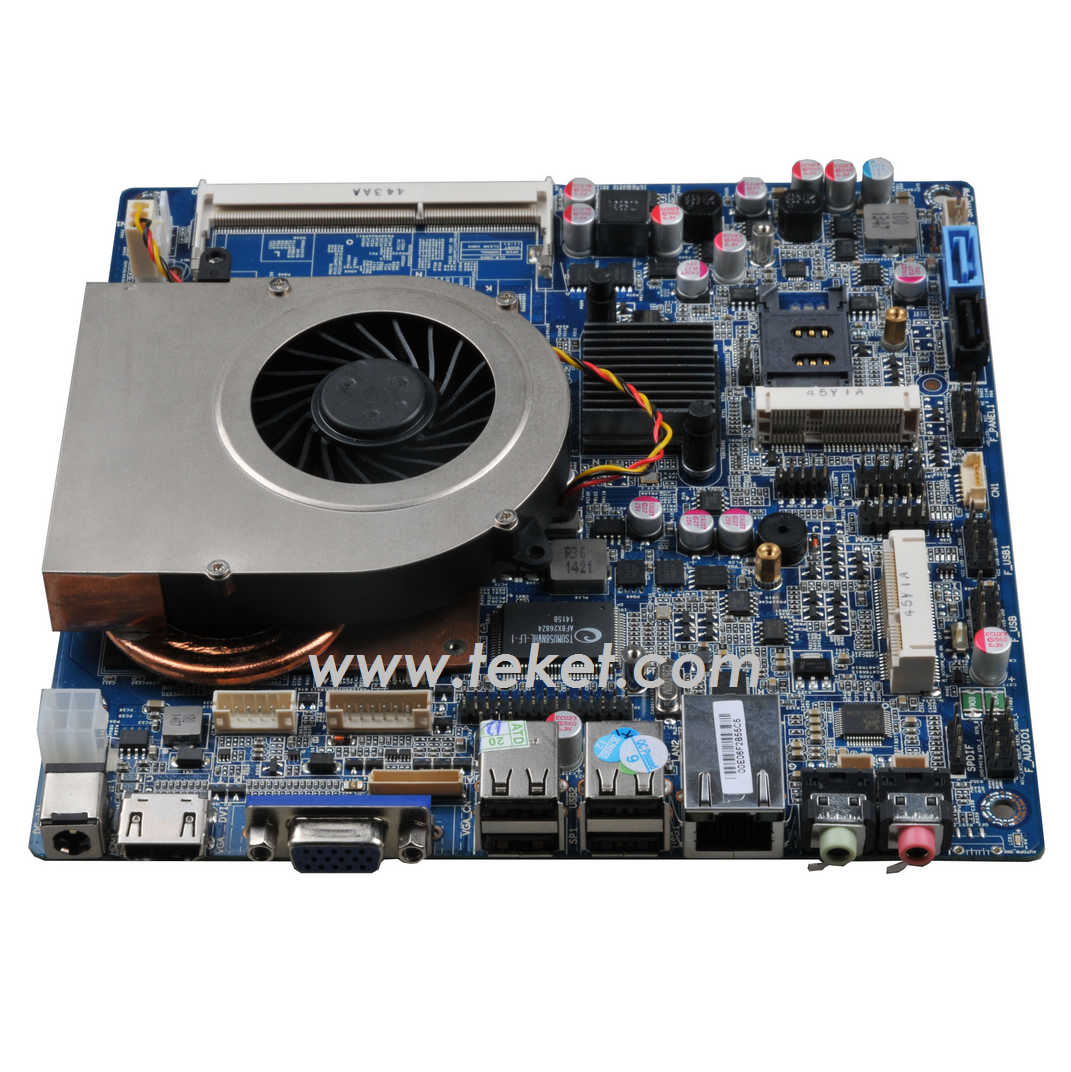

Intel Celeron 1037U Mini-ITX Nvidia GT730 onboard ION4-C1037UY

Onboard NVIDIA GT730 (GK208) independent video card , 2G DDR3 indepentent xideo card ,perfect support for 4K very clear playback

ION4-C1037U platform board Celeron 1037U, frequency 1.8GHz CPU, customizable core I3, I5 17W ultra low power super the processor, with NM70/HM77 chipset, onboard NVIDIA GT730 (GK208) kernel independent graphics card, 2G SDDR3 memory, ultra-thin Mini-ITX architecture, standard size 17x17cm, the thickness of only 1.8cm. TN-ION4 supports dual channel 24 bit LVDS, post a VGA interface, 1 DVI interface, a HDMI interface, a built-in 12Pin VGA pin. Single gigabit Ethernet, 2 Mini PCI-E slot, a full support for mSATA, a high PCIe+USB+3G signal, is the ideal motherboard digital signage, advertising machine, electronic whiteboard solution.

mini-ITX industrial motherboard,onboard Intel third generation IVB Celeron 1037U processor,onboard NVIDIA GT730

onboard NVIDIA GT730 (GK208) independent video card , 2G DDR3 indepentent xideo card ,perfect support for 4K very clear playback

Features
Characteristic.
* onboard Intel third generation IVB Celeron 1037U processor, custom i5-3337U, I3 17W ultra low power super CPU
* IntelNM70/HM77 chipset
* onboard NVIDIA GT730 (GK208) graphics card, 2G SDDR3 memory. The perfect support for 4K very clear playback
* 1xSO-DIMMs, DDR3 1333MHz Memory, Max.8GB
* 2Mini-PCIe slot, 1 full high support mSATA, 1 full high support PCIe+USB+3G signal
* VGA/DVI, built-in VGA pins, HDMI, dual channel 24bit LVDS
* DC-IN power supply, 12V/19V compatible







Specifications
CPU onboard Intel third generation IVB Celeron 1037U processor
chipset Intel NM70/HM77
Video Card onboard NVIDIA GT730 (GK208) independent video card , 2G DDR3 indepentent xideo card ,perfect support for 4K very clear playback
memory 1xSO-DIMM,DDR3 1333MHz Memory,Max.8GB
network card Onboard Gigabit Ethernet
audio integrated 6 sound channel ALC662 Sound chip
Power amplifier built-in one group horn interface, support 2W, 3W, 5W 8ohmW horn
USB 8*USB2.0(post 4*USB(One group and the SPDIF of lay),front two group USB pin)
Mini-PCIe 2pcs,1* full high support mSATA, 1* full high support PCIe+USB+3G signal
display VGA/DVI,built-in VGA pin,HDMI,dual channel 24bit LVDS interface
post I/O interface DC-IN,12V 19V power adapter adaptive
1*HDMI
1*VGA/DVI
2*USB2.0&1*SPDIF
2*USB3.0
1*1000M LAN
1* Audio-out&Mic-in
built-in I/O interface 1*front panel pin (2x5pin)
1*front audio pins (2x5pin)
built-in 4*USB pin
2*9pin standard COM
A group of power amplifier interface, support 2W, 3W, 5W horn
1x12pin built-in VGA pin
1*hardware electric automatic start jumping cap
Clear CMOS jumper
SPDIF pin
M-PCIE pin
power supply 12V/19V compatible with DC-IN
size Thin Mini-ITX,17x17cm
Dissipate heat Onboard GPU and CPU dual radiator fan, and the fan speed adjustable


Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269M
