Intel Celeron J1800 J1900 N2940 All-in-one slim Mini-ITX Motherboard with 12VDC

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

Intel® Celeron® Processor N2940 2M Cache, up to 2.25 GHz
Product Collection Intel® Celeron® Processor N Series
Code Name Products formerly Bay Trail
Vertical Segment Mobile
Processor Number N2940
CPU Specifications
# of Cores 4
# of Threads 4
Processor Base Frequency 1.83 GHz
Burst Frequency 2.25 GHz
Cache 2 MB L2 Cache
TDP 7.5 W
Scenario Design Power (SDP) 4.5 W

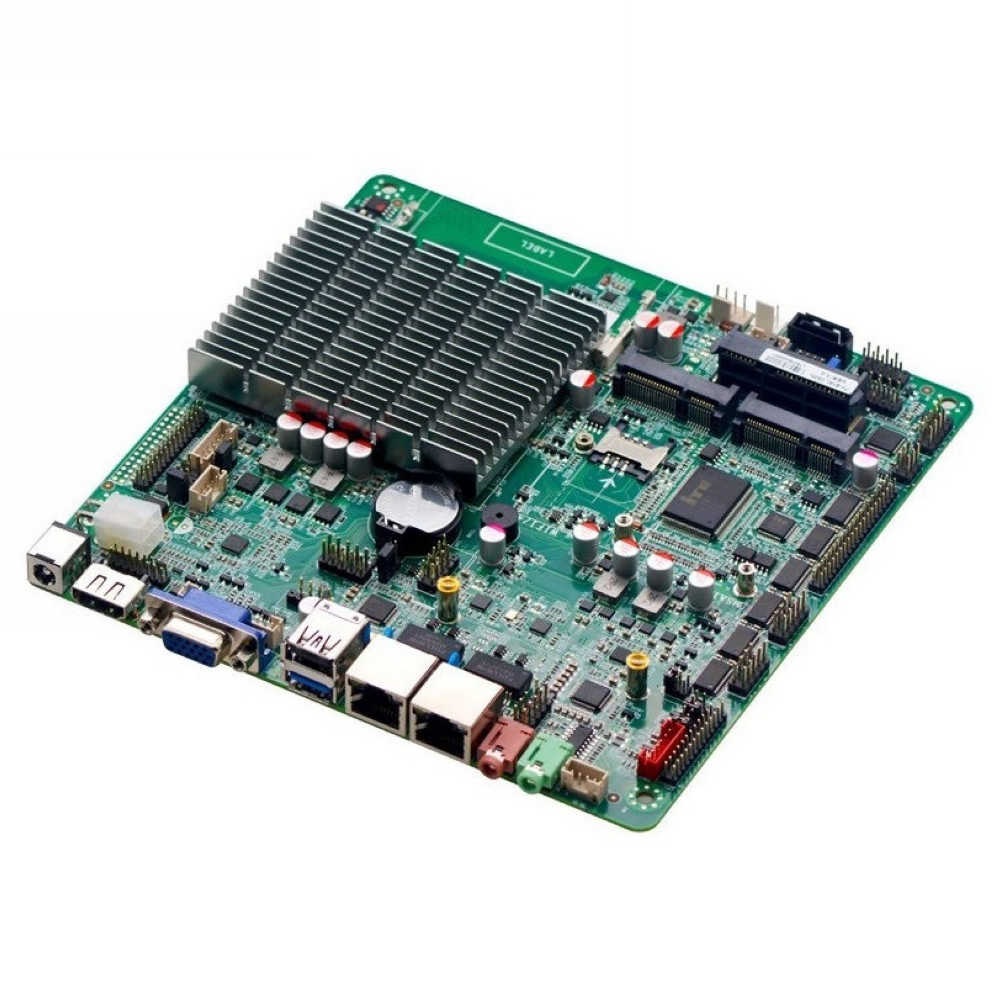

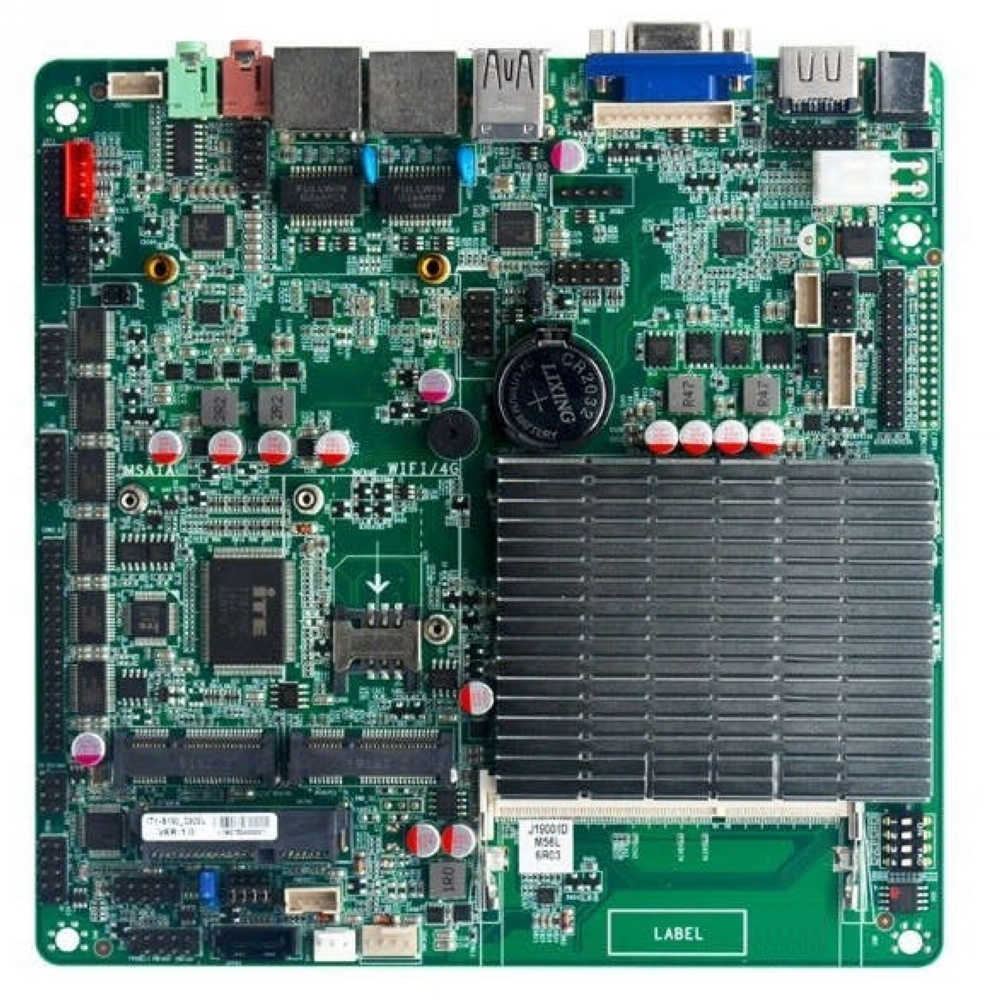

J1900BA VER:1.0
Integrated Intel ® Celeron J1900/2.0GHz quad-core processor
Based on Intel® Bay trail SOC platform
1 x SODIMM memory slot with support for 1600/133MHz DDR3L/1.35V memory, up to 8GB
Integrated Intel ® HD Graphics Core Graphics
1 x VGA, 1 x HDI, 1 x LVDS interface (support s24BIT support)
2 x RTL811H Gigabit Card Chip, Support stoic/PXE function
6 x RS232 serial port, where COM2 supports RS485
7-USB2.0 interface, 1 x USB3.0 interface

Processor Integrated Intel ® Celeron J1900/2.00GHz quad-core processor, TDP 10W
Compatible with Intel ® Bay Trail - I/M/D full range of CPUs for flexible customer choice
Chipset Based on the Intel ® Bay trail SOC platform
Internal storage 1'SODDR3L memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Display Integrated Intel ® HD Graphics Core Graphics
1 x VGA, 1 x HDI, 1 x LVDS
Support for VGA; HDI; LVDS Sync/Asynchronous Display
Network 2x Realtek RTL811H Gigabit Network Card, support stoic/PXE
Storage 1 x SATA 2.0 hard drive interface (where SATA2 with built-in 2.5 inch hard drive SATA5 optional one)
1 x SATA 2.5 inch notebook hard drive bit, can be installed directly
1 x MSATA slot supports SSD SSDs with transmission speeds of up to 3Gbps
Audio On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers are recommended for the use of a 2-plus-5W horn
Extended slot 1x Mini-PCIE slot with WIFI, 4G modules

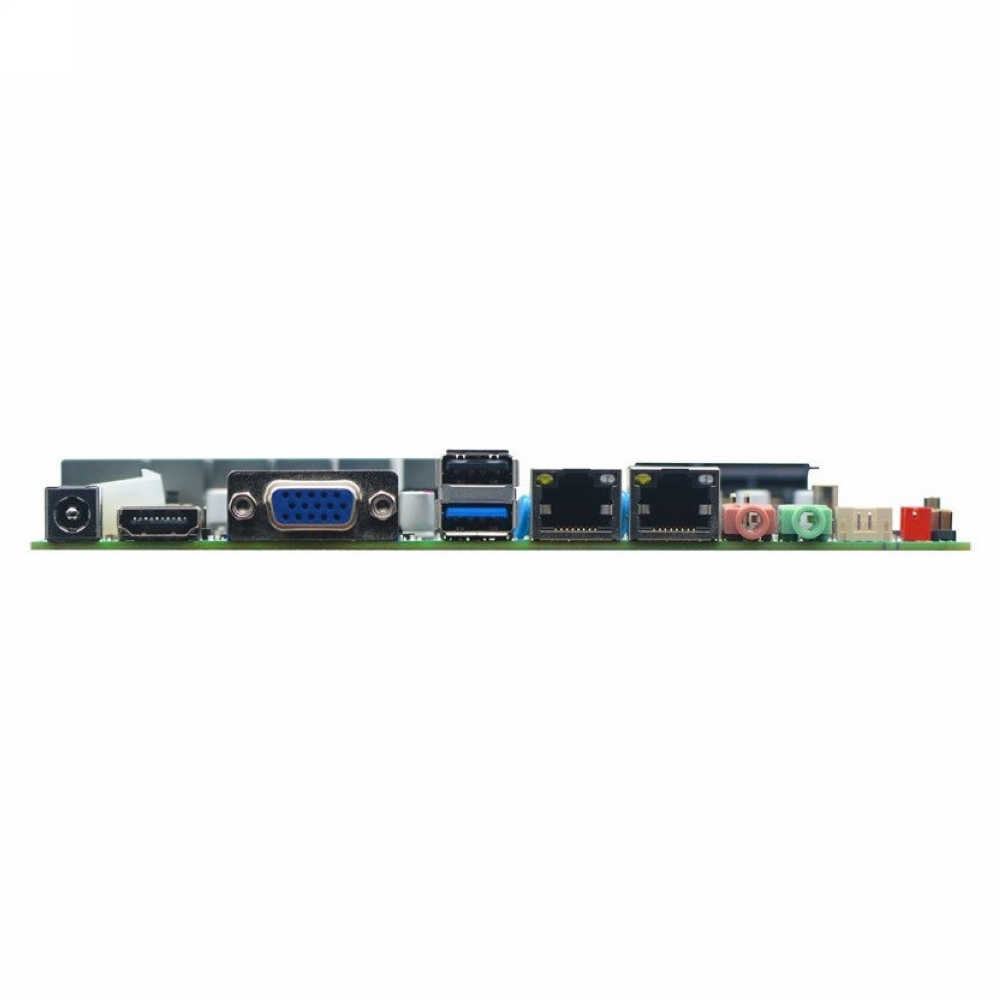

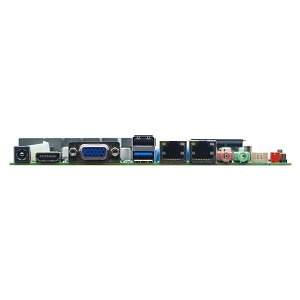

Backplane I/O Interface 1 x HDI display interface
1 x VGA display interface
1 x USB 2.0 interface
1 x USB3.0 interface
2x RJ-45 gigabit network interface, where LAN2 and USB1 are two-in-one
1x Line out interface (green), 1 x MIC interface (red)
1 x 12V DC power input
Built-in I/O interface
1 x 4pin ATX power interface (can be done 12V input and output power interface)
1 x USB2.0 interface 1 x 5pin
6 x USB 2.0 interface 2 x 5Pin, where USB 5 and USB1 are two options
1 x J_HDI interface 2 x 8Pin (HDI1 signal with back plate IO interface)
1 x JVGA interface 1 x 12Pin (with DB15 signal)
1 x LVDS interface 2 x 15pin, supports dual-channel 24bit,
1 x screen backlit power supply interface 1x6pin
1 x screen brightness adjustment interface 1 x 4pin
1 x PS/2 keyboard mouse interface (red) 1 x 6Pin
6x RS232 Serial Interface, COM1/COM2 supports 9pin live, COM2 supports RS485 mode
1 x LPT Parallel Interface 2x13Pin
1 x front audio interface 2x5pin
1 x front panel switch button and LED interface 2 x 5Pin
1 x hard drive power interface 1x4pin
1 x Amplifier Interface 1x4pin
1 x SIM seat
Fan interface Fanless cooling design, reserved 1 x 4pin CPU fan interface, 1 x 3pin system fan interface
GPIO Support for 4-way input and output GPIO
Bios 64Mb Flash ROM
Watchdog Support for hardware reset (256 levels, 0 to 255 seconds)
Operating system Windows 7/Windows 10/Linux
Power type Powered with DC 12V
Operating temperature -10C to 60C
Storage temperature -20C to 70C
Working humidity 5%-95% relative humidity, no condensation
Size 170mm x 170mm

Order Information
