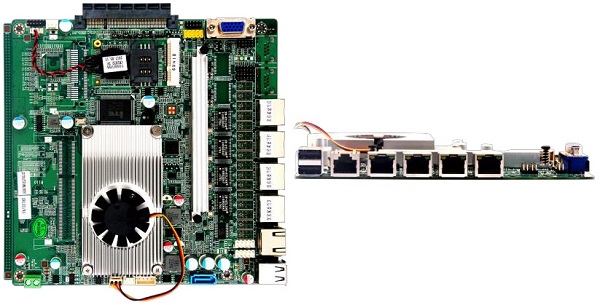

Intel Celeron Mini-ITX Motherboard with 4 LAN PORTS J1900BL N2940BL with 12VDC

Intel? Celeron? Processor J1800 (1M Cache, up to 2.58 GHz) Q4'13
Launch Date Q4'13
Processor Number J1800
# of Cores 2
# of Threads 2
Clock Speed 2.41 GHz
Burst Frequency 2.58 GHz
L2 Cache 1 MB
Instruction Set 64-bit
Embedded Options Available No
Lithography 22 nm
Max TDP 10 W
Processor GraphicsIntel? HD Graphics

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

Intel bay trail SOC
Intel Celeron J1800 dual core 2.41G to 2.58G
Intel Celeron J1900 quad core 1.99G to 2.4G
Intel pentium J2900 quad core 2.41G to 2.66G

Processor system
CPU supports Intel Baytrail-D/I/M series processors CPU package BGA chipset supports Intel Baytrail single chip BIOS EFI BIOS
Technical architecture Single-channel DDR3 1066/1333/1600MHz Capacity Integrated 2GB\4GB DDR3 memory slot 1 slot can be added, maximum 8GB memory expansion
Graphics controller Intel Graphics VGA
VGA supports the maximum resolution of 2048x1536
I/O backplane

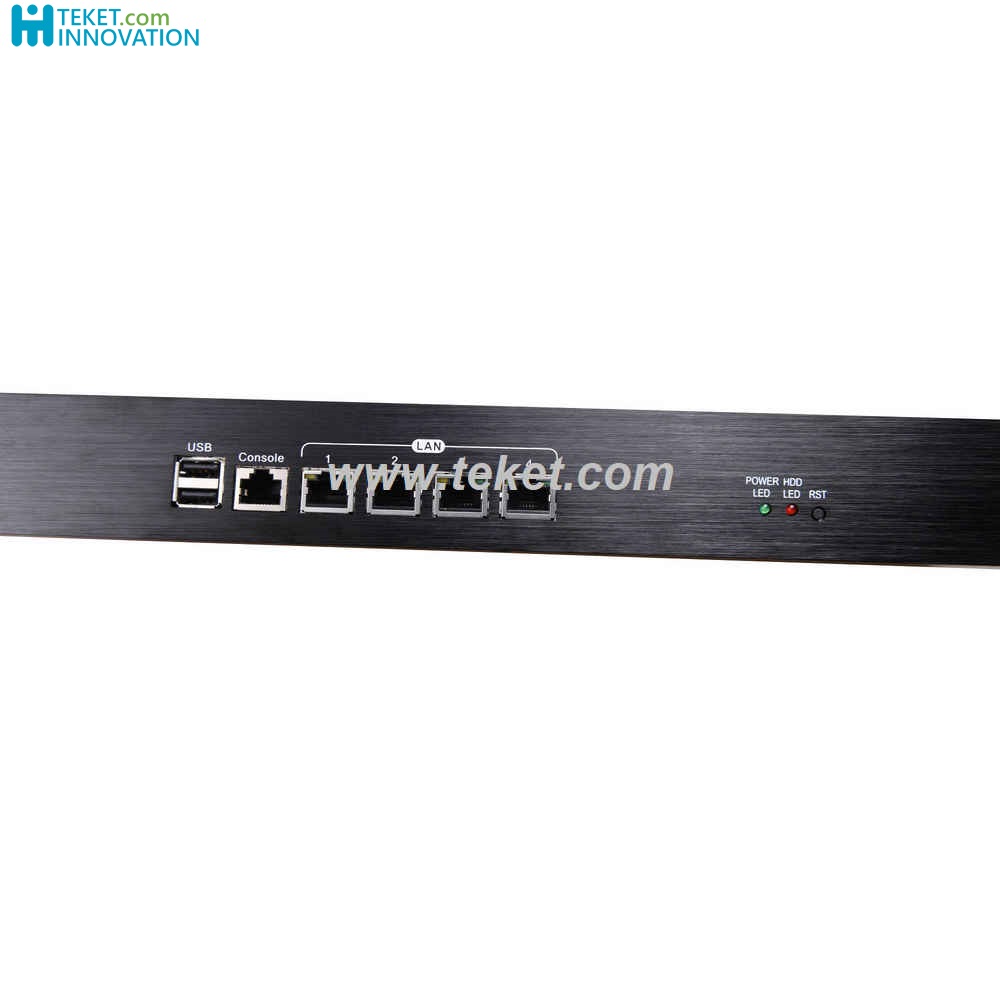

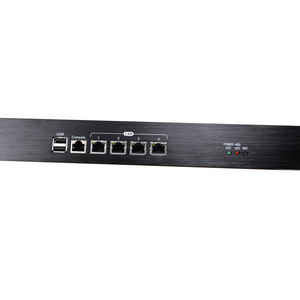

Port 4*LAN, 1*COM1,2*USB2.0
Controller 4 Intel I211AT gigabit network cards (LAN1 and LAN2 can be selected, LAN3 and LAN4 support two sets of Bypass functions)
Super I/O
Controller IT8728F
Hardware monitoring
Watchdog timer 0-255 seconds, providing watchdog routines
Cooler aluminum radiator with fan (no fan available)
Input/output interface
USB 4*USB2.0, pin header interface, maximum support +5V/1A
serial port 2 RS232, 2 pin header interface, 1 RJ45 interface (when RJ45 interface serial port is available, it is 1 pin header serial port)
GPIO 8 bits ,Provide routines, freely define input/output, 3.3V@24mA level
1 standard SATAII interface, maximum transfer rate 3Gb/s)
1 M-SATA Scoket, support SANDISK protocol, maximum transfer rate 3gb/s (choose one of two)
CF/Cfast 1 CF or Cfast storage interface (choose one of the two)
Power supply type Single input DC power supply, DC12V, +/-5%
Power consumption 15w
Working Environment
Working temperature -20℃ ~ +60℃ Storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, non-condensing
Storage humidity 0% ~ 90% relative humidity, non-condensing
Physical dimension

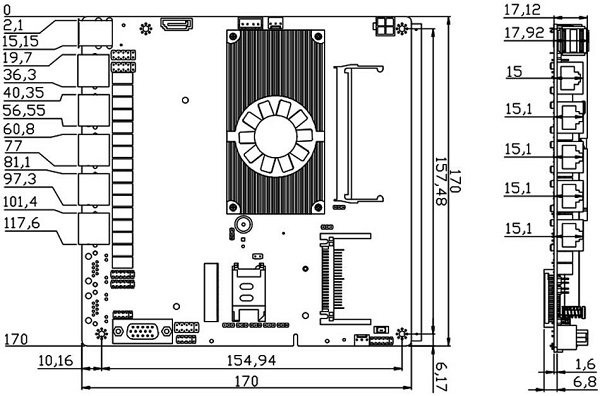

Size 170*170mm Weight 0.5KG


Order Information
J1800BL4,J1800CPU,4*LAN(I211AT),VGA,SO-DIMM(2G/4G onboard option),SIM slot,1*COM(RS232,RJ45),watchdog,GPIO8,SATA/M-SATA,CF
J1900BL4,J1900CPU,4*LAN(I211AT),VGA,SO-DIMM(2G/4G onboard option),SIM slot,1*COM(RS232,RJ45),watchdog,GPIO8,SATA/M-SATA,CF
N2940BL4,N2940CPU,4*LAN(I211AT),VGA,SO-DIMM(2G/4G onboard option),SIM slot,1*COM(RS232,RJ45),watchdog,GPIO8,SATA/M-SATA,CF
