>>Your Current Position: Intel Motherboard

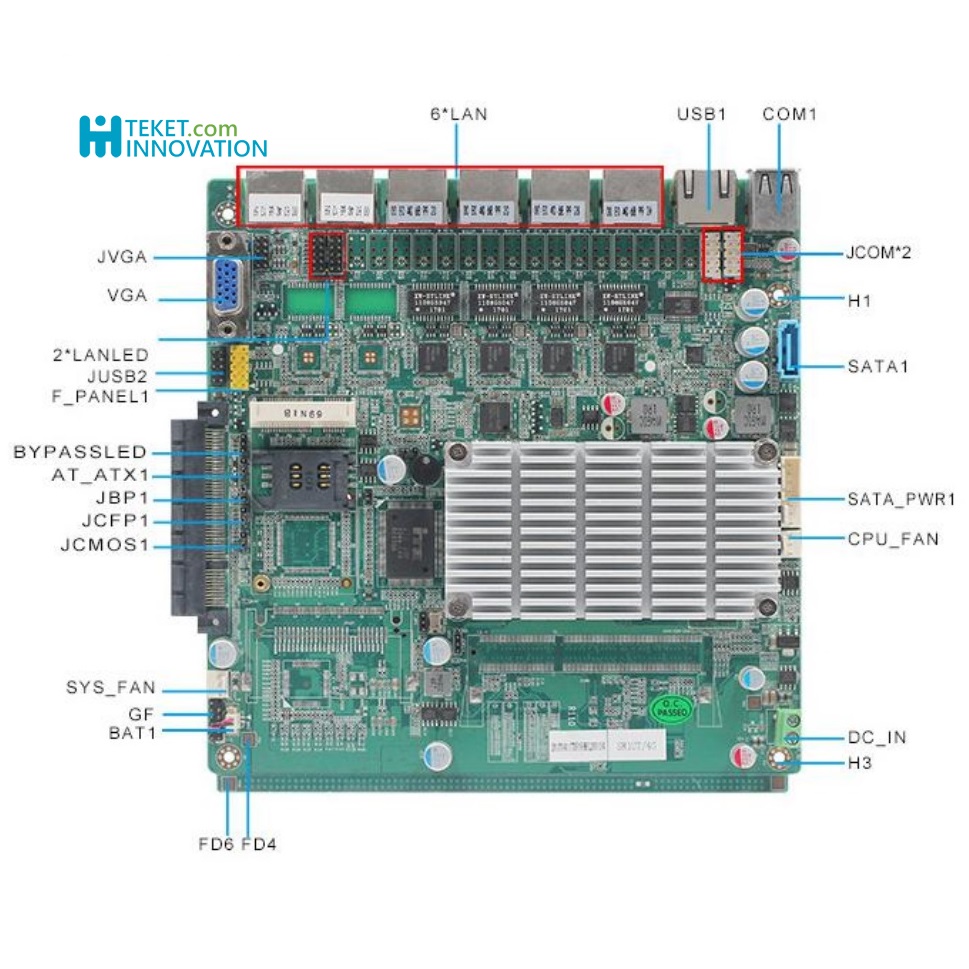

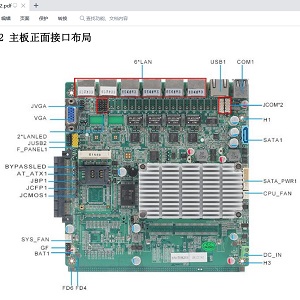

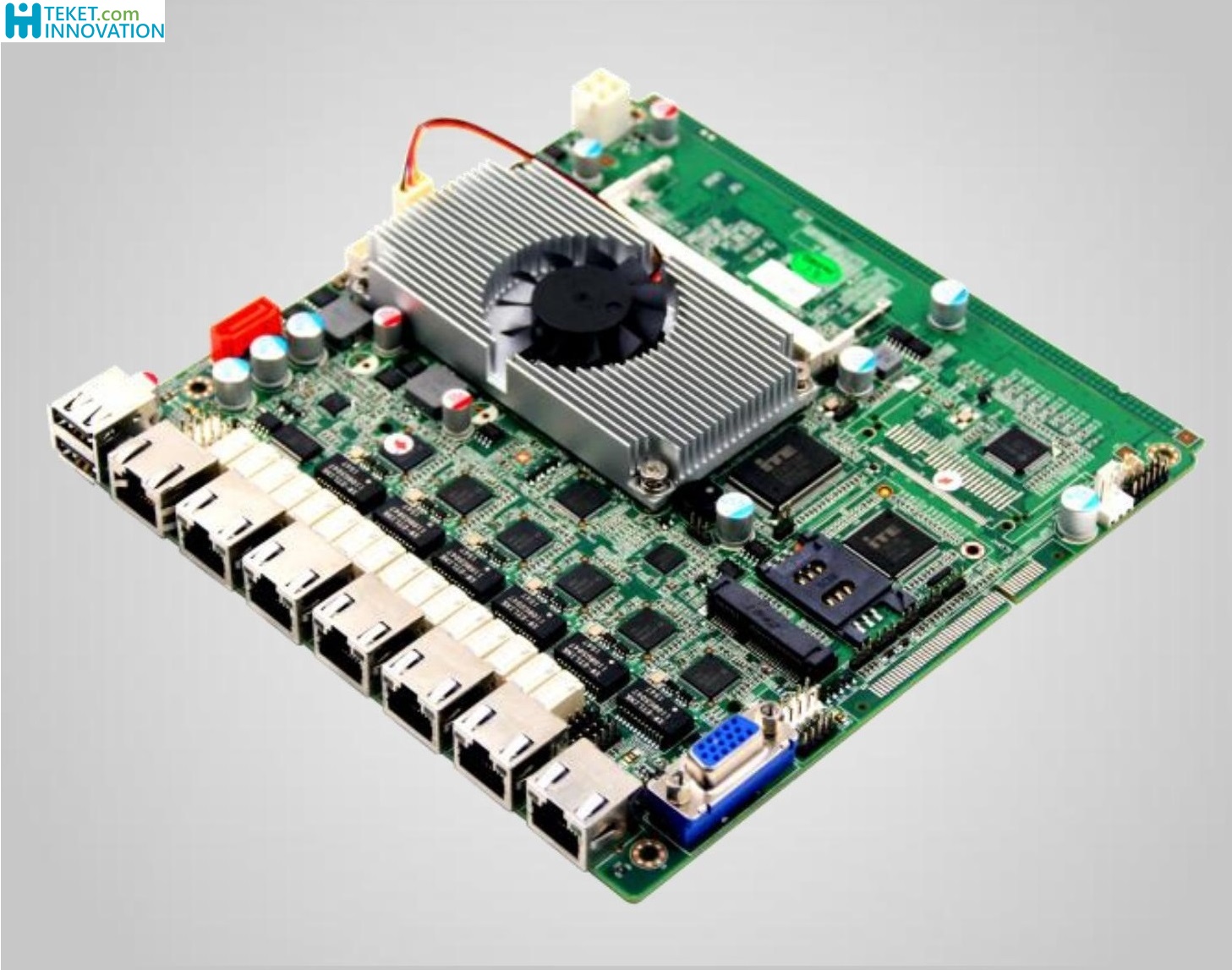

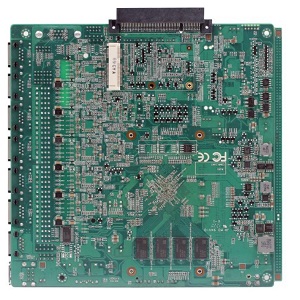

Intel Celeron J1800/J1900/N2940 Mini-ITX Motherboard with 6 LAN PORTS J1900BL6 with 12VDC

Intel? Celeron? Processor J1800 (1M Cache, up to 2.58 GHz) Q4'13
Launch Date Q4'13
Processor Number J1800
# of Cores 2
# of Threads 2
Clock Speed 2.41 GHz
Burst Frequency 2.58 GHz
L2 Cache 1 MB
Instruction Set 64-bit
Embedded Options Available No
Lithography 22 nm
Max TDP 10 W
Processor GraphicsIntel? HD Graphics

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

Intel bay trail SOC
Intel Celeron J1800 dual core 2.41G to 2.58G
Intel Celeron J1900 quad core 1.99G to 2.4G
Intel pentium J2900 quad core 2.41G to 2.66G



Intel Baytrail series (J1900/J1800);
Integrated 2GB/4GB DDR3L memory;
6*Intel I211AT Gigabit network card (LAN1 and LAN2, LAN3 and LAN4 support two sets of Bypass functions, optional);
Provide 1*VGA; 1*SATA 1*Mini-SATA (choose one of two) 1*Cfast;
Support automatic power-on function after power-on, jumper selection;

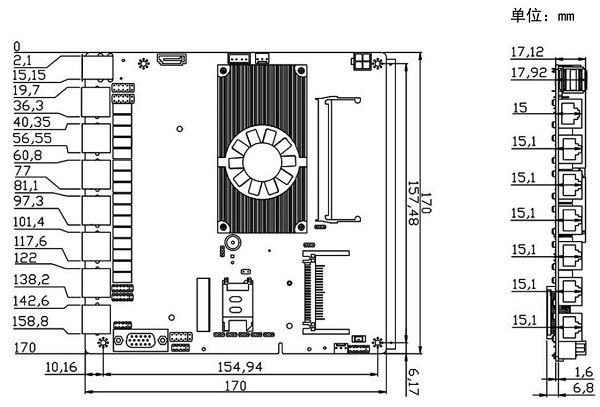

Single input DC power supply, DC12V; Structure 235*175.5*52mm;

Order Information
J1800BL6,J1800CPU,6*LAN(I211AT),VGA,SO-DIMM(2G/4G onboard option),SIM slot,1*COM(RS232,RJ45),watchdog,GPIO8,SATA/M-SATA,CF
J1900BL6,J1900CPU,6(LAN(I211AT),VGA,SO-DIMM(2G/4G onboard option),SIM slot,1*COM(RS232,RJ45),watchdog,GPIO8,SATA/M-SATA,CF
N2940BL6,N2940CPU,6*LAN(I211AT),VGA,SO-DIMM(2G/4G onboard option),SIM slot,1*COM(RS232,RJ45),watchdog,GPIO8,SATA/M-SATA,CF

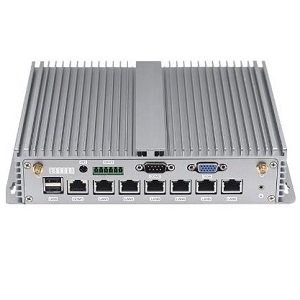

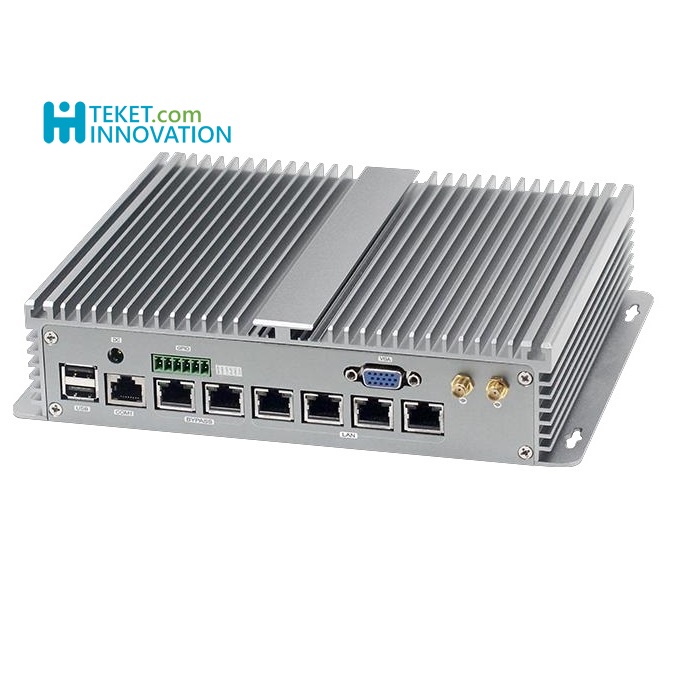

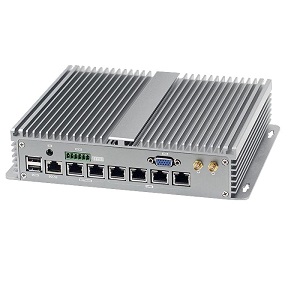

Model S6-J1900BL

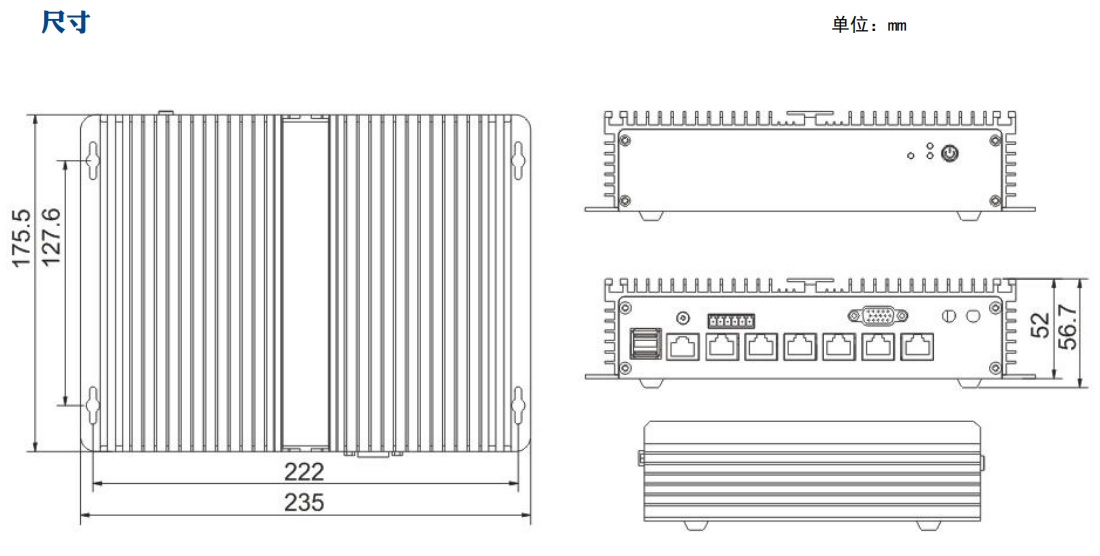

Size 235*175.5*52mm
Processor Intel Baytrail series (J1900/J1800) Chipset Intel Baytrail single chip
Memory Onboard 2GB/4GB DDR3L memory,expandable to 8G expansion
Expand slot 1 DDR3 SODIMM 204 Socket
Network card 6*Intel I211AT gigabit network card (LAN1 and LAN2, LAN3 and LAN4 support two sets of Bypass functions, optional)
Storage device 1*MINISATA 1*SATA (choose one) 1*CF/Cfast
Color silver

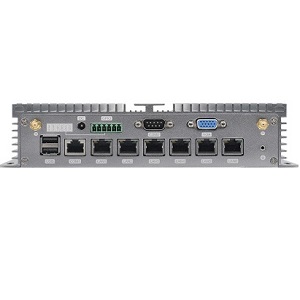

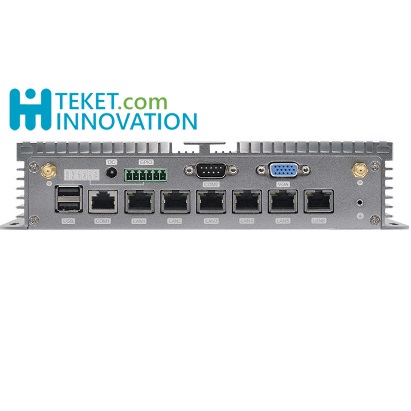

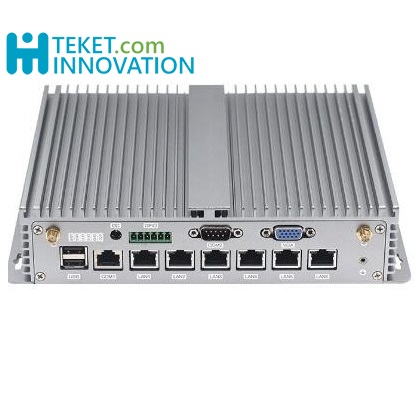

Panel interface 6*Intel I211AT network card 1* RS485 phoenix terminal interface 4*GPIO phoenix terminal interface 1*VGA 2*USB 1*DC 2*WIFI

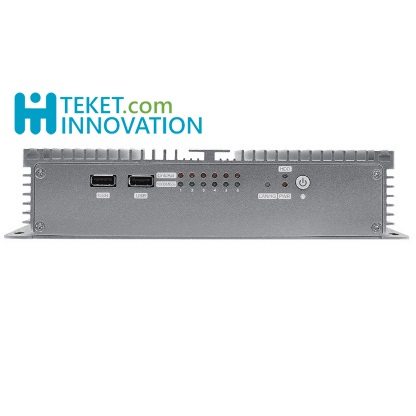

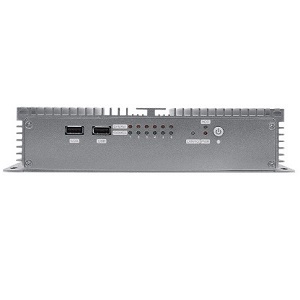

Front panel interface 1*switch button with indicator light 1*hard disk indicator light 1*power indicator light 1*4G module signal indicator light

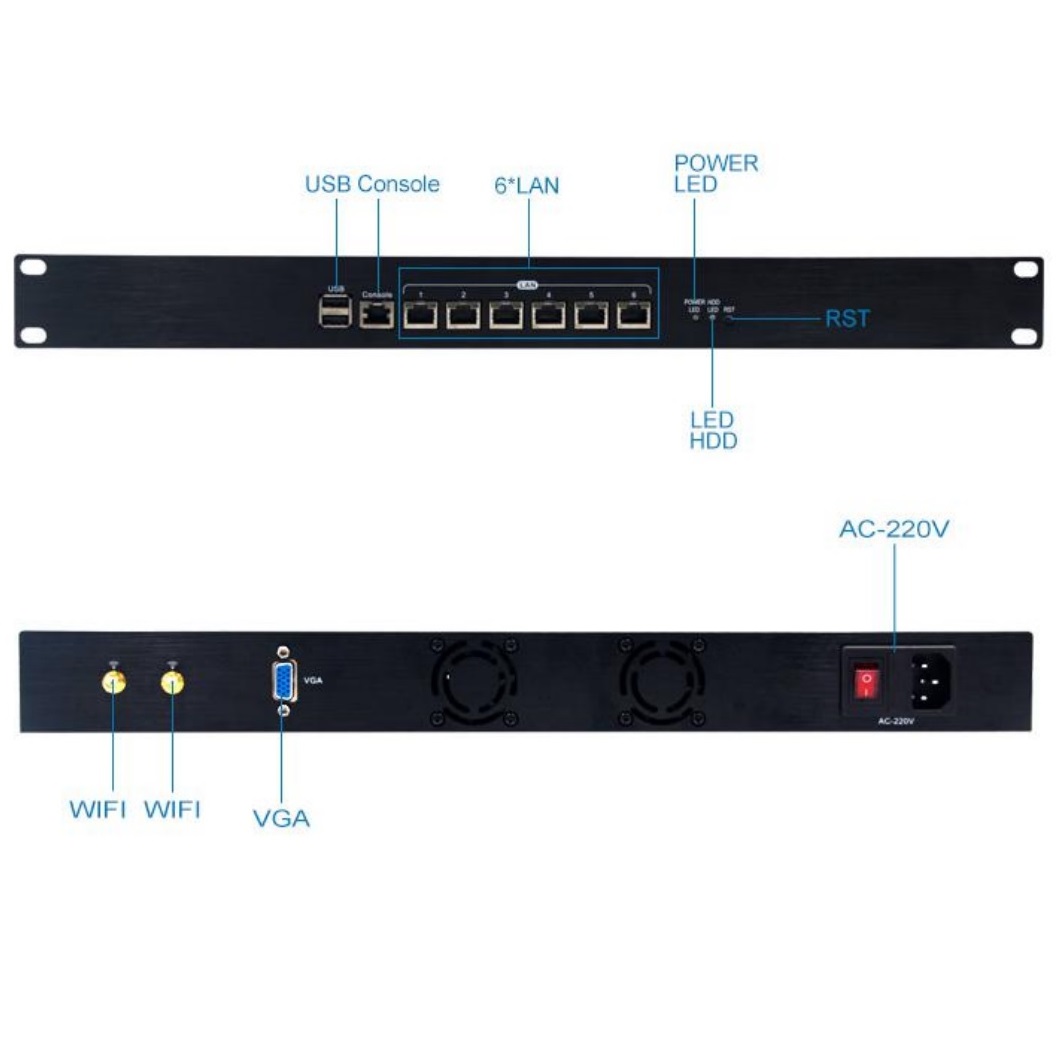

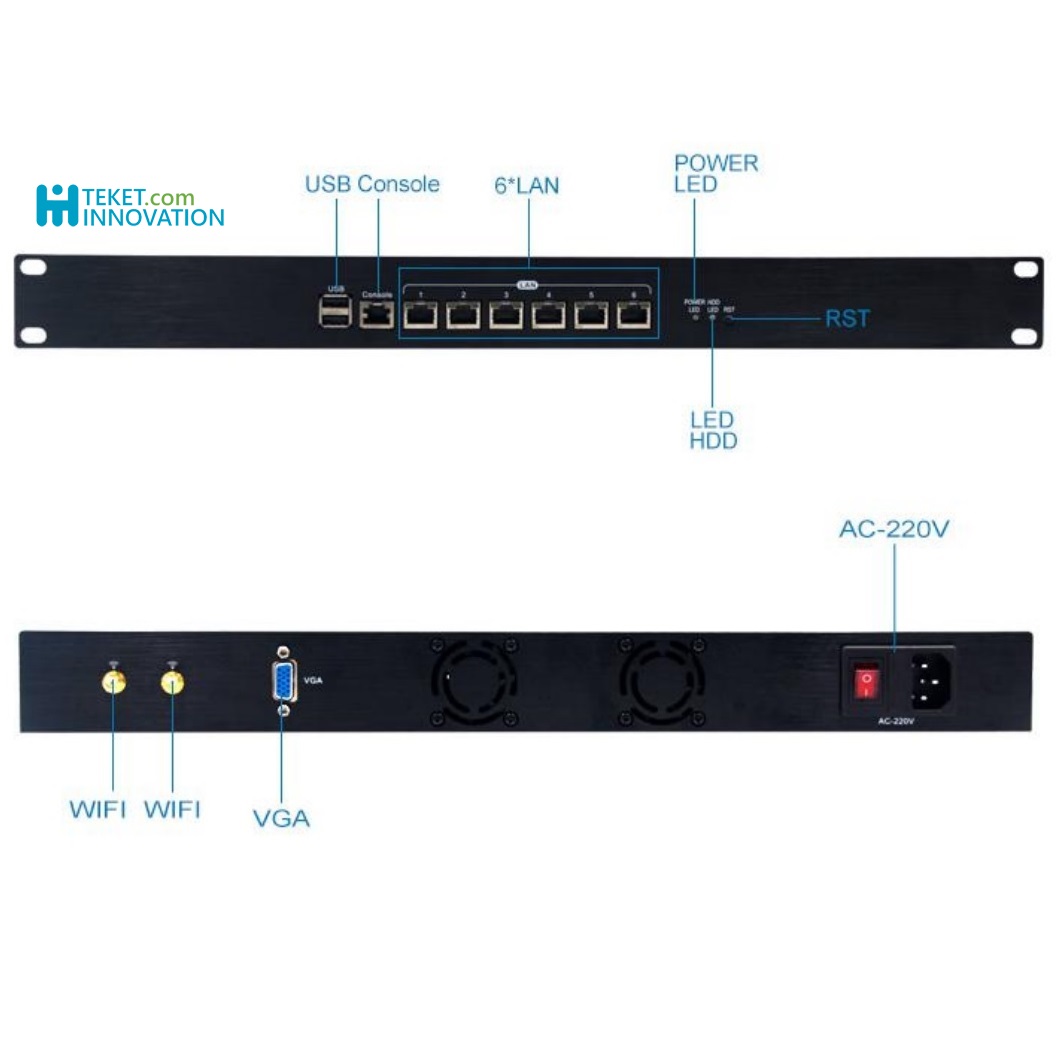

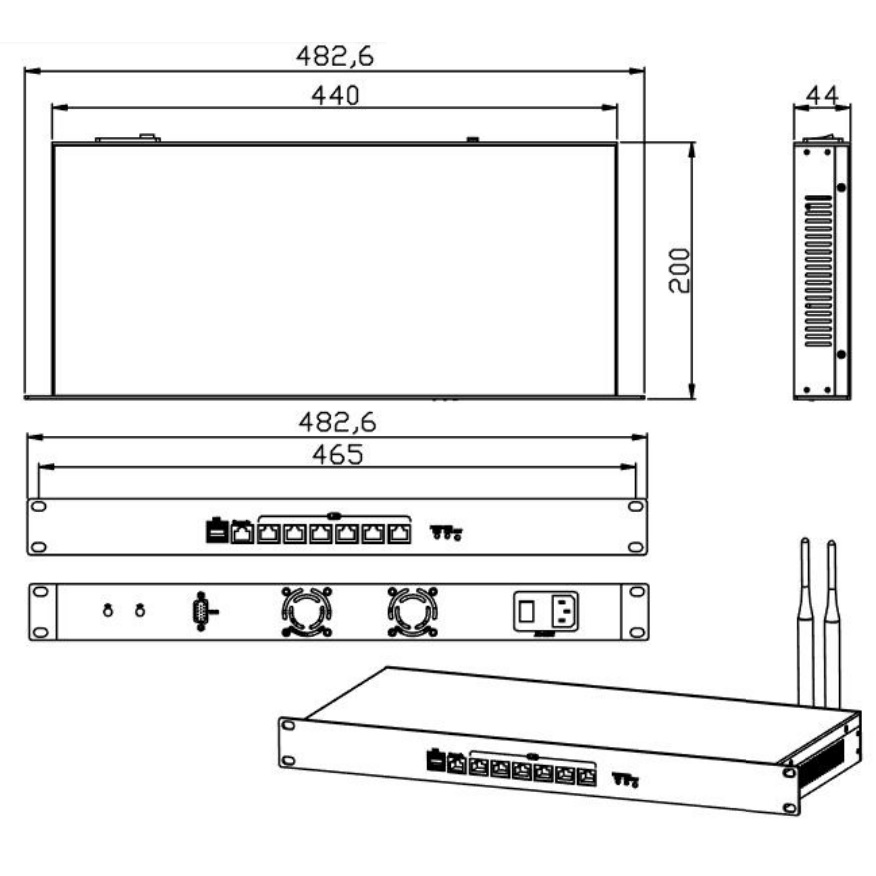

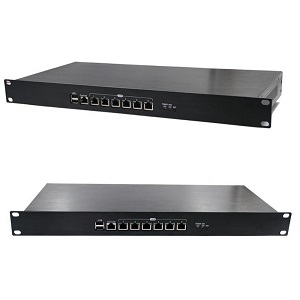

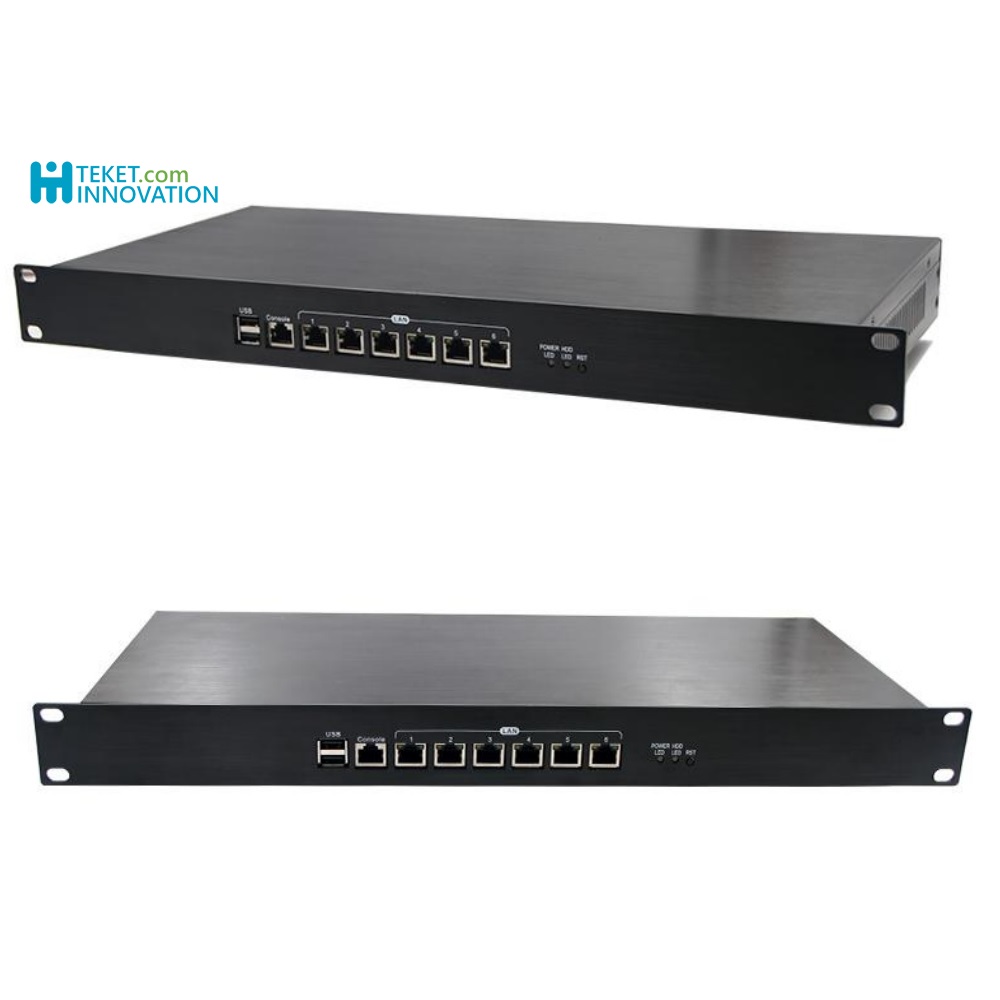

IU Rackmount Barebone
1U-J1900BL6






Order Information
J1800BL6,J1800CPU,6*LAN(I211AT),VGA,SO-DIMM(2G/4G onboard option),SIM slot,1*COM(RS232,RJ45),watchdog,GPIO8,SATA/M-SATA,CF
J1900BL6,J1900CPU,6(LAN(I211AT),VGA,SO-DIMM(2G/4G onboard option),SIM slot,1*COM(RS232,RJ45),watchdog,GPIO8,SATA/M-SATA,CF
N2940BL6,N2940CPU,6*LAN(I211AT),VGA,SO-DIMM(2G/4G onboard option),SIM slot,1*COM(RS232,RJ45),watchdog,GPIO8,SATA/M-SATA,CF
