Intel? Celeron? Processor J1800 (1M Cache, up to 2.58 GHz) Q4'13
Launch Date Q4'13
Processor Number J1800
# of Cores 2
# of Threads 2
Clock Speed 2.41 GHz
Burst Frequency 2.58 GHz
L2 Cache 1 MB
Instruction Set 64-bit
Embedded Options Available No
Lithography 22 nm
Max TDP 10 W
Processor GraphicsIntel? HD Graphics

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

Intel bay trail SOC

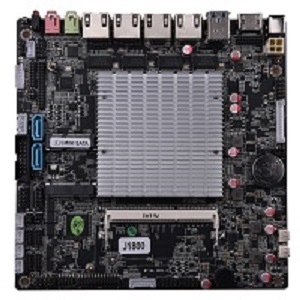

Intel Celeron J1800 dual core 2.41G to 2.58G
Intel Celeron J1900 quad core 1.99G to 2.4G
Intel pentium J2900 quad core 2.41G to 2.66G
DDR3L 1600 1.35V SO-DIMM up to 8GB

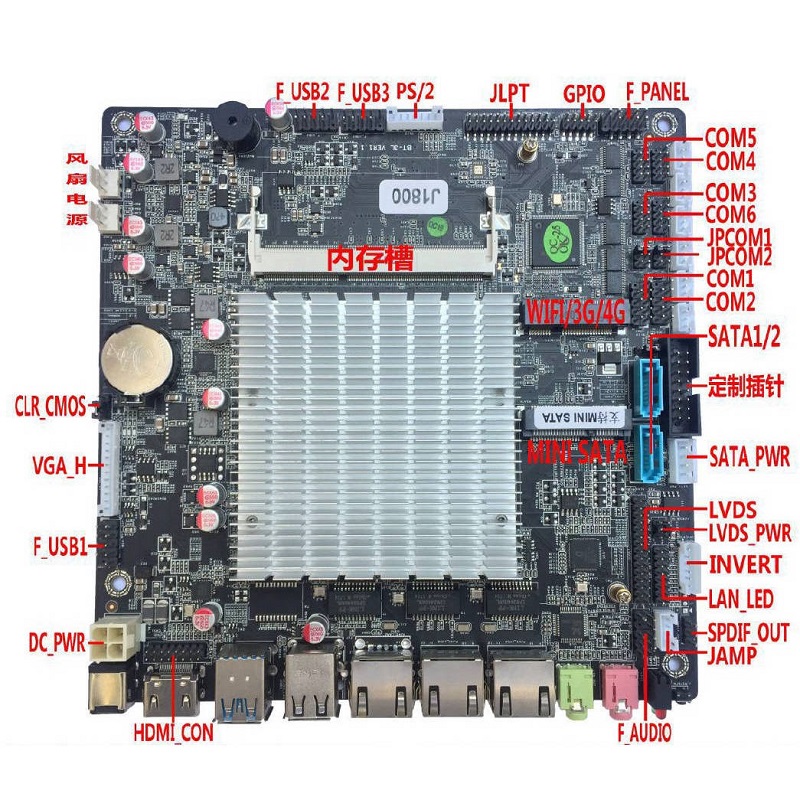

VGA/LVDS/HDI header onboard, support dual display, 24bit LVDS
RS232 onboard (3- or 9- pin), support 5V, 12V, COM6 suport RS485
onboard 1*MINIPCIE, support WIFI/3G/4G,1*MSATA,1*LPT
1*mulit function header
support 3*RTL 8105E or 4*RTL 8105E (100M)
support 3*RTL 8111E or 4*RTL 8111E (1000M)

RSTBTN reset

Audio: Realtek ALC662
Suport Line-out, MIC-in, front header, 5W amp

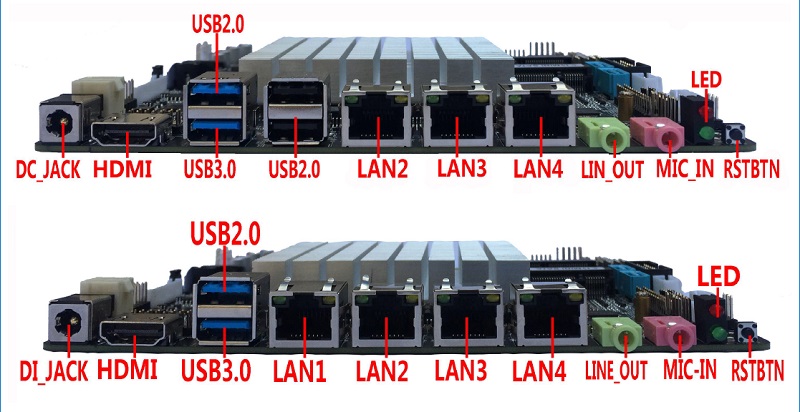

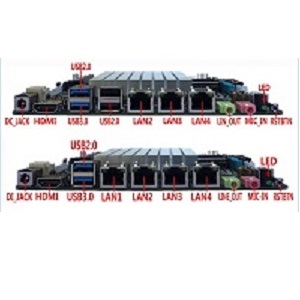

I/O
9*USB2.0, 1*USB3.0,6*RS232 COM, 1*RS485, support 5V/12V
wathc dog
Support CPU temp sensor, fan speed sensor and system temp sensor

Extender
1*MINIC PCE, support WIFI 3G/4G, 1*MSATA, 1*LPT

power requirment 12V5A or more
operating temperature 10c ~ 60c
storage temperature -20c ~ 70c
relative humidity 5% to 95% relative humidity, non-condensing

BIOS AMI



full system (not avaiable now, coming soon)
S3-J1900BT,S4-J1800BT

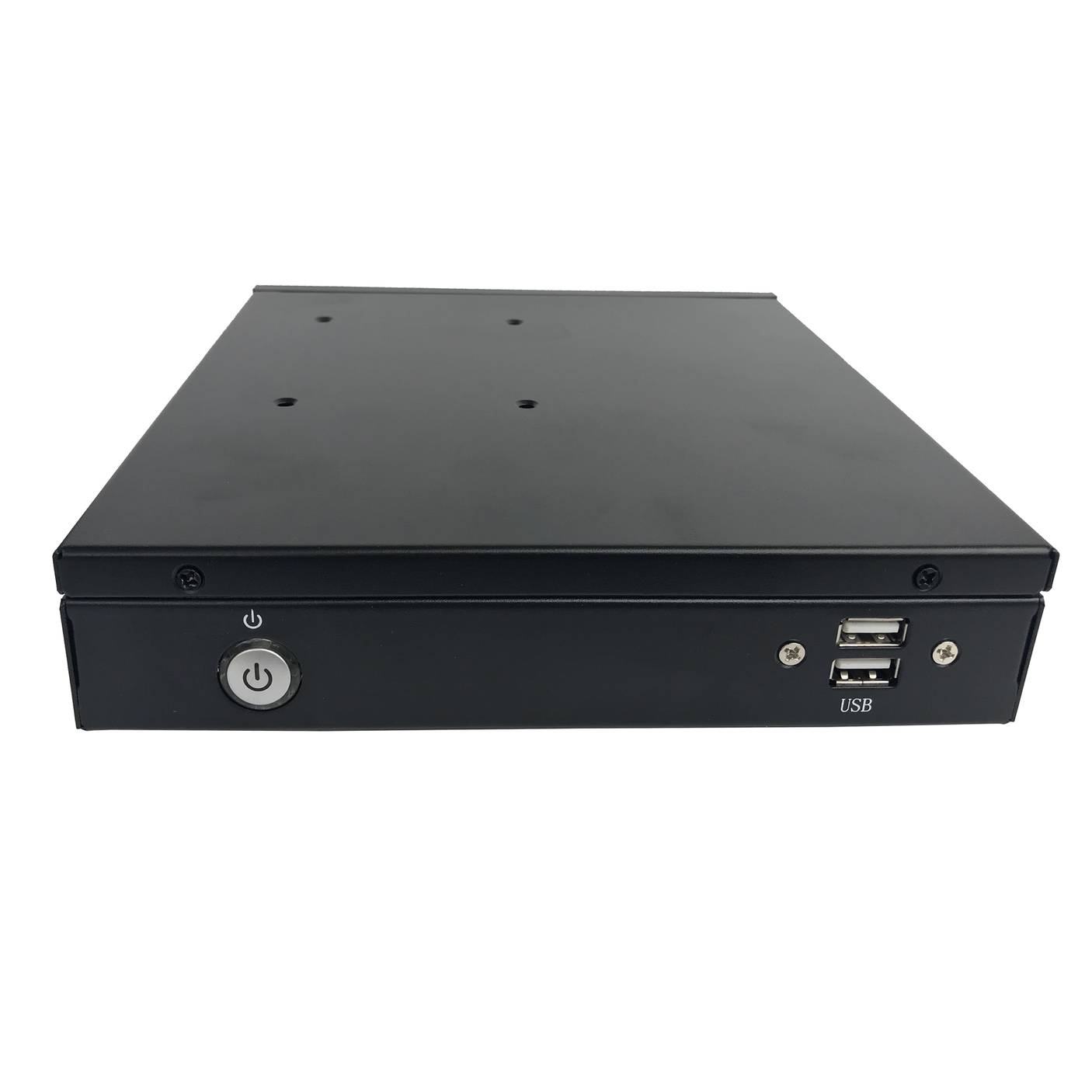

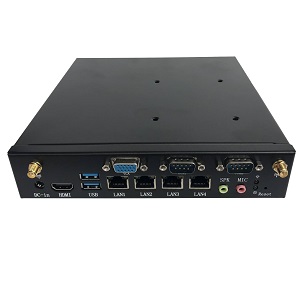

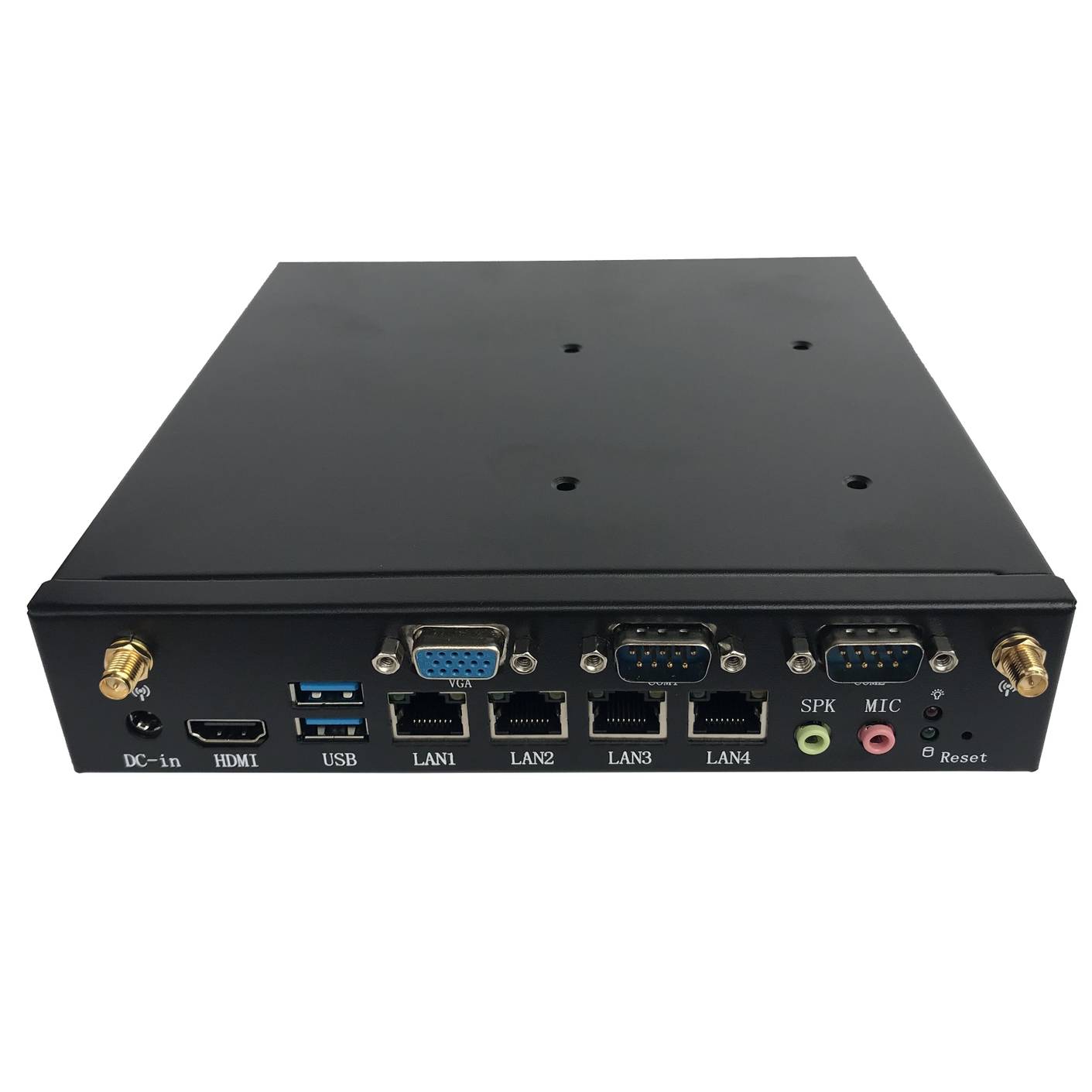

S4-J1900BT,S4-J1800BT

or

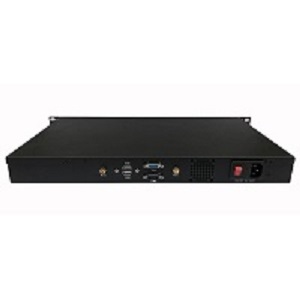

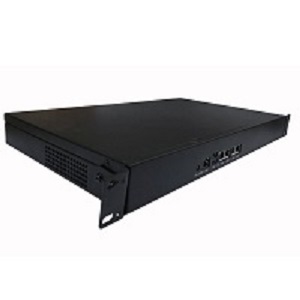

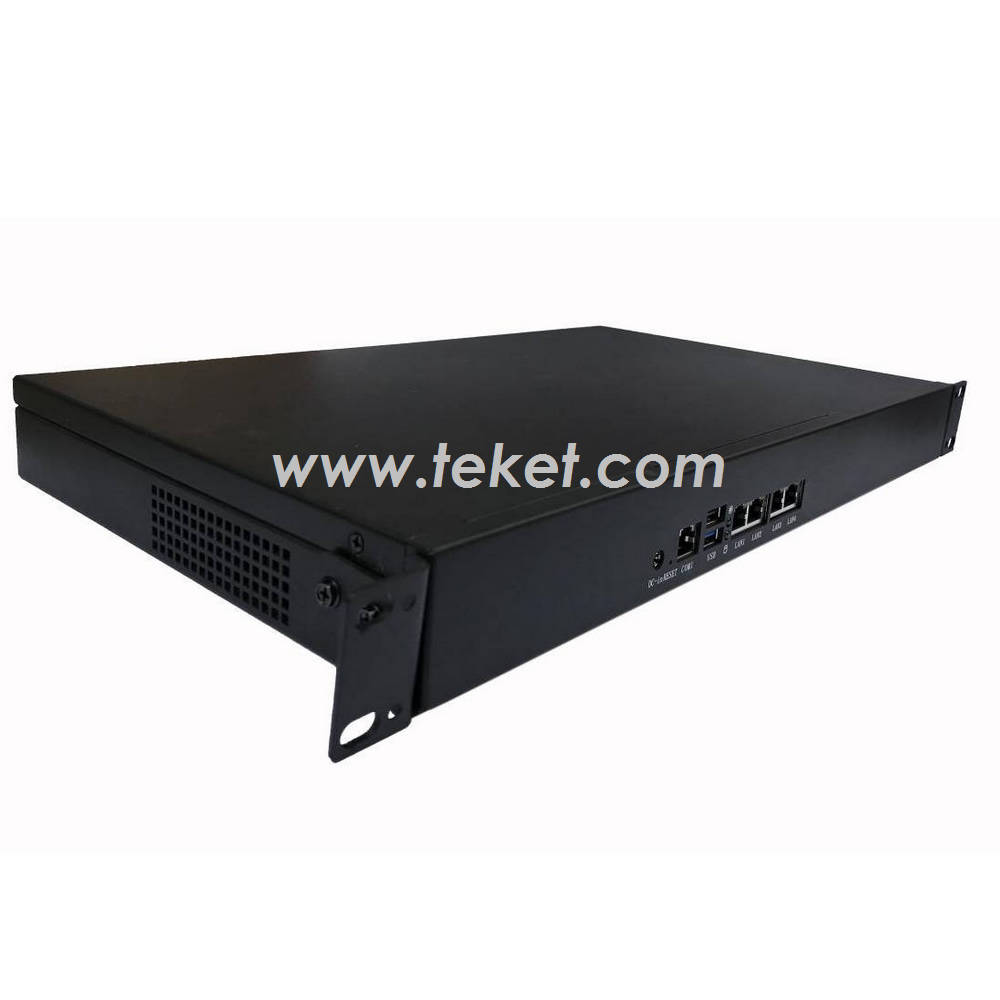

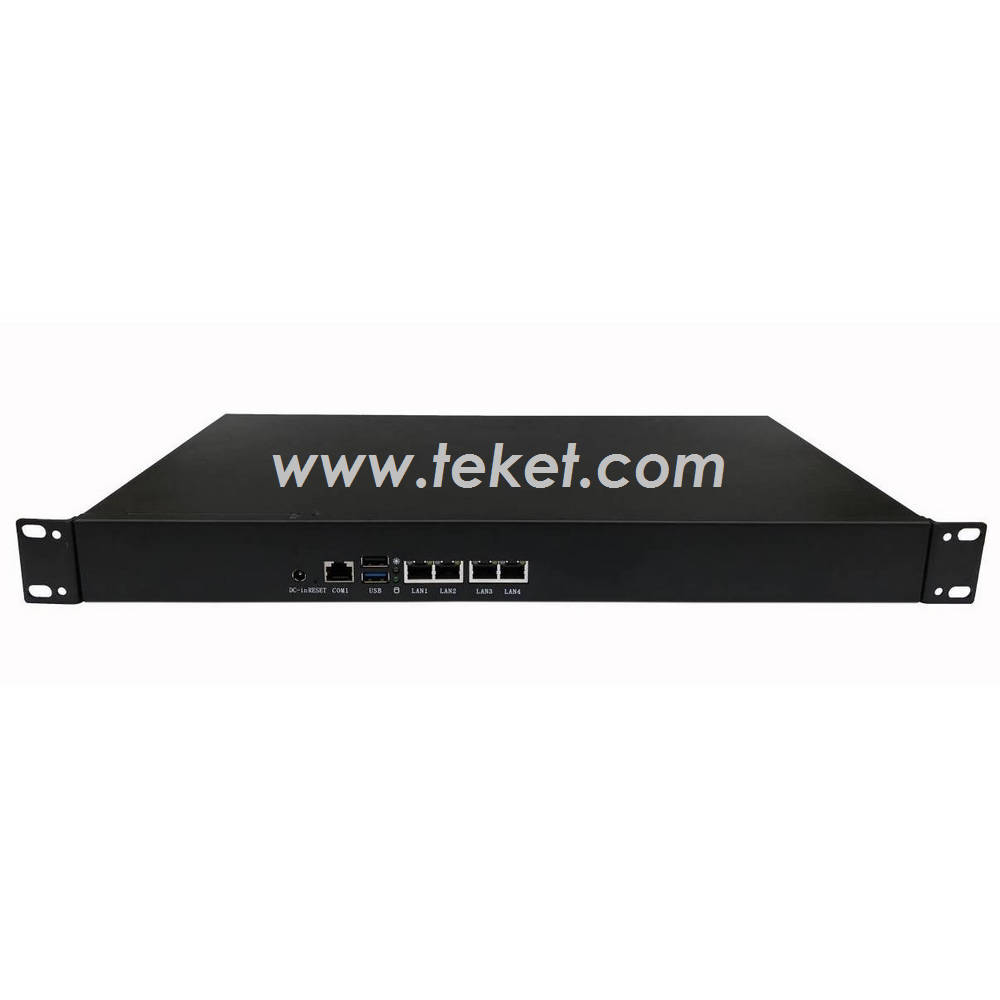

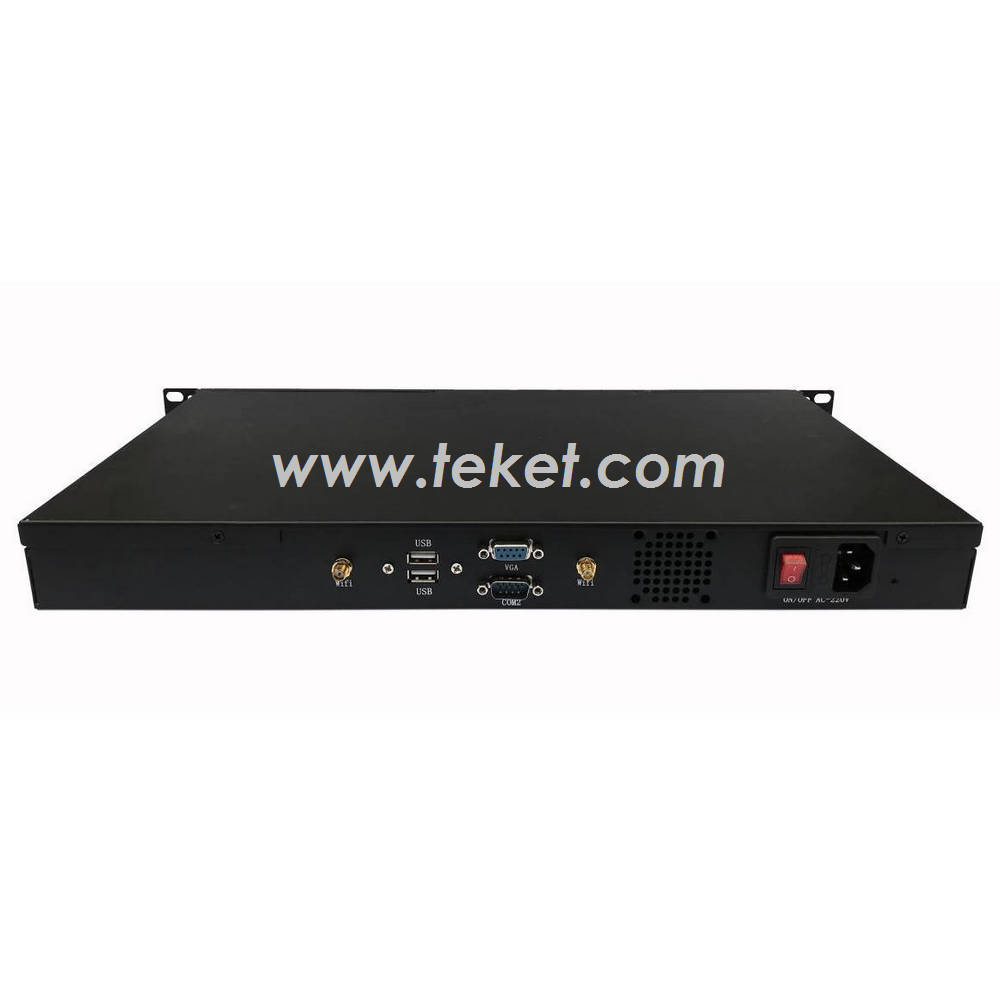

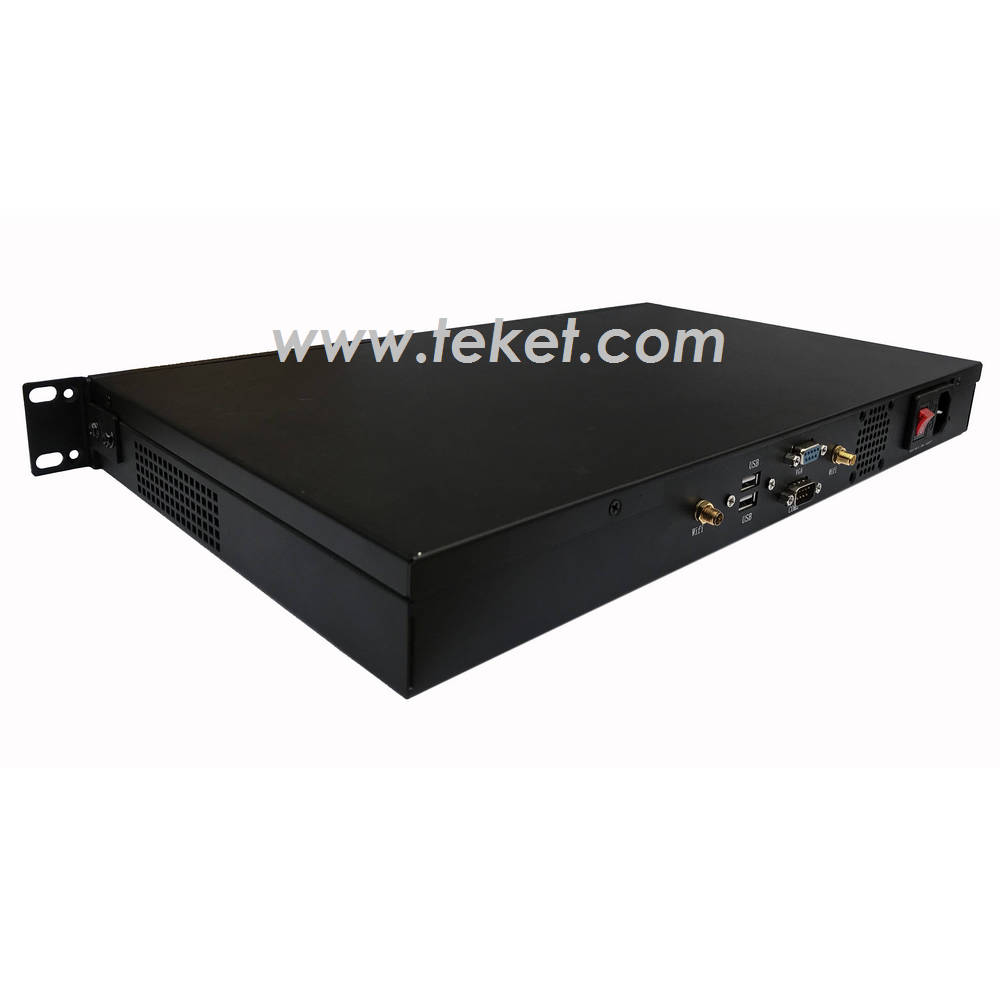

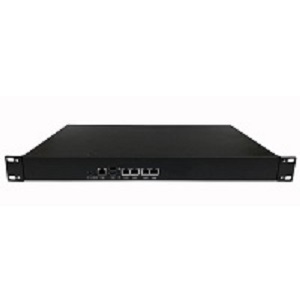

1U-J1900BT,1U-J1800BT

Order Information

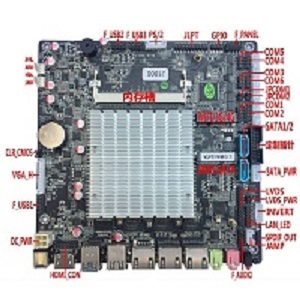

J1800BT-3L: 3*LAN, 6*COM,9*USB2.0,1*USB3.0
J1800BT-4L: 4*LAN, 6*COM,7*USB2.0,1*USB3.0
J1900BT-3L: 3*LAN, 6*COM,9*USB2.0,1*USB3.0

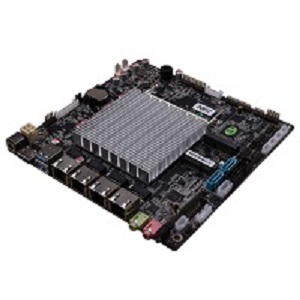

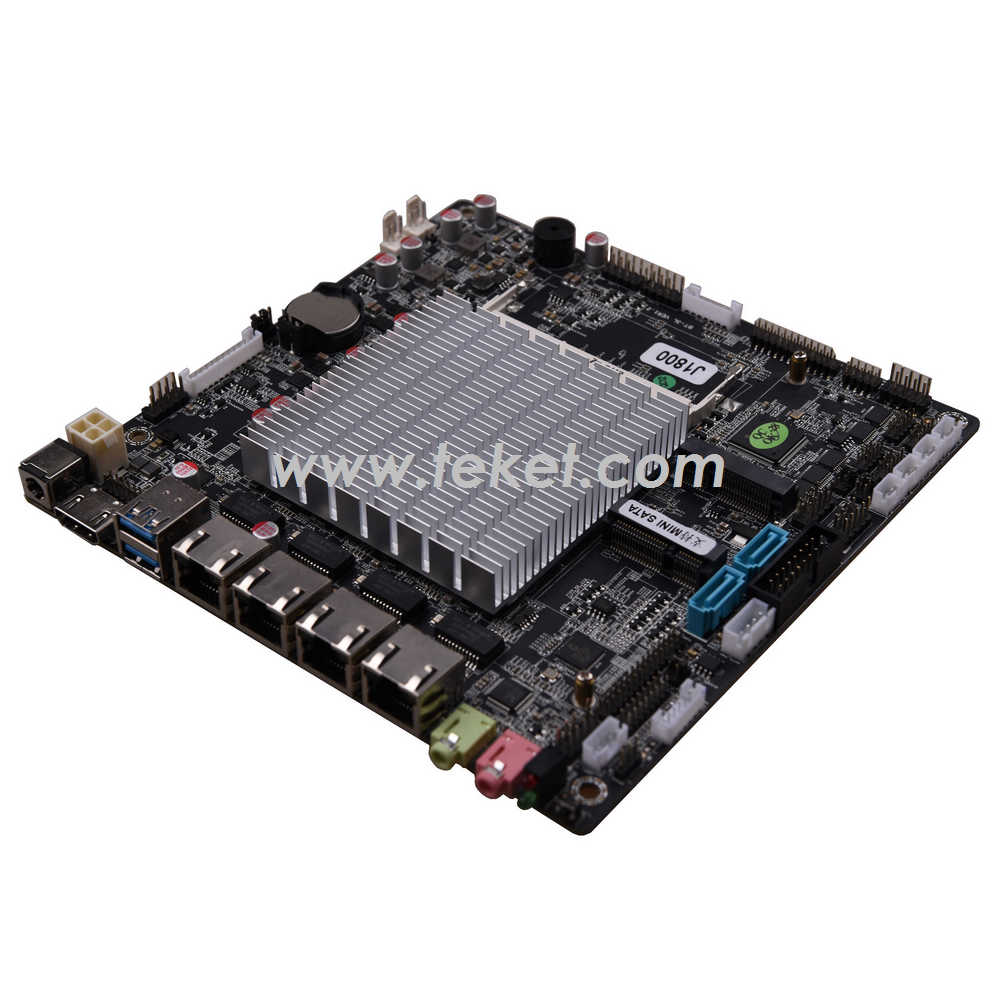

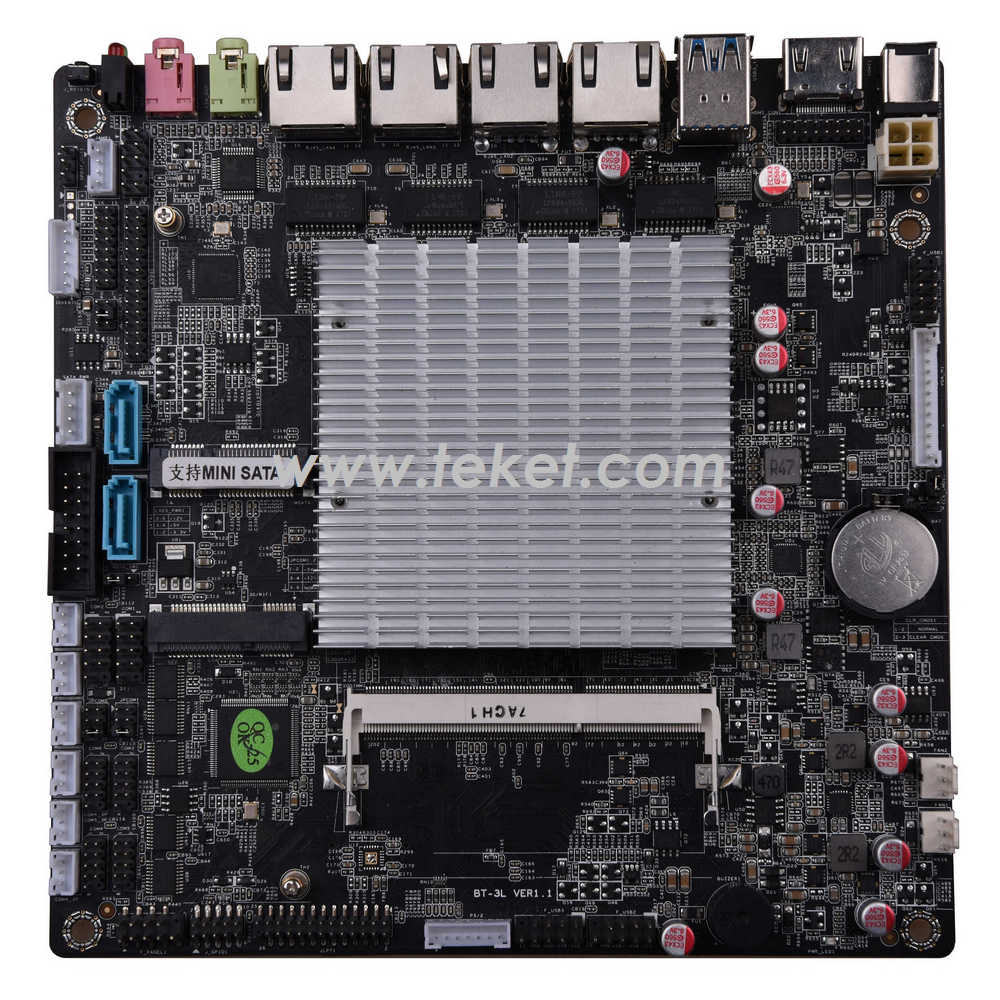

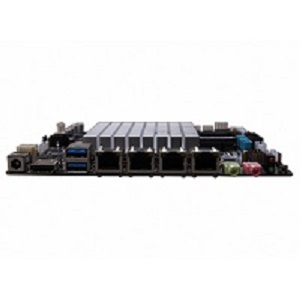

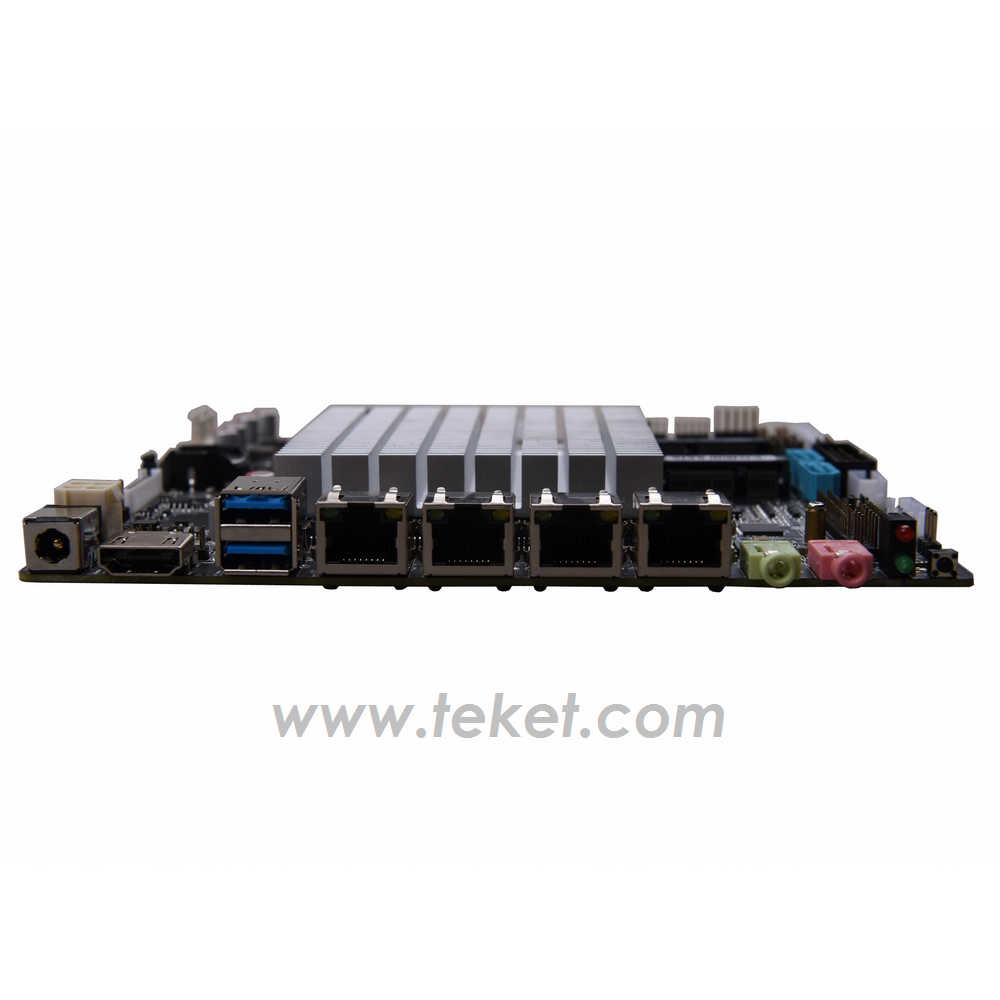

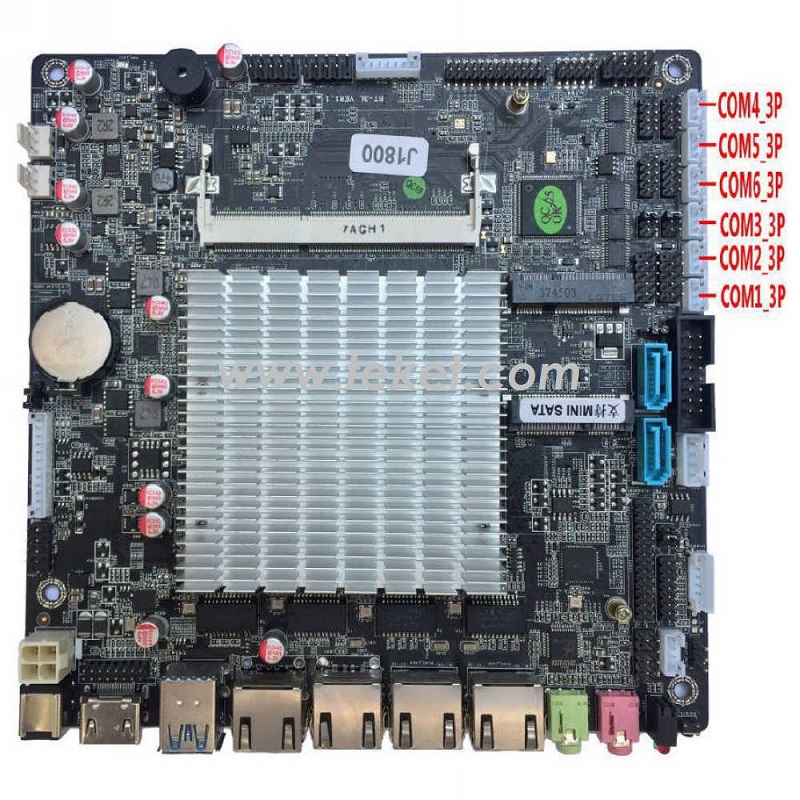

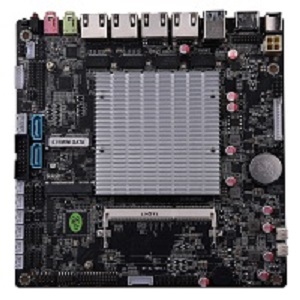

J1900BT-4L: 4*LAN, 6*COM,7*USB2.0,1*USB3.0
