>>Your Current Position: Intel Motherboard

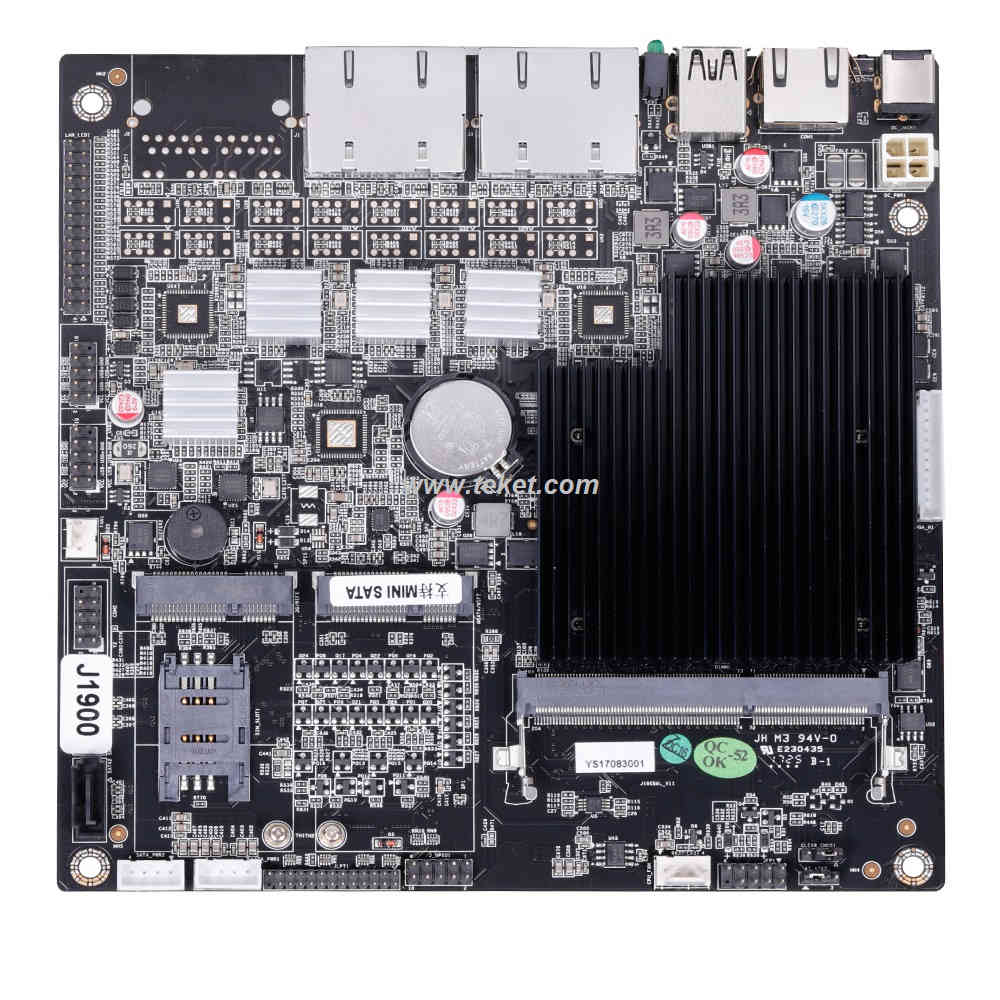

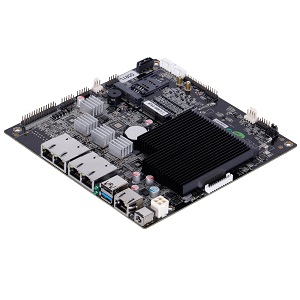

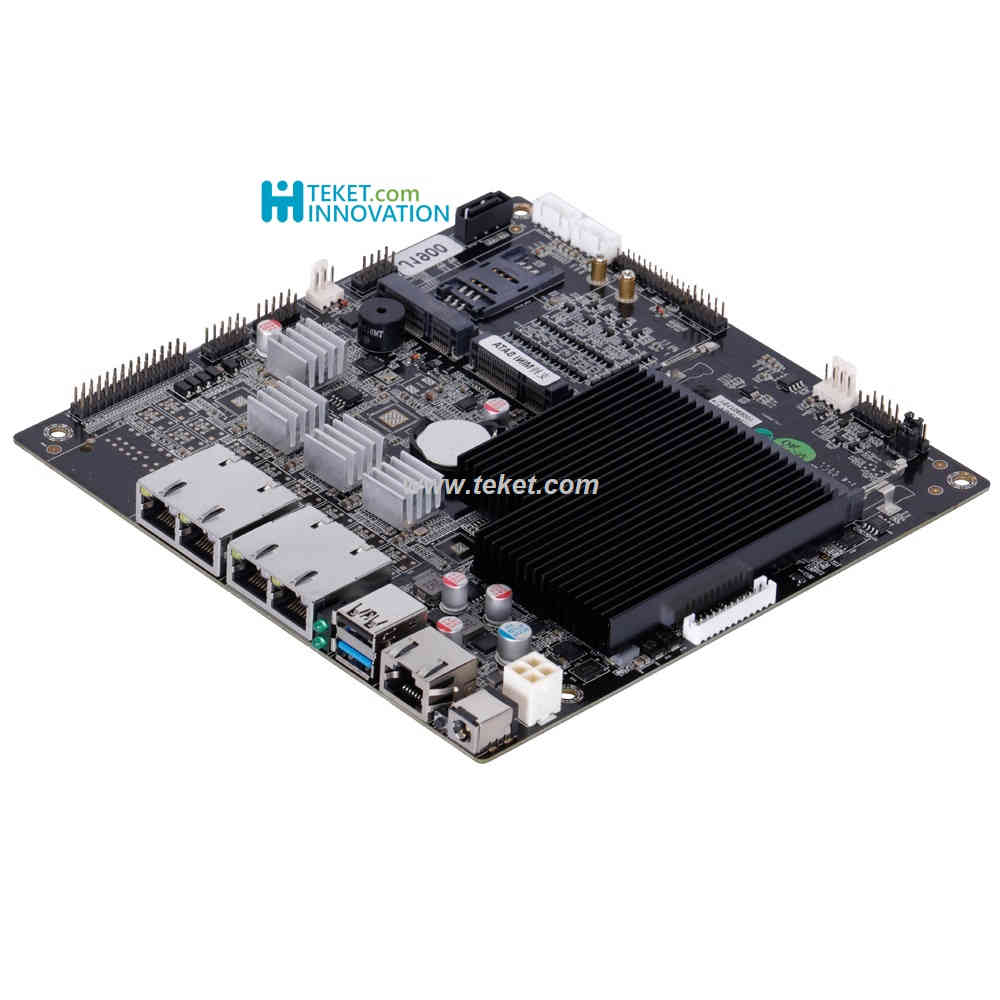

Intel Celeron J1800/J1900/N2940 Mini-ITX Motherboard with 4LAN PORTS J1900EL4 with 12VDC

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

Intel bay trail SOC
Intel Celeron J1800 dual core 2.41G to 2.58G
Intel Celeron J1900 quad core 1.99G to 2.4G
Intel pentium J2900 quad core 2.41G to 2.66G
DDR3L 1600 1.35V SO-DIMM up to 8GB
VGA/LVDS/HDI header onboard, support dual display, 24bit LVDS
RS232 onboard (3- or 9- pin), support 5V, 12V, COM6 suport RS485
onboard 1*MINIPCIE, support WIFI/3G/4G,1*MSATA,1*LPT
1*mulit function header
6*Intel I210AT(10000M) without BYPASS
note: model J1900LSB, with 2 channel BYPASS function
RSTBTN reset

Audio: Realtek ALC662
Suport Line-out, MIC-in, front header, 5W amp

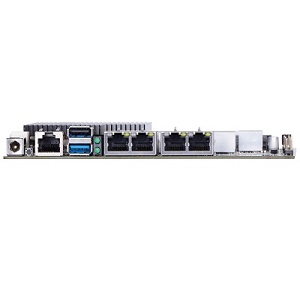

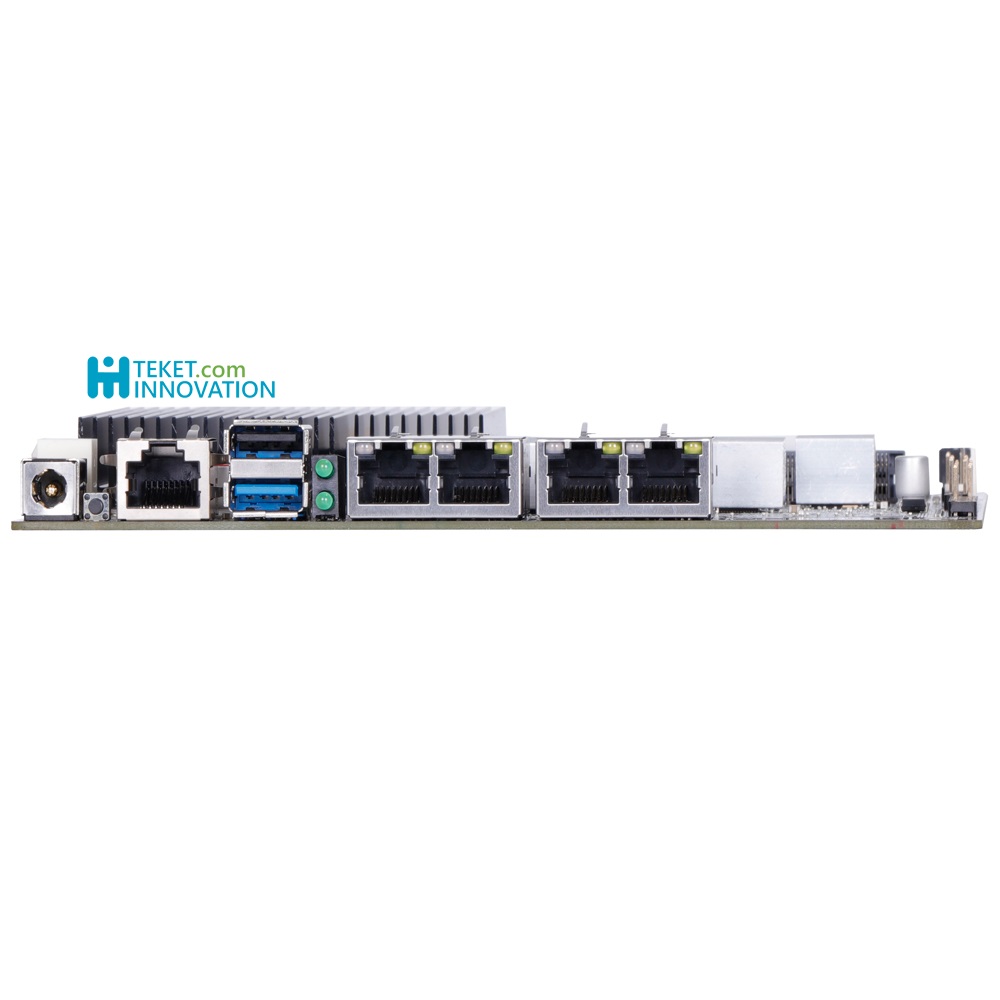

I/O shield: 1*USB2.0,1*USB3.0,1*COM(RJ45)
Header; 4*USB2.0,1*COM,SIM card,SPDIF,VGA(12pin)1*LPT,
wathc dog
Support CPU temp sensor, fan speed sensor and system temp sensor

1*MINIC PCE, support WIFI 3G/4G, 1*MSATA, 1*LPT

power requirment 12V5A or more
operating temperature -10c ~ 60c
storage temperature -40c ~ 80c
relative humidity 5% to 95% relative humidity, non-condensing

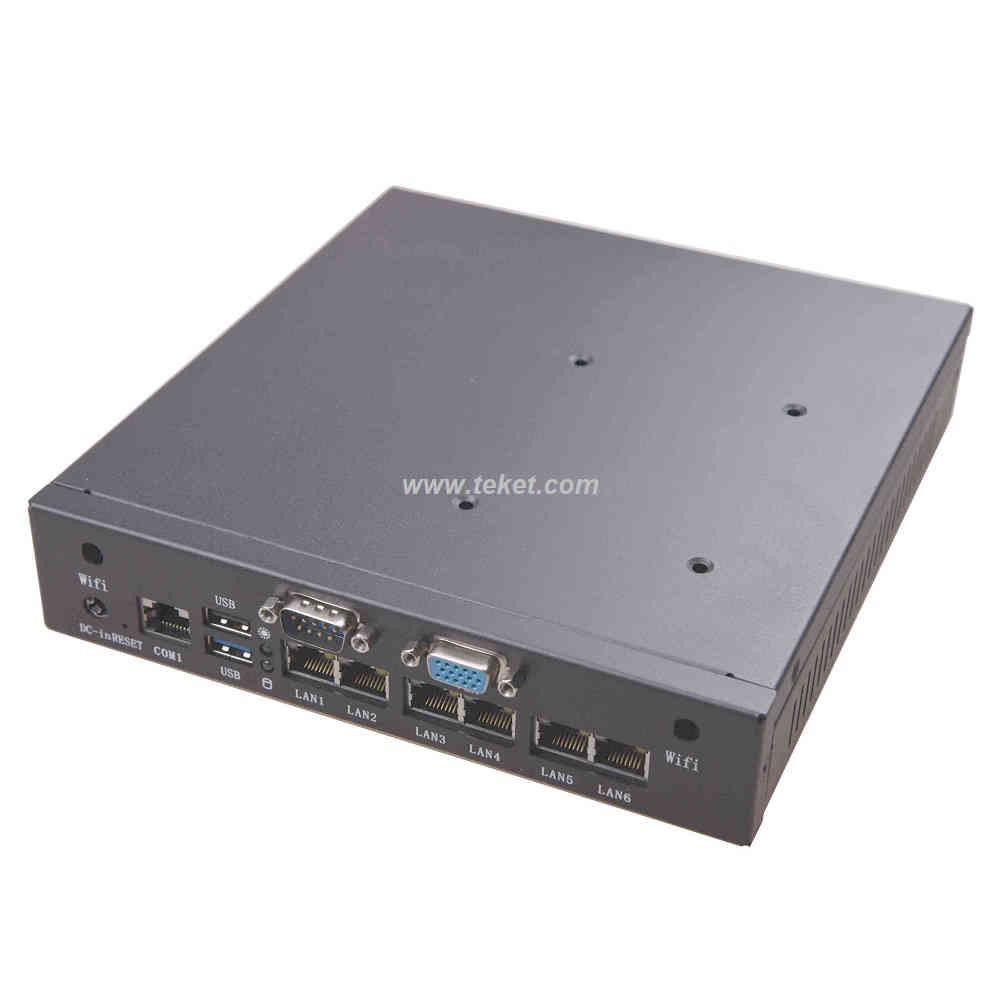

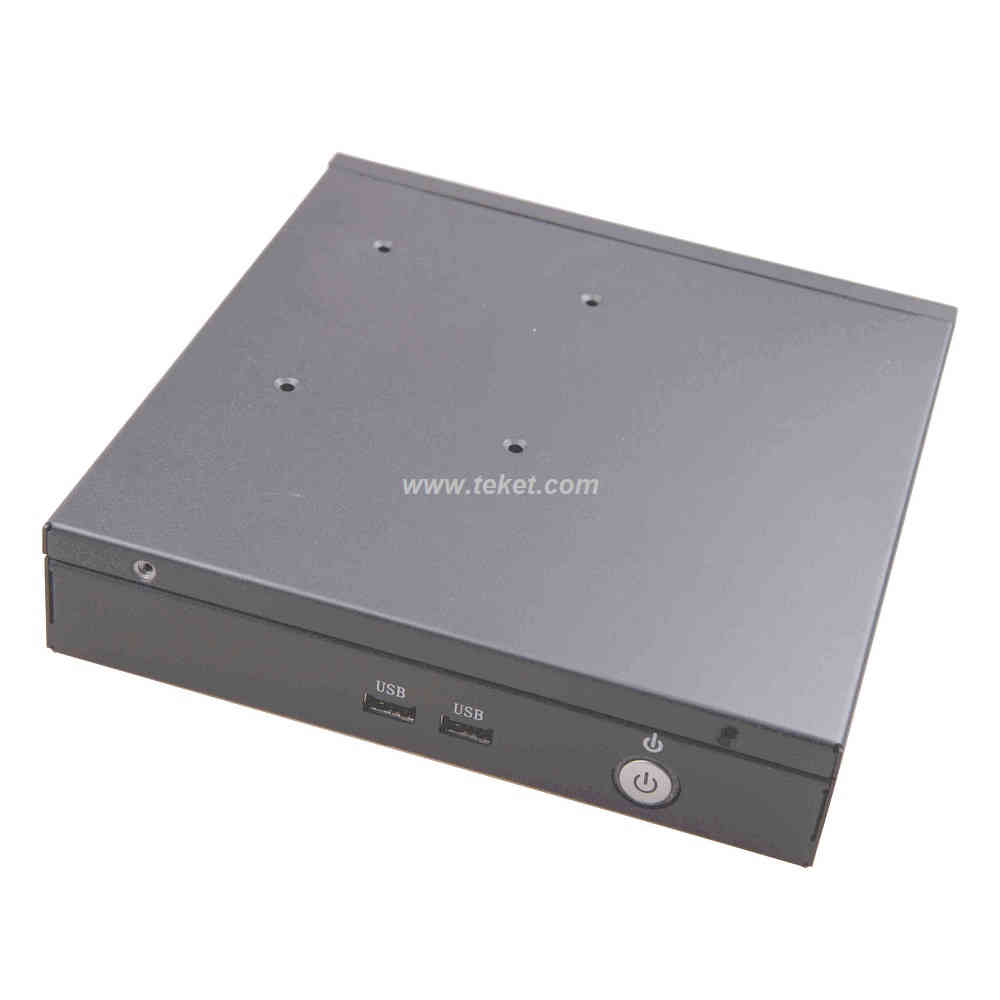

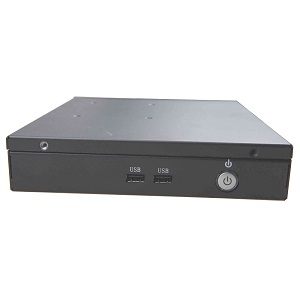

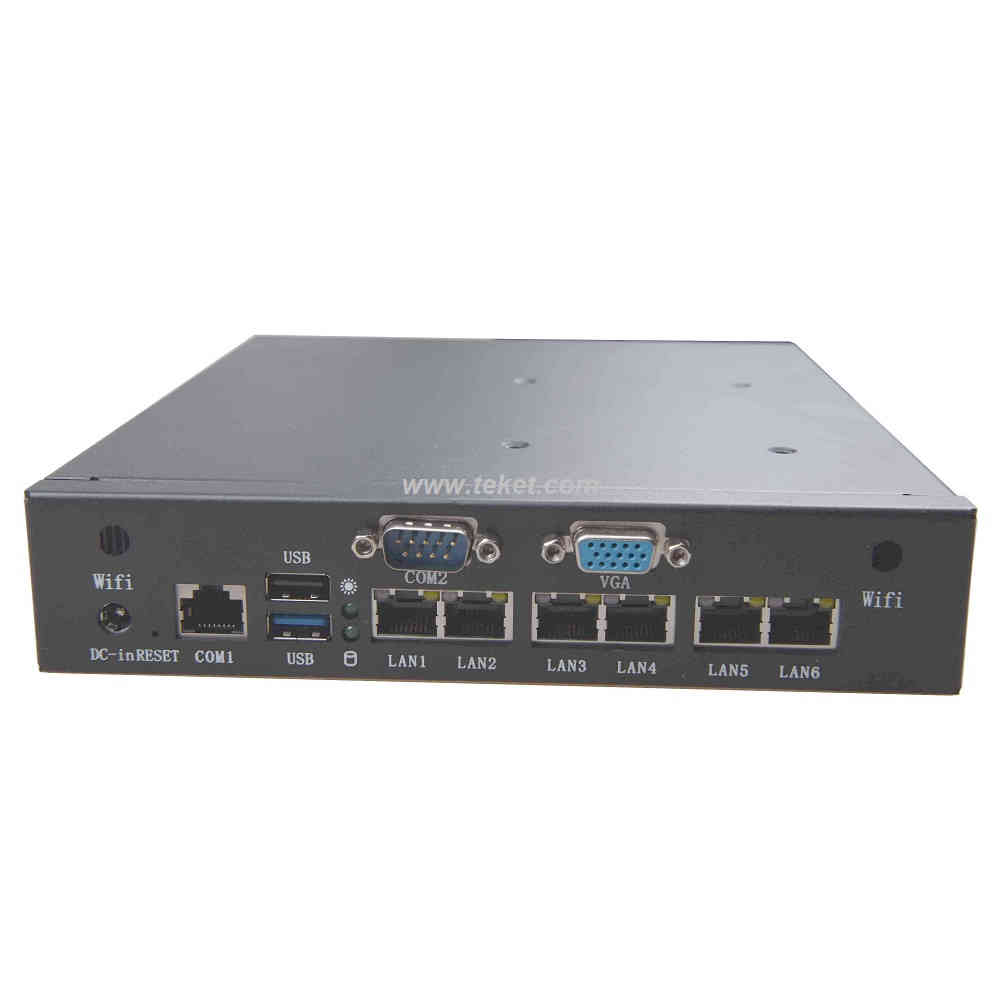

Full system, S-J1900EL4

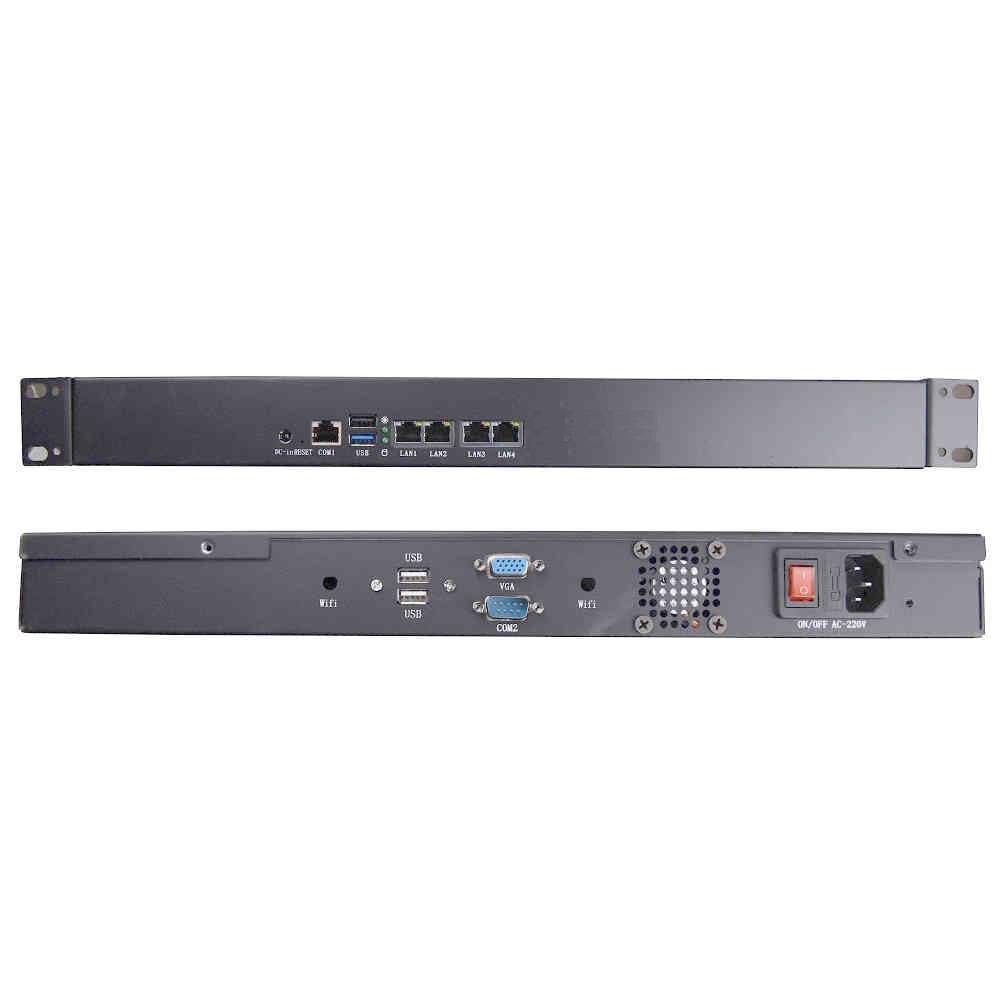

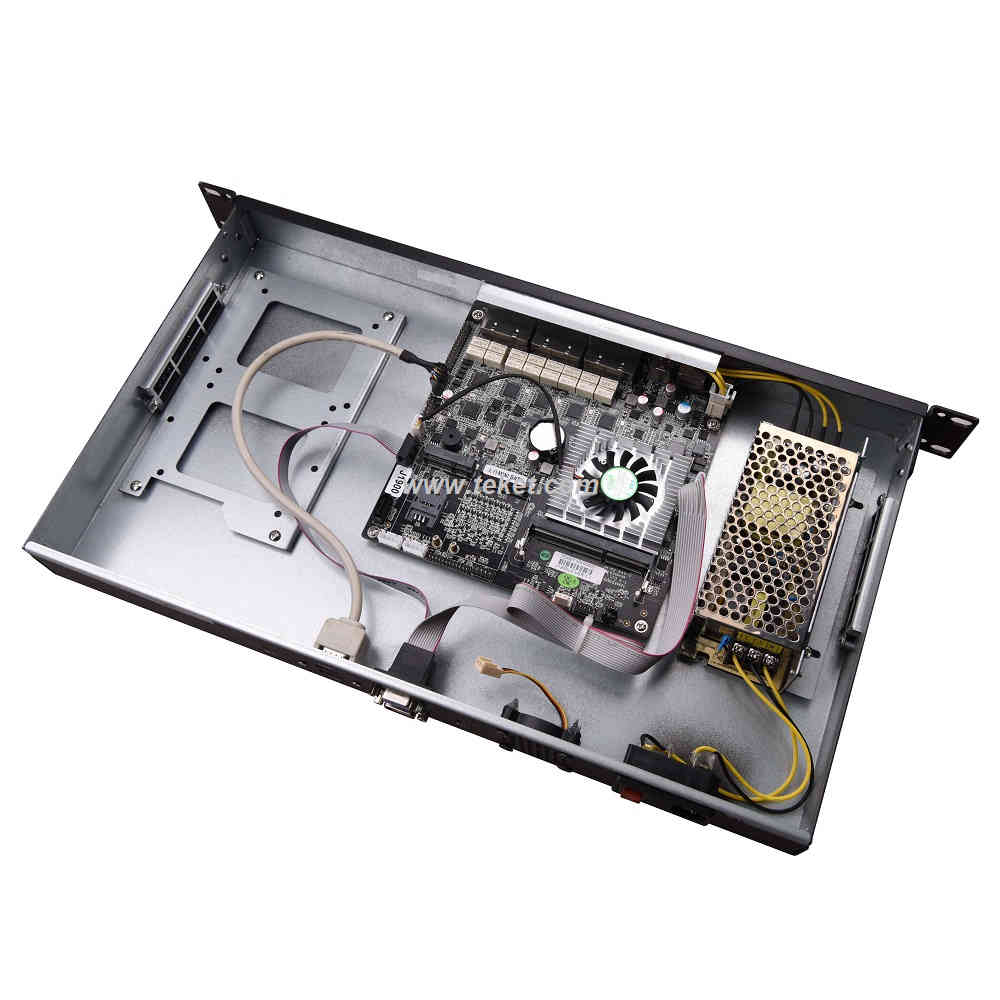

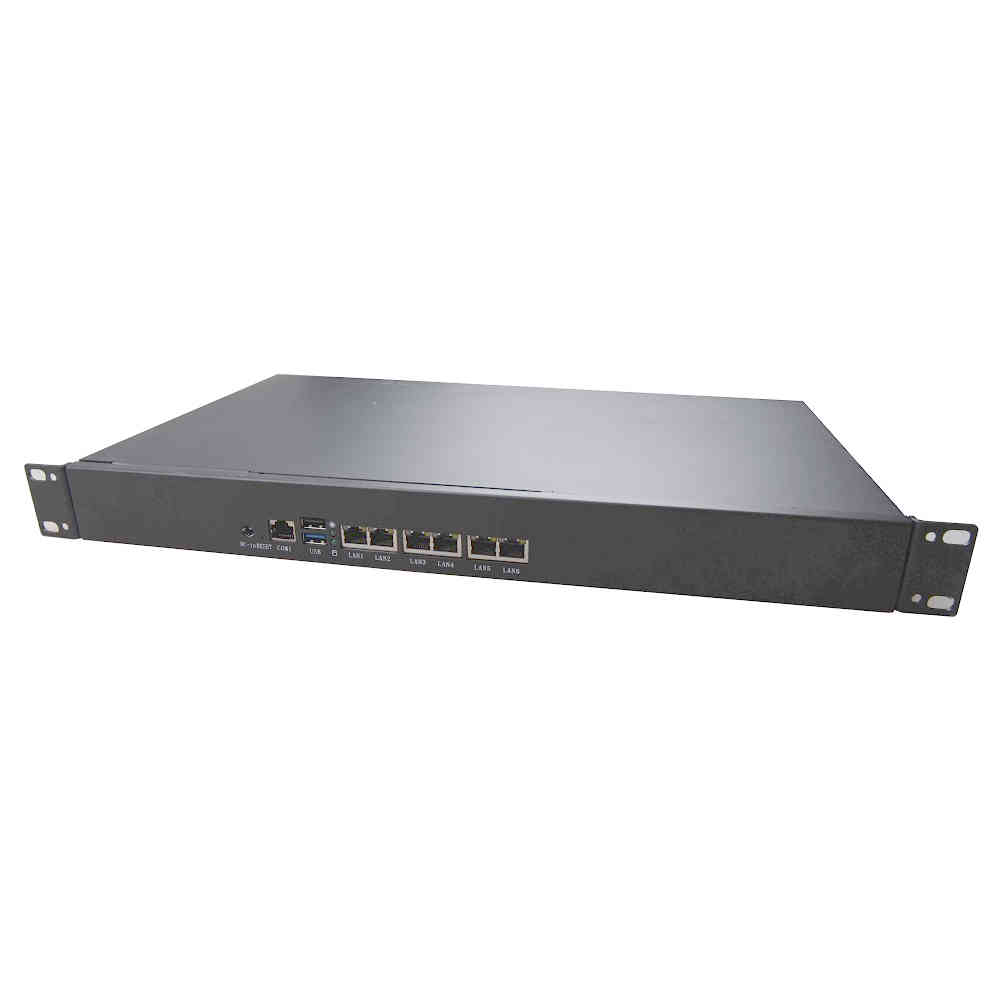

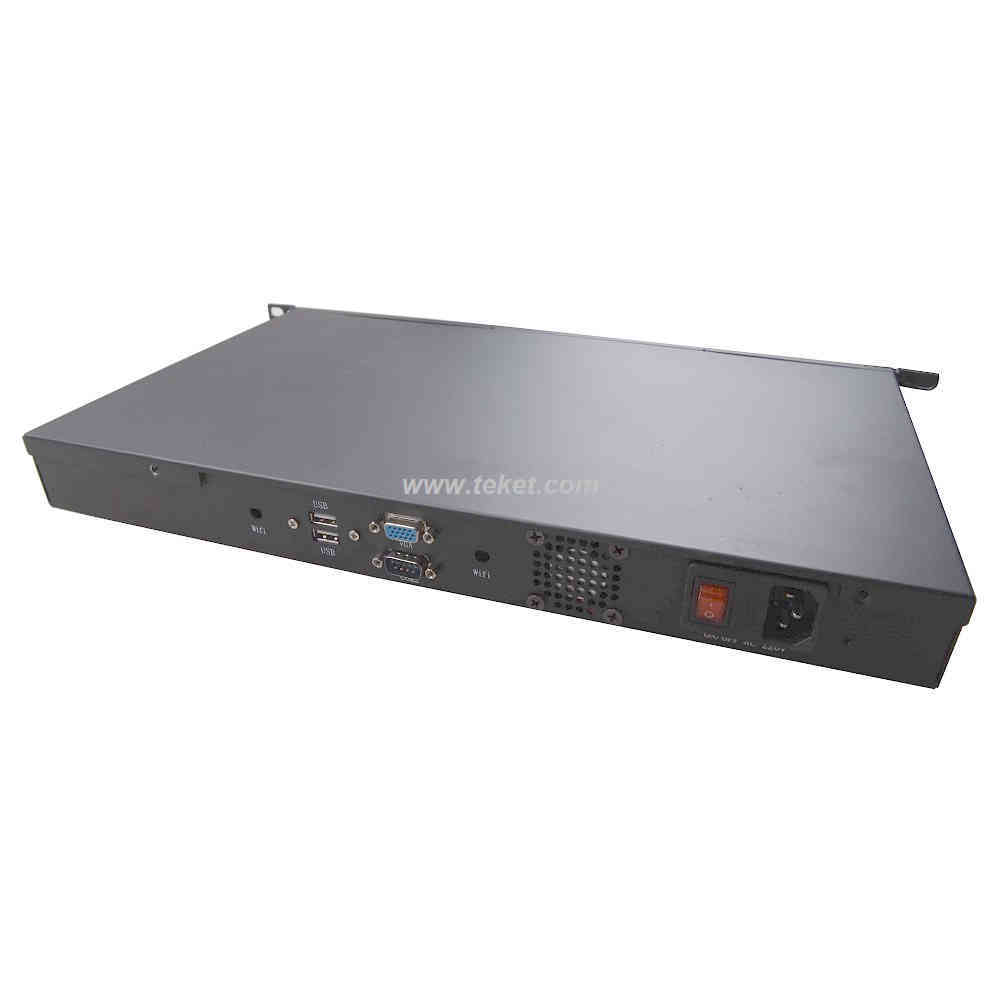

Full system, 1U-J1900EL4

Order Information
J1800EL4 ver1.0 J1800,DDR3,Intel HD,6*Intel I211AT,no bypass,no LVDS,1*VGA,4*USB,2*COM,12VDC,170mmx170mm
J1900EL4 ver1.0 J1900,DDR3,Intel HD,4*Intel I211AT,no bypass,no LVDS,1*VGA,4*USB,2*COM,12VDC,170mmx170mm
