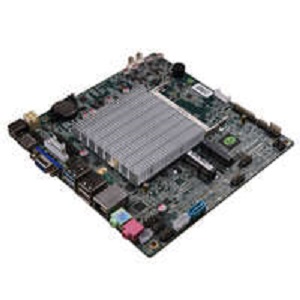

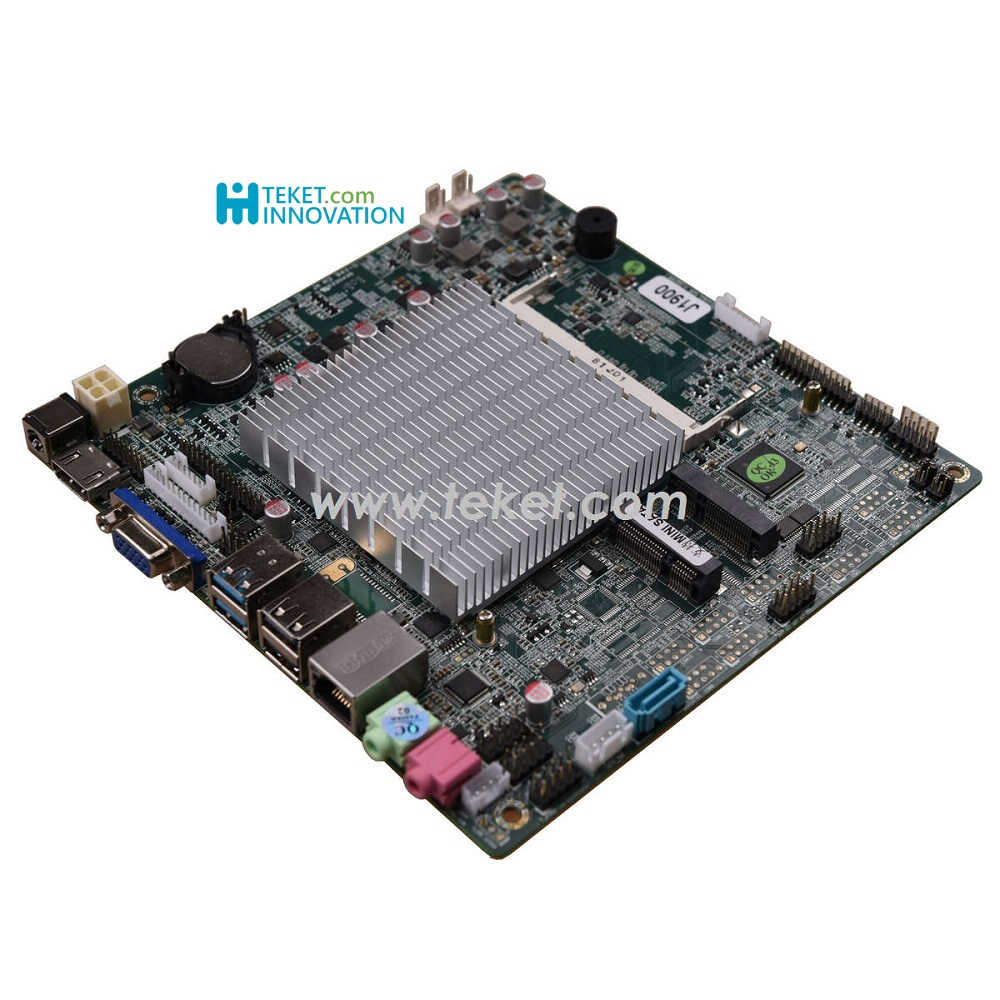

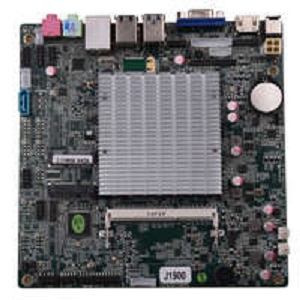

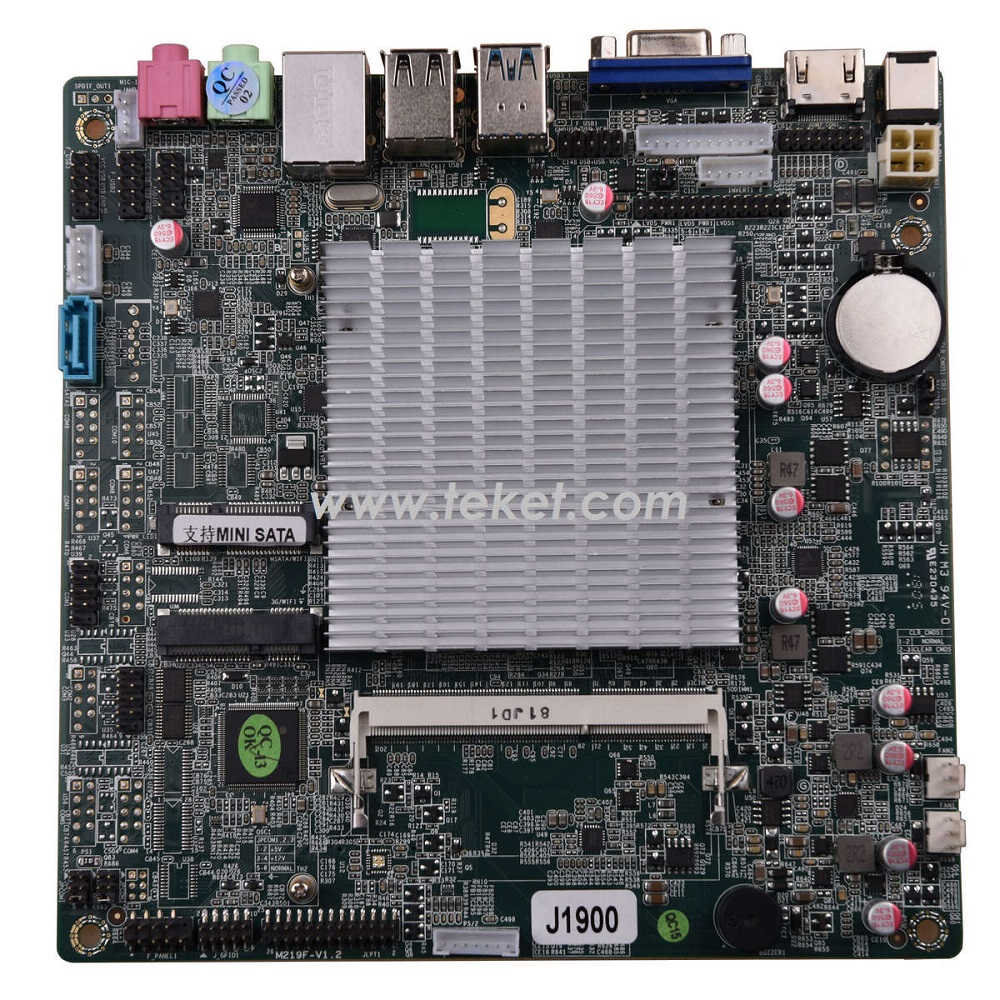

Intel Celeron J1800 J1900 2.42Ghz Slim Mini-ITX Motherboard J1900FS with 12VDC

Intel® Celeron J1900/4Cores/2.0GHz orJ1800/2Cores / 2.41GHz processor
Intel® Bay trail SOC
support single channel 1600/1333MHz DDR3L/1.35V memory, up to8GB
Integrated ALC662 6-Channel output,Support MIC/Line-out

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

CPU Intel® Celeron J1900/4Cores/2.0GHz orJ1800/2Cores / 2.41GHz processor
Compatible Intel® Bay Trail -I/M/D full seriesCPU,Flexible choice for customers
Chipset Based on Intel® Bay trail SOC platform
Memory Support single channel 1600/1333MHz DDR3L/1.35V memory, up to8GB
Graphics Integrated Intel® HD Graphics
Provide 1*VGA,1*HDI,1*LVDS (support dual channel 24BIT)
Support VGA;HDI;LVDS synchronous/asynchronous display
Integrated 1* or 2* Realtek RTL8111F Gigabit Etherne
Support wake on LAN/PXE
Provide 1* SATA, 1*MSATA, the transfer rate up to3Gbps
Audio Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier
Amplifier proposed using 2Ω5W speakers
Expansion slots
1*Mini-PCIE slot,support WIFI、3G module
1*MSATA slot , support SSD, the transfer rate up to3Gbps.

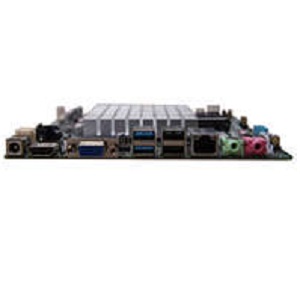

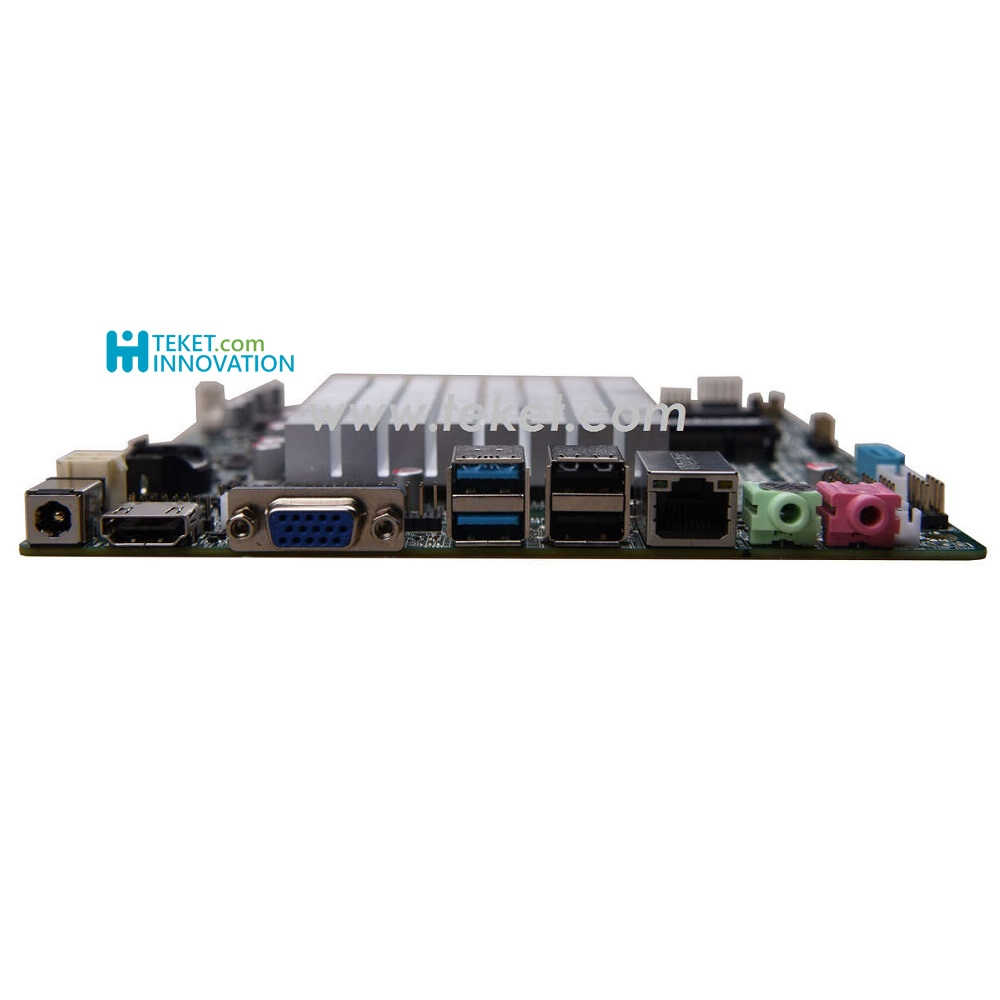

Rear I/O
1* HDI (with pin header)
1* VGA
3* USB 2.0 (USB1 and LAN2 two choose one)
1* RJ-45 Gigabit Ethernet connector(LAN2 and USB1 two choose one)
1* Line out(Green)、1* MIC(Red)
1* 12V DC power input
Internal I/O
1* 4pin ATX power input(can do 12V power input/output interface)
1* 2pin 12V DC power input
4* USB 2.0 2*5Pin
1* USB 2.0 1*5Pin
1* J_HDI 2*8Pin , same signal with HDI1
1* JVGA 1*12Pin same signal with DB15
1* PS/2 KB/MS connector 1*6Pin
6* RS232 serial port(can do 2* or 6* serial port ), COM3 supportRS485/RS422
1* LPT 2*13Pin
1* front panel audio connector 2*5pin
1* front panel function buttons and indicator connector 2*5Pin
1* LVDS 2*15pin, support dual channel24bit(double 8)
1* LVDS backlight power supply connector
1* HDD power supply connector
1* power amplifier interface
1* SIM card socket
FAN interface
Fanless Cooling design ,Reserve 1*4pin CPU fan interface,1* 3pin system fan interface
GPIO support 4 way input/output GPIO
BIOS 64Mb Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power input Adopt DC 12V power supply
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 5%-95% (relative humidity; non-condensing)
Dimension 170mm x 170mm

Ording info
J1800FS-D12 J1800 2.41G/2C,1*SODDR3,VGA+HDI,2*8bitLVDS,1*LAN,9*USB,2*COM,DC12V
J1800FS-D22 J1800 2.41G/2C,1*SODDR3,VGA+HDI,2*8bitLVDS,2*LAN,9*USB,2*COM,DC12V
J1900FS-D12 J1900 2.0G/4C,1*SODDR3,VGA+HDI,2*8bitLVDS,1*LAN,9*USB,2*COM,DC12V
J1900FS-D22 J1900 2.0G/4C,1*SODDR3,VGA+HDI,2*8bitLVDS,2*LAN,9*USB,2*COM,DC12V

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
