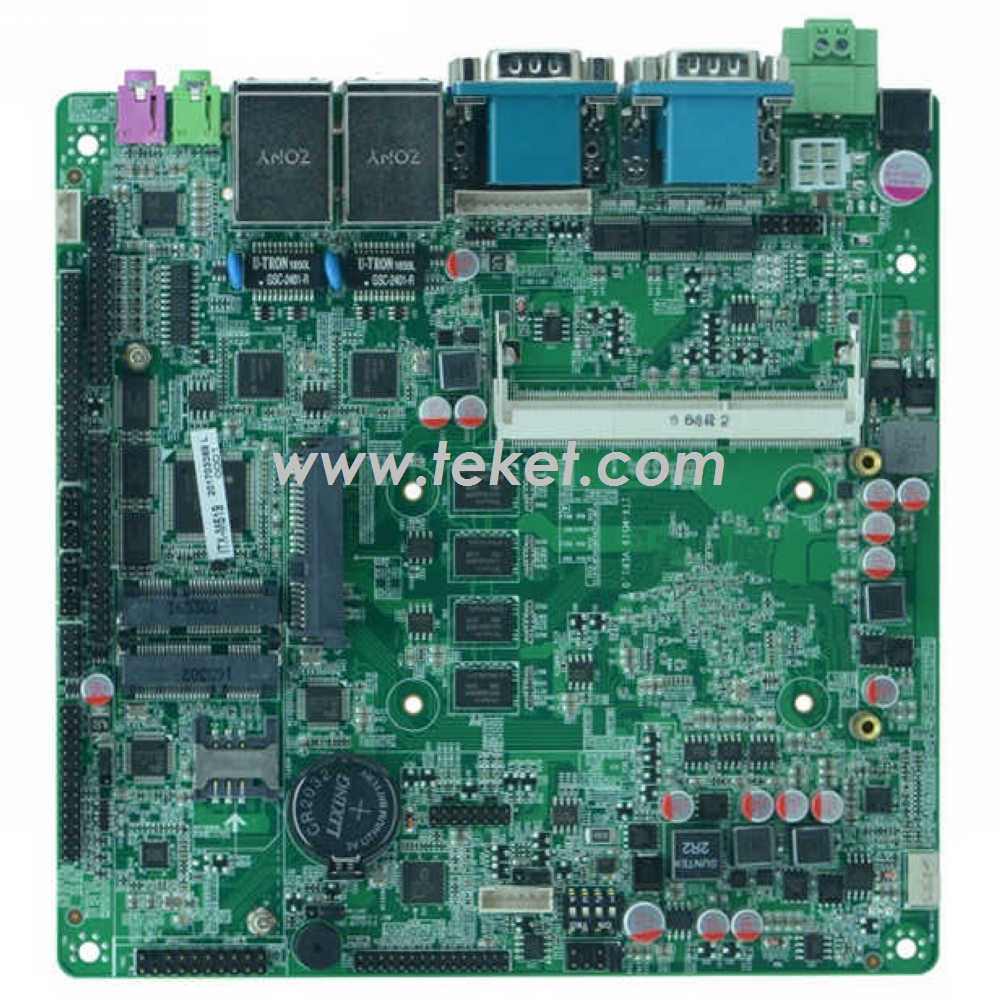

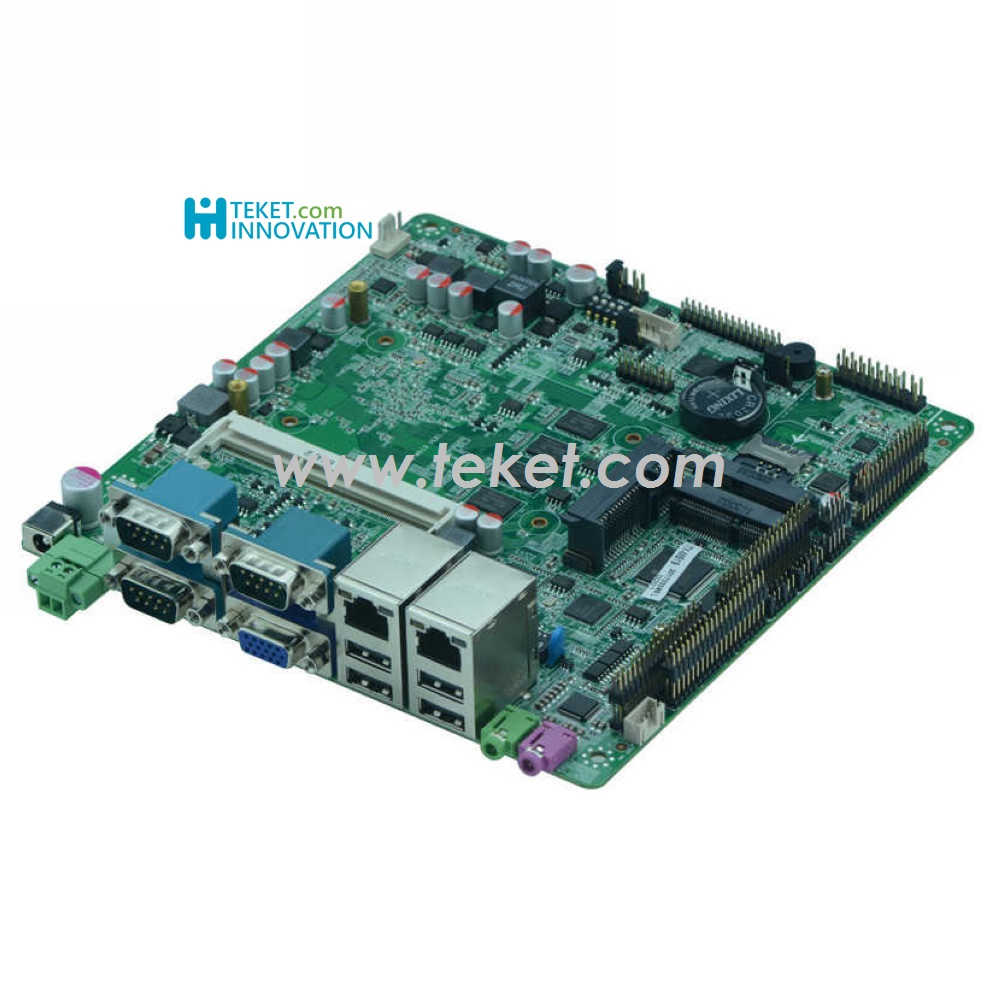

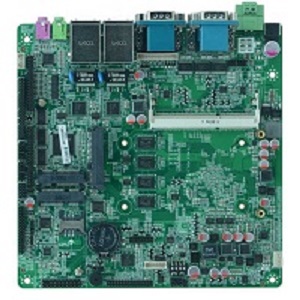

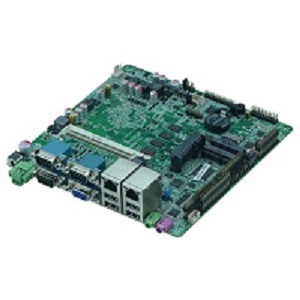

Intel Celeron J1900 Mini-ITX Motherboard DUAL 2*LAN 6*COM GPIO 9-36VDC J1900MC

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

J1900MC VER:1.0
Integrated Intel? J1900 2.00GHz Quad core processor
Based on baytrail SOC platform
Support 1* DDR3L 1600/1333MHz SODIMM, up to8GB
Integrated Intel?HD Graphics
Provide 2*VGA port、1* HDMI port,1* support dual channel 24bitLVDS
Integrated 2* Intel WGI211AT Gigabit Ethernet , support wake on LAN/PXE
6*RS232 serial ports,COM3~COM6 supportRS485/RS422


Model No.
J1900MC VER1.0
Processor
Integrated Intel? J1900 2.00GHz Quad core processor
Chipset
Based on baytrail SOC platform
Memory
Support 1* DDR3L 1600/1333MHz SODIMM, up to8GB(Dual channel can be matched with onboard memory)
On-board 4GB DDR3L memory(Optional),Customers can select onboard memory according to market demand
Display
Integrated Intel?HD Graphics
Provide 2*VGA port、1* HDMI port,1* support dual channel 24bitLVDS
Support for single display,dual mode,extened mode
LAN
Integrated 2* Intel WGI211AT Gigabit Ethernet , support wake on LAN/PXE
Storage
1*SATA2.0 2.5 inch notebook HDD place ,can be installed directly on the hard disk
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier,Amplifier proposed using 2Ω5W speakers
Expansion slots
Provide 1* Mini-PCIE slot, support WIFI、3G module
1* MSATA slot, support Intel protocol SSD, the transfer rate up to 3Gbps

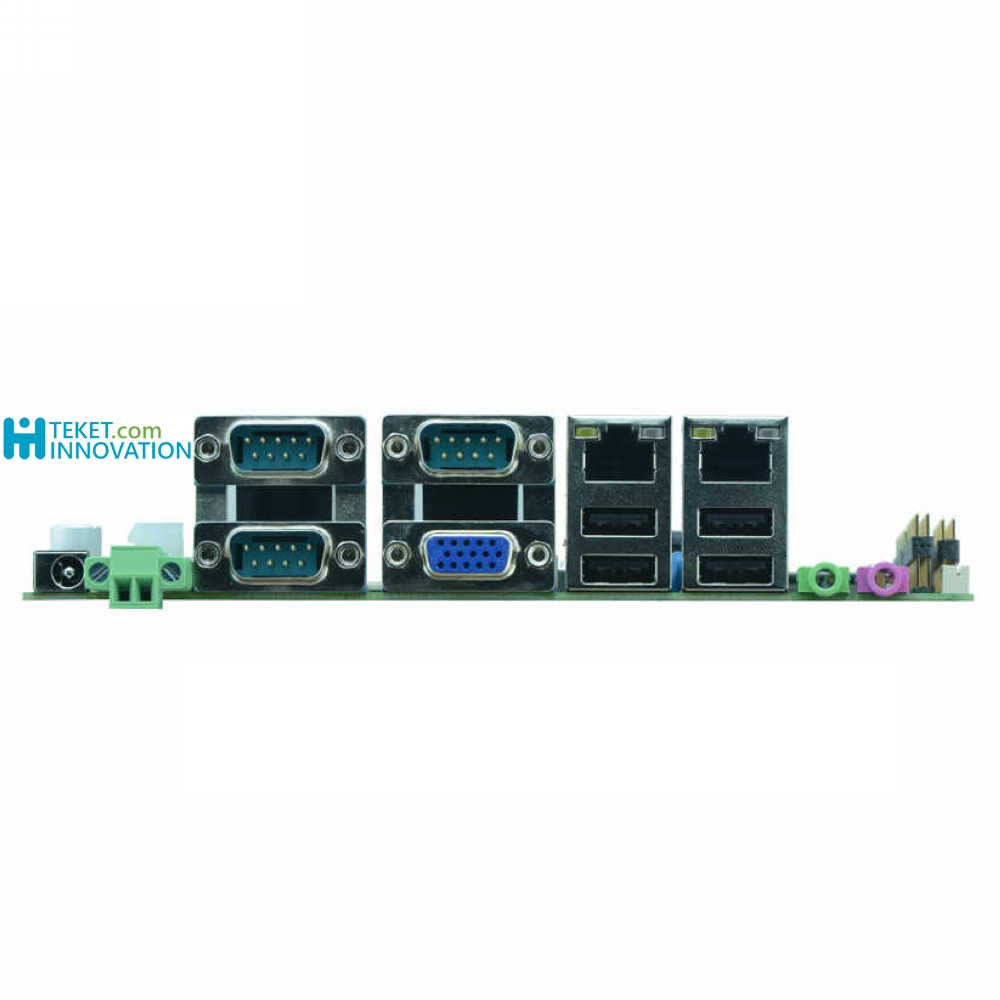

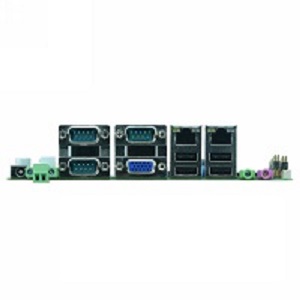

Rear I/O
1*DC 9~36V power input
3*RS232 serial ports (The pin of COM1/COM2 support 5V/12V charged function)
1*VGA port
4*USB2.0 ports
2*RJ-45 Gigabit Ethernet ports
1*Line-out(Green),1*MIC(Violet)
1*2Pin power port(DC 9~36V)
Internal I/O
1*LVDS port2*15pin, support dual channel24bit (double 8)
1*LVDS backlight power supply connector1*6pin
1*JVGA1 port 1*12pin , the same signal withDB15
1*JVGA2 port(2*15pin, ProvideVGA/SIM/KBMS and other signal channel with the use of IO board)
1*LPT port
1* JHDMI port 2*8pin
3*RS232 serial ports( optional,COM3~COM6 supportRS485/RS422)
4*USB2.0 ports 2*5pin
1*front panel function buttons and indicator connector 2*5pin
1* front panel audio connector 2*5pin
1* Power amplifier connector 1*4pin
1*SIM card socket
1* TPM 2* 10pin
1*4pin ATX 12V power input/output port
FAN interface
Fanless Coolint,Reserved 1*4pinCPU Intelligent fan port
GPIO
Support 4 way input/output GPIO function
BIOS
64Mb Flash ROM
Watch dog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 9~36V power supply
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Deminsion
170mm x 170mm

Ording info
J1900MC Ver1.0,J1900 2.0G,1*SODDR3L(4G onboard),2*WGI211,2*VGA,1*HDMI,2*LVDS,8*USB,6*COM(RS485/422),9-36VDC

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
