Intel Celeron J1900 2.42Ghz Mini-ITX Motherboard J1900MF with 4 LAN ports

Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Status Launched
Launch Date Q4'13
Processor Number J1800
L2 Cache 1 MB
# of Cores 2
# of Threads 2
Processor Base Frequency 2.41 GHz
Burst Frequency 2.58 GHz
TDP 10 W

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

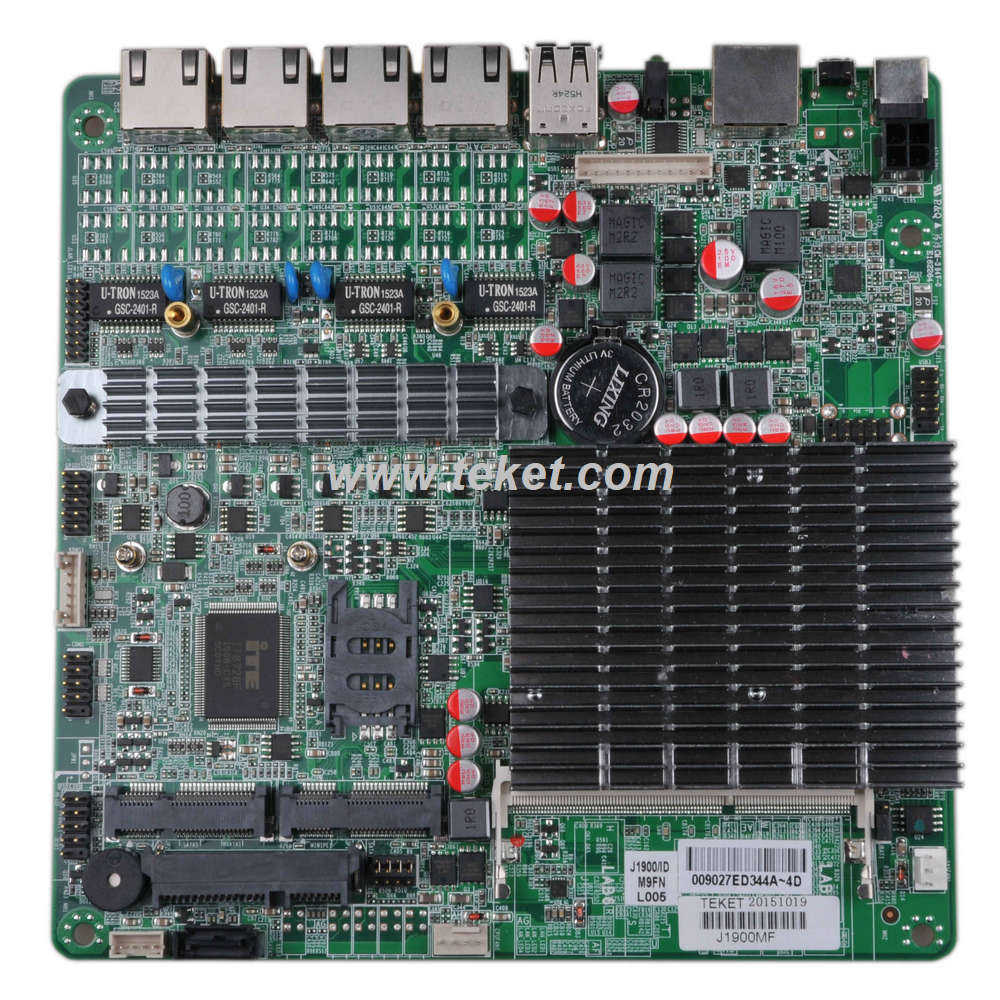

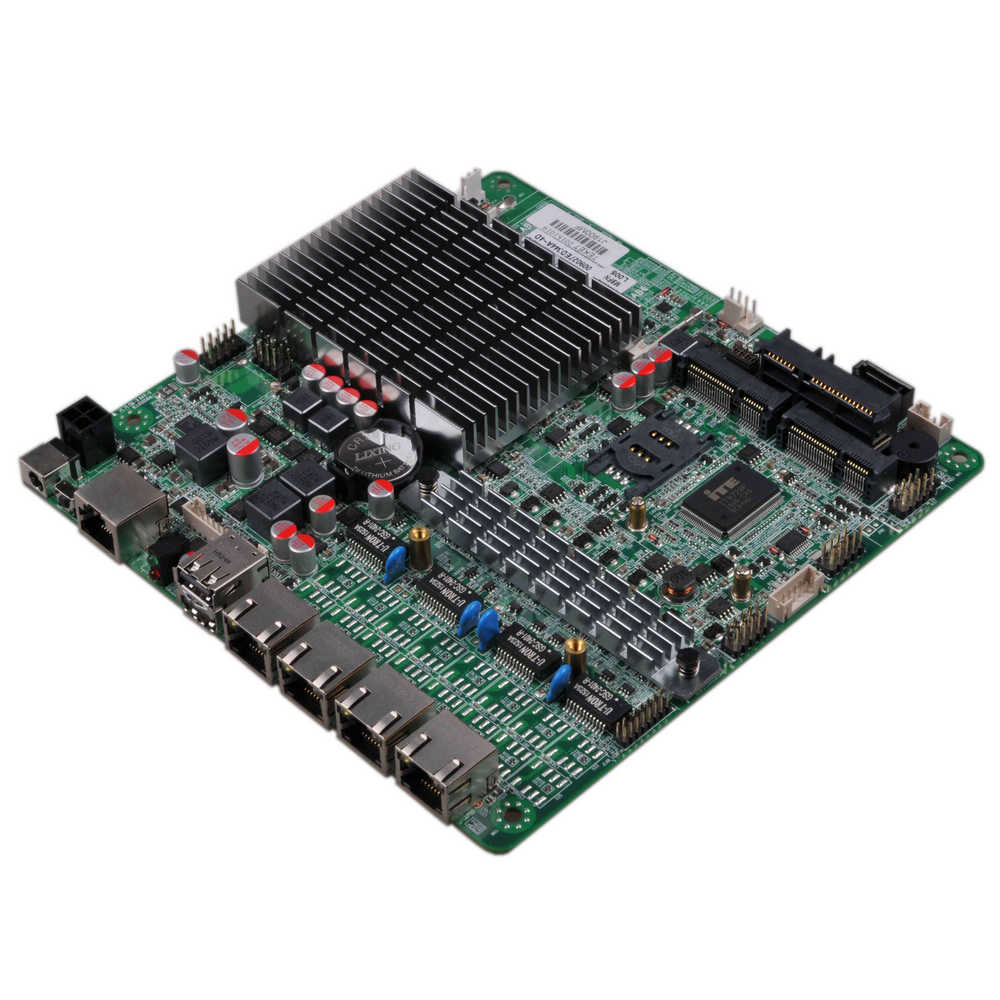

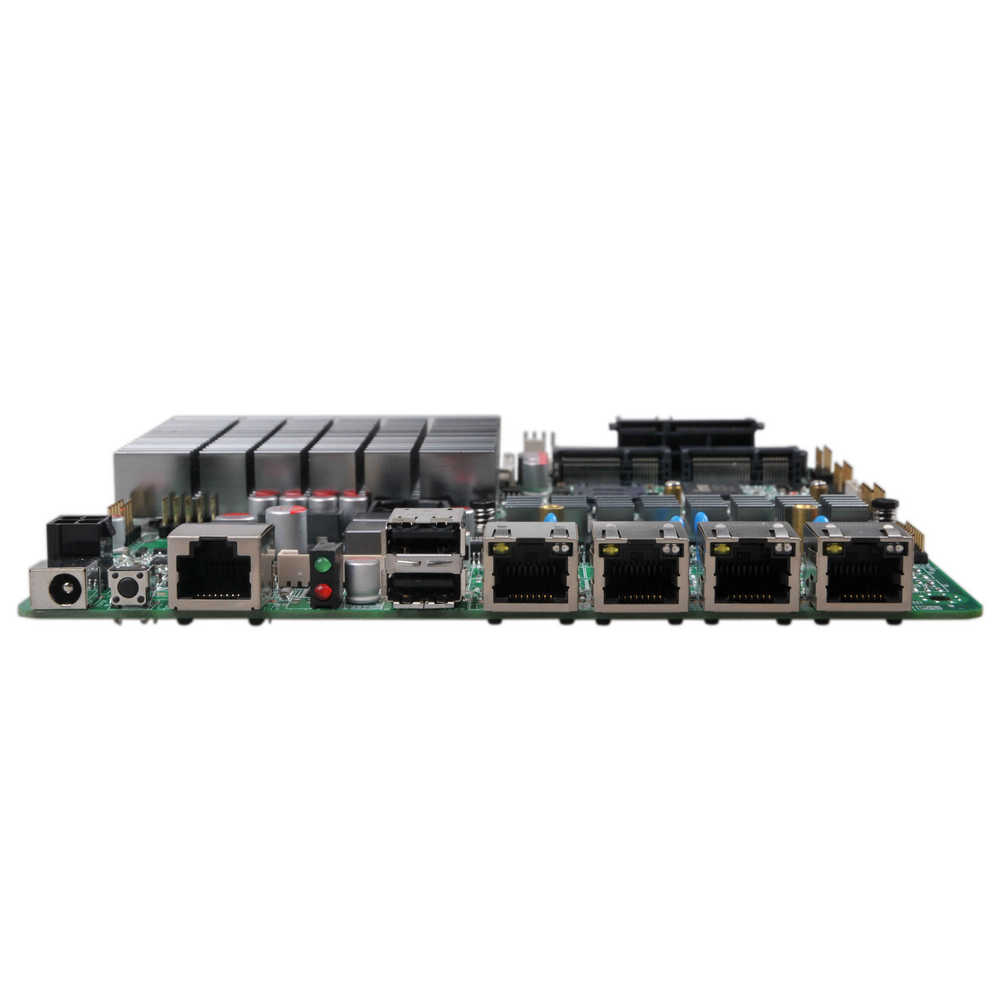

J1900MF VER:1.5
Integrated Intel Celeron J1900/4Cores/2.0GHz TDP10W
Based on Intel Bay trail SOC platform
Support single channel 1600/1333MHz DDR3L/1.35V Memory, up to 8GB
Integrated IntelHD Graphics ,support VGA display output
4*82583V Gigabit Ethernet ,support wake on LAN/PXE
1*SATA 2.5 inch Notebook hard disk place, can beITX-M9F VER:1.5
Integrated Intel Celeron J1900/4Cores/2.0GHz TDP10W
Based on Intel Bay trail SOC platform
Support single channel 1600/1333MHz DDR3L/1.35V Memory, up to 8GB
Integrated IntelHD Graphics ,support VGA display output
4*82583V Gigabit Ethernet ,support wake on LAN/PXE
1*SATA 2.5 inch Notebook hard disk place, can be


Processor: Integrates Intel® Celeron Quad Core J1900 22nm processor 2.0GHz, compatible with Intel® Bay Trail -I/M/D series CPU
Chipset: Intel® Bay trail SOC platform, CPU integrates chipset
Memory: 1* DDR3 SODIMM,supports 1333/1066 MHz , Max. 8GB
Graphics: Intel® HD Graphics
Expansion Slot:
1* mSATA slot
1* Mini-PCIE slot (supports WIFI / 3G module)

Ethernet: 4*Intel 82583V or 82574L 10/100/1000 Mbps RJ45 interfaces,supports Wake-On-LAN, Supports 2 pair of BYPASS(Option)
Ethernet: 4*Intel I211AT 10/100/1000 Mbps RJ45 interfaces,supports Wake-On-LAN, Supports 2 pair of BYPASS(Option)

Storage:
1* 2.5’ HDD Space,supports HDD inboard
1* SATA (alternative to 2.5’ hard disk )
1* mSATA slot (supports SSD /USB WIFI)
Rear I /O
1* 12V~19V DC JACK input
1* Power switch
1* COM CISCO standard interface
1* LED1(POWER LED/HDD LED)
2* USB(1*USB2.0 ,1*USB3.0)
4* RJ-45 connectors
Internal I/O Connector 1* VGA (1*12pin)
1* LAN LED(2*8pin)
1* COM
2* USB 2.0
1* FP1 header(2*5pin Front panel buttons and indicator connector)
1* ATX 4PIN power connector (for 12V~19V input/output)
1* aviation connector 2PIN(for 12V~19V input/output)
1* PS/2 KB & MS Connector
1* SATA PWR Connector
1* SIM slot
Fan Connector: 1* CPU Fan , 1* system Fan connector
GPIO: 4-bit input/output
BIOS: AMI 32Mb Flash ROM
Watchdog Timer: System reset ,Programmable L256 , 0 ~ 255 sec/min
Power Type: Single voltage 12V~19V DC Input
Operating Temp.: -10°C~ 60°C
No-Operating Temp. -20°C~ 70°C
Humidity: 5-95% (relative humidity; non-condensing)
Dimension: 170mm x 170mm

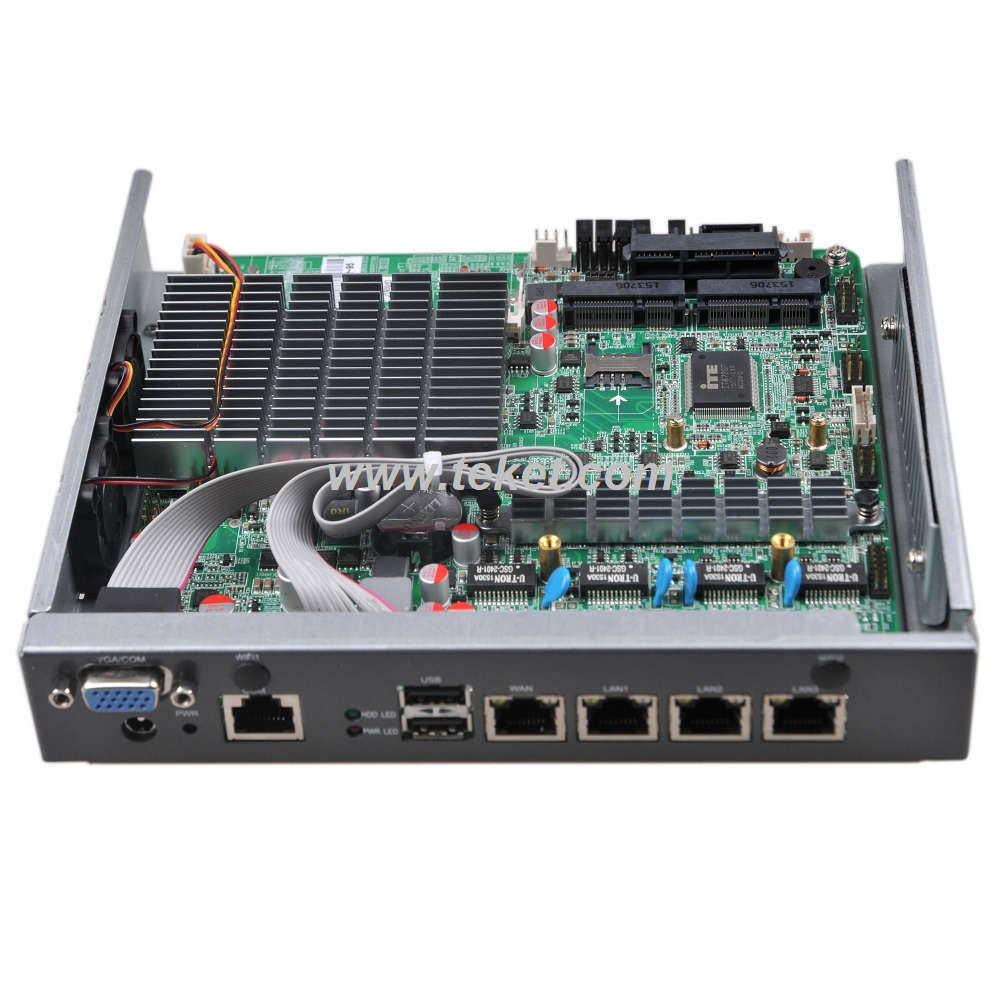

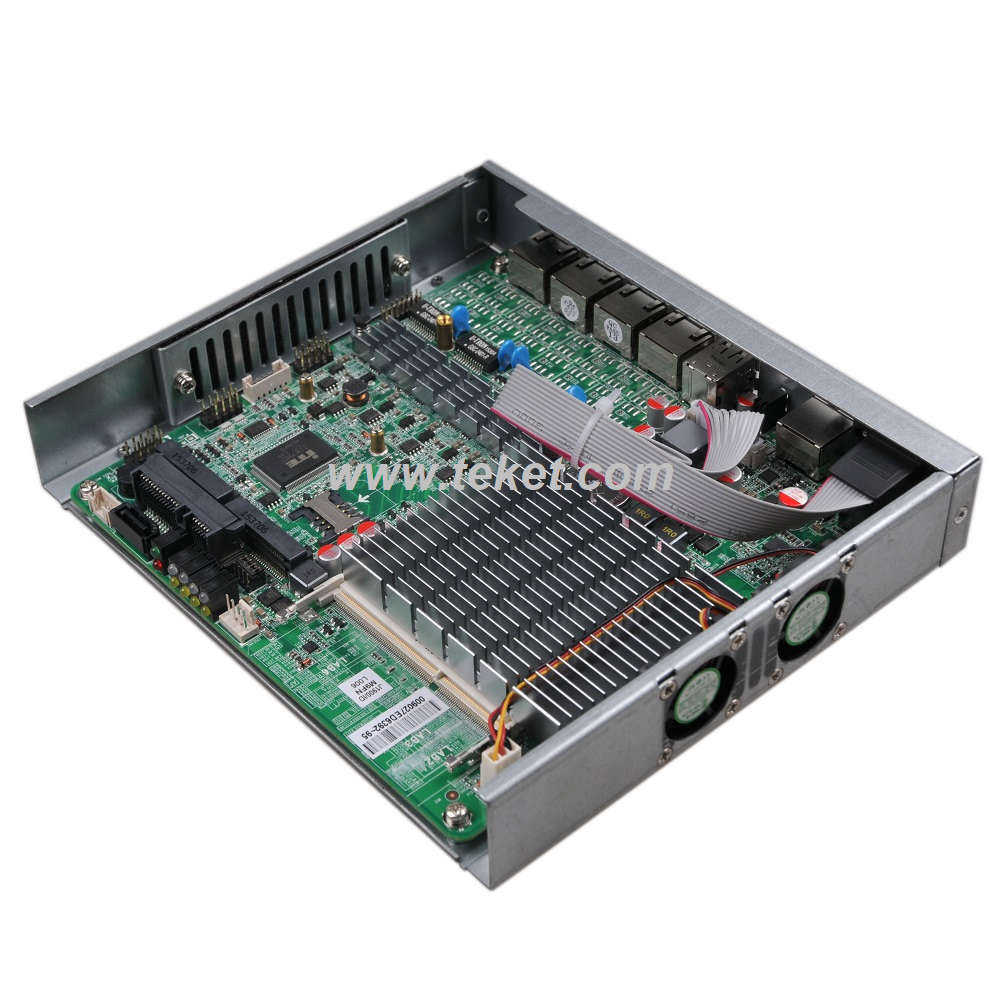

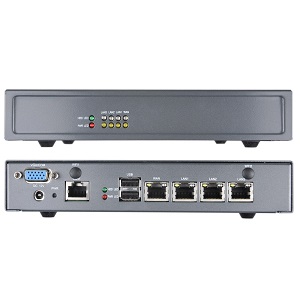

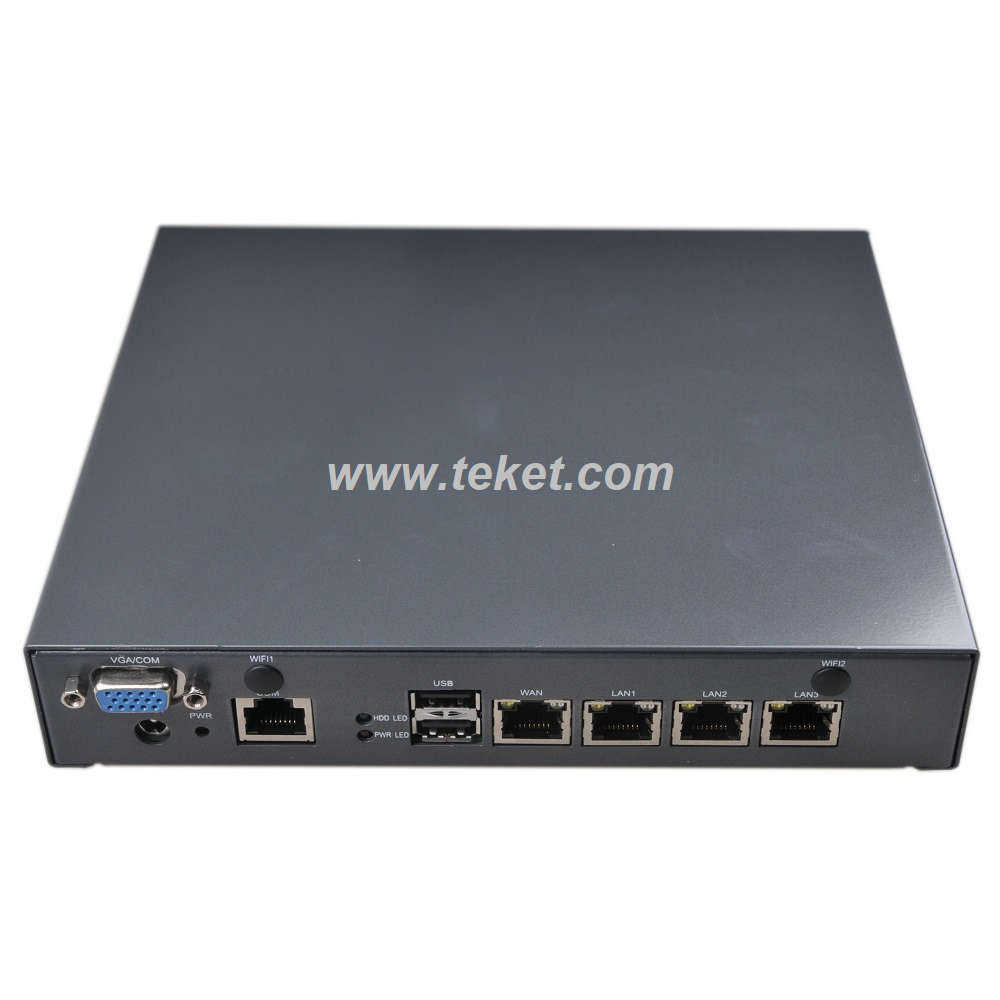

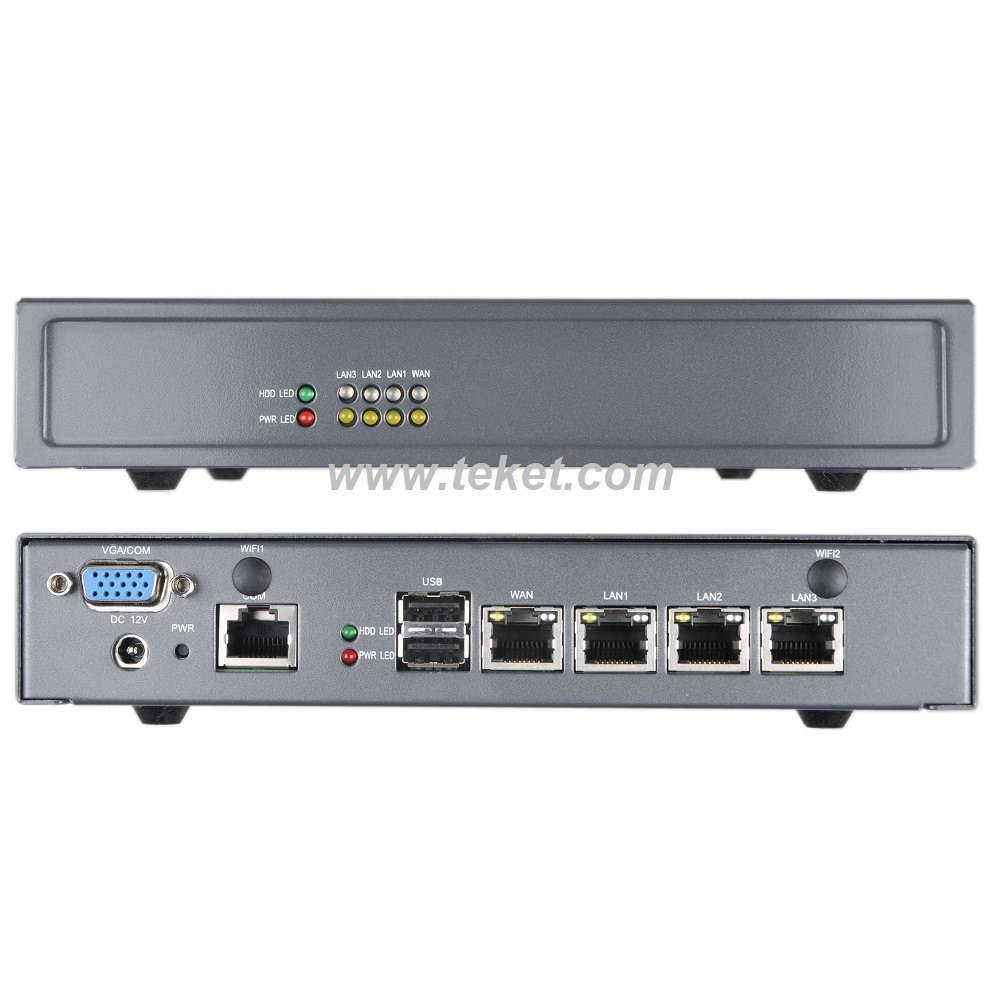

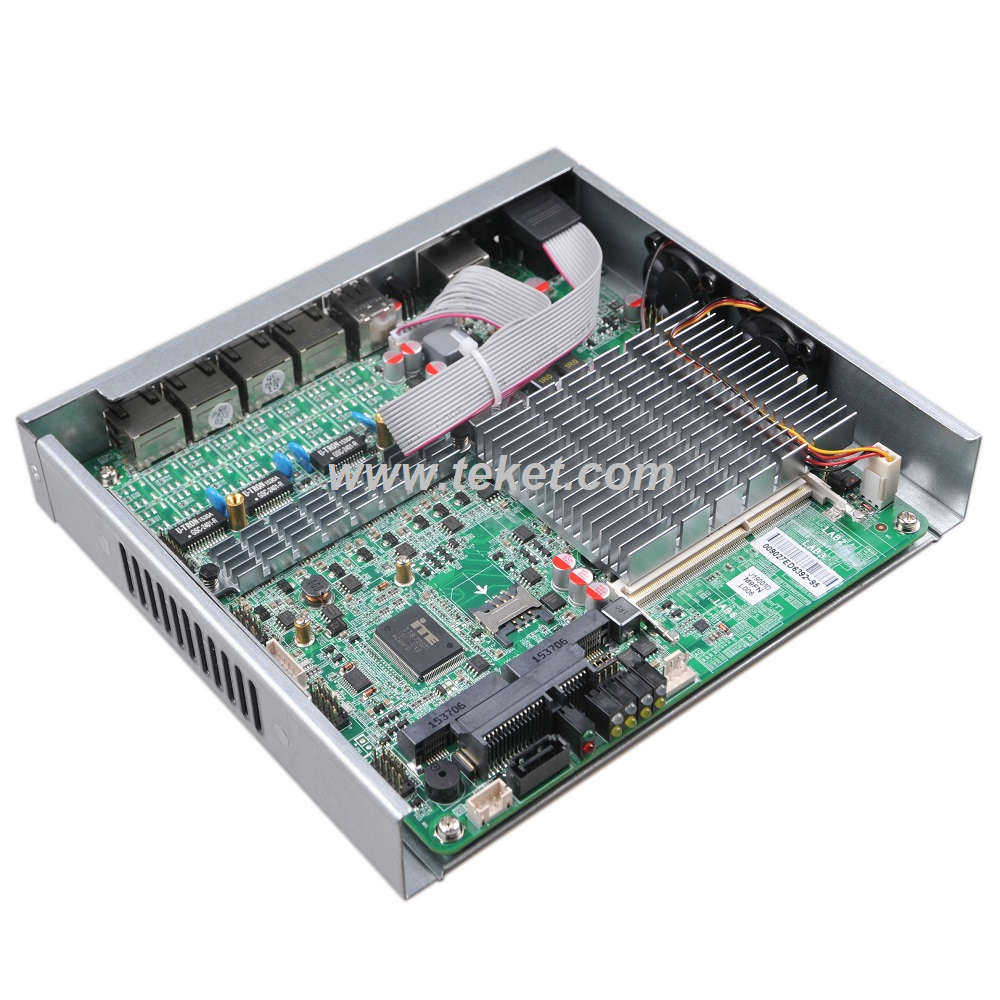

Small size full system model: S4-J1900MF

features:
1),fan or fanless sysgtem
2),metal, compact structure, flexible installation
3),size: 197*174*35mm

Spec:
1),color gray
2),full Metal fan cooling structure
3),motherboard model: J1900MF
4),RAM: 2G,4G and 8G
5),mSATA SSD or 2.5" SATA SSD or HDD
6),Intel 82583V 1000/100/10Mbps,4*LAN
7),2*USB 2.0
8),1*COM
9),1*VGA
10),extend: 2*mini pcie (msata,3g/wifi)
11),2*4 Status Indicator LEDs
12),12VDC IN, 12V3A adatptor (optional)
13),desktop or wall-mounted installation
14),operating temperature 10c ~ 60c
15),storage temperature -20c ~ 70c
16),relative humidity 5% to 95% relative humidity, non-condensing
17),working shock 0.5g rms / 5-500HZ / random / operating

or

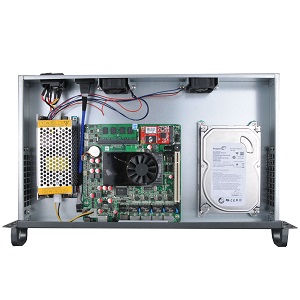

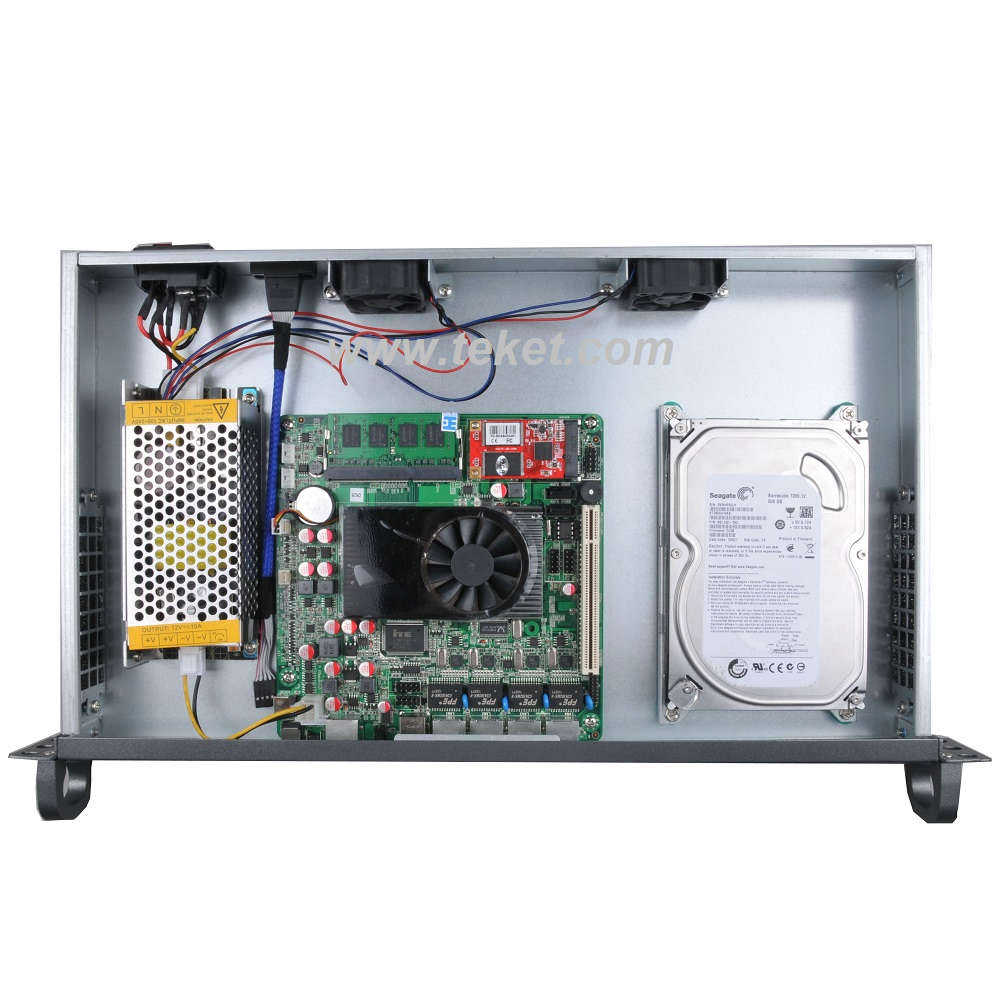

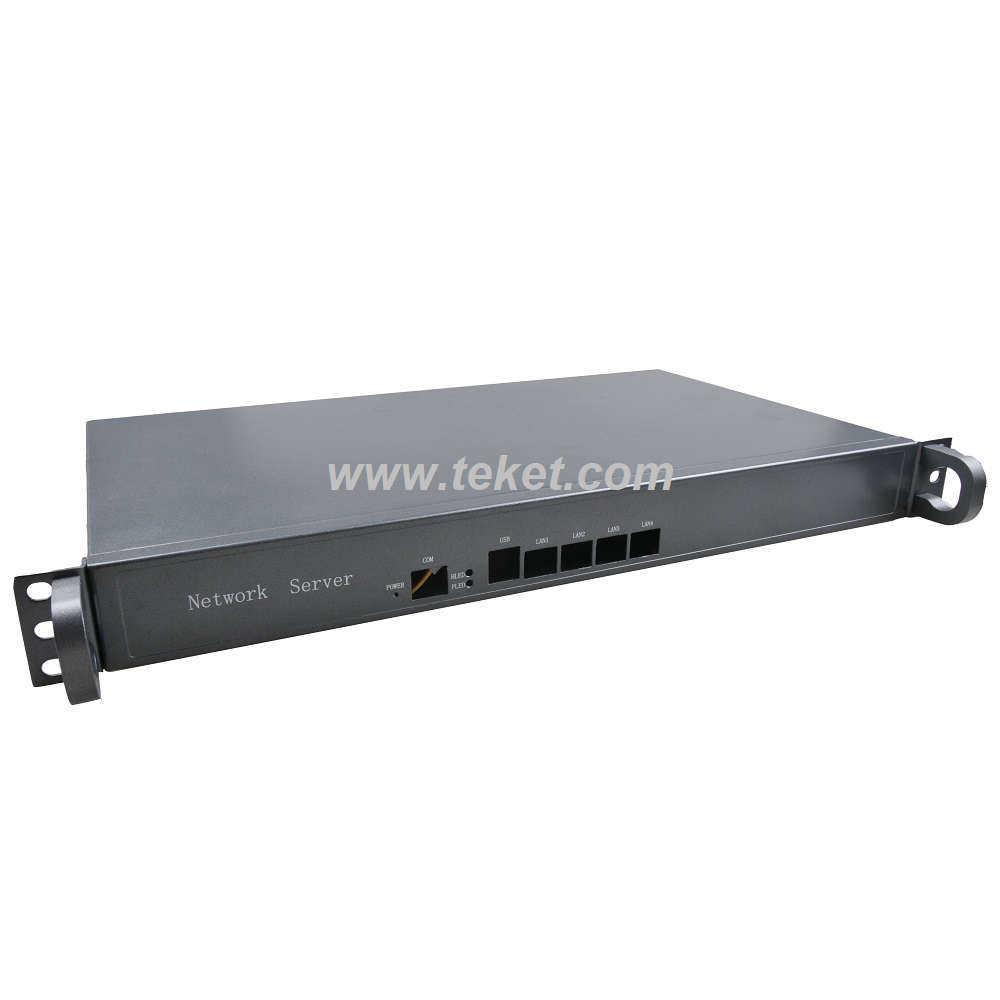

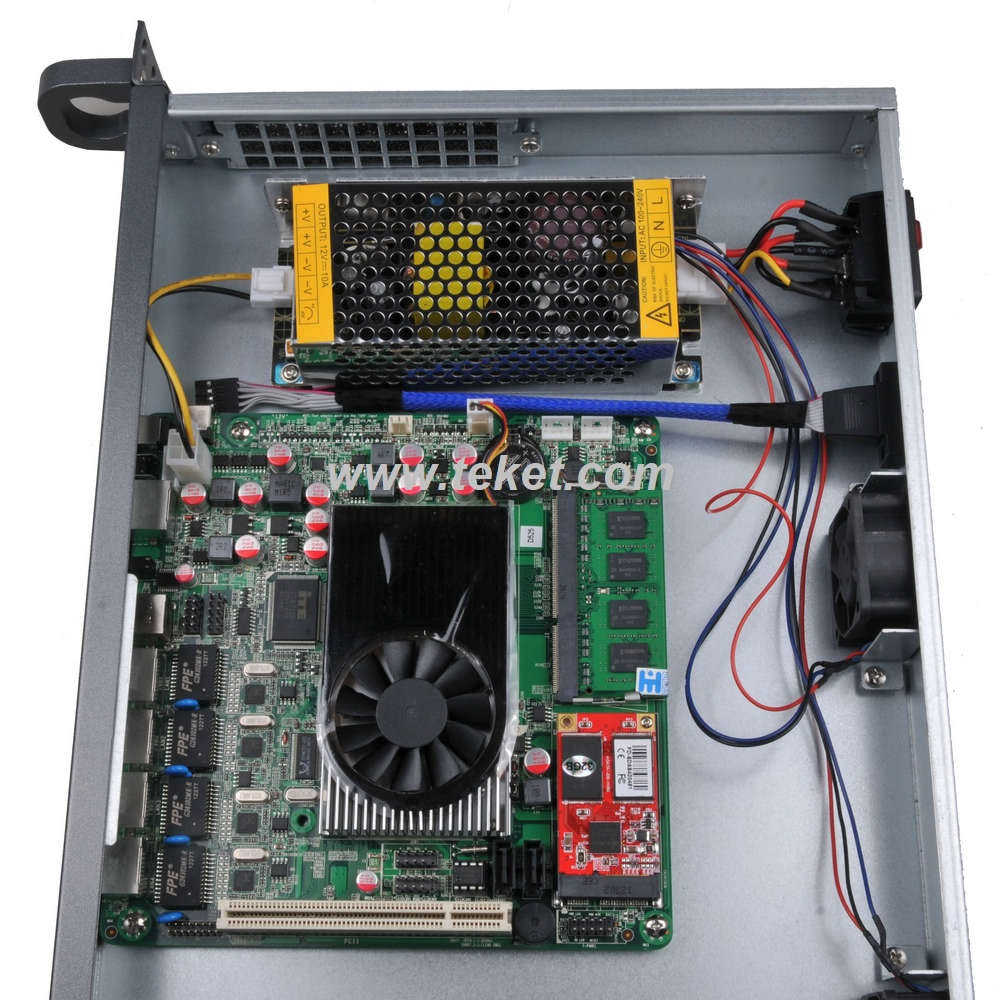

1U rack mount full system model: 1U-J1900MF
please refer: http://www.teket.com/en/motherboard/intel/d525mf.htm

Ordering Information
J1900MFB: J1900 2.0G,SO/DDR3,Intel HD,4*82574L LAN,2*BYPASS,NO LVDS,1*VGA,4*USB,2*COM,12-19VDC
J1900MF: J1900 2.0G,SO/DDR3,Intel HD,4*82583V LAN,NO BYPASS,NO LVDS,1*VGA,4*USB,2*COM,12-19VDC
J1800MF: J1800 2.41G,SO/DDR3,Intel HD,4*82583V LAN,NO BYPASS,NO LVDS,1*VGA,4*USB,2*COM,12-19VDC
new model as the folllowing （2021-09-15）
J1900MFB: J1900 2.0G,SO/DDR3,Intel HD,4*I211AT LAN,2*BYPASS,NO LVDS,1*VGA,4*USB,2*COM,12-19VDC
J1900MF: J1900 2.0G,SO/DDR3,Intel HD,4*I211AT LAN,NO BYPASS,NO LVDS,1*VGA,4*USB,2*COM,12-19VDC
J1800MF: J1800 2.41G,SO/DDR3,Intel HD,4*I211AT LAN,NO BYPASS,NO LVDS,1*VGA,4*USB,2*COM,12-19VDC

Packing Details
20pcs motherboard, carton size 50*49*20cm, 9.5kgs
5 units S4-J1900MF, carton size 54*42*35, 18.35kgs
5 units 1U-J1900MF, carton size 72*50*40, 22.1kgs
10 units 1U-J1900MF, carton size 72*50*40，39.71kgs
