>>Your Current Position: Intel Motherboard

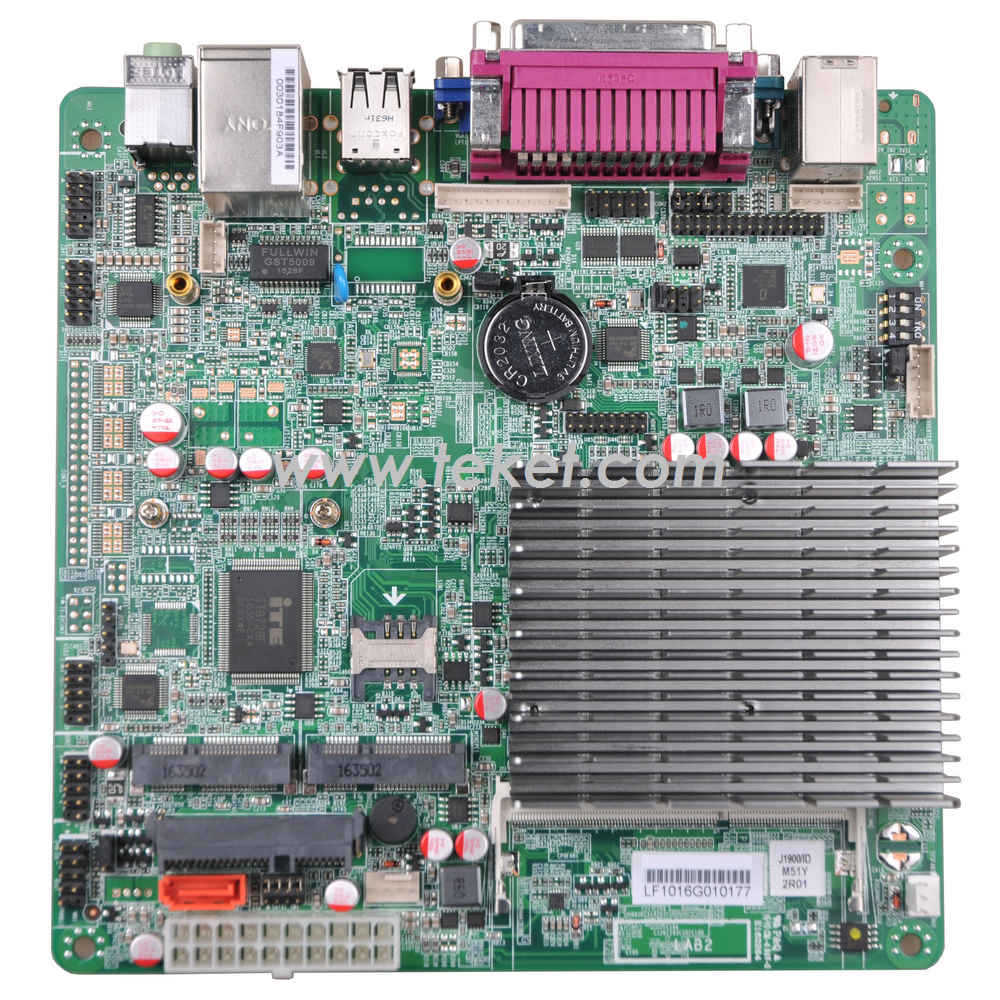

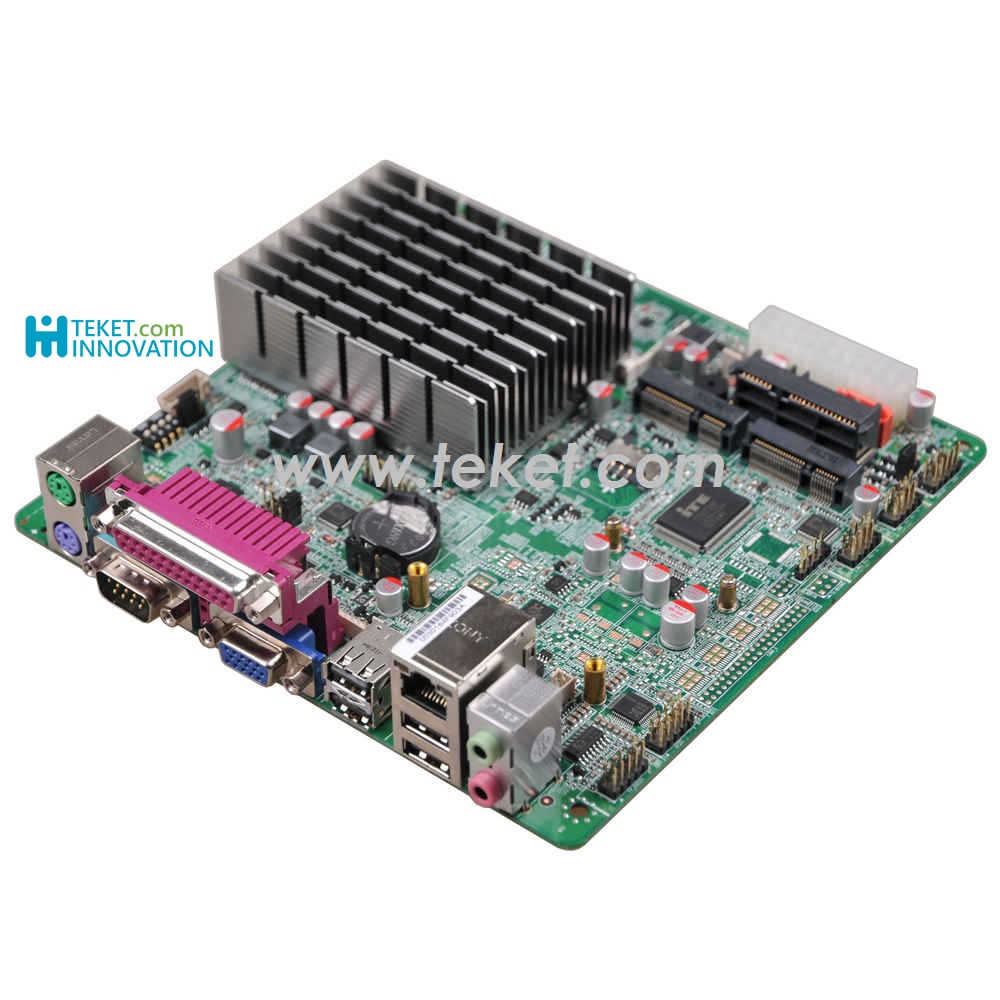

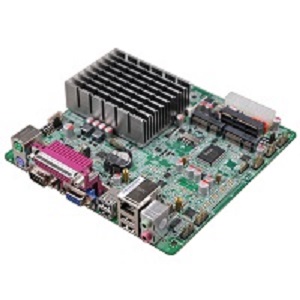

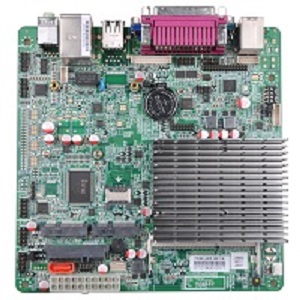

Intel Celeron J1900 2.42Ghz Mini-ITX Motherboard J1900ML with 12VDC,DUAL LAN and LPT

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

J1900ML VER:1.3A
Intel® Celeron1900/4Cores/2.0GHz or J1800 / 2.41GHz Processor
Intel® Bay trail SOC platform
Single channel 1600/1333MHz DDR3L/1.35V memory,up to 8GB
ALC662 6channel HD audio controller, support MIC/Line-out /amplifier


Model No.
J1900ML VER:1.3A
CPU
Intel® Celeron1900/4Cores/2.0GHz or J1800 / 2.41GHz Processor
Compatible Intel® Bay Trail -I/M/D full series CPU,Flexible choice fro customers
Chipset
Based on Intel® Bay trail SOC platform
Memory
Support single channel 1600/1333MHz DDR3L/1.35V memory,up to 8GB
Graphics
Integrated Intel® HD Graphics
Provide 1*VGA,1*HDMI,1*LVDS (support dual channel 24BIT)
Support VGA;HDMI;LVDS synchronous/asynchronous display
LAN
Integrated 2* Realtek RTL8111F Gigabit Ethernet
Support wake on LAN/PXE
Storage
Provide 1* SATA2.0 HDD interface (with the built-in 2.5 inch hard disk SATA5 two choose one)
Provide1* SATA 2.5 inch Notebook hard disk place ,can be installed the hard disk directly
1* MSATA slot ,the transfer rate up to3Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier
Amplifier proposed using 2Ω5W speakers
Expansion
1*Mini-PCIE slot, supportWIFI/3G Module。
1*MSATA slot(support SSD which support Intel protocol, the transfer rate up tp3Gbps)

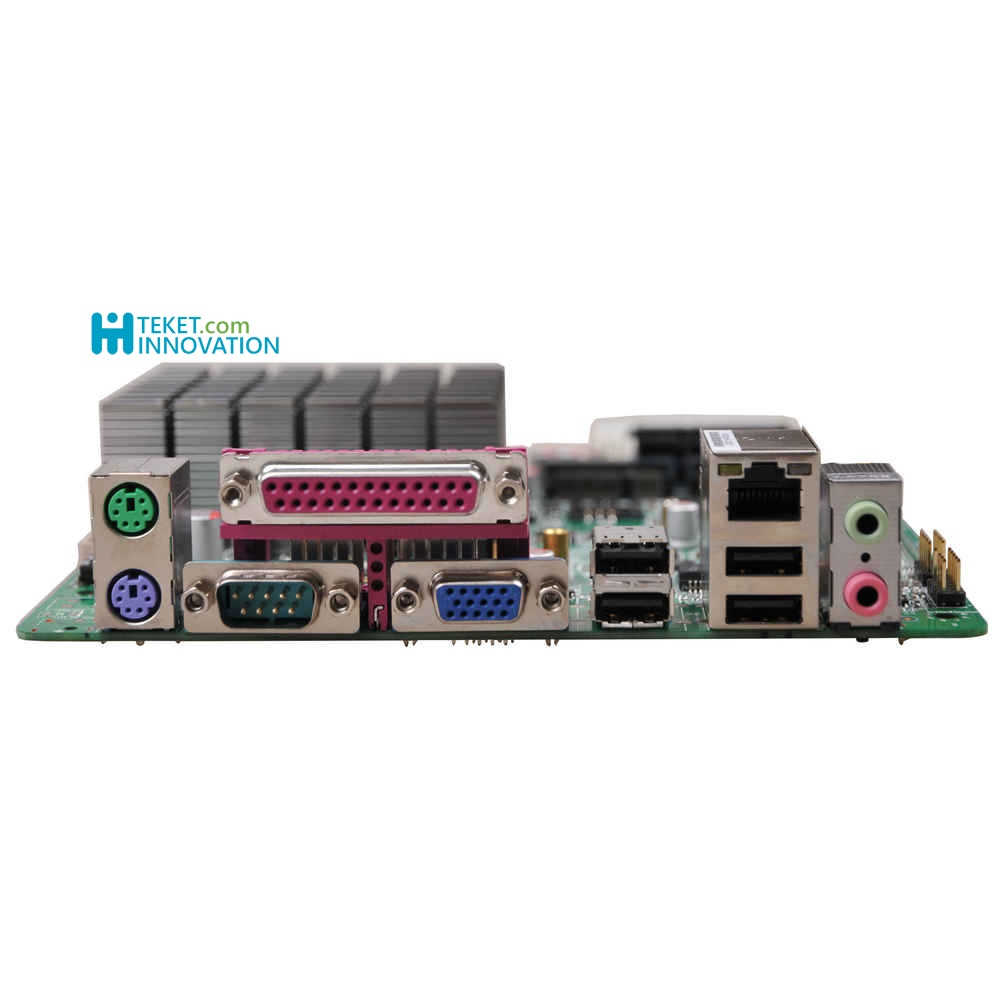

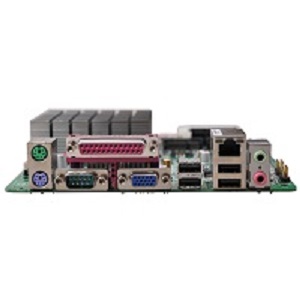

Rear I/O
1* 12V DC power input(ITX-M51_D926L、ITX-M51_D912L power supply interface)
1* PS/2 KB/MS connector
1* RS232 serial port
1* LPT
1* VGA
4* USB 2.0
2* RJ-45 Gigabit Ethernet Connector
1* Line out(Green)、1* MIC(Red)
Internal I/O
1* LVDS 2*15pin, support dual channel 24bit(double 8)
1* LVDS backlight power supply interface
1* J_HDMI 2*8Pin
1* JVGA1 1*12Pin
1* PS/2 KB/MS connector 1*6Pin
4* RS232 serial port 2*20Pin, COM3 supportRS485/422
1* RS232 serial port 2*5Pin
4* USB 2.0 2*5Pin
1* USB 2.0 1*5Pin
1* front panel audio connector2*5pin
1* power amplifier connector 1*4pin
1* front panel l function buttons and indicator connector 2*5Pin
1* HDD power supply interface
1* SIM card socket
1* 4pin ATX power interface(can do 12V input/output power interface)
1* 20pin ATX power interface(ITX-M51_A826L、ITX-M51_A812L power supply interface)
FAN interface
Fanless Cooling design,Reserve 1*4pin CPU Intelligent fan interface,1* 3pin system fan interface
GPIO
Support 4 way input/output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
DC 12V power supply or20Pin ATX power supply
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm

Ording info
J1800ML-A12,Ver1.3,J1800 2.41G/2C,1*LAN,2*24bit,VGA,HDMI,9*USB,2*COM(no RS485/RS232),ATX
J1800ML-D12,Ver1.3,J1800 2.41G/2C,1*LAN,2*24bit,VGA,HDMI,9*USB,2*COM(no RS485/RS232),DC

J1900ML-A12,Ver1.3,J1900 2.00G/4C,1*LAN,2*24bit,VGA,HDMI,9*USB,2*COM(no RS485/RS232),ATX
J1900ML-D12,Ver1.3,J1900 2.00G/4C,1*LAN,2*24bit,VGA,HDMI,9*USB,2*COM(no RS485/RS232),DC
J1900ML-A26,Ver1.3,J1900 2.00G/4C,2*LAN,2*24bit,VGA,HDMI,9*USB,6*COM(COM3,RS485/RS232),ATX

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
