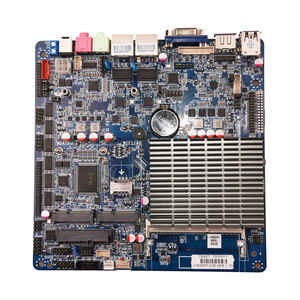

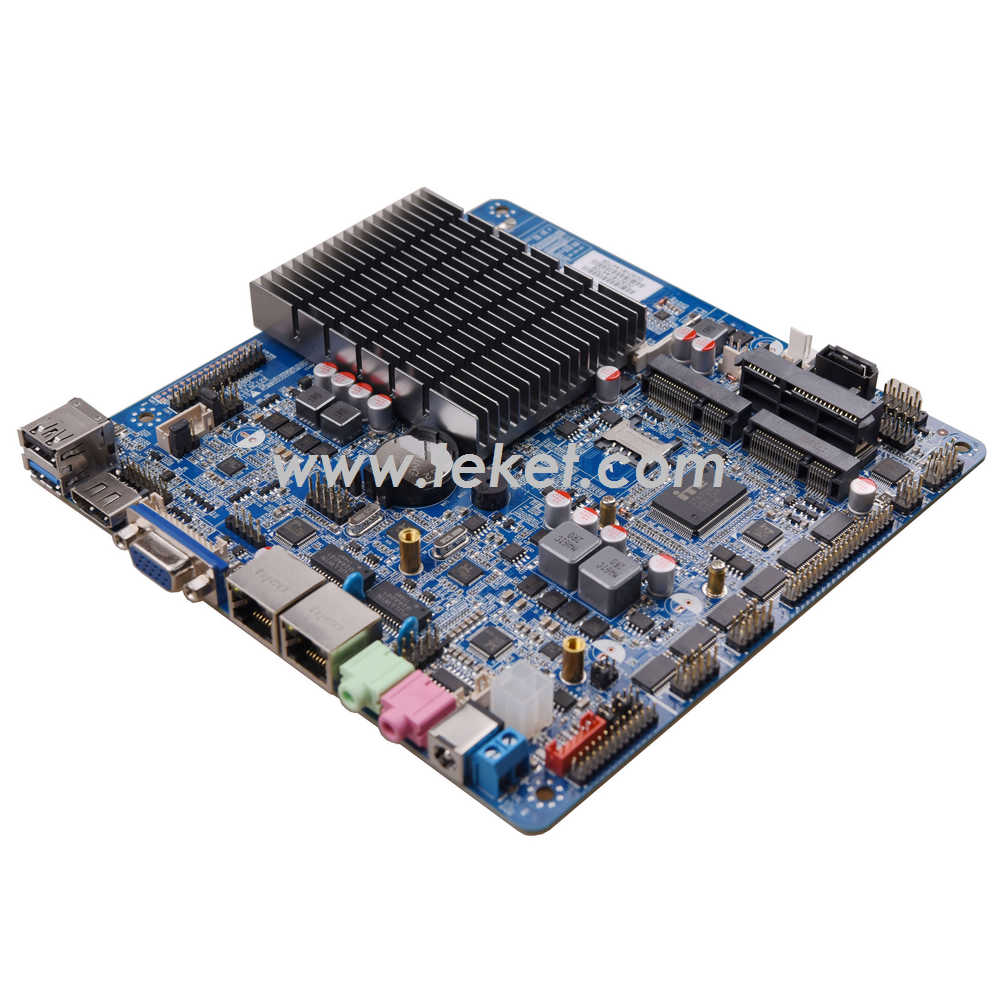

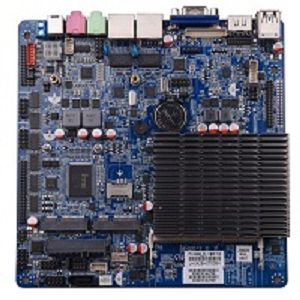

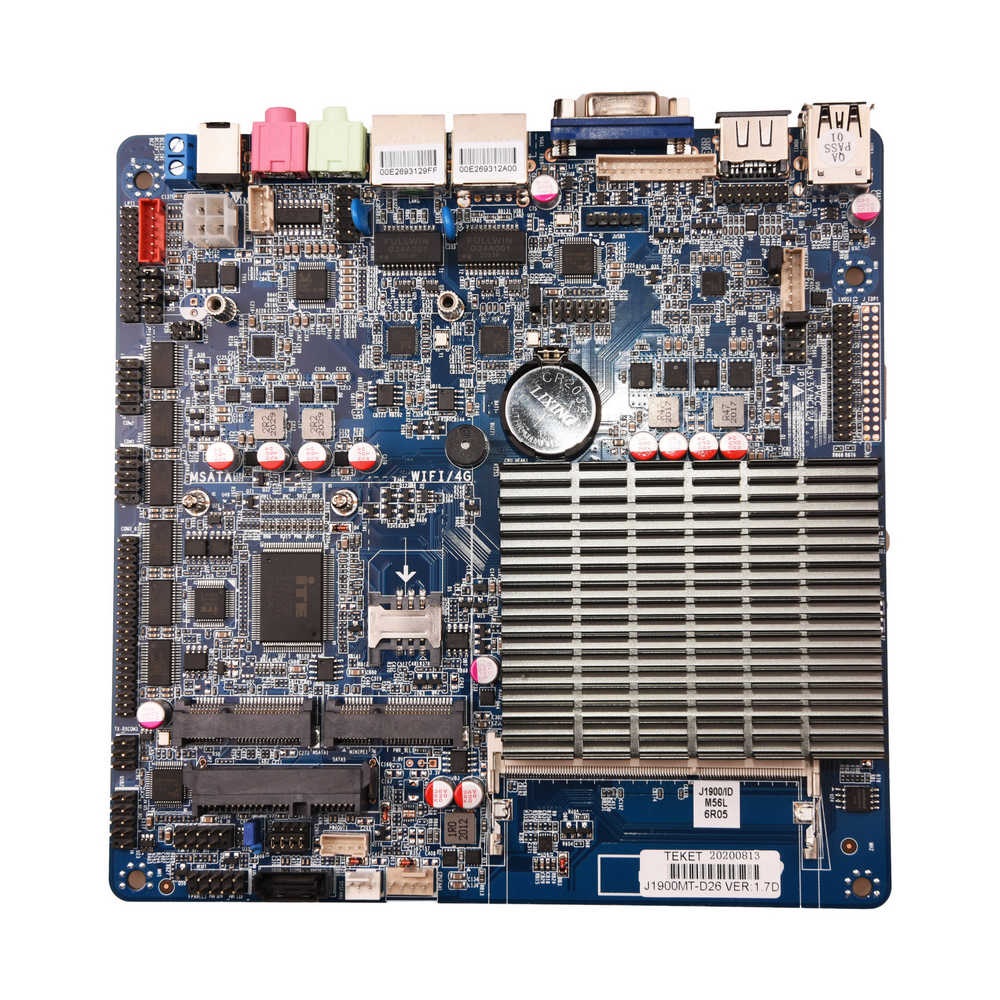

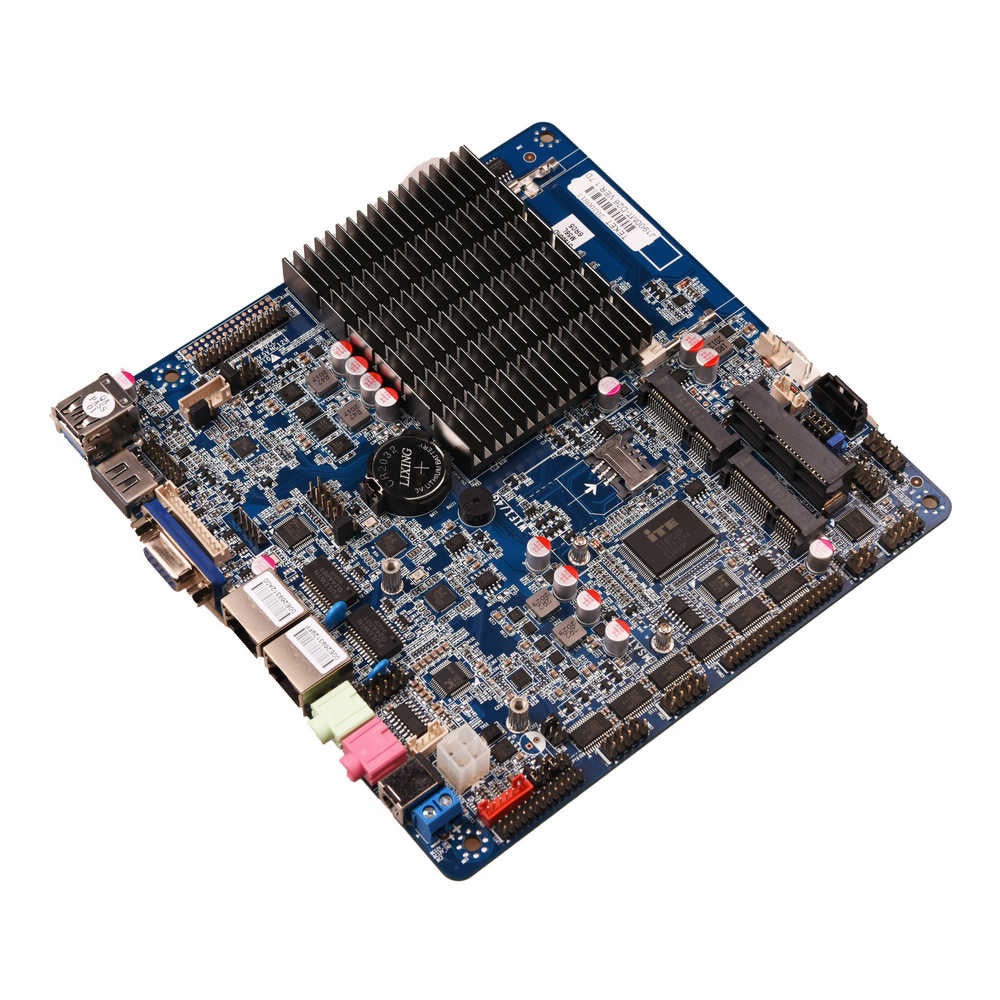

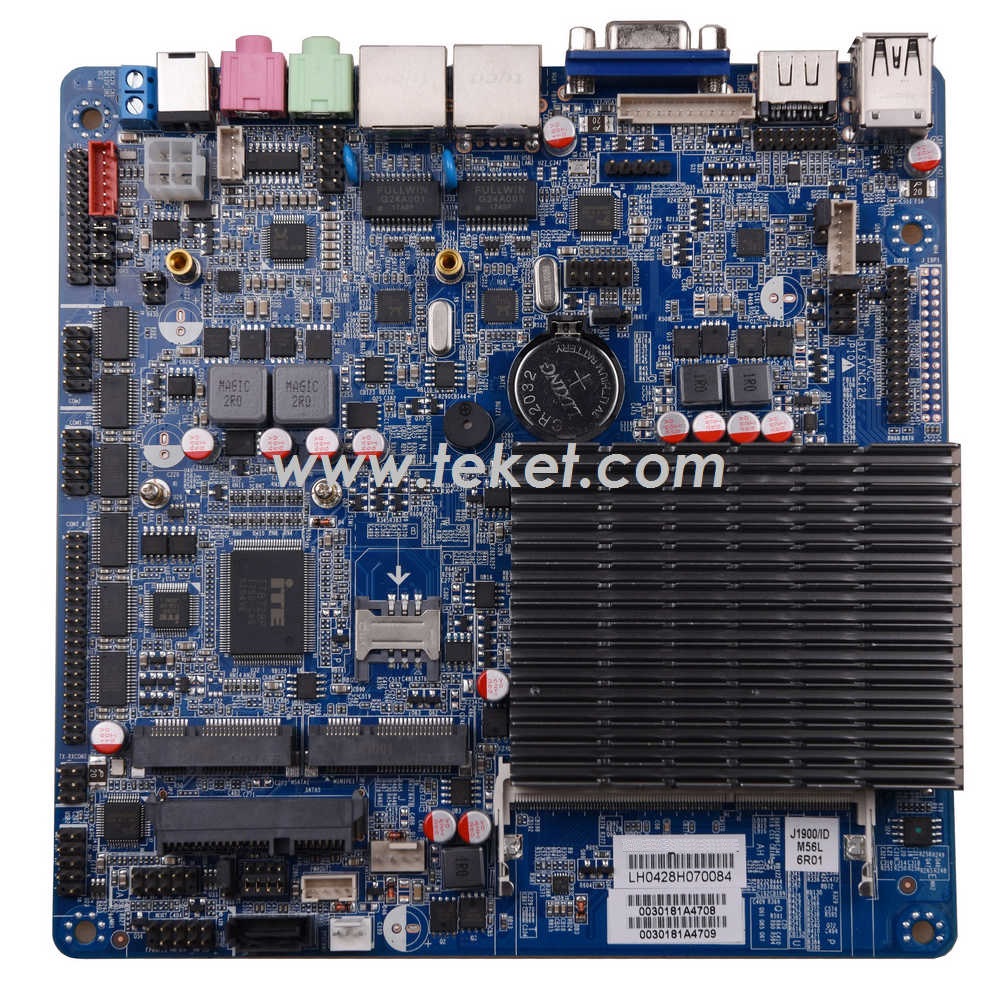

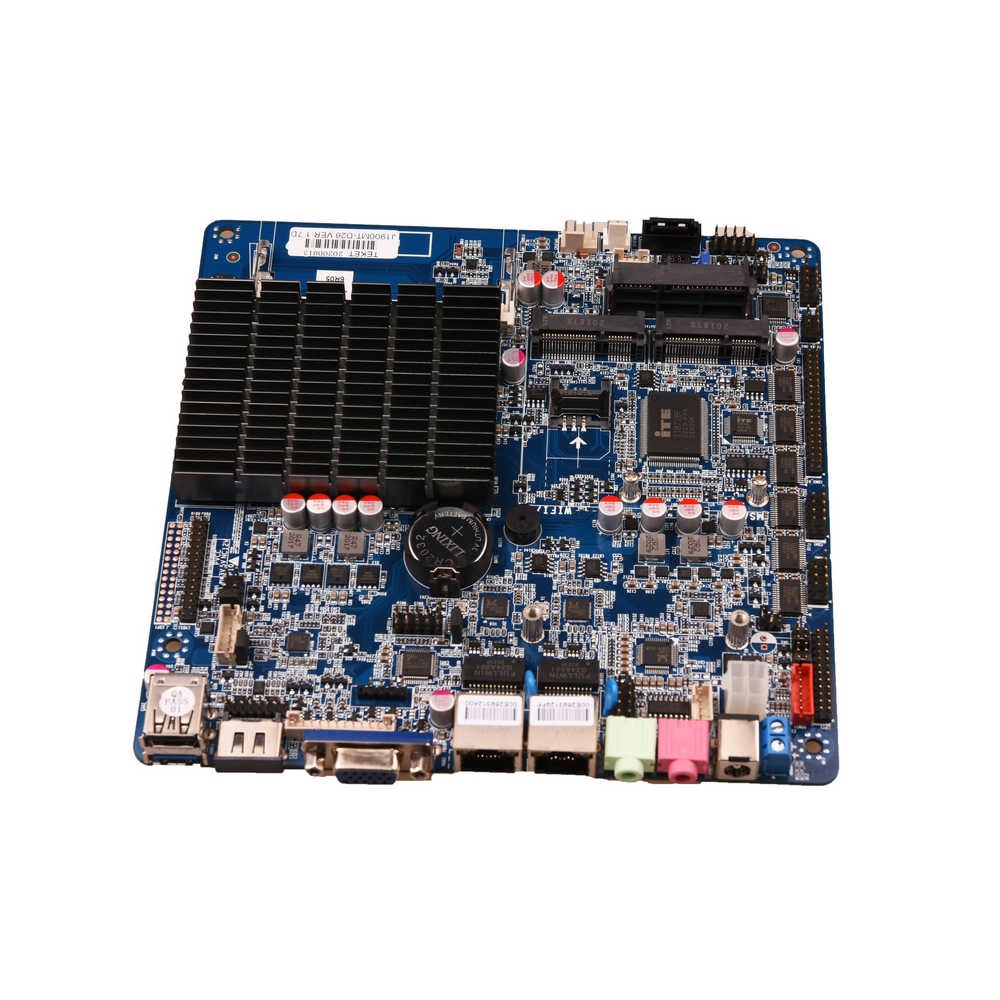

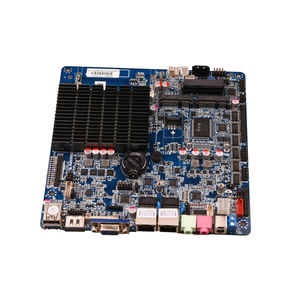

Intel Celeron J1900 2.42Ghz Mini-ITX Motherboard J1900MT with 12VDC

J1900MT VER:2.3
Intel® Celeron J1900/4Cores/2.0GHz orJ1800/2Cores / 2.41GHz processor
Intel® Bay trail SOC
support single channel 1600/1333MHz DDR3L/1.35V memory, up to8GB
Integrated ALC662 6-Channel output,Support MIC/Line-out

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

CPU Intel® Celeron J1900/4Cores/2.0GHz orJ1800/2Cores / 2.41GHz processor
Compatible Intel® Bay Trail -I/M/D full seriesCPU,Flexible choice for customers
Chipset Based on Intel® Bay trail SOC platform
Memory Support single channel 1600/1333MHz DDR3L/1.35V memory, up to8GB
Graphics Integrated Intel® HD Graphics
Provide 1*VGA,1*HDI,1*LVDS (support dual channel 24BIT)
Support VGA;HDI;LVDS synchronous/asynchronous display
Integrated 1* Realtek RTL8111F Gigabit Ethernet( can do two LAN)
Support wake on LAN/PXE
Provide 1* SATA2.0 HDD interface (with the built-in 2.5 inch hard disk SATA5 two choose one)
1*SATA 2.5 inch Notebook hard disk place,can installed the hard disk directly
1*MSATA slot, the transfer rate up to3Gbps
Audio Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier
Amplifier proposed using 2Ω5W speakers
Expansion slots
1*Mini-PCIE slot,support WIFI、3G module
1*MSATA slot , support SSD, the transfer rate up to3Gbps.

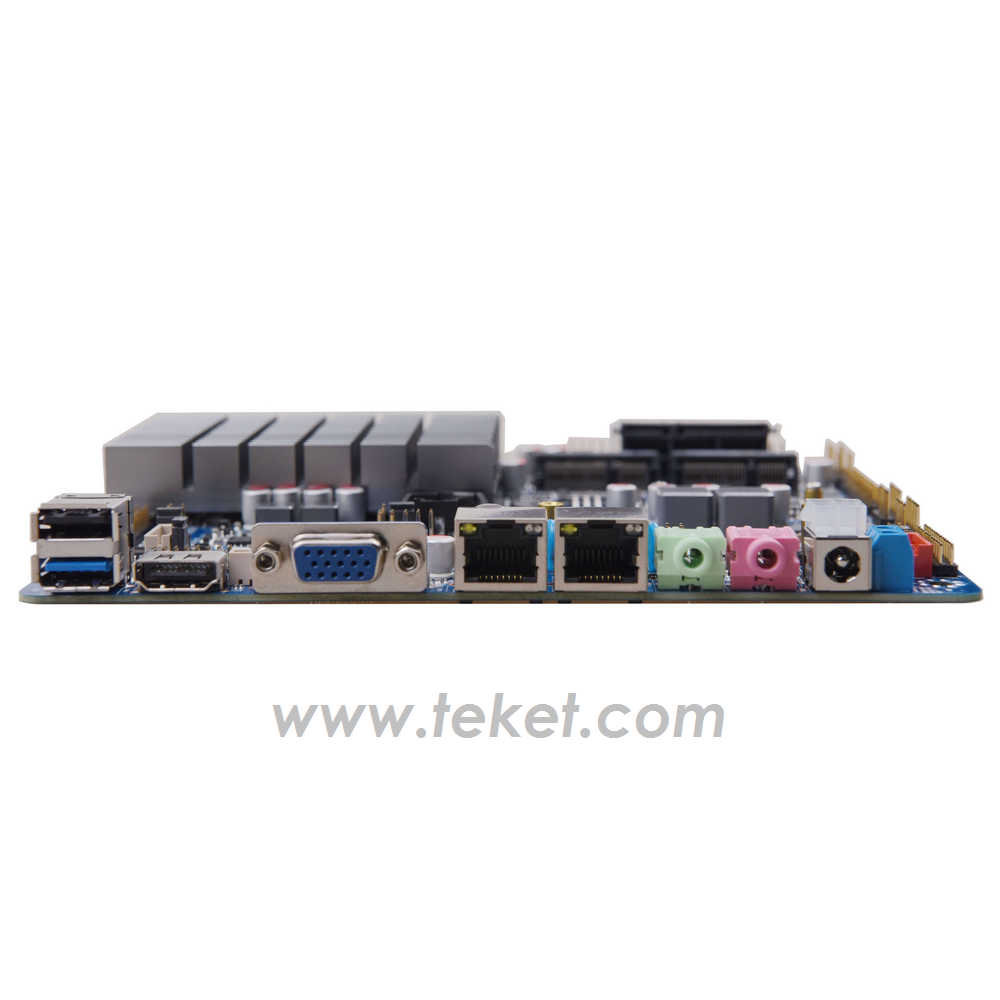

Rear I/O
1* HDI
1* VGA
3* USB 2.0 (USB1 andLAN2 two choose one)
1* RJ-45 Gigabit Ethernet connector(LAN2 andUSB1 two choose one)
1* Line out(Green)、1* MIC(Red)
1* 12V DC power input
Internal I/O
1* 4pin ATX power input(can do 12V power input/output interface)
1* 2pin 12V DC power input
4* USB 2.0 2*5Pin
1* USB 2.0 1*5Pin
1* J_HDI 2*8Pin , same signal with HDI1
1* JVGA 1*12Pin same signal with DB15
1* PS/2 KB/MS connector 1*6Pin
6* RS232 serial port(can do 2* or 6* serial port ), COM3 supportRS485/RS422
1* LPT 2*13Pin
1* front panel audio connector 2*5pin
1* front panel function buttons and indicator connector 2*5Pin
1* LVDS 2*15pin, support dual channel24bit(double 8)
1* LVDS backlight power supply connector
1* HDD power supply connector
1* power amplifier interface
1* SIM card socket
FAN interface
Fanless Cooling design ,Reserve 1*4pin CPU fan interface,1* 3pin system fan interface
GPIO support 4 way input/output GPIO
BIOS 64Mb Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power input Adopt DC 12V power supply
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 5%-95% (relative humidity; non-condensing)
Dimension 170mm x 170mm

LVDS pin define

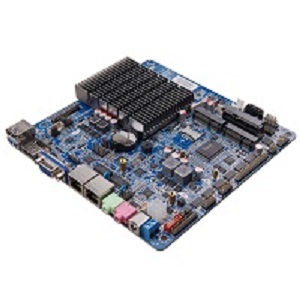

J1900MT V1.6
1,optimize the serial port 5V cirruit
2,LVDS chip change to PS8625 from CH7511B, remove LVDS resolution DIP switch, setup by BIOS software
3,EDP and LVDS option

Ording info
J1900MT-D12 ver2.3,J1900 2.0G/4C,1*SODDR3,VGA+HDI,2*8bitLVDS,1*LAN,9*USB,2*COM,DC12V (std)
J1900MT-D16 ver2.3,J1900 2.0G/4C,1*SODDR3,VGA+HDI,2*8bitLVDS,1*LAN,9*USB,6*COM,DC12V
J1900MT-D26 ver2.3,J1900 2.0G/4C,1*SODDR3,VGA+HDI,2*8bitLVDS,1*LAN,7*USB,6*COM,DC12V
J1800MT=D12 ver2.3,J1800 2.41G/4C,1*SODDR3,VGA+HDI,2*8bitLVDS,1*LAN,9*USB,2*COM,DC12V

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
