Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Status Launched
Launch Date Q4'13
Processor Number J1800
L2 Cache 1 MB
# of Cores 2
# of Threads 2
Processor Base Frequency 2.41 GHz
Burst Frequency 2.58 GHz
TDP 10 W

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

4 LAN DC Power

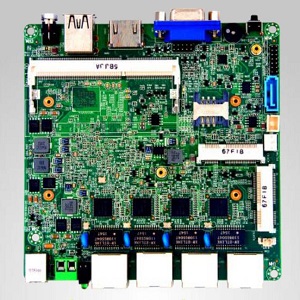

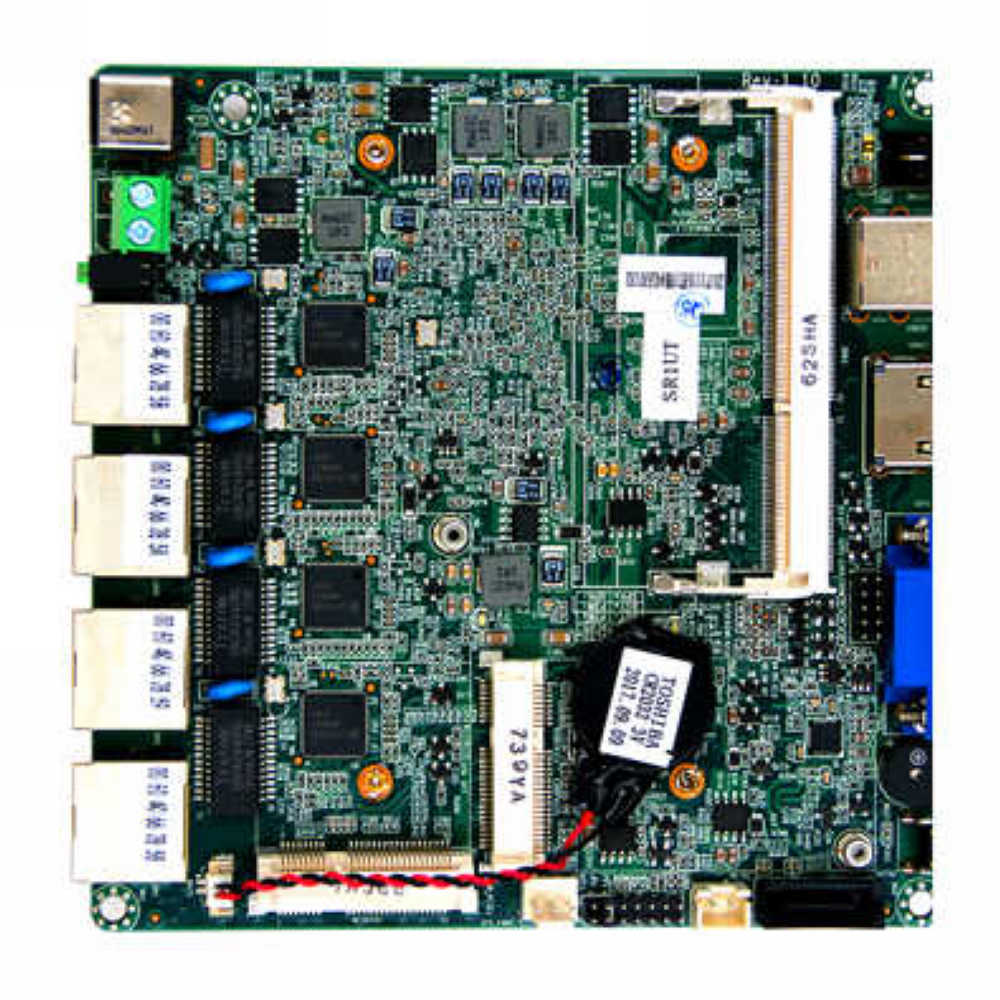

Integrated Intel® J1900 Quad core 2.0GHz Processor orJ1800 dual core2.41GHz processor
Base on Intel® Bay trail SOC platform
1*SO DDRIII slot,only supply 1600/1333MHz DDR3L/1.35V memory,up to 8GB

Adopt Baytrail-D/I/M series processors;
J1900\J1800\N2806\N2900\E3845;
DDR3 SODIMM 204 Socket memory slot supports up to 8G;
4 Intel I211AT gigabit network cards;
Onboard 32/64/128G EMMMC chip (optional);
Single input DC power supply, DC12V power supply;

Adopt Baytrail-D/I/M series processors;
J1900\J1800\N2806\N2900\E3845;
DDR3 SODIMM 204 Socket memory slot supports up to 8G;
4 Intel I211AT gigabit network cards;
Onboard 32/64/128G EMMMC chip (optional);
Single input DC power supply, DC12V power supply;

Specification
Processor system
CPU supports Baytrail-I/D/M series processors (J1900 N2900 J1800 N2806 E3845)
CPU package BGA
Chipset supports Baytrail-I/D/M series processors
BIOS EFI BIOS

Memory
Technology Architecture Single channel DDR3L 1066/1333/1600MHz
Capacity Maximum support 8GB memory
Slot DDR3 SODIMM 204 Socket

Video
Graphics controller Intel HD Graphics
VGA supports the maximum resolution of 2048x1536
HDMI supports a maximum resolution of 1920x1080
Dual display support HDMI+VGA synchronous or asynchronous display

I/O panel

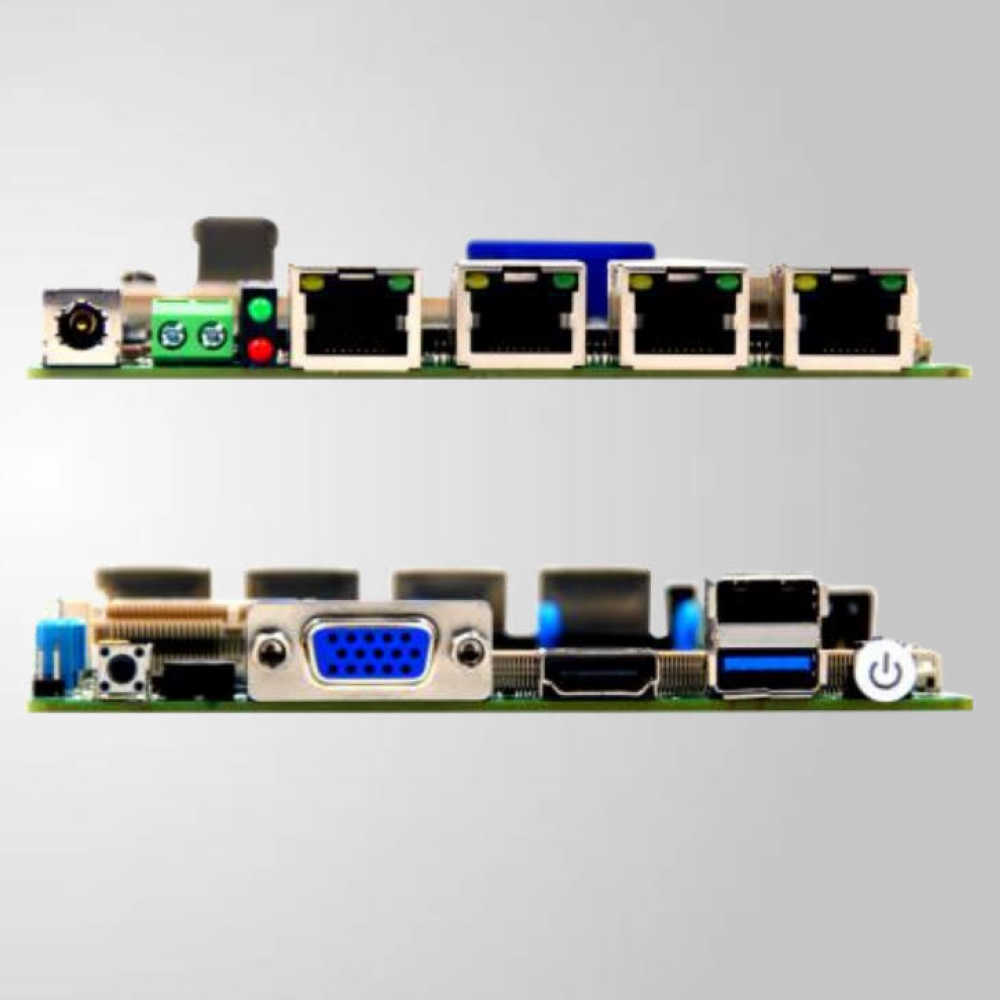

Port 1*VGA 1*HDMI 2*USB 4*LAN 1*Quick power-on button with indicator light 1*Restart button

Network
Controller 4 Intel I211AT high-performance Gigabit network cards, RJ45 interface

Cooler
Aluminum fanless radiator

Input/output interface
1*USB2.0 1*USB3.0 maximum support +5V/1A
PS/2 N/A

Expansion bus
Mini-PCle 1 Mini-PCIe slot, only supports USB devices

Storage
SATA: 1 standard SATAII interface, maximum transfer rate 3Gb/s
MSAT: 1 Mini-PCIe M-SATA Scoket, support SANDISK protocol, maximum transfer rate 3gb/s
Integrated 32G/64/128G EMMC chip (capacity optional)

Power supply
Single input DC power supply, DC12V, +/-5%
Power consumption 20W

Working environment
Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, non-condensing
Storage humidity 0% ~ 90% relative humidity, non-condensing

Physical dimension

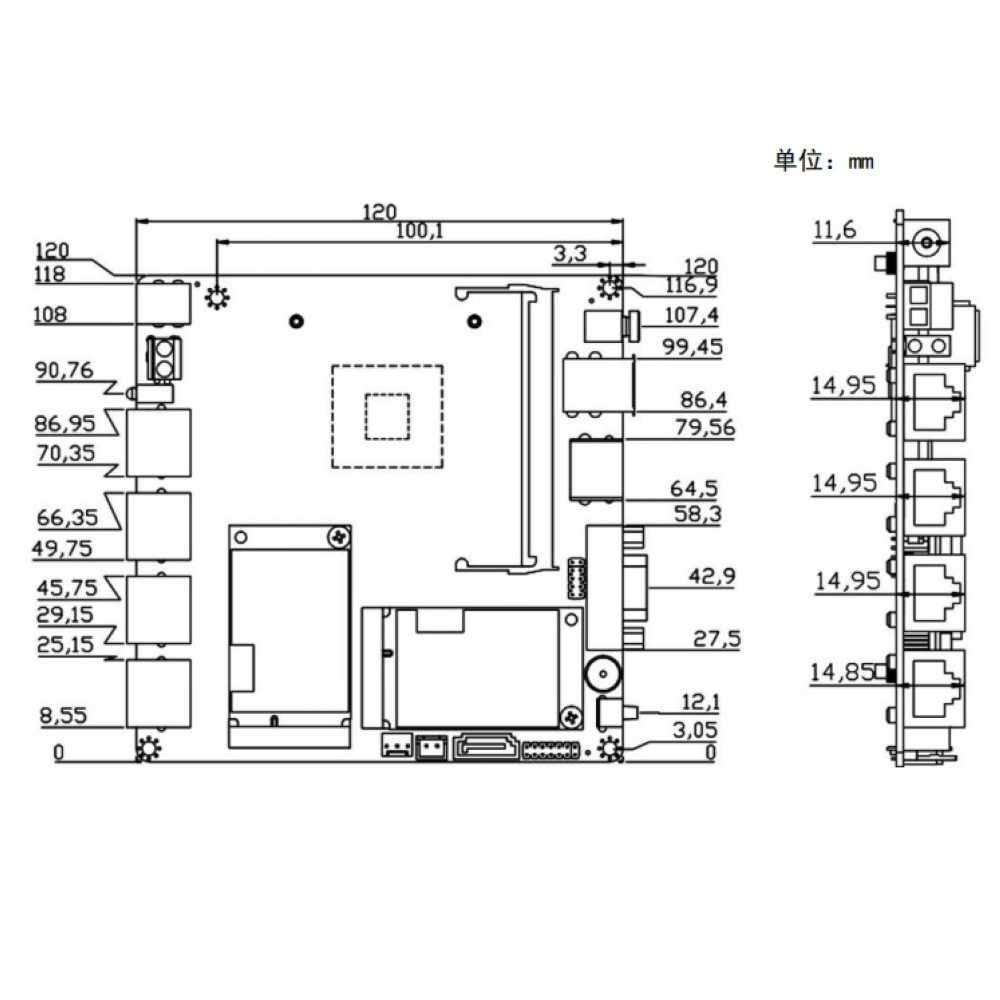

Size 120 x 120 mm
Weight 0.5KG

Ordering Information
J1800NE:SO/DDR3,Intel HD,4*I211AT LAN,NO BYPASS,NO LVDS,1*VGA,3*USB2.0+1*USB3.0,1*COM,12VDC
J1900NE:SO/DDR3,Intel HD,4*I211AT LAN,NO BYPASS,NO LVDS,1*VGA,3*USB2.0+1*USB3.0,1*COM,12VDC
N2806NE:SO/DDR3,Intel HD,4*I211AT LAN,NO BYPASS,NO LVDS,1*VGA,3*USB2.0+1*USB3.0,1*COM,12VDC
N2940NE:SO/DDR3,Intel HD,4*I211AT LAN,NO BYPASS,NO LVDS,1*VGA,3*USB2.0+1*USB3.0,1*COM,12VDC
E3845NE:SO/DDR3,Intel HD,4*I211AT LAN,NO BYPASS,NO LVDS,1*VGA,3*USB2.0+1*USB3.0,1*COM,12VDC

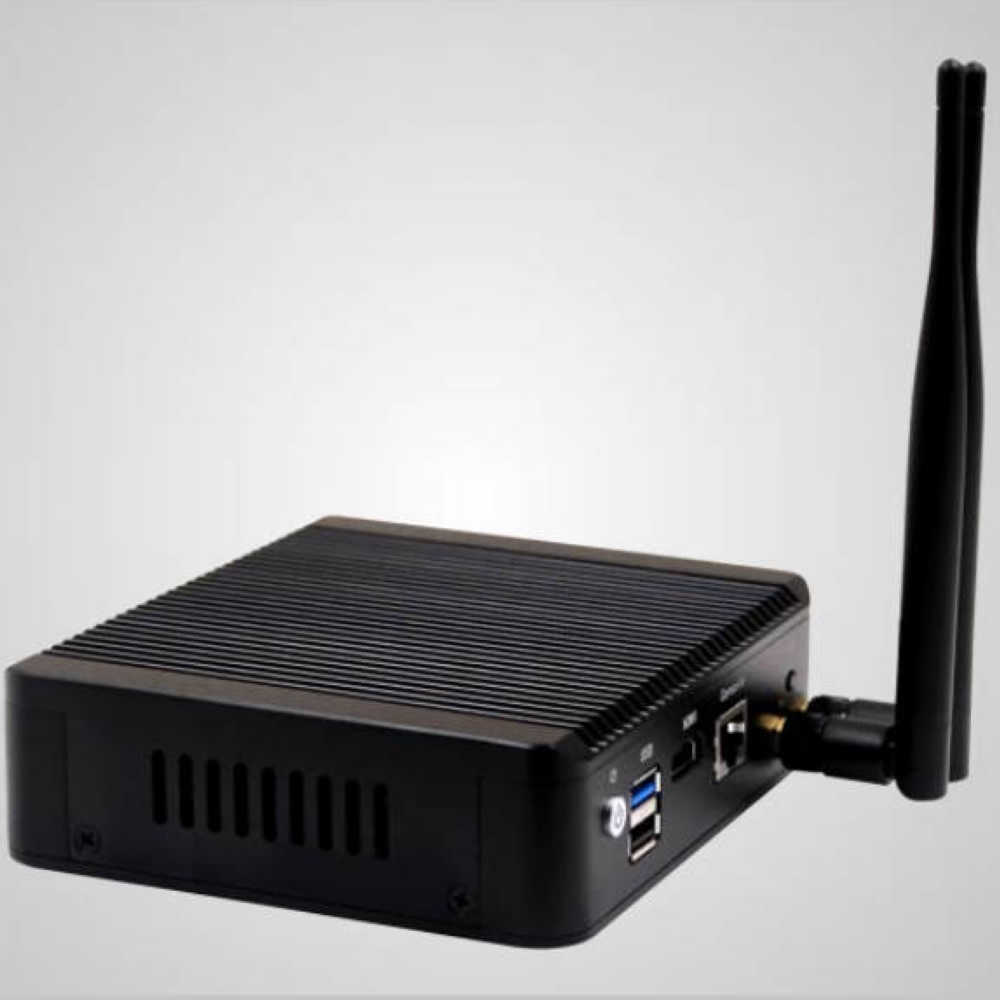

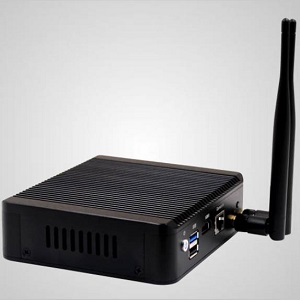

Fanless cooling structure
Color Black
Material 6063
Expand onboard EMMC 32G/64G/128G option

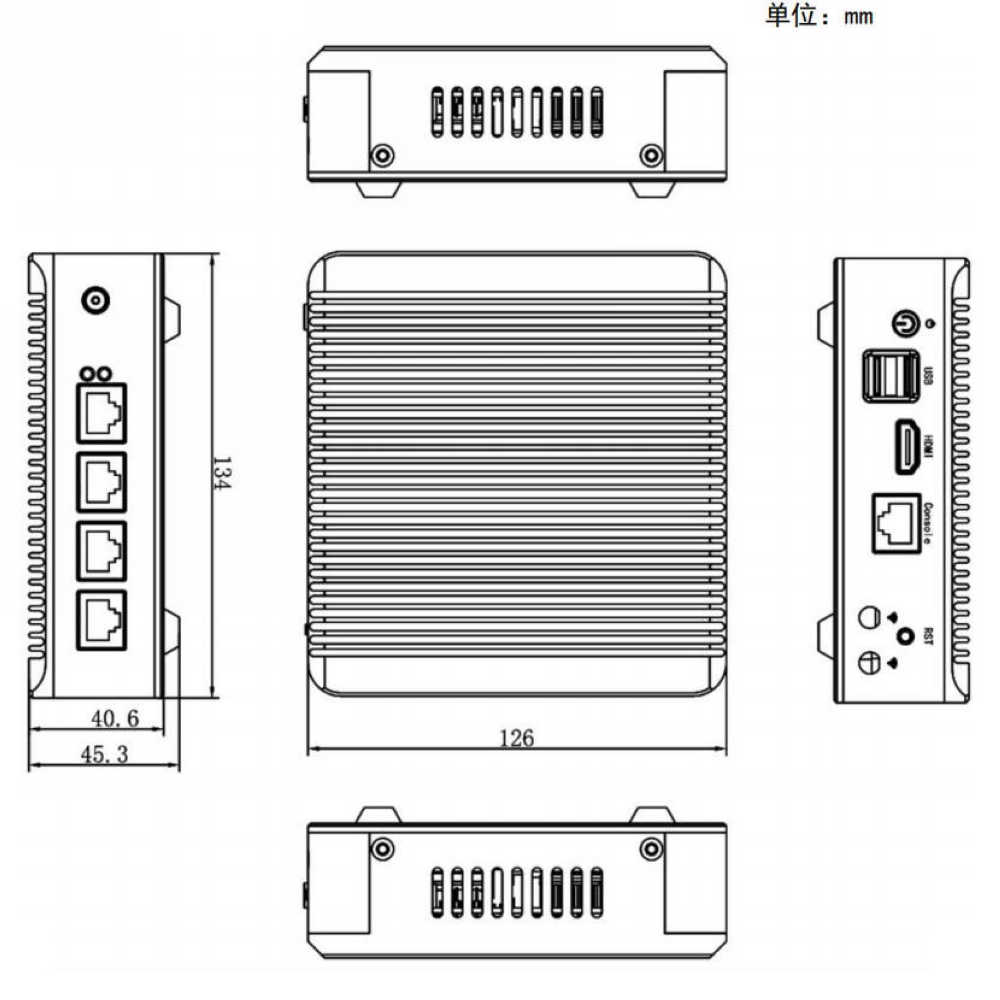

Dimension 134mm*126mm*45mm（L*W*H）

Ordering Information
S4-J1800
S4-J1900
S4-N2806
S4-N2940
S4-E3845
