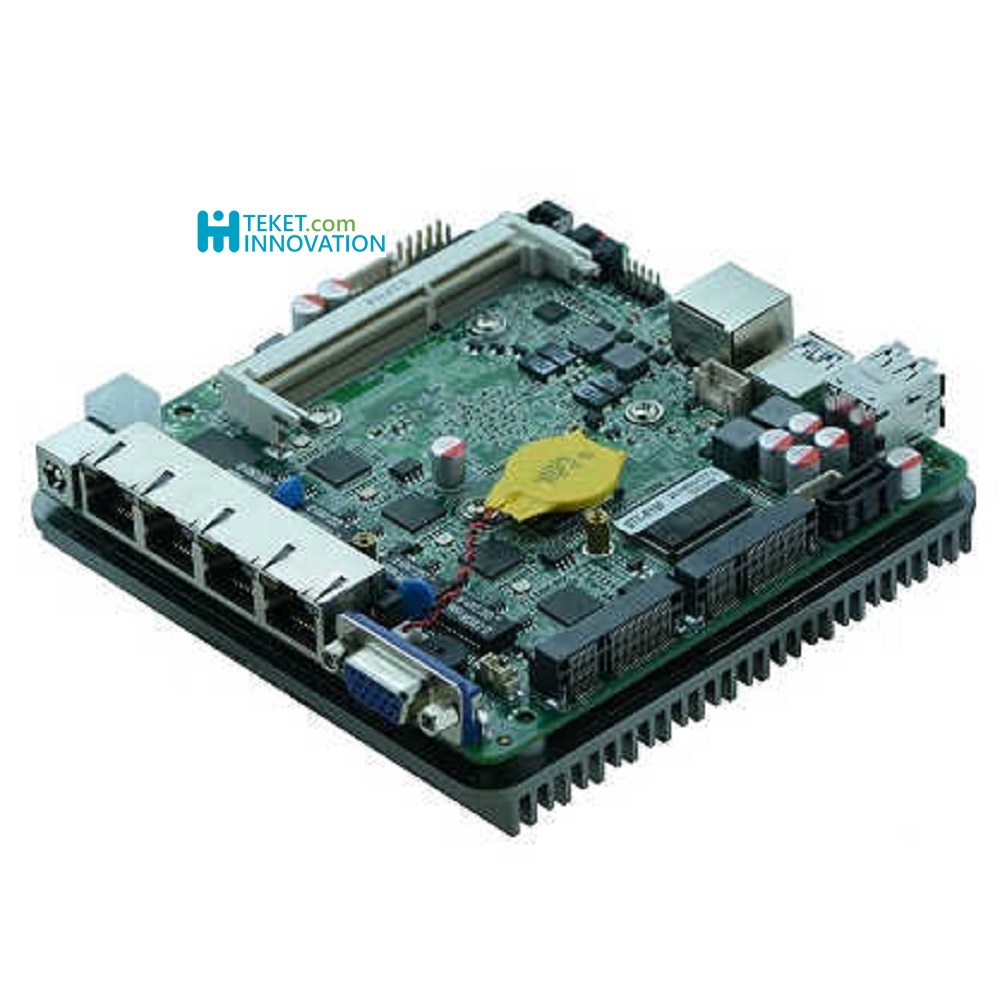

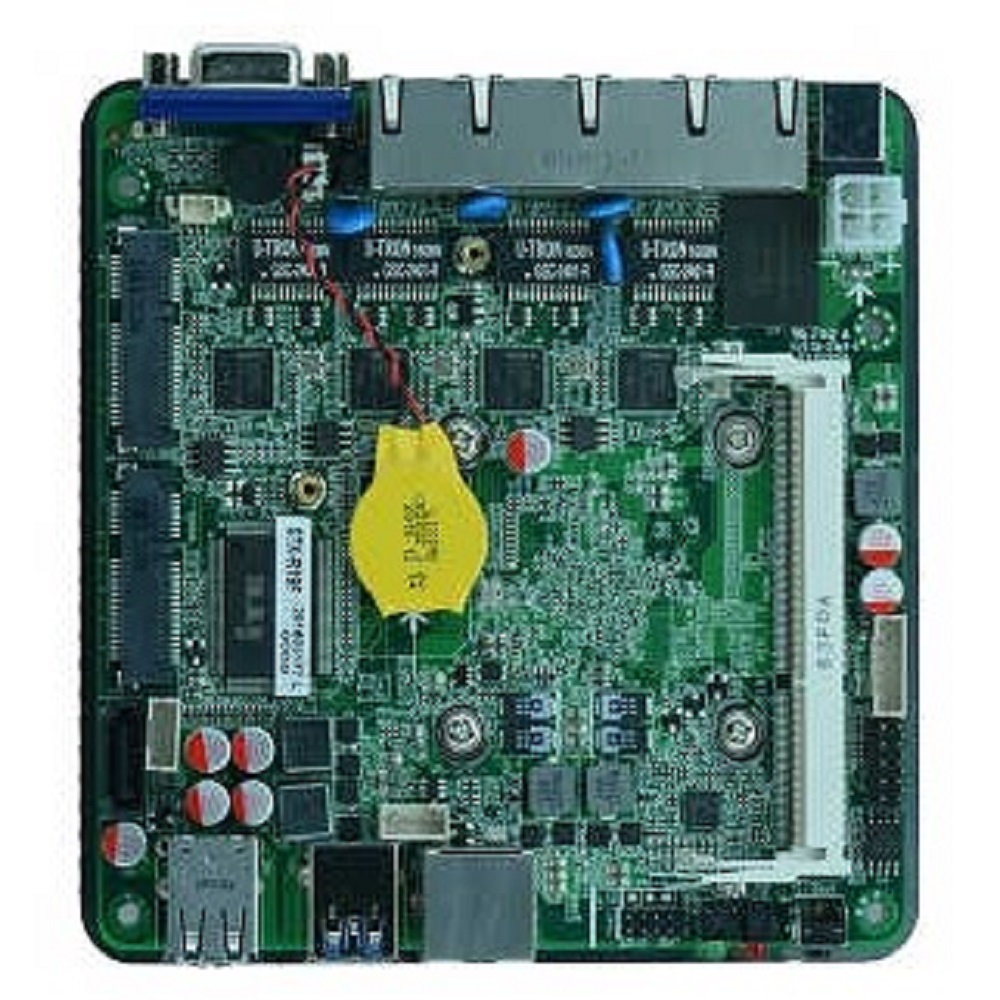

Intel Celeron J1900 2.42Ghz NANO-ITX Motherboard J1900NF with 4 LAN ports

Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Status Launched
Launch Date Q4'13
Processor Number J1800
L2 Cache 1 MB
# of Cores 2
# of Threads 2
Processor Base Frequency 2.41 GHz
Burst Frequency 2.58 GHz
TDP 10 W

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

4 LAN DC Power
Integrated Intel® J1900 Quad core 2.0GHz Processor orJ1800 dual core2.41GHz processor
Base on Intel® Bay trail SOC platform
1*SO DDRIII slot,only supply 1600/1333MHz DDR3L/1.35V memory,up to 8GB


Model No. J1900NF VER:1.1
CPU Integrated Intel® J1900 Quad core 2.0GHz Processor orJ1800 dual core2.41GHz processor
Chipset Base on Intel® Bay trail SOC platform
Memory 1*SO DDRIII slot,only supply 1600/1333MHz DDR3L/1.35V memory,up to 8GB
Graphics Integrated Intel®HD Graphics
Provide 1*VGA
LAN 4* Intel WG82583V Gigabit Ethernet,support wake on LAN/PXE
Storage
Provide 1* standard SATA2.0,the transfer rate up to 3Gbps
1* eMMC Embedded storage chipset(baytrail-I seriesCPU supporteMMC, J1900/1800 not support)
Audio N/A
Expansion slots
1* MSATA slot,support SSD, the transfer rate up to3Gbps

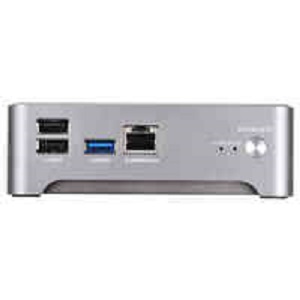

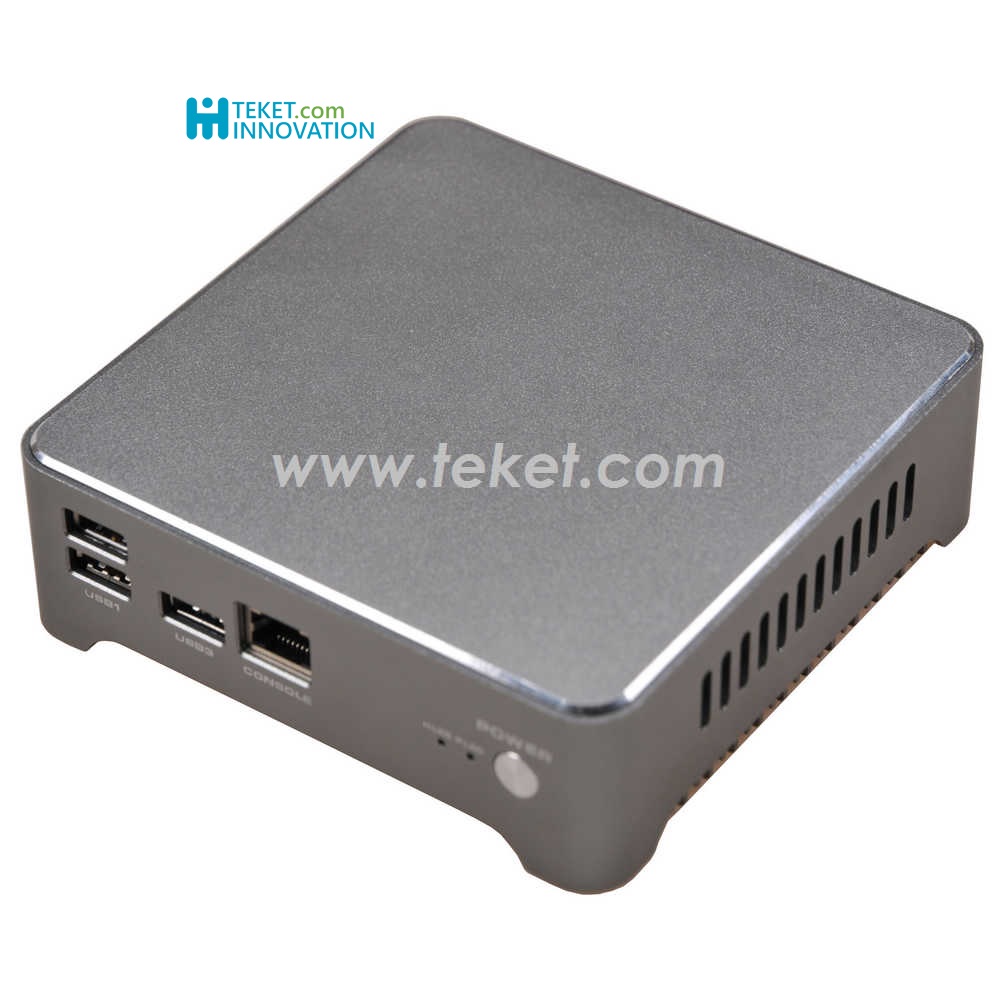

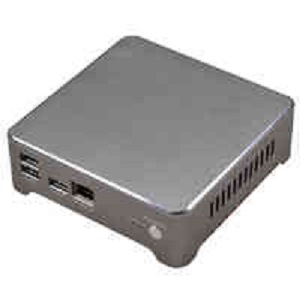

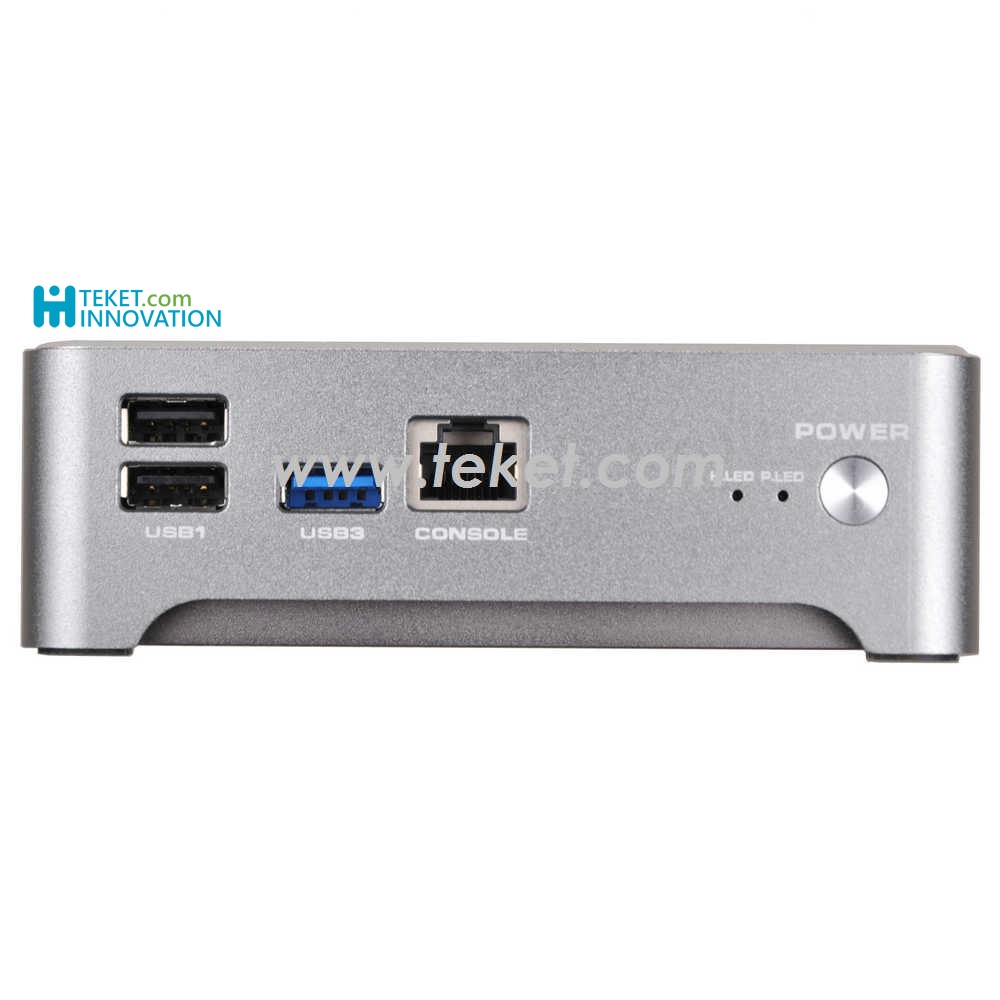

Front panel I/O
1* CISCO standardRS232 serial port
2* USB 2.0
1* USB 3.0
1* power LED
1* HDD LED
1* power switch

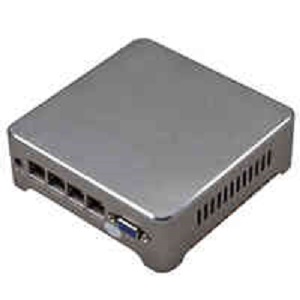

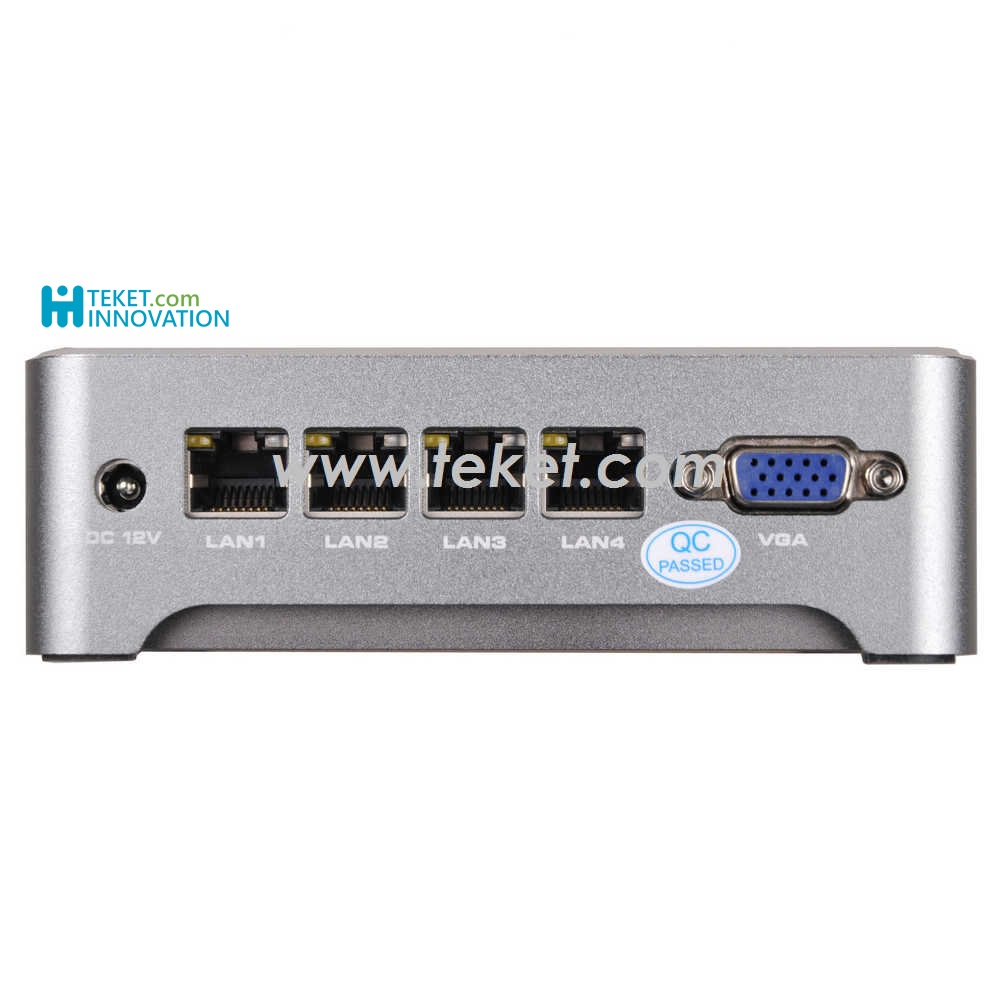

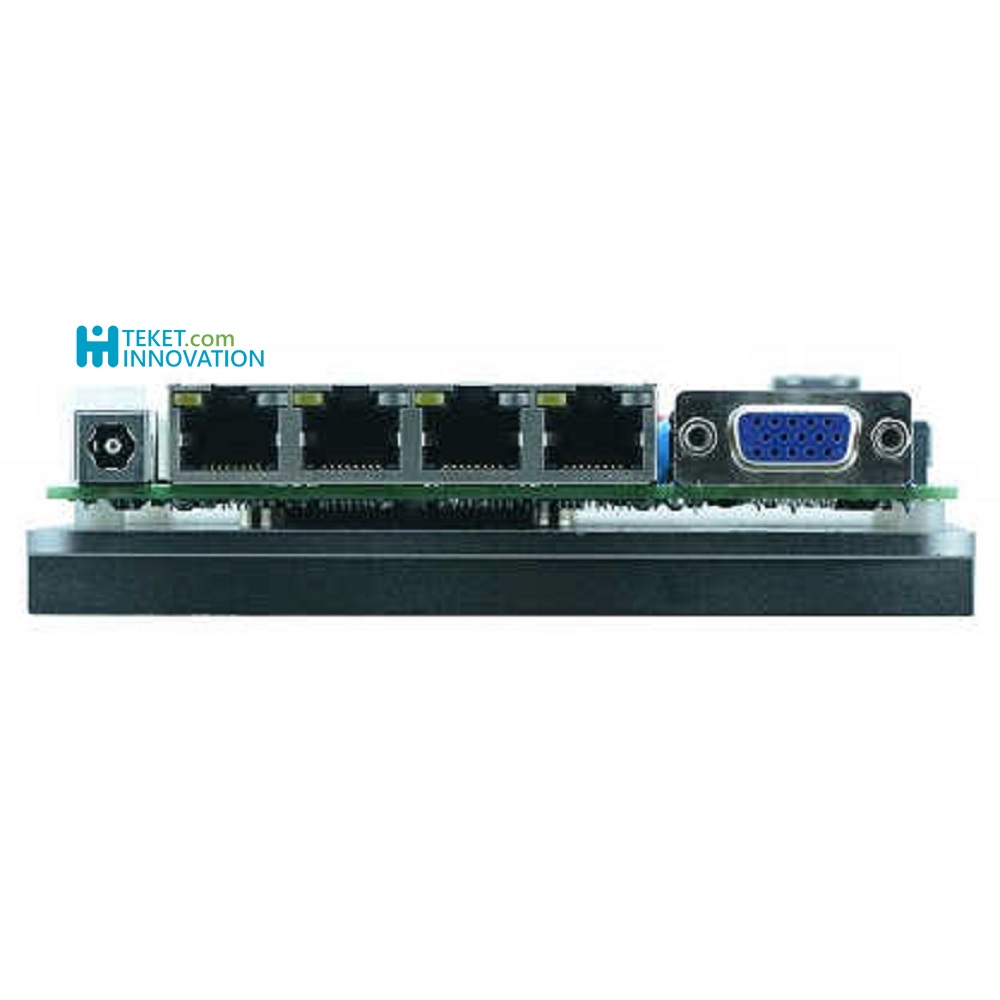

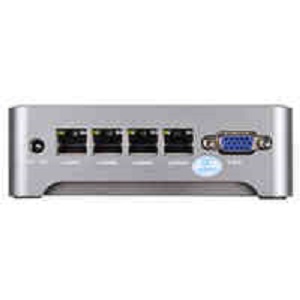

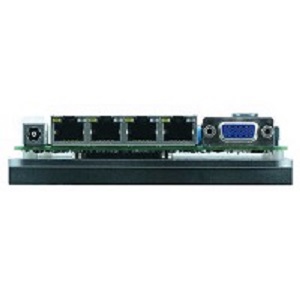

Rear I/O
4* RJ-45 Gigabit Ethernet Connector
1* VGA
1* 12V DC power input connector
Internal I/O
1* USB 2.0 1* 4Pin
1* PS/2 KB/MS connector 1*6Pin
1* front panel function buttons and indicator connector 2*5pin
1* HDD power supply connector 4pin
1* 4pin ATX power connector (can do 12Vpower input/output connector)
1* GPIO
Fan interface

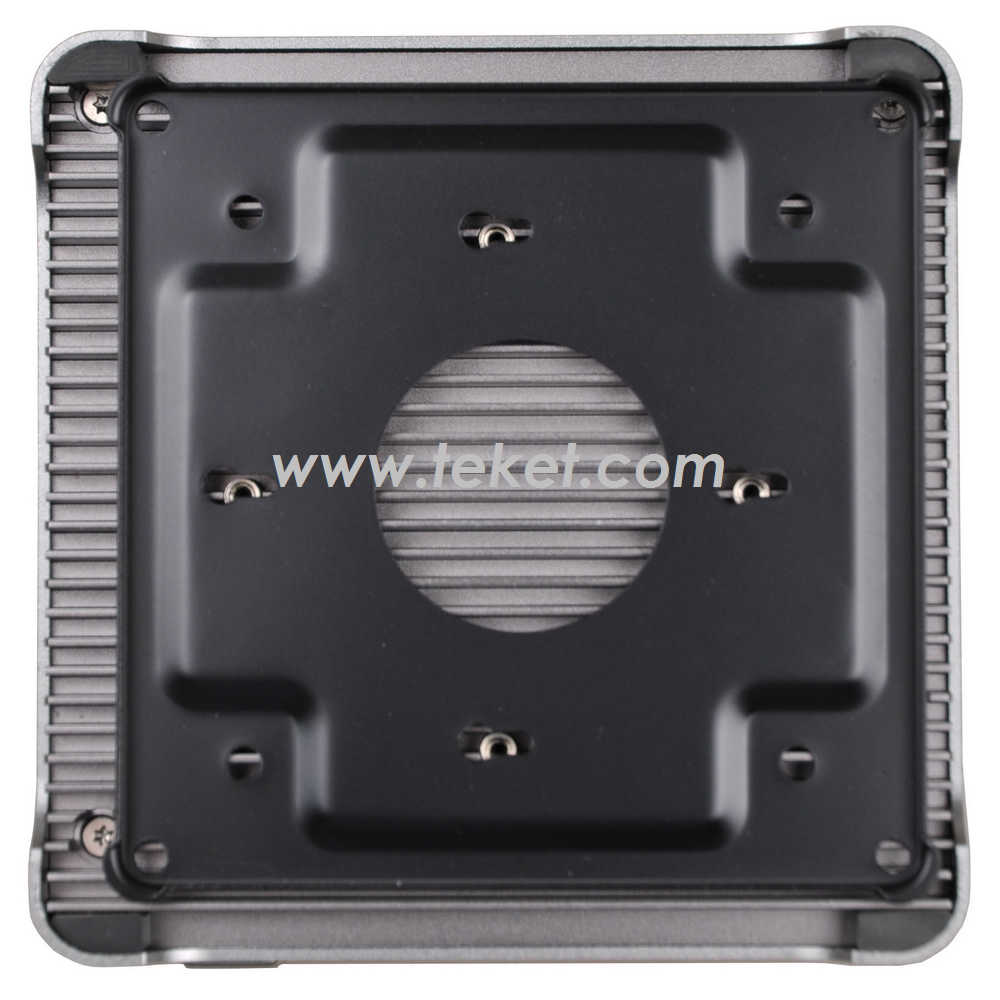

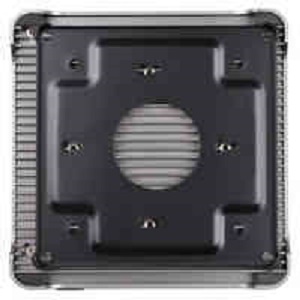

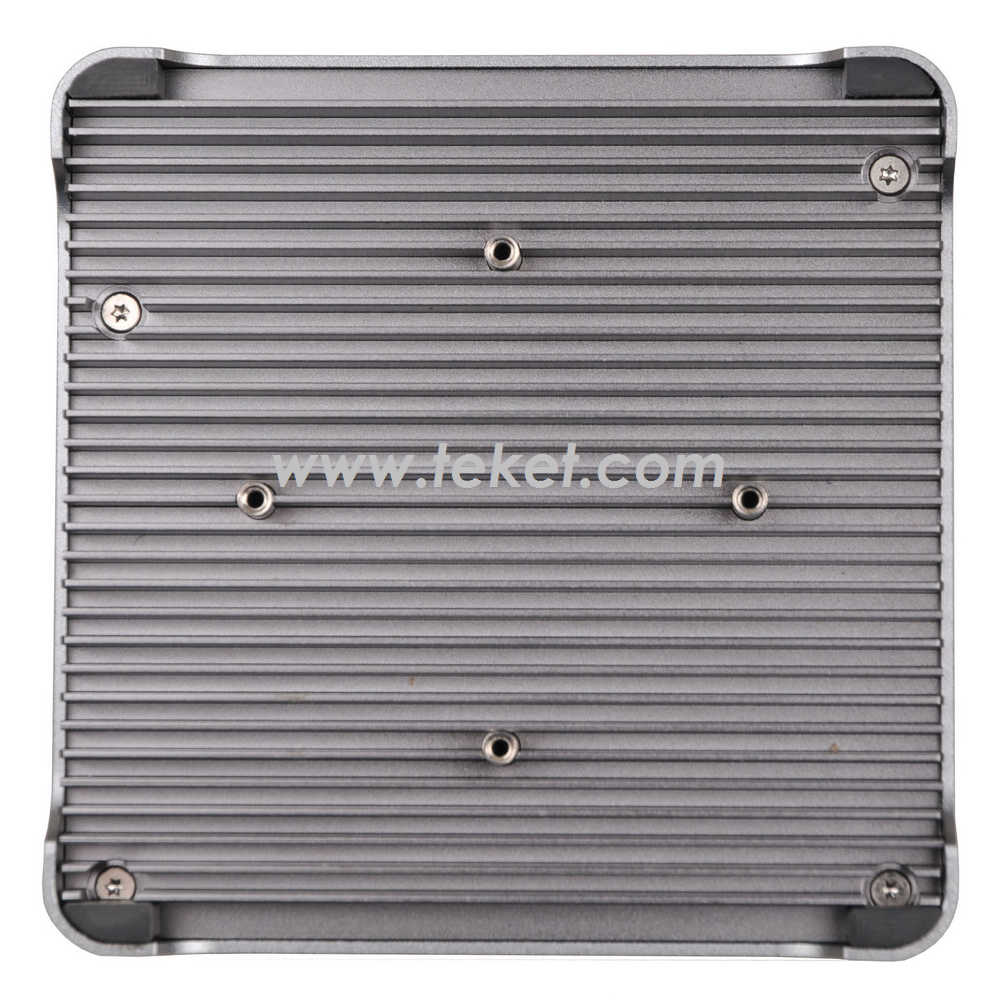

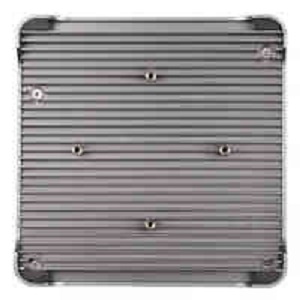

Fanless cooling design,Reserve 1*3pin CPU Intelligent fan interface
GPIO
support 4 way input/output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 12V power supply
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 5%-95%(relative humidity; non-condensing)
Dimension 120mm x 120m

J1900NF V1.1: J1900 2.00G,SO/DDR3,Intel HD,4*82583V LAN,NO BYPASS,NO LVDS,1*VGA,3*USB2.0+1*USB3.0,1*COM,12VDC
J1800NF V1.1: J1800 2.41G,SO/DDR3,Intel HD,4*82583V LAN,NO BYPASS,NO LVDS,1*VGA,3*USB2.0+1*USB3.0,1*COM,12VDC

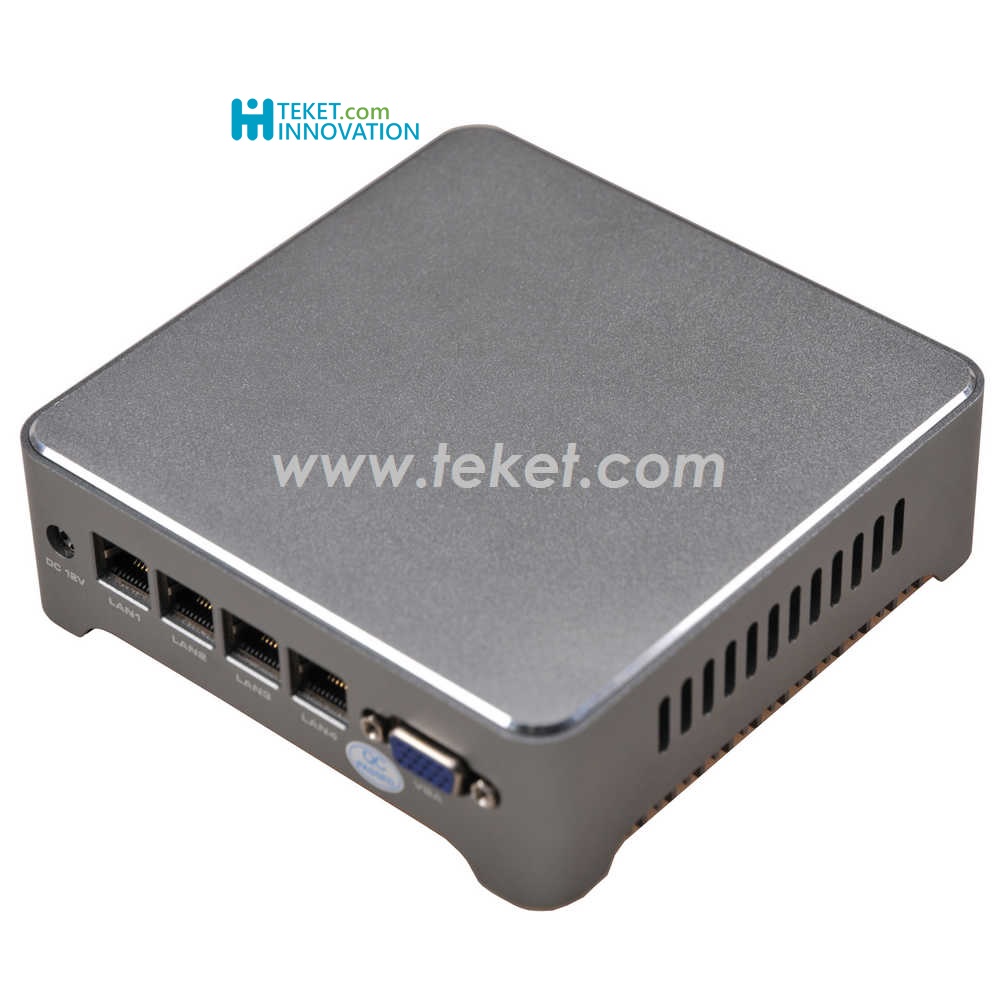

or desktop small size mini pc with 4 lan ports

Ordering Information
J1800ML-A12 Ver1.3,J1800/2.41G,1*LAN,2*24bit,VGA,HDMI,9*USB,2*COM(no RS485/422),ATX
J1800ML-D12 Ver1.3,J1800/2.41G,1*LAN,2*24bit,VGA,HDMI,9*USB,2*COM(no RS485/422),DC
J1900ML-A12 Ver1.3,J1900/2.00G,1*LAN,2*24bit,VGA,HDMI,9*USB,2*COM(no RS485/422),ATX
J1900ML-D12 Ver1.3,J1900/2.00G,1*LAN,2*24bit,VGA,HDMI,9*USB,2*COM(no RS485/422),DC
J1900ML-A26 Ver1.3,J1900/2.00G,2*LAN,2*24bit,VGA,HDMI,9*USB,6*COM(COM3 forRS485/422),ATX

Packing Details
Retail Pacakge: 1 Carton contain ...pcs.
Retail Box Size... Carton Size:...
