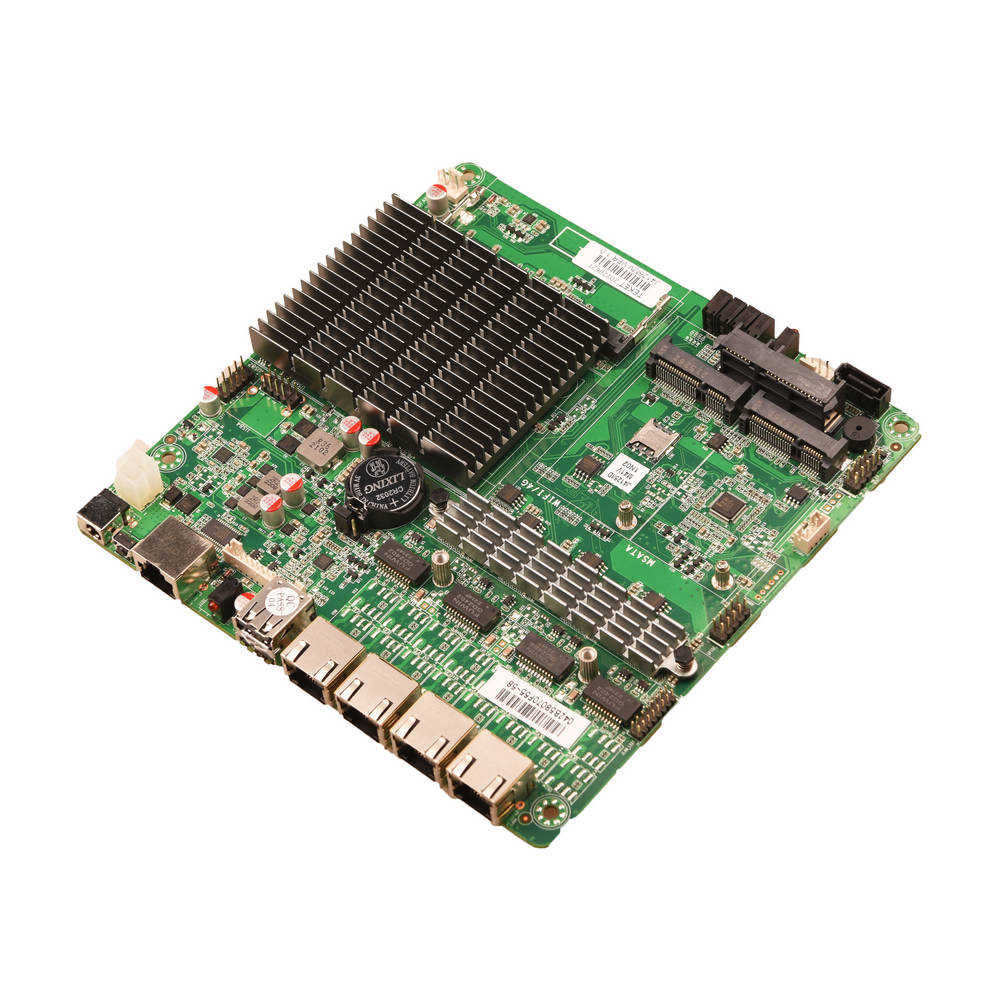

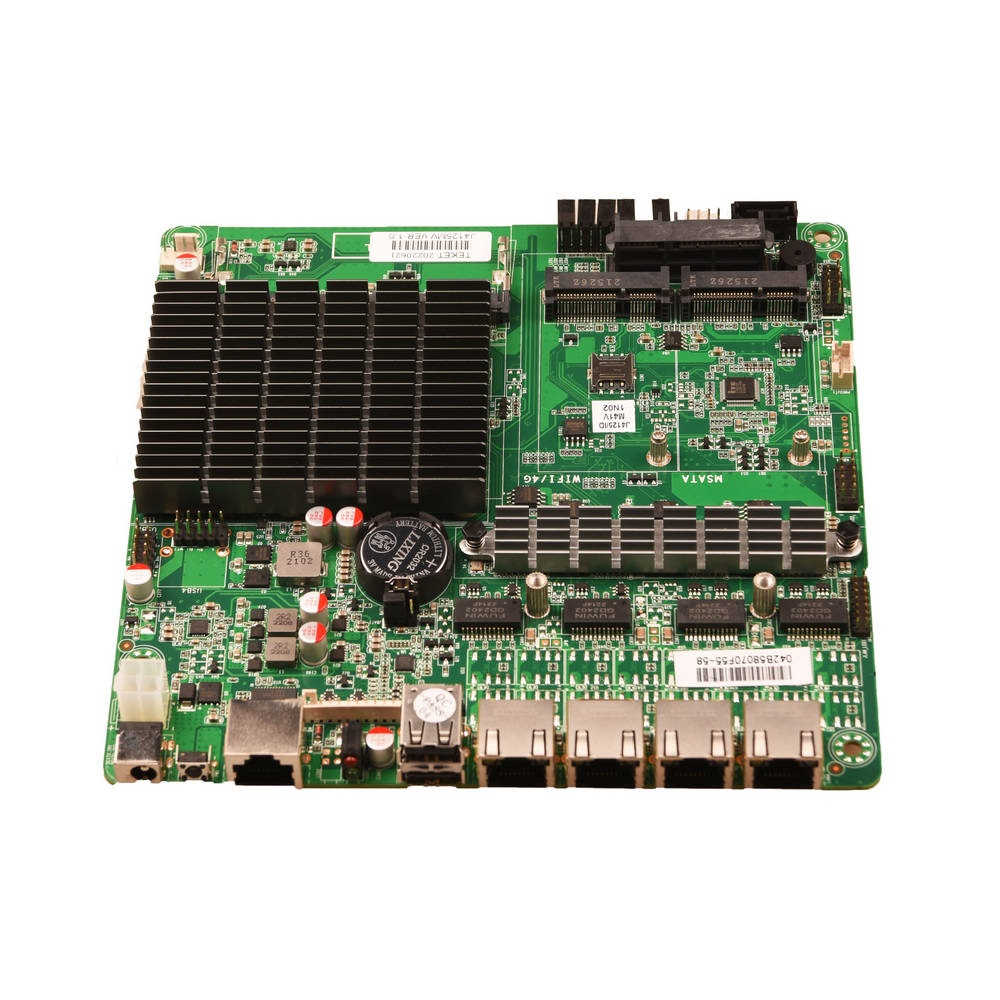

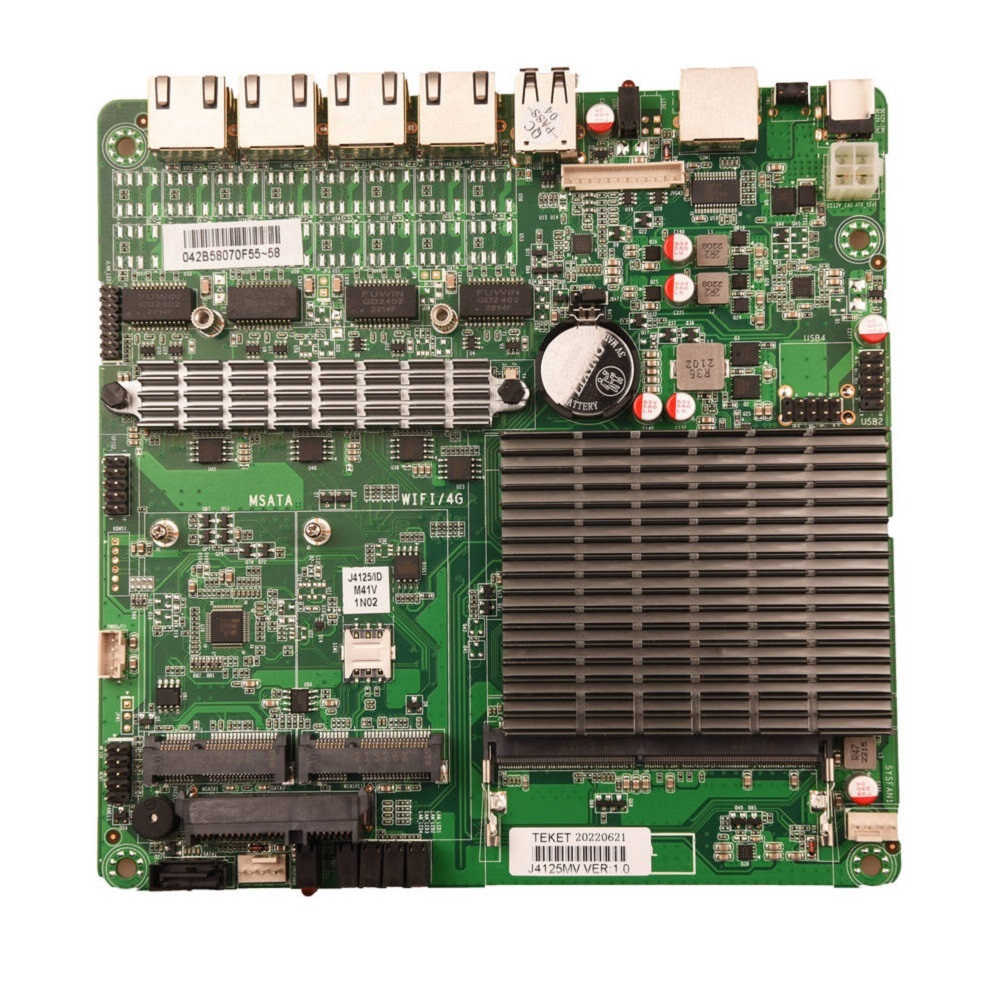

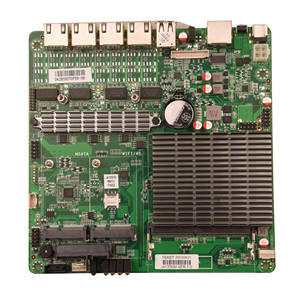

Intel Gemini Lake Celeron J4125 Multiple network interfaces Mini-ITX Motherboard with 4 Intel I225V four LAN PORTS with 12VDC

Intel Celeron Processor J4125 4M Cache, up to 2.70 GHz
Product Collection Intel Celeron Processor J Series
Code Name Products formerly Gemini Lake Refresh
Vertical Segment Mobile
Processor Number J4125
Status Launched
Launch Date Q4'19
Lithography 14 nm
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 4
Total Threads 4
Burst Frequency 2.70 GHz
Processor Base Frequency 2.00 GHz
Cache 4 MB
TDP 10 W
Embedded Options Available No
Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR4/LPDDR4 upto 2400 MT/s
Processor Graphics Intel UHD Graphics 600




Product Model J4125MV VER:0.1(J4125)
Processor Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor, TDP 10W
Compatible with the full range of Intel® Gemini Lake CPUs for customers to choose flexibly
Chipset SOC
Memory 1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB
Display Integrated Intel® UHD Graphics 600 core graphics card, 1* VGA display output
Network 4* Intel I225V Gigabit LAN, support Wake-on-LAN, PXE function
Storage
1* SATA 2.5-inch notebook hard drive, can directly install the hard drive, the transmission speed can reach 6Gbps
1* Standard 7PIN SATA hard disk interface (choose one with 2.5-inch hard disk)
1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps
Expansion slot 1* Mini-PCIE slot, support WIFI, 4G module, default is USB signal
Note: Mini-PCIE slot and LAN4 share PCIE channel, user can choose one

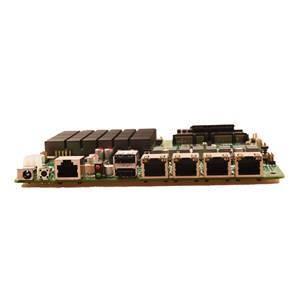

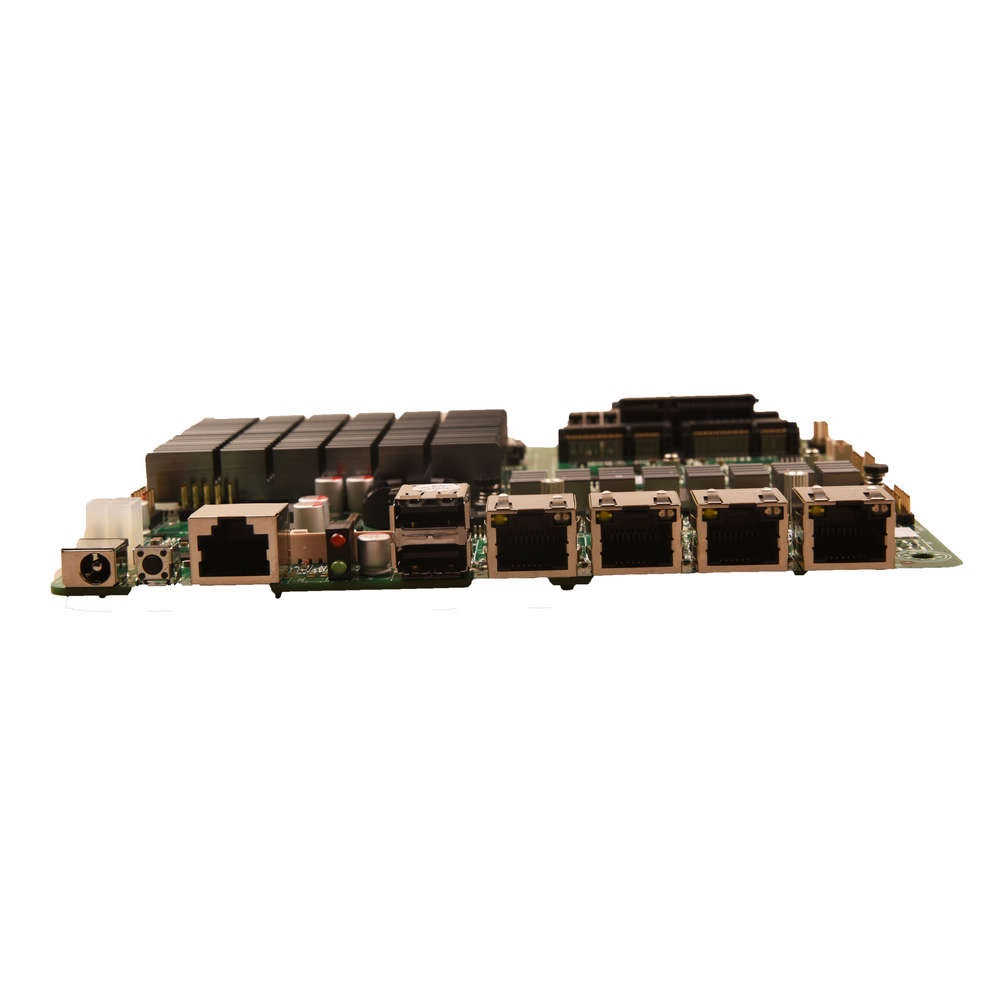

Backplane I/O interface
1* 12V DC power input interface
4* RJ-45 Gigabit network interface
1* CISCO standard RJ-45 serial port
2* USB 2.0 interface
1* Power switch
2* HDD LEDs, 2* Power LEDs
4* Network indicator, 4* Network data transmission indicator
Built-in I/O interface
1* 4pin ATX power interface (can be used as 12V input and output power interface)
4* USB 2.0 interface 2*5Pin
1* JVGA interface 1*12Pin
1* Network indicator 2*8Pin
1* Front panel switch button and indicator port 2*5Pin
1* HDD power supply interface 1*4pin
1* SIM card holder
Fan interface Fanless cooling design, reserved 1*4pin CPU fan interface, 1*4pin system fan interface
GPIO supports 4 input and output GPIO
BIOS AMI 64Mb Flash ROM
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
Operating System Windows 10 / Linux
Power type Powered by DC 12V power supply
Working temperature -10℃~60℃
Storage temperature -20℃~70℃
Working humidity 5%-95% relative humidity, non-condensing
Dimensions 170mm x 170mm

Order Information
J4125MV Ver:0.1 J4125 2.0Ghz,1*SODDR4,1*VGA,4*LAN(I225V),6*USB,1*COM,no Bypass,12VDC

Small size desktop full system
model: S-J4125MV

1U rack mount full system
model: 1U-J4125MV
