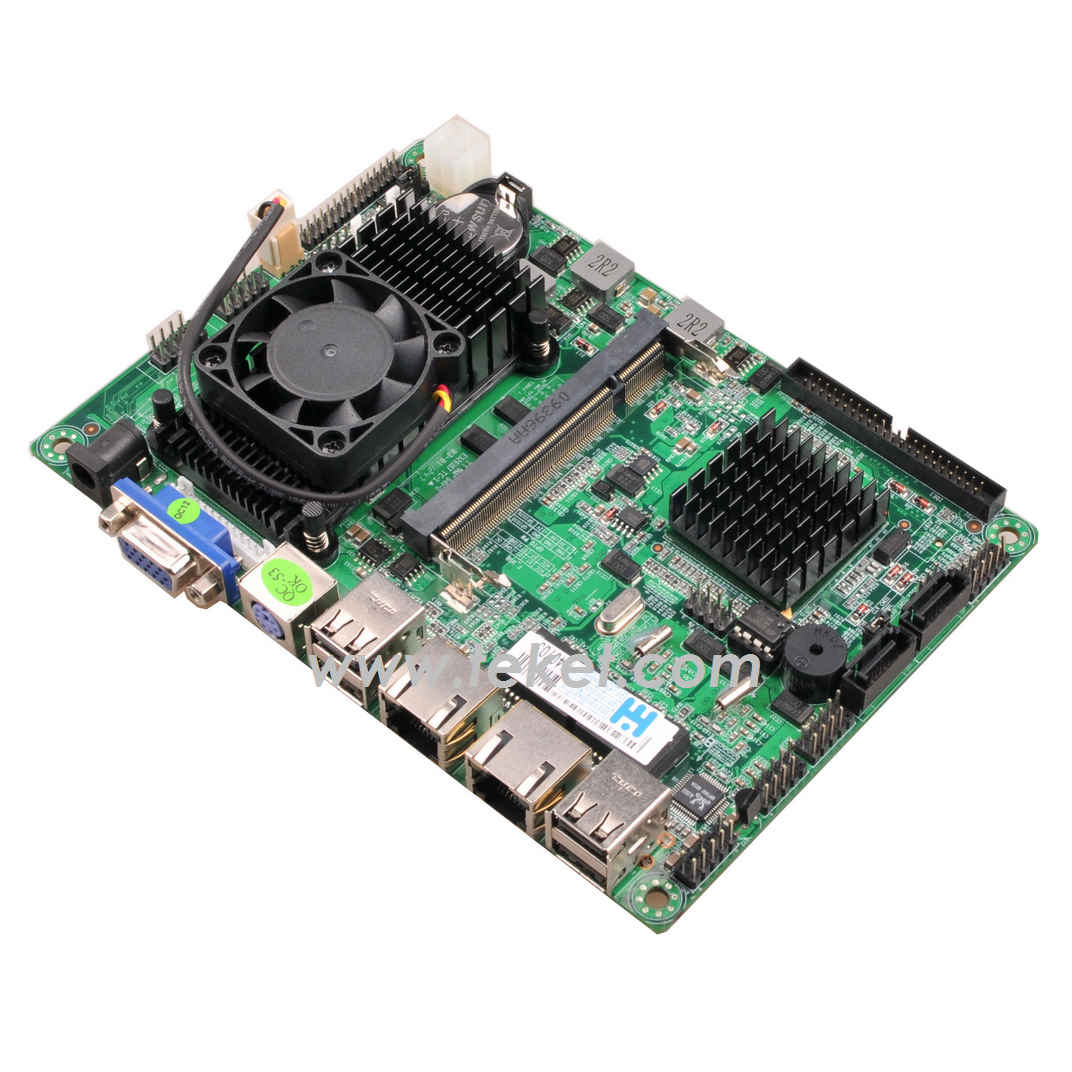

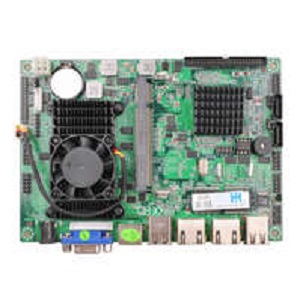

Intel Atom N270 SBC 3.5" Motherboard N27SE

For Industral
N270,D945GSE+ICH7M,2*COM,VGA,PS/2,CF,1*IDE,TV-out,21VDC,LVDS,GPIO




CPU: Intel ATOM Mobile CPU N270 1.6GHz
Chipset: Intel D945GSE + ICH7-M
Graphics: Intel Graphics Media Accelerator 950,DirectX 9.0
Expansion slot: 1*CF
IDE onboard: 1*44pin IDE
SATA onboard: 2*SATA
LAN onboard: 2*LAN,2 Realtek 8111C, 10/100/1000M Ethernet controller
System memory: 1 DDR2 400/533Mhz 200pin SO-DIMM slot,max up to 2GB
Audio: ACL653,2/4/5.1 ouput

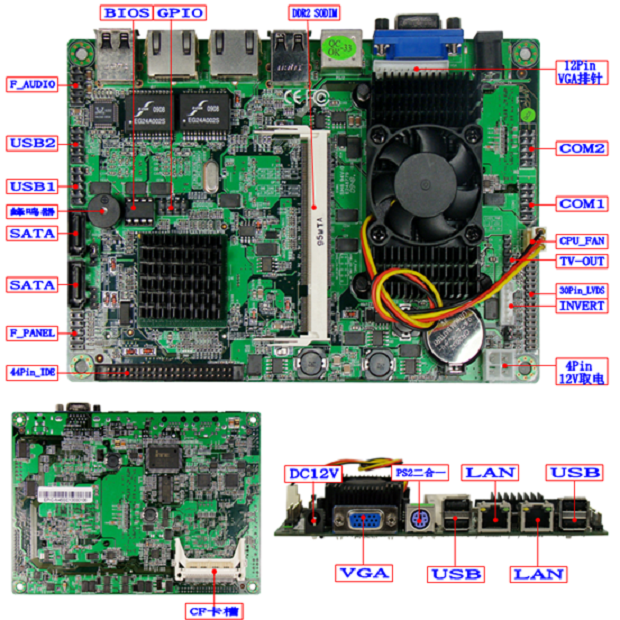

The front I/O interface:
.2 USB pin support 4 USB2.0 ports
.1 fan connector CPU and system fan
.1 group pre sound pin
.2 sets of serial port pin
.1 groups of LVDS pin
.1 1X12PIN VGA pin
.1 IR pins
.1 groups of 6PIN TV-OUT chip

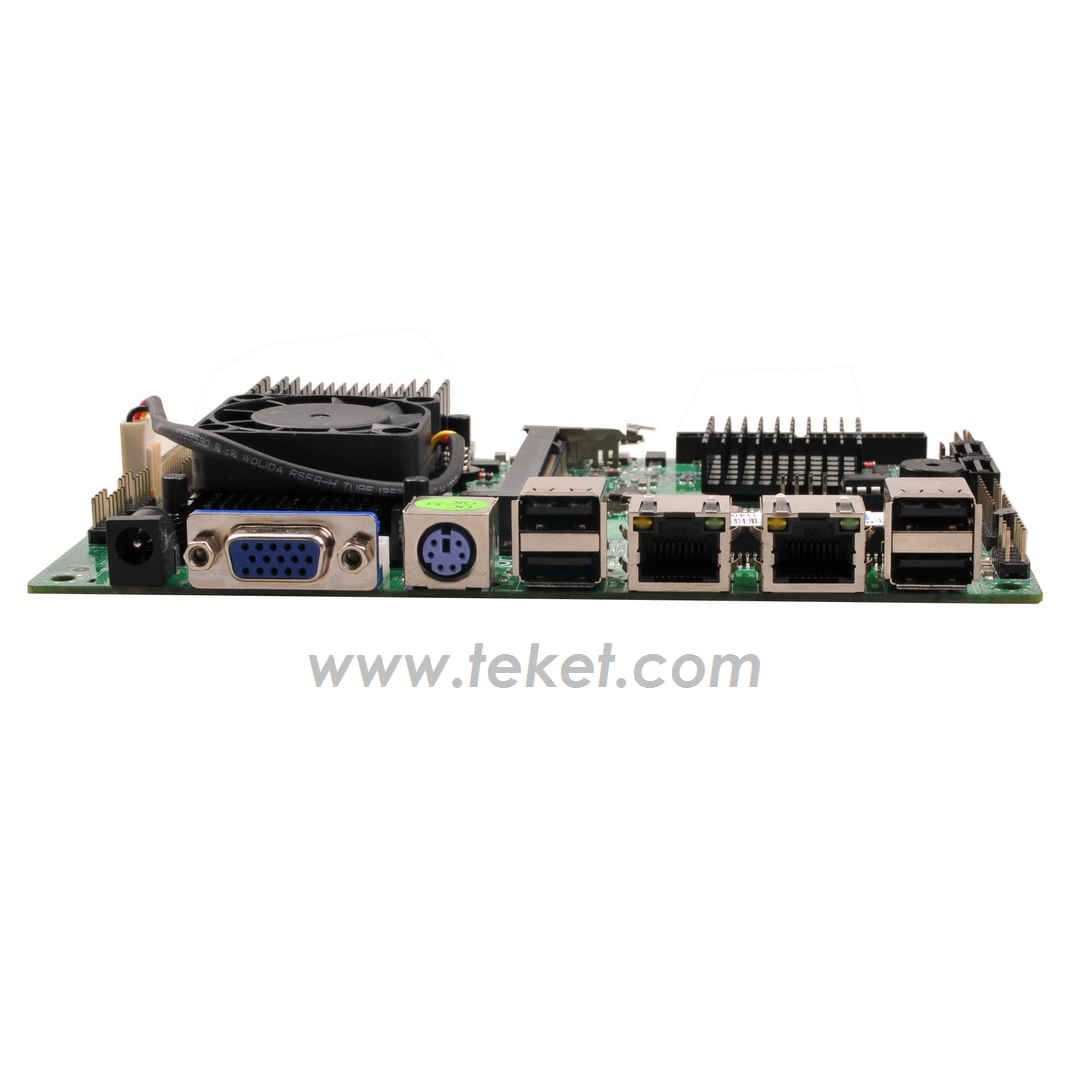

Rear I/O interface:
.4 USB2.0 ports
.1 VGA interface.
.1 DC input interface
.1 PS2 interface
.2 LAN ports
System monitoring and management
.wake on LAN
.The power management system
.temperature control, voltage control
.fan speed monitoring
BIOS: AMIBIOS,4/8Mbit flash
Working environment humidity 0% ~ 95% (relative humidity, no condensation)

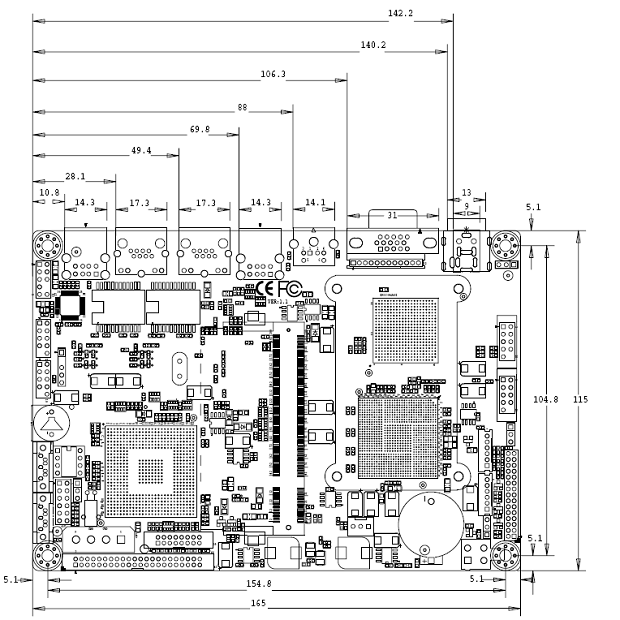

factor: 3.5",6 layout PCB, 165x115mm
Work environment temperature: 0°C to 50°C
Display:
1*VGA,DB15
LVDS: 1*30pin,dual channel,18bits
DVI:no
Display mode dual display support dual display mode (replication mode, extended mode (DOS) single color)
