Atom N550 Mini-ITX Motherboard N550JW with NM10

INTEL? Pineview-M + NM10 Chipset
Support INTEL?ATOM N550 Dual-Core (1.50GHz) CPU
Support 3Gb/s SATA¢ﶩth RAID 0, 1 and JBOD
Supports 2 * Gigabit LAN
Integrated VIA VT1705 HD Audio Code with 6-Channel
Support Watch dog Technology
Compliance with ERP standard
Mini-ITX Form Factor(170mm x 170mm)



Support Daughter board Expansion
CPU
INTEL ?Atom Dual-Core N550 CPU(45nm,FSB 667MHz,1.50GHz,512KB*2 L2 Cache)

Chipset
INTEL?Atom N550 + NM10 chipset
Build-in INTEL?GMA 3150 Graphics Core (DVMT Max. 384MB)

Memory
2 * SO-DIMM Sockets for un-buffered Single Channel DDR3 1333 SDRAM up to 2 GB

Expansion Slots
1 * PCI slot

Storage
4 * Serial ATA2 3Gb/s connectors support RAID 0, 1, JBOD
1 * Mini PCI-E socket
1 * IDE connector

Audio
VIA VT1705 HD Audio Code with 6-Channel

Ethernet LAN
Realtek RTL8111E PCI-E Gigabit Ethernet LAN

USB
Embedded 7 * USB 2.0/1.1


Special Features
Support ACPI S3
Support CPU Smart FAN & DC FAN

LVDS
Onboard 18-bit Single Channel LVDS connector

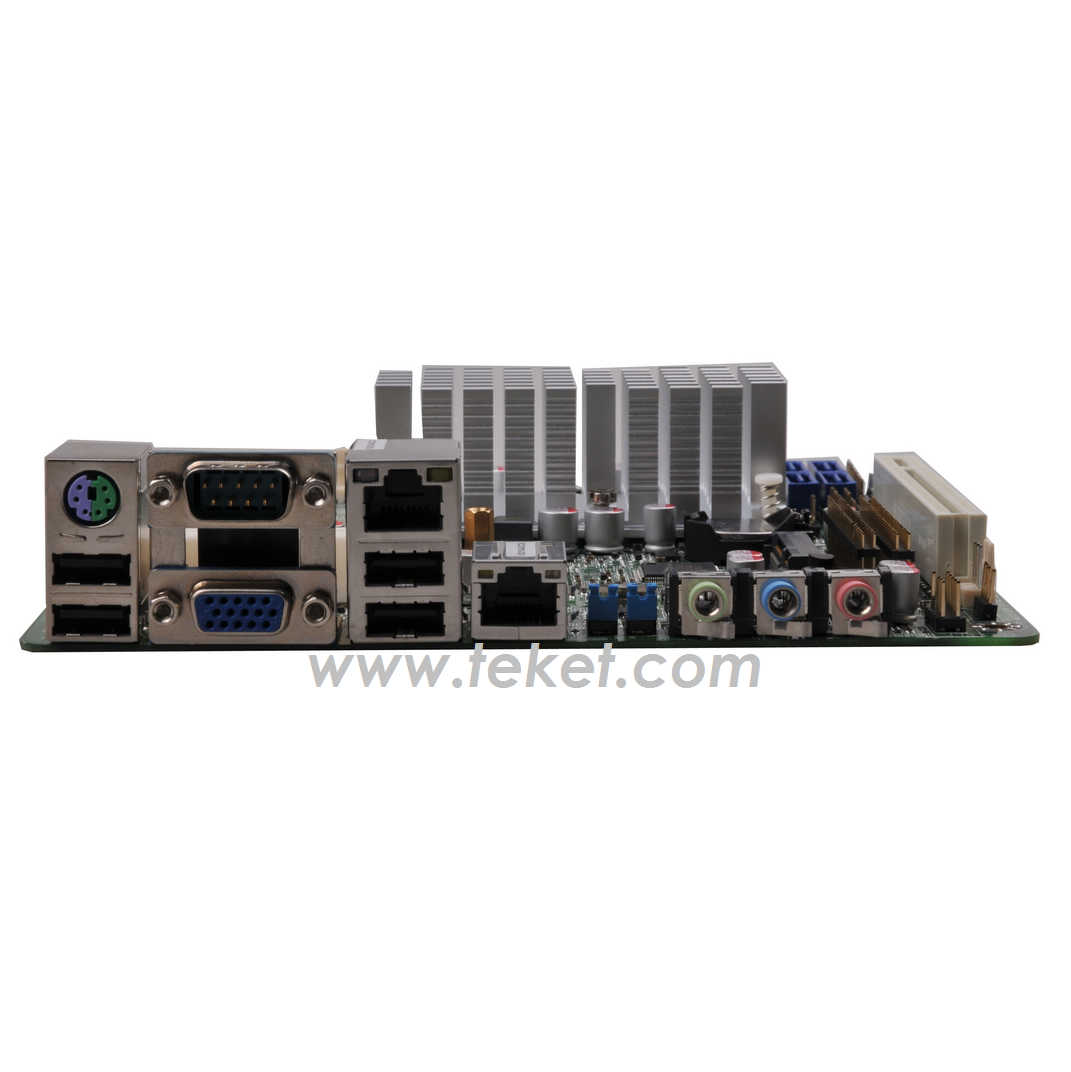

Rear Panel I / O
4 * USB 2.0/1.1 ports
1 * PS/2 KB/MS connector
2 * RJ-45 port
1 * Audio I/O port ( Line-in, MIC and Line-out )
1 * VGA port
1 * COM port

Internal I / O
3 * USB 2.0 ports
CPU / Chassis Fan connectors
1 * 24-pin ATX Power connector
1 * COM header ( COM2 for RS-232/422/485)
1 * AUDIO_IN header
1 * Parallel header
1 * GPIO header

BIOS
Award 8MB DIP-SPI Flash ROM

Functional
ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation, Financial Application

Packing
Color Box Dimension£º200(W) x 200(D) x 70(H)mm
Cases Gross Weight£º15.4KGS
Cases Net Weight£º10.3KGS
20 PCS / Cases, Case size : 720(L) x 410(W) x 200(H)mm

Certificate
CE, FCC, RoHS

Temperature
Operating within 0~60 centigrade (Suggest to use system FAN)
Storage within -20-85 centigrade

Form Factor
Mini ITX Form Factor(170mmx170mm)
