>>Your Current Position: Intel Motherboard

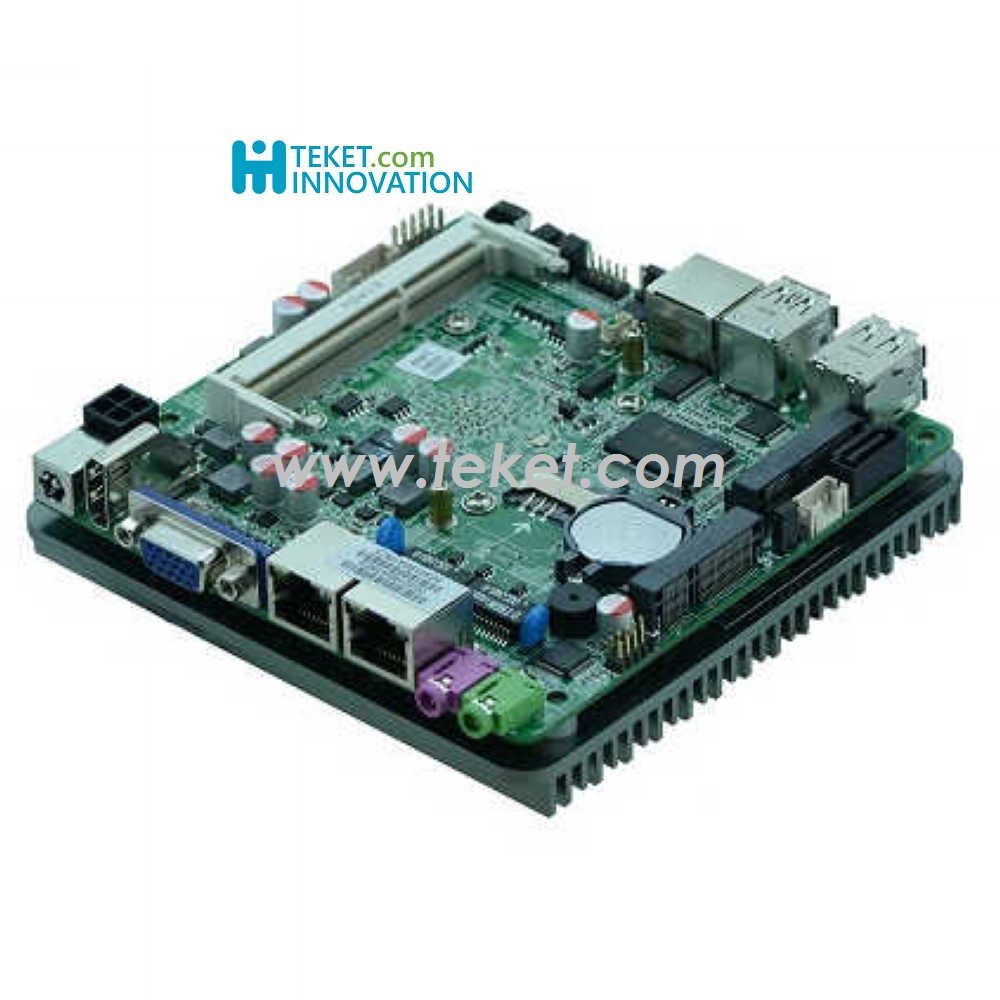

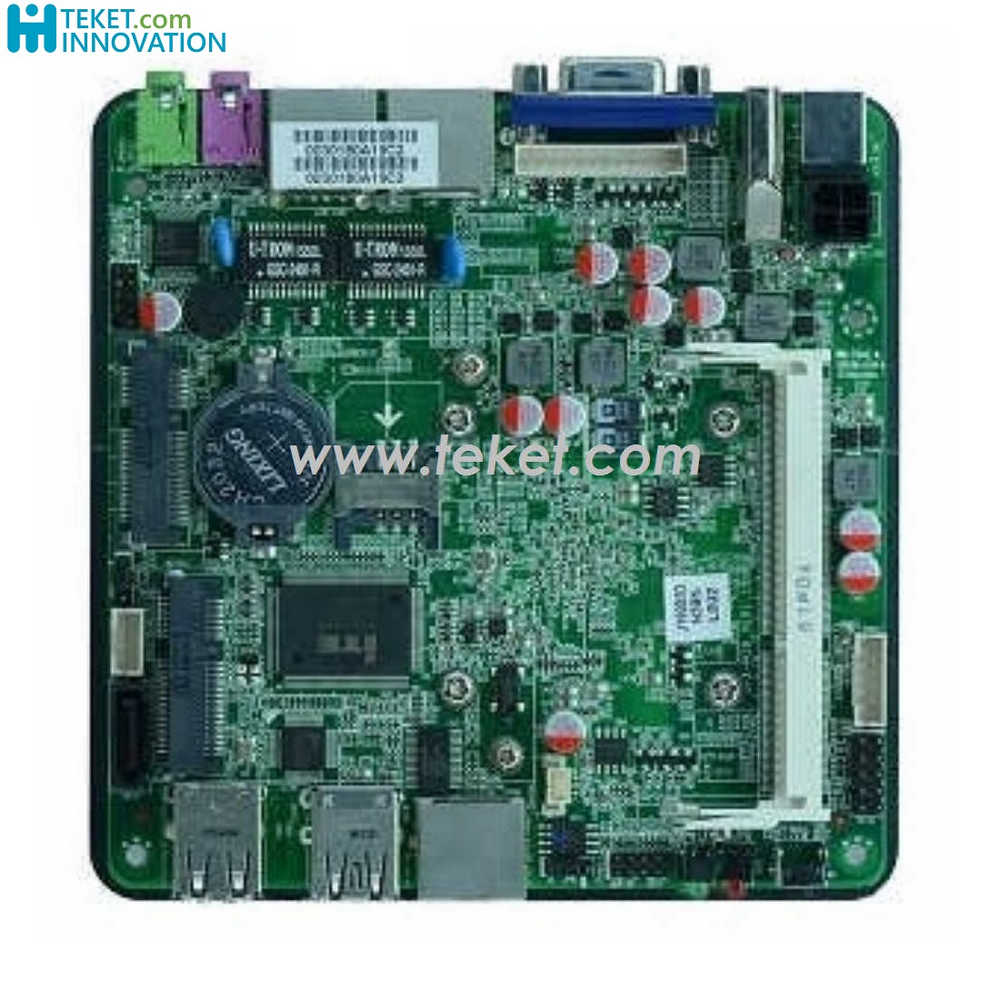

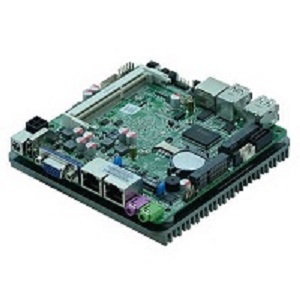

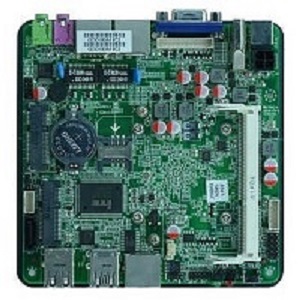

Intel Celeron J1900 2.0Ghz Nano-ITX Motherboard NTX39 with 12VDC

Bay Trail /J1900
NTX39 VER:1.5
Intel?J1900 4 core Processor 2.00GHz,TDP10W
Based on Intel? Bay trail SOC
1*SO DDRIII,Support 1600/1333MHz DDR3L/1.35V,MAX up to 8GB

Intel?J1900 4 core Processor 2.00GHz,TDP10W
Intel? Bay trail SOC chipset
1*SO DDRIII slot,only support1600/1333MHz DDR3L/1.35V memory,up to 8GB
Integrated Intel?HD Graphics
Support 1*VGA,1*HDI
Support VGA; HDI synchronous / asynchronous display
2* RTL8111F Gigabit Ethernet (can do one LAN),Support Wake on LAN/PXE
1* MSATA SSD transfer rate up to 3Gbps
1* SATA port
Integrated ALC662 6-Channel audio controller ,support MIC/Line-out
Expansion Slots
1* Mini-PCIE Support WIFI module/3G module
1* MSATA Support SSD/WIFI (Default is SSD),SSD transfer rate up to 3Gbps

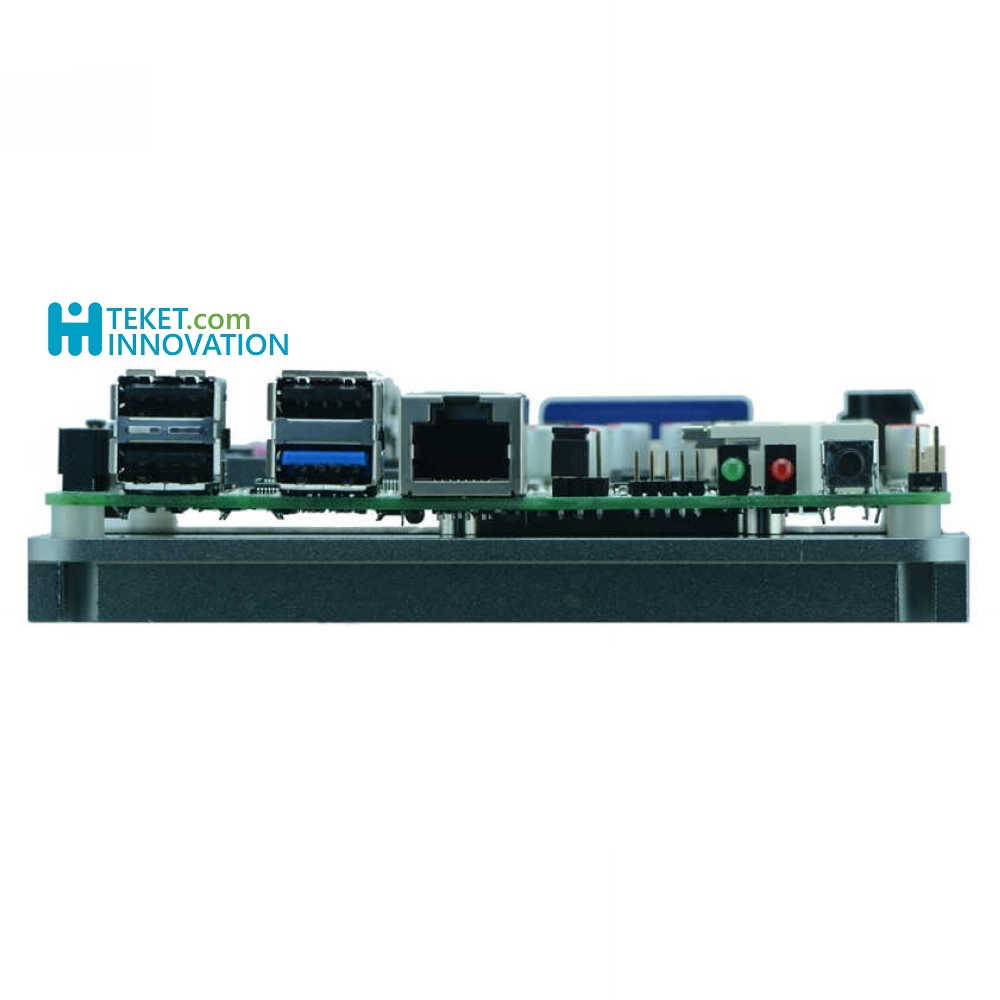

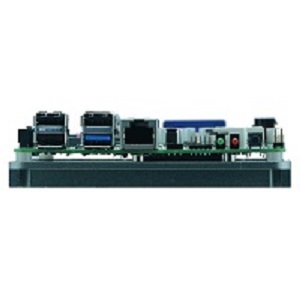

Real I/O
3* USB2.0 1*USB3.0(USB2 and LAN2 is two choose one)
1* HDI
1* VGA
2* RJ-45 LAN (can do one LAN)
1* Line out(Green),1* MIC(Violet)
1* CISCO standard COM
1* Power switch
1* 12V DC JACK input
Internal I/O
1* JVGA1(1*12pin) Same signal with DB15
2* USB2.0 (2*5pin)
1* PS/2 KB/MS connector(1*6Pin)
1* SIM card socket
1* PWROUT (Hard disk power supply connector)
1* FP1(2*5pin front panel function buttons and indicator connector)
1* 4pin ATX 12V Power input/output interface
FAN Interface
Support Fanless cooling,reserve 1* 3pin CPUFAN
1* GPIO (Support 4-way GPIO function)
AMI 64Mb Flash ROM
Support hardware reset function (L256, 0~255 seconds)
Power Input
DC 12V single power supply
Operating Temp
Storage Temp.
5%-95%(relative humidity; non-condensing)
120mm x 120mm

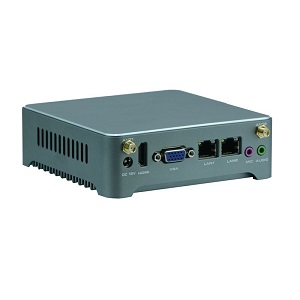

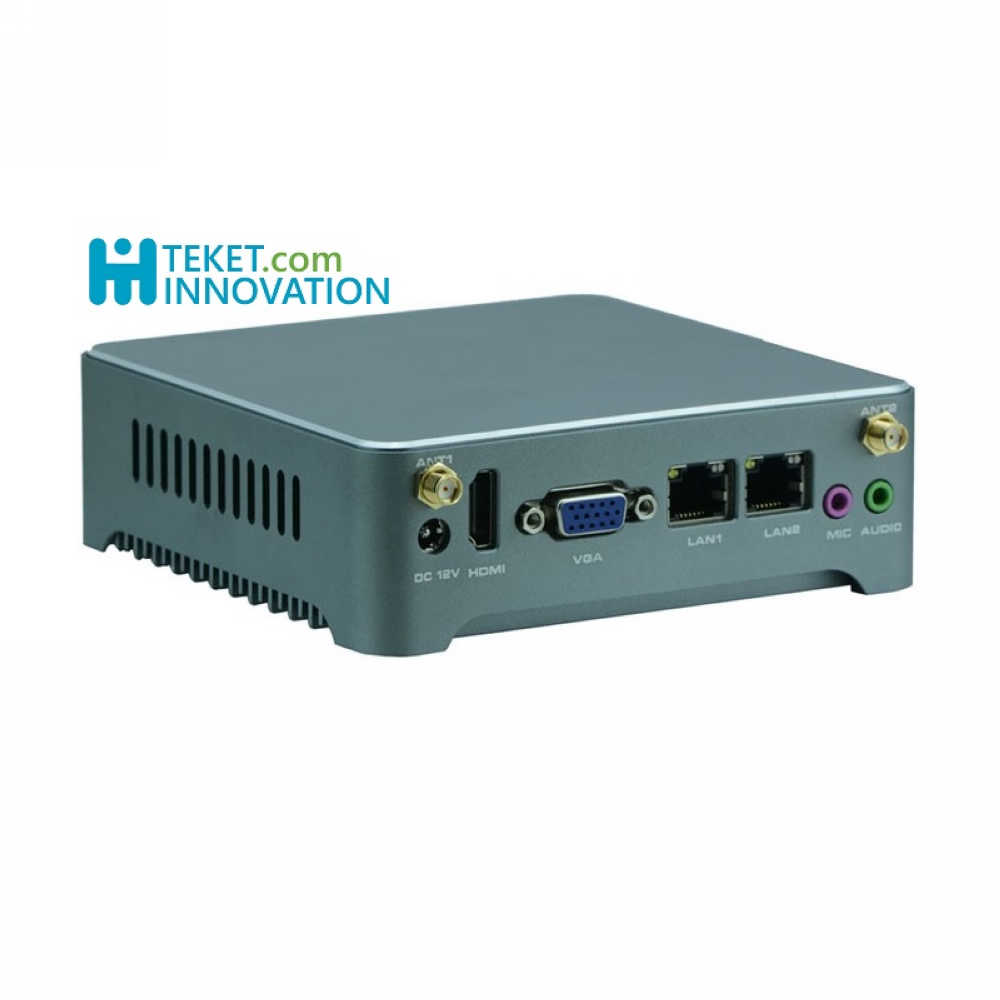

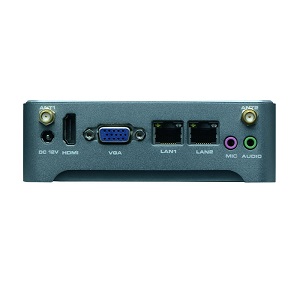

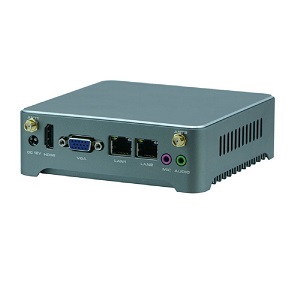

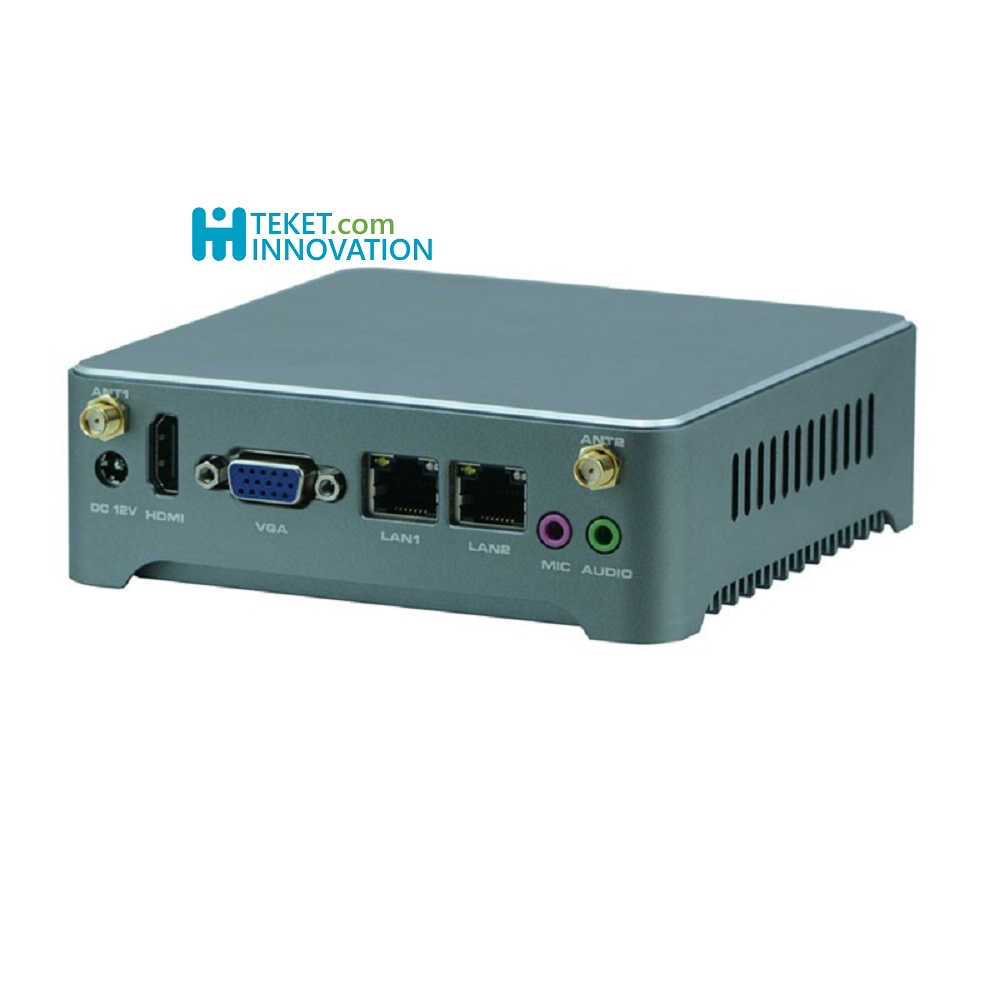

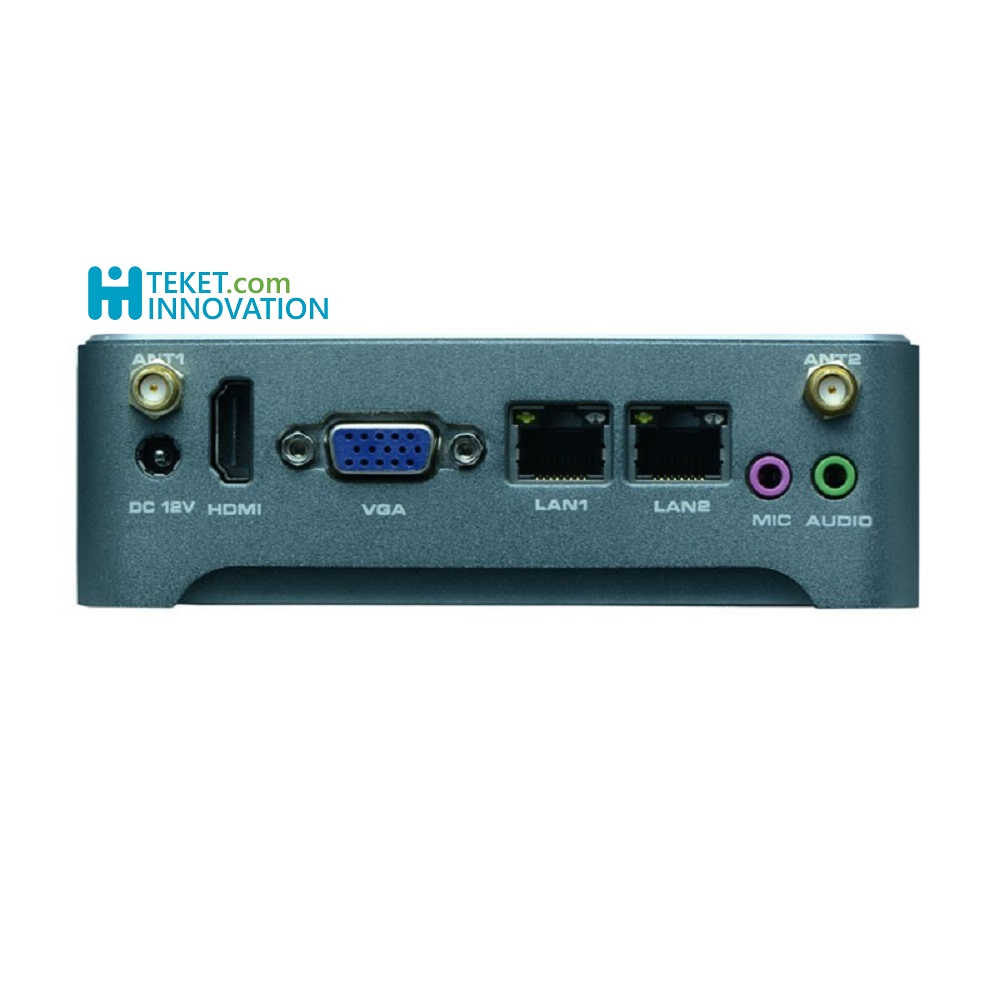

NTX39 full system barebone

Order Information
NTX39-J1900-D11 ver1.1, J1900,2.0G,1*SODDR3L,1*VGA,1*HDI,0*LVDS,1*LAN,6*USB,1*COM,0*RS485,DC12V
NTX39-J1900-D21 ver1.1, J1900,2.0G,1*SODDR3L,1*VGA,1*HDI,0*LVDS,2*LAN,6*USB,1*COM,0*RS485,DC12V
NTX39-N2805-D11 ver1.1, N2805,1.5G,1*SODDR3L,1*VGA,1*HDI,0*LVDS,1*LAN,6*USB,1*COM,0*RS485,DC12V

Packing Details
Retail Pacakge: 1 Carton contain 16pcs.
Retail Box Size:20*20*7cm Carton Size:56*42*17cm
