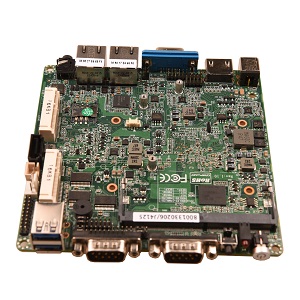

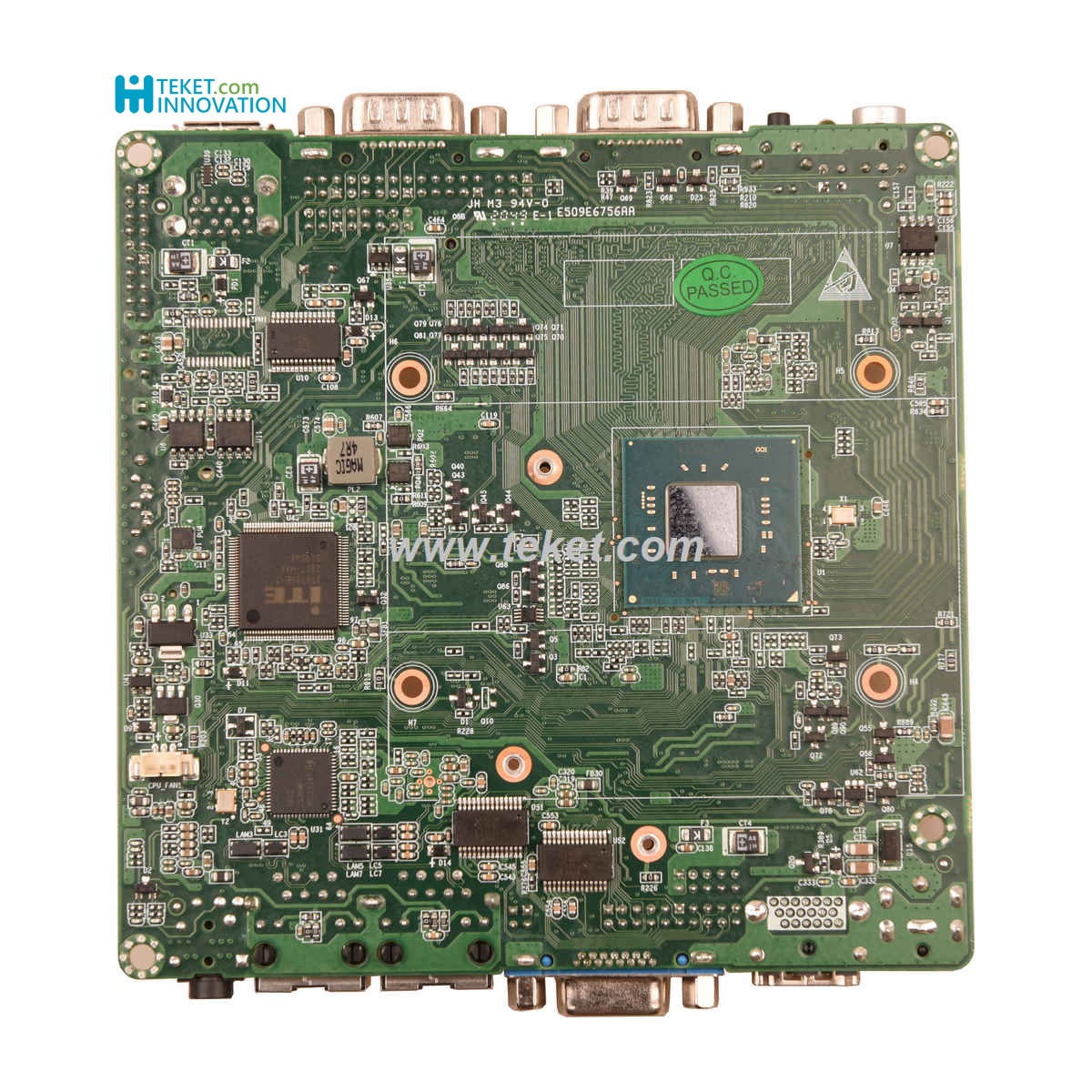

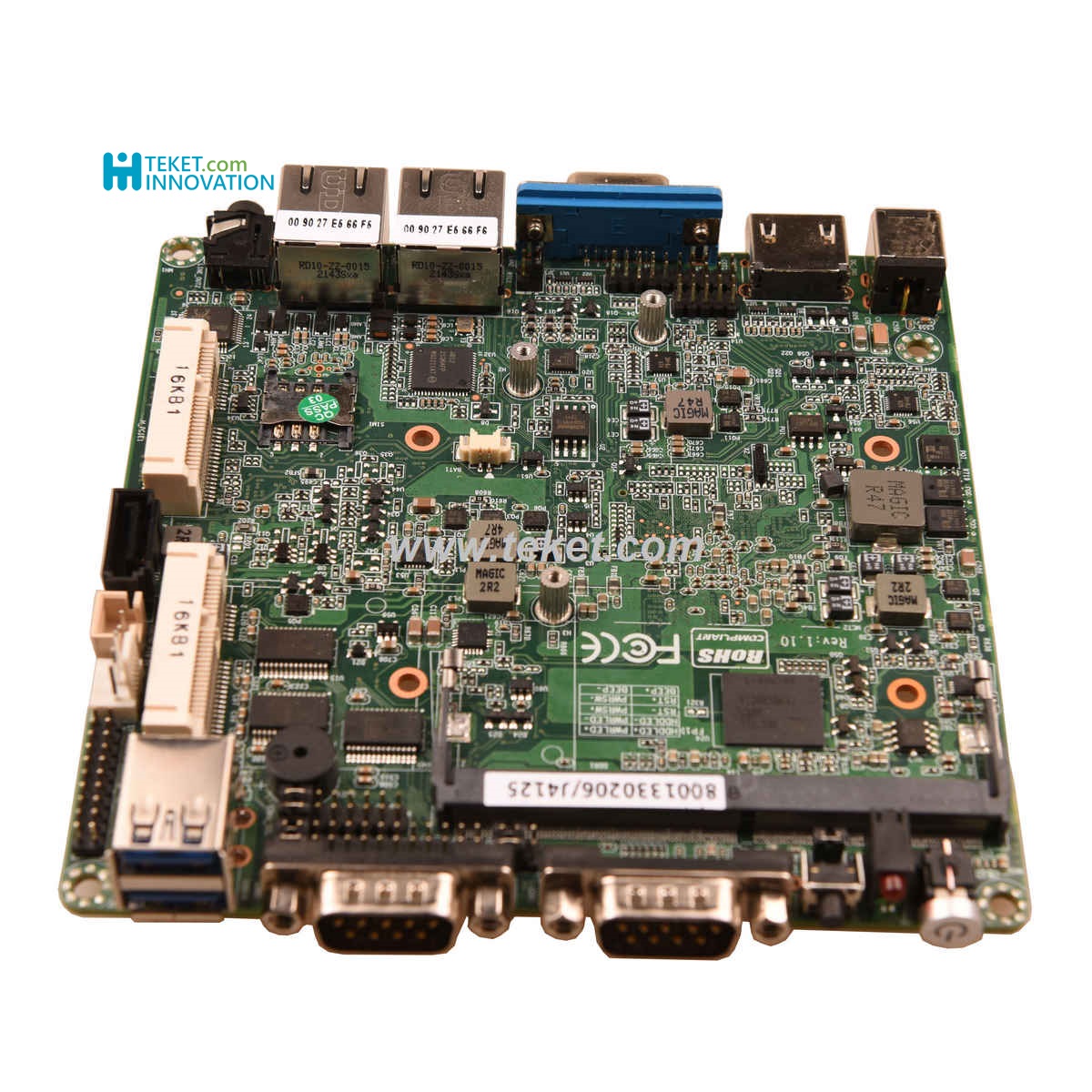

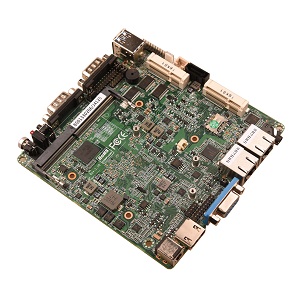

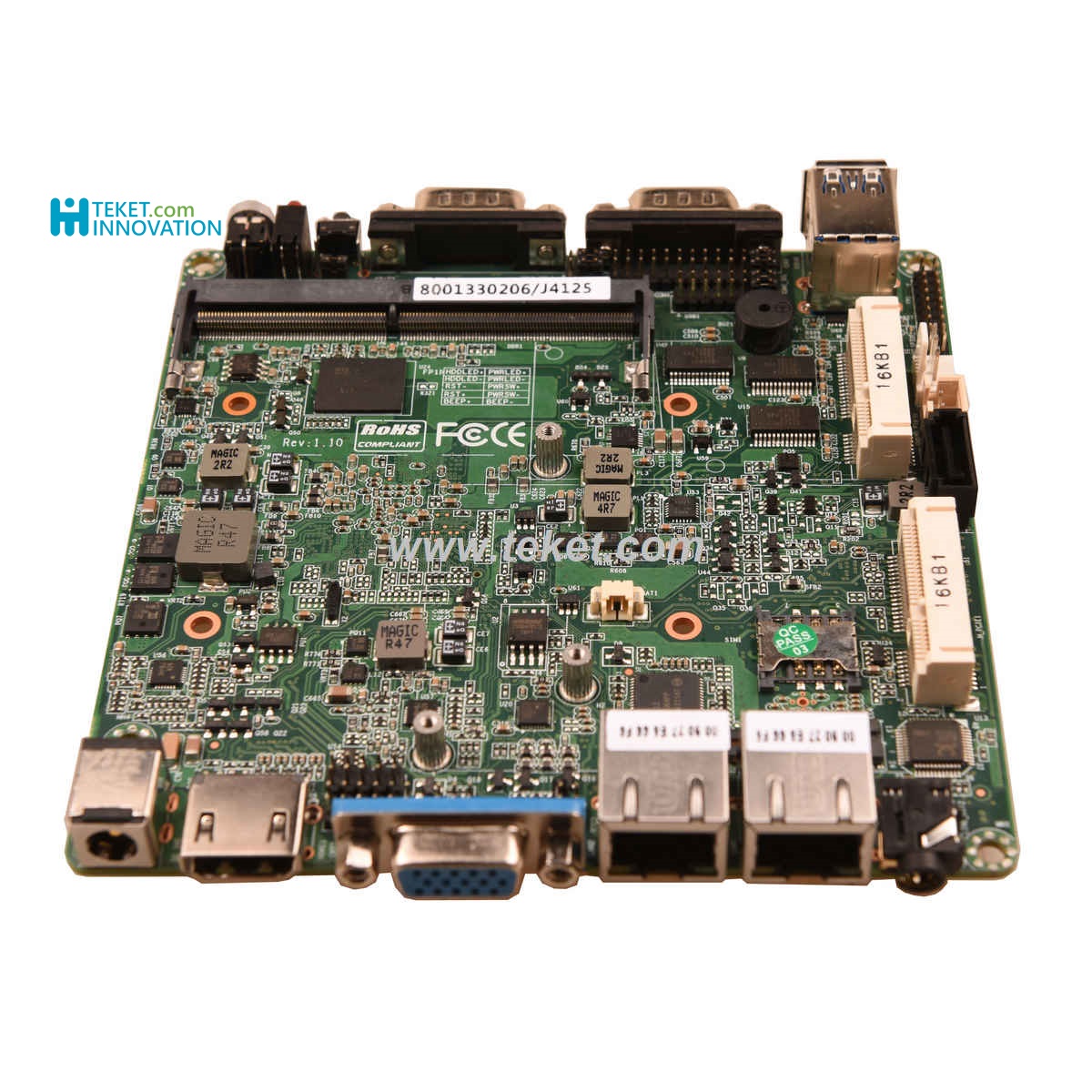

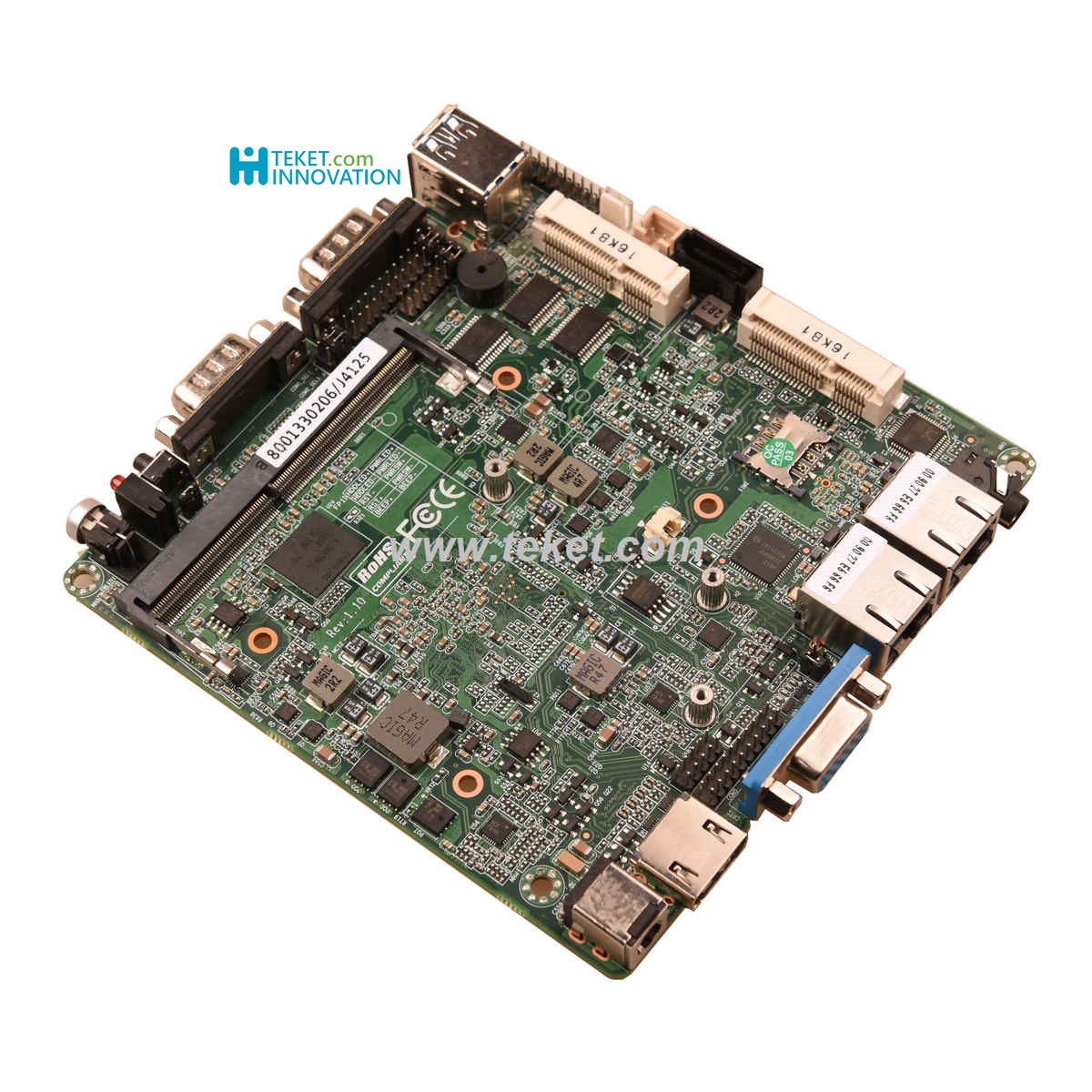

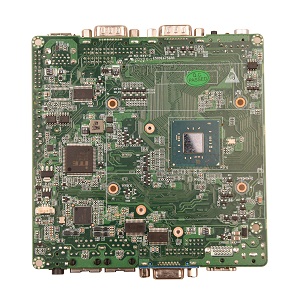

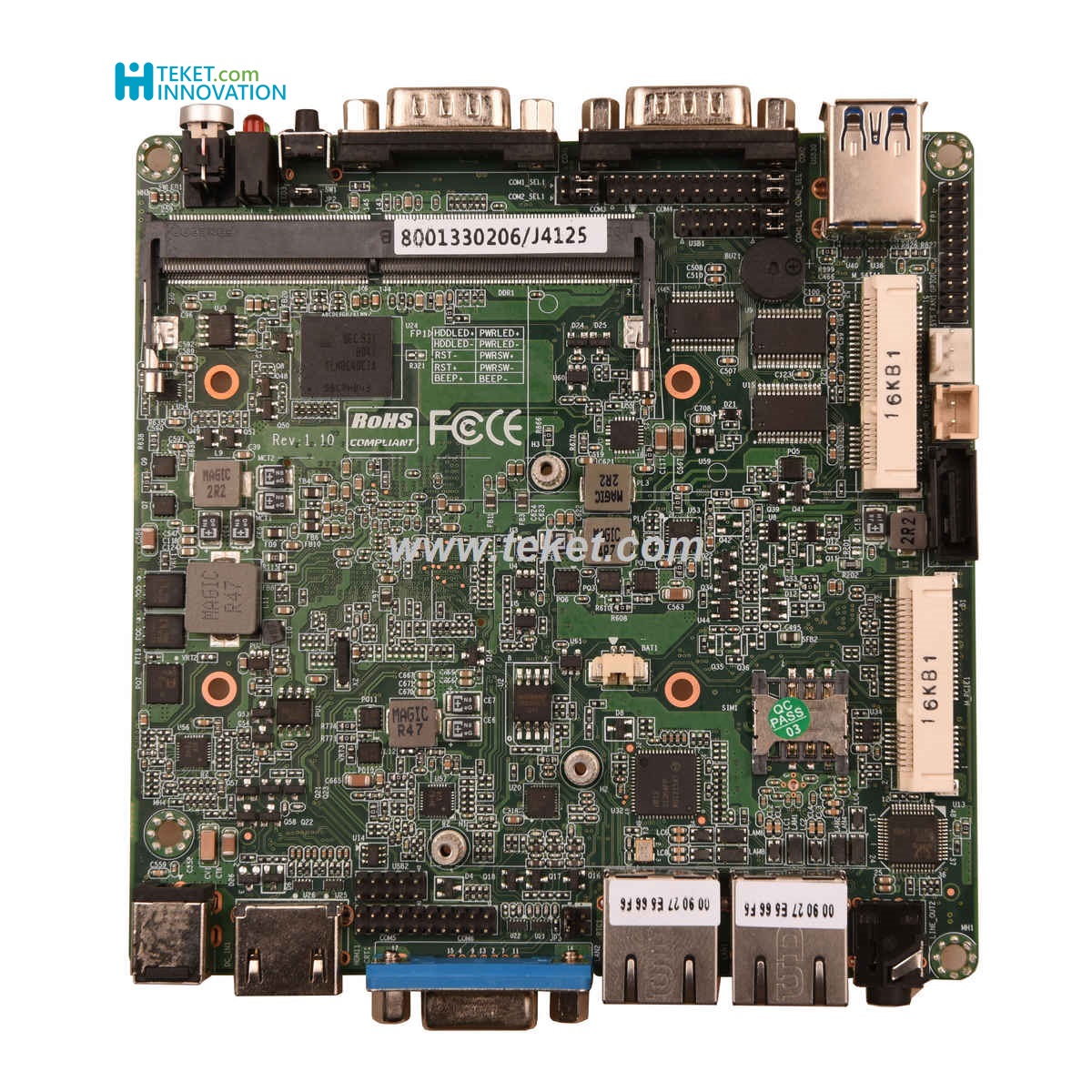

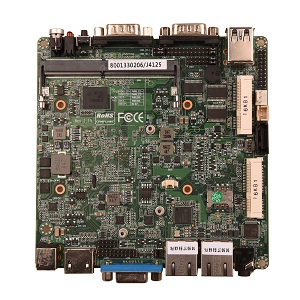

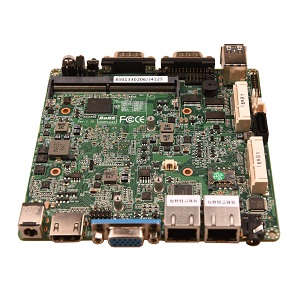

Intel Gemini Lake CPU N4100/J4105/J4125 Nano-ITX Motherboard NTX41GN with Dual LAN 6 COM 12VDC


NTX41GN VER:1.0
Integrated Intel Gemini Lake single-chip CPU;
Support TPM2.0 (optional)
Provide 1*VGA, 1*HDI 2.0 (support 4K display output);
6 COM ports (4 RS232, 2 RS232/RS485 options)
Onboard 32/64/128G EMMC memory chip (optional);
Support automatic power-on function, jumper selection;
Wide voltage 12-19V power supply;
Structure 120 x 120 mm;






Specification
Processor system CPU integrated Intel Gemini Lake single-chip CPU
CPU package BGA
Chipset Intel Gemini Lake series SOC
BIOS EFI BIOS
Memory technology architecture Single channel DDR4 2400MMhz;
Slot Single SO-DIMM slot, maximum support DDR4 8G
Video graphics controller Intel UHD Graphics 600 (graphic card of J4005); graphics card model is related to CPU
VGA VGA supports a maximum resolution of 1920x1200
HDI maximum resolution support (HDI2.0) 4096*2304@60HZ support 4K display
Dual display supports HDI+VGA synchronous or asynchronous display

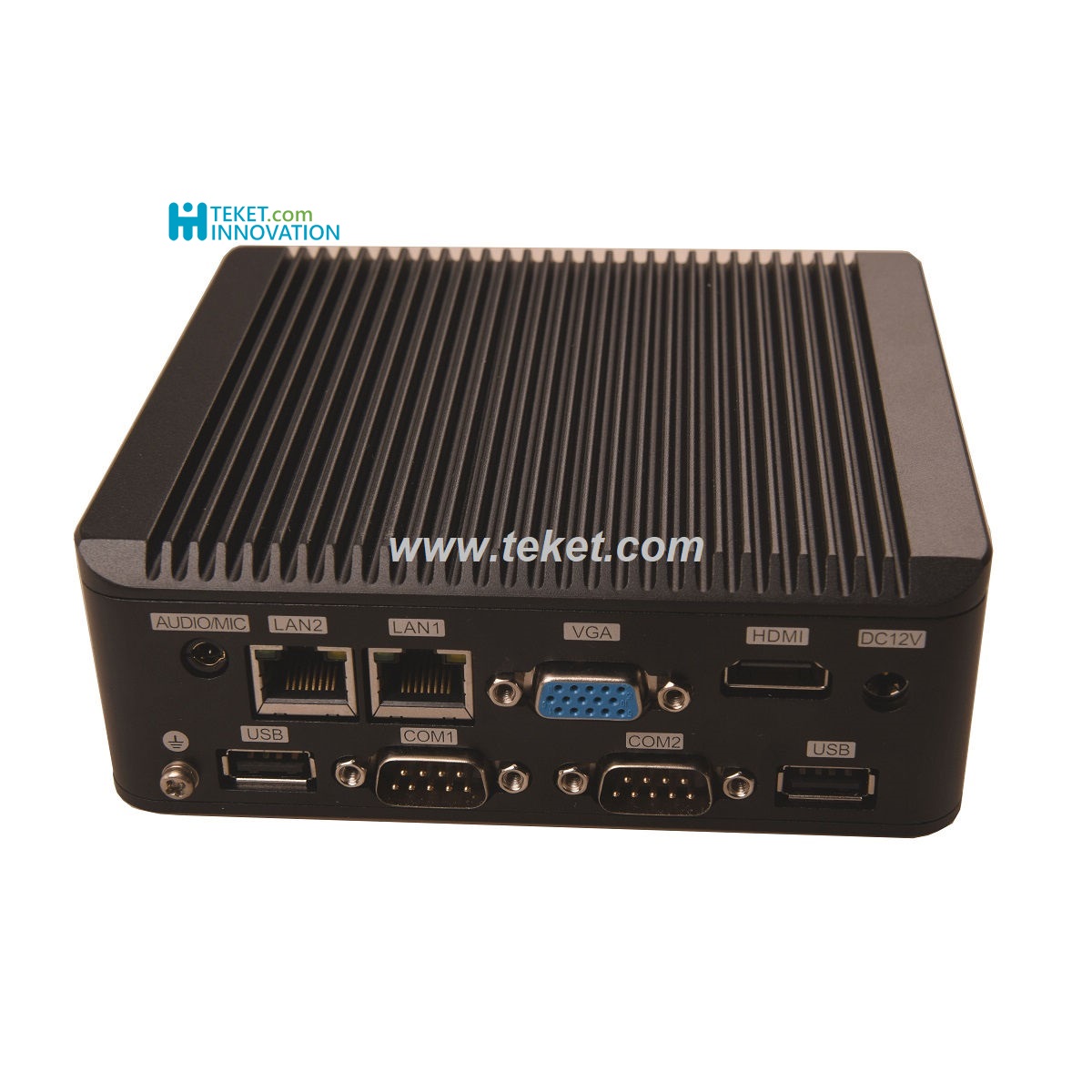

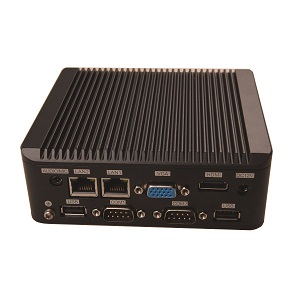

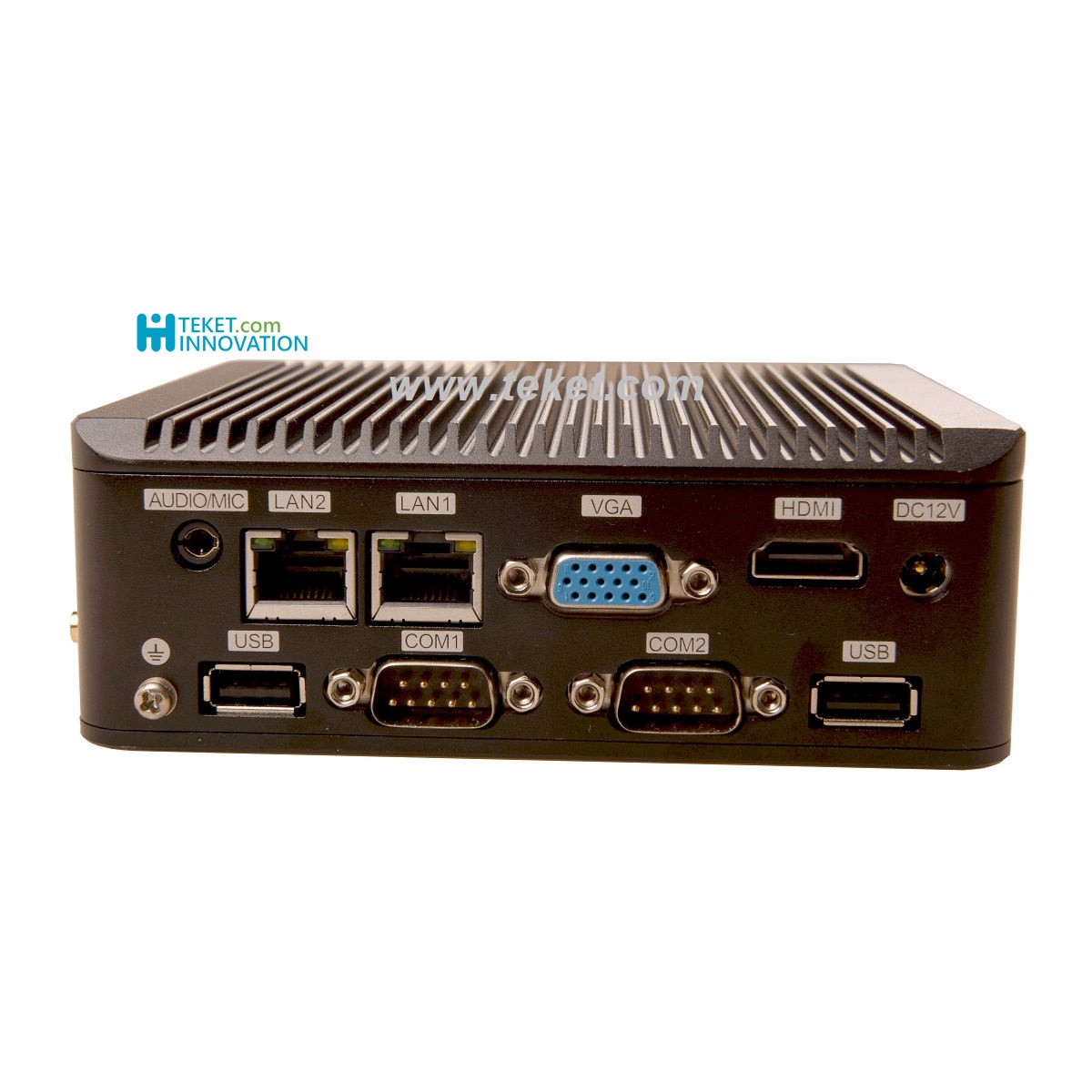

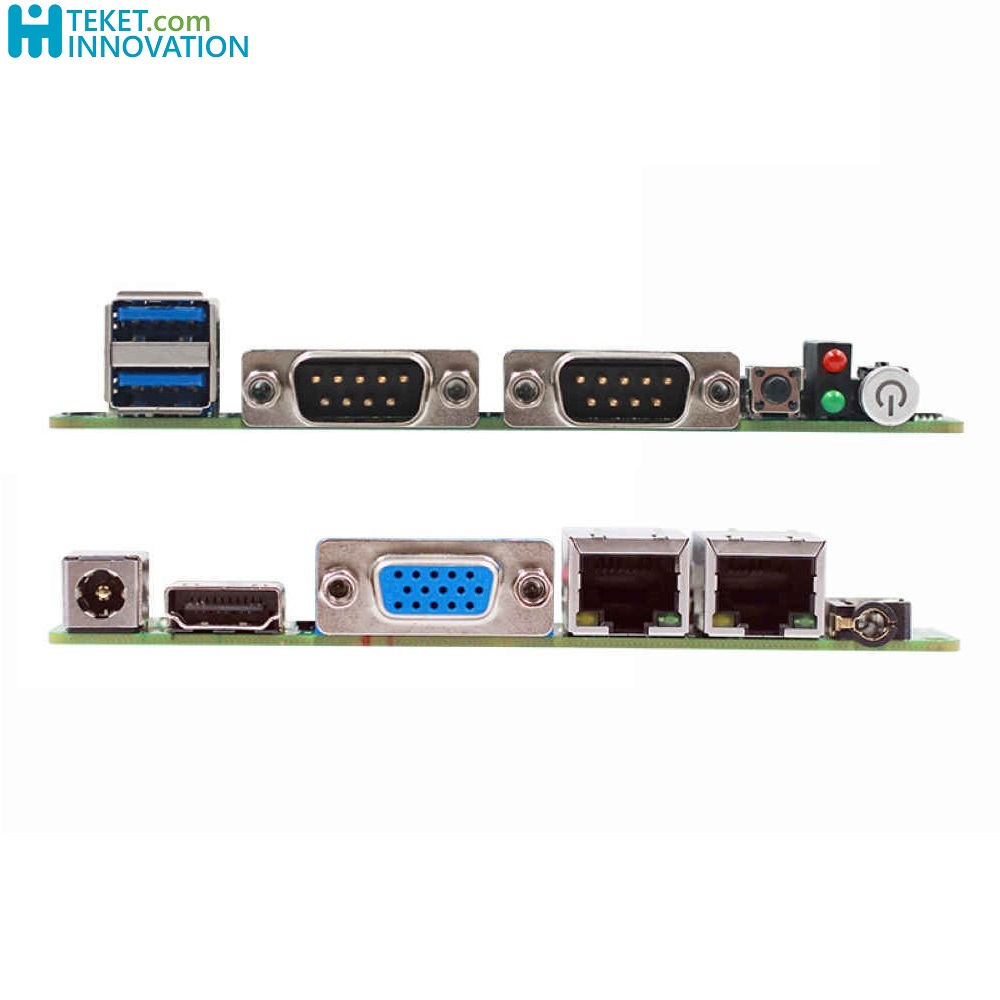

I/O backplane port 1*VGA, 1*HDI, 2*LAN, 2*USB3.0/1*LINE-OUT, 2*COM
Network controller 2 Intel I211AT
Audio controller Realtek HD ALC662 audio decoding (left and right channels + microphone)
Super I/O controller ITE8786E
Hardware monitoring Watchdog timer 0-255 seconds, providing watchdog routines
Cooler aluminum fanless radiator (main board reserved fan interface can support automatic and manual fan speed adjustment)
Input/output interface USB 2*USB3.0 compatible with USB2.0 / 1.1, 4*USB2.0, maximum support +5V/1.5A
Serial port 6 COM ports (4 RS232, 2 RS232/RS485 options), RS485 supports automatic flow control
GPIO 8-bit, provide routines, freely define input/output, 3.3V@24mA level
Expansion bus Mini-PCle 1 Mini-PCIe slot, support PCIe and USB devices (5G module and PCIE module are optional)
Storage SATA 1 standard SATAIII interface, maximum transfer rate 6Gb/s
M-SATA 1 M-SATA Scoket, support SANDISK protocol, maximum transfer rate 6gb/s
EMMC onboard 32/64/128G EMMC memory chip (optional)
Power supply type Single input DC power supply, DC12-19V
Working environment Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, non-condensing
Storage humidity 0% ~ 90% relative humidity, no condensation
System supports Windows 10 Linux

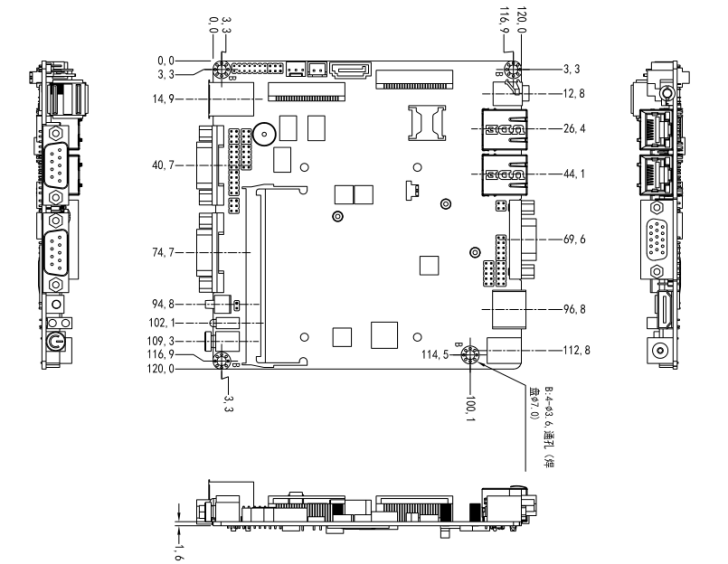

Appearance size: 120 x 120mm
Weight 0.5KG
Certification CE, RoHS, FCC

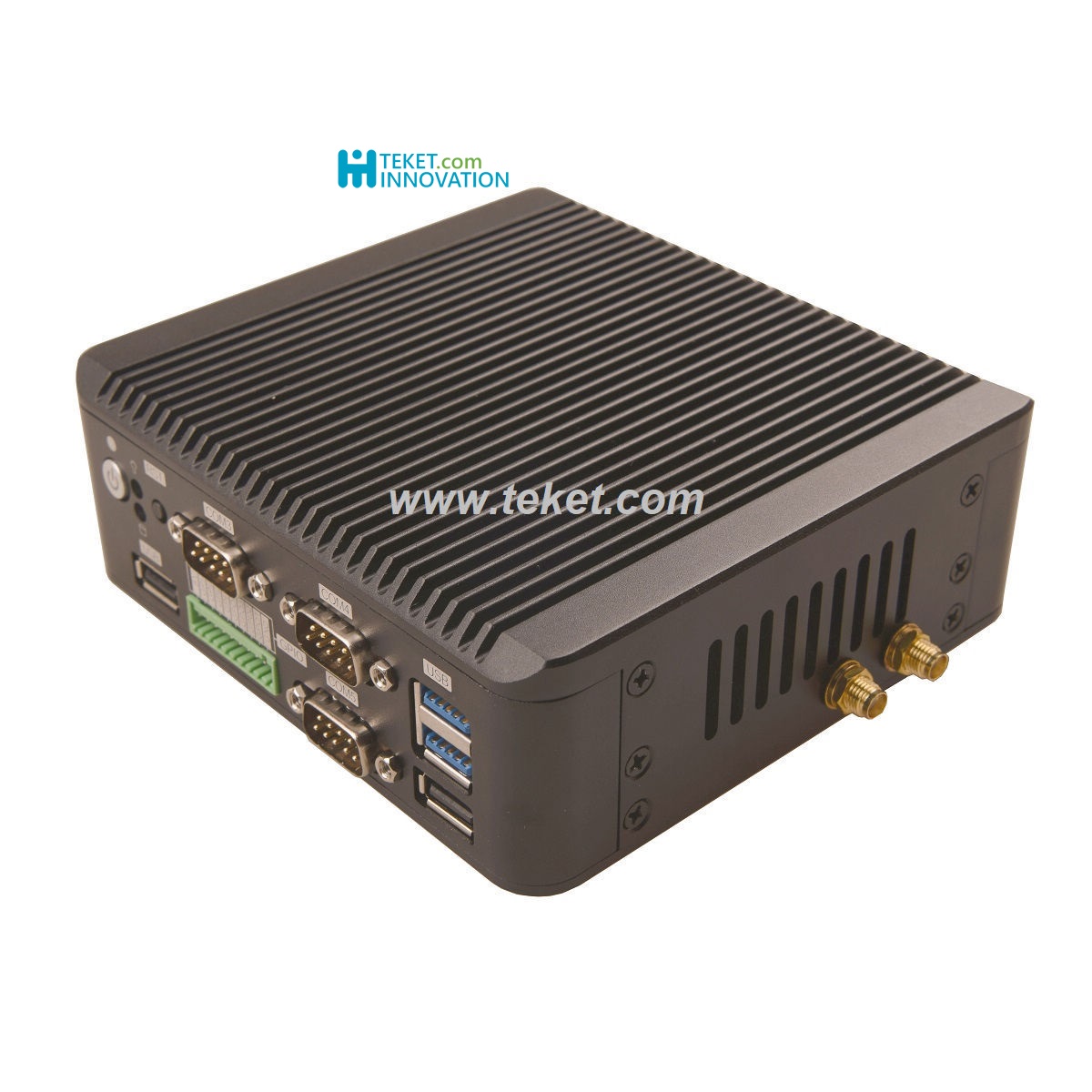

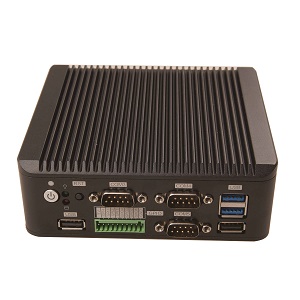

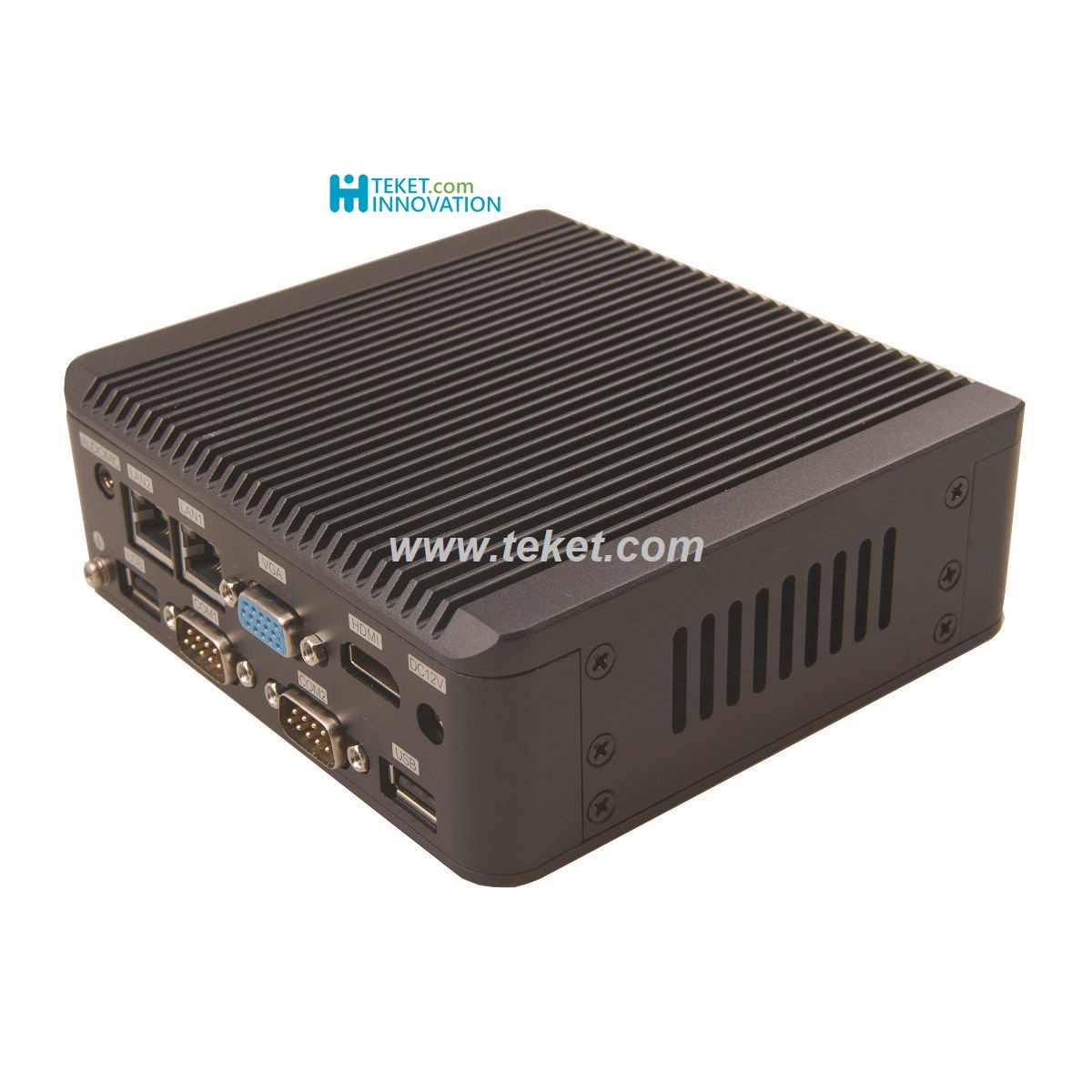

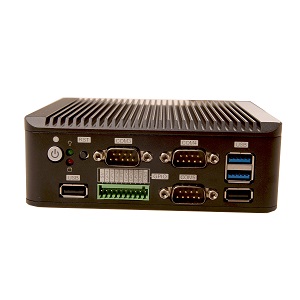

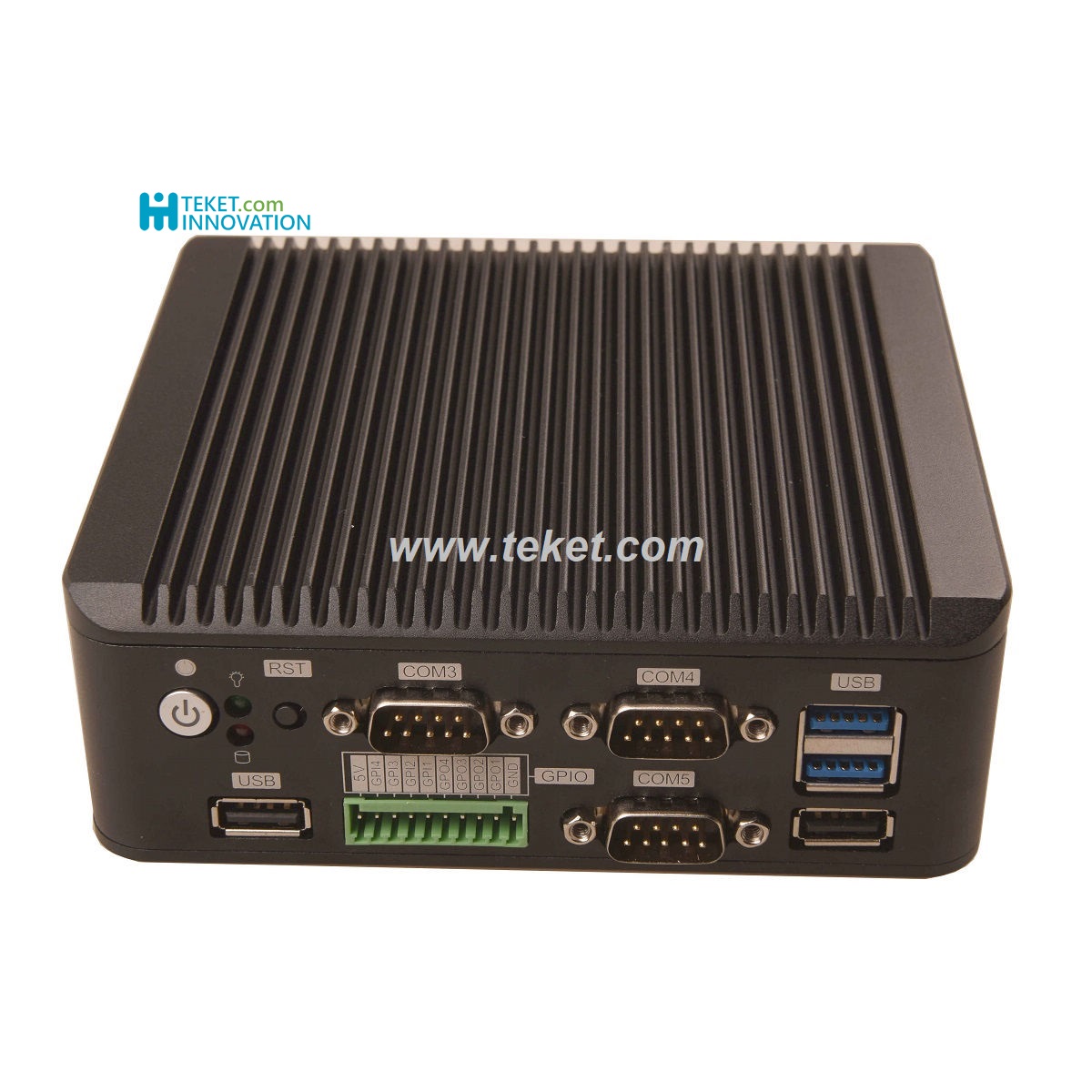

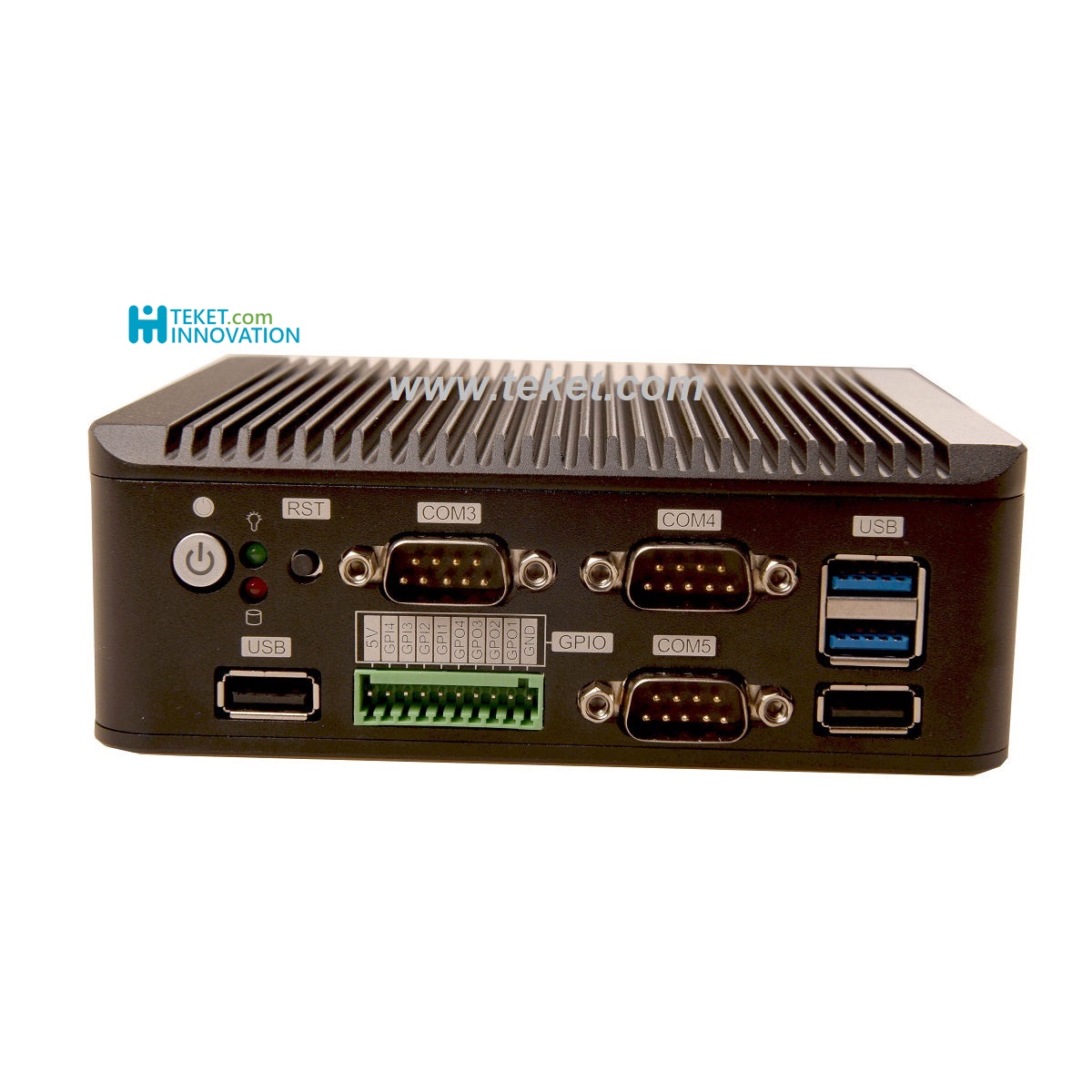

Full systm mini pc model: SNTX41GN or S-NTX41GN




Ording info
NTX41GN V1.0 (N4100),N4100,Intel UHD600,1*SODDR4,1*VGA,1*HDI,eMMC,GPIO,noLVDS,2*LAN,6*USB,6*COM,12-19VDC
NTX41GN V1.0 (J4005),J4005,Intel UHD600,1*SODDR4,1*VGA,1*HDI,eMMC,GPIO,noLVDS,2*LAN,6*USB,6*COM,12-19VDC
NTX41GN V1.0 (J4105),J4105,Intel UHD600,1*SODDR4,1*VGA,1*HDI,eMMC,GPIO,noLVDS,2*LAN,6*USB,6*COM,12-19VDC
NTX41GN V1.0 (J4125),J4125,Intel UHD600,1*SODDR4,1*VGA,1*HDI,eMMC,GPIO,noLVDS,2*LAN,6*USB,6*COM,12-19VDC


Packing Details
Retail Pacakge: 1 Carton contain 16pcs.
Retail Box Size:20*20*7cm Carton Size:56*42*17cm
