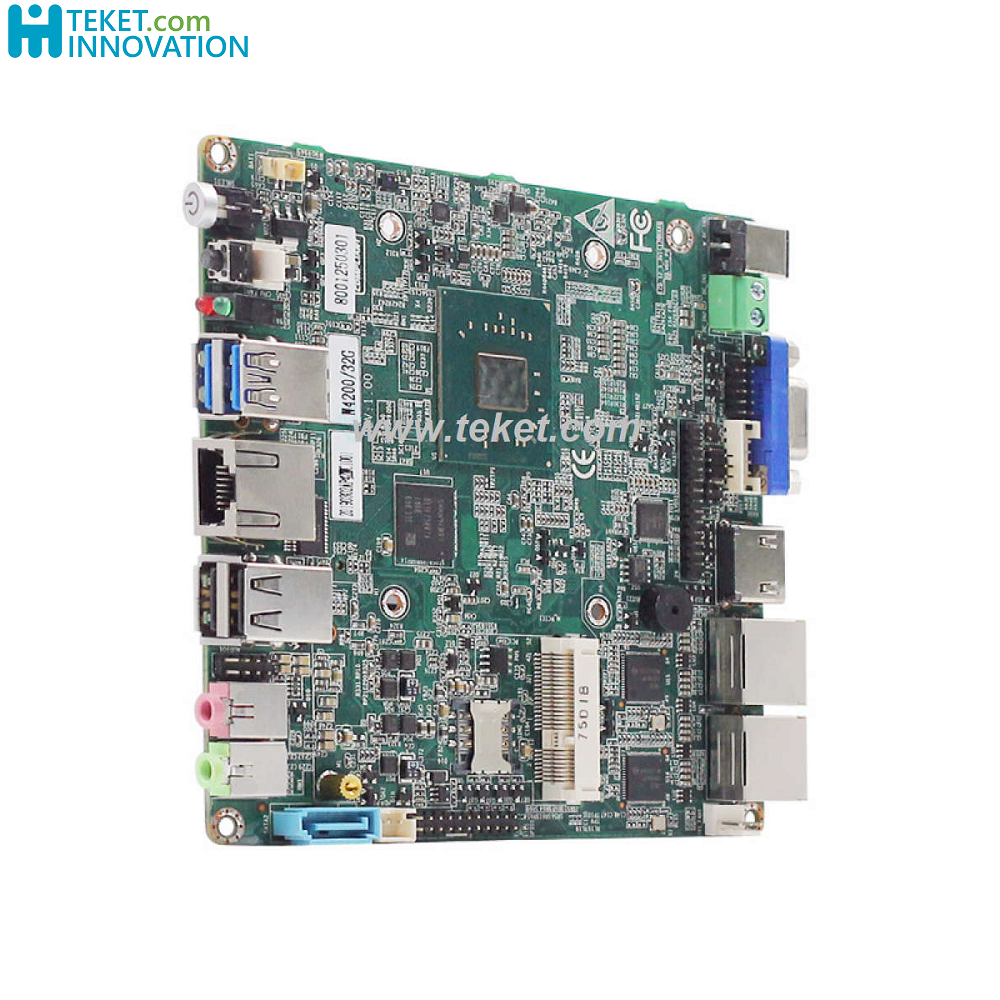

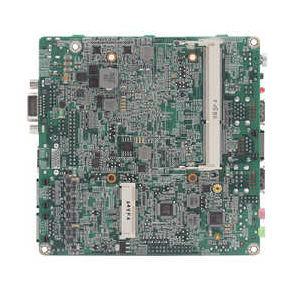

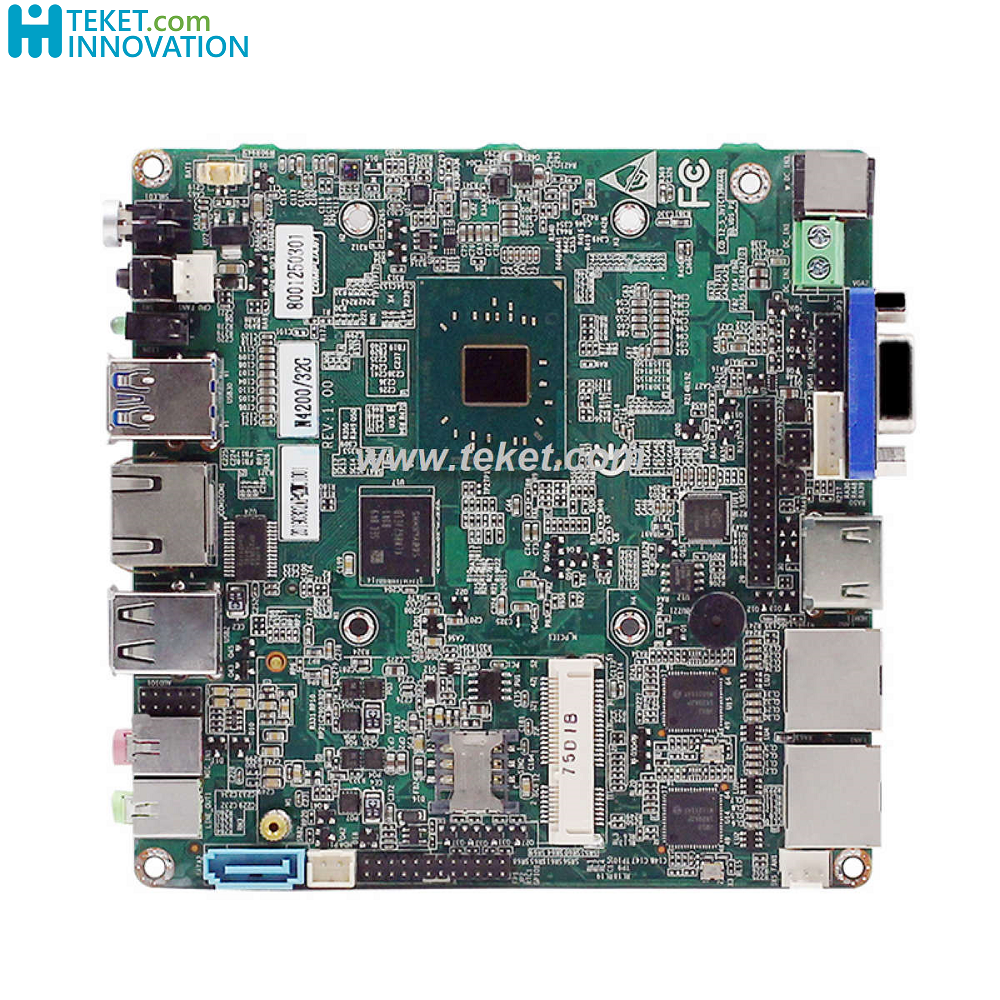

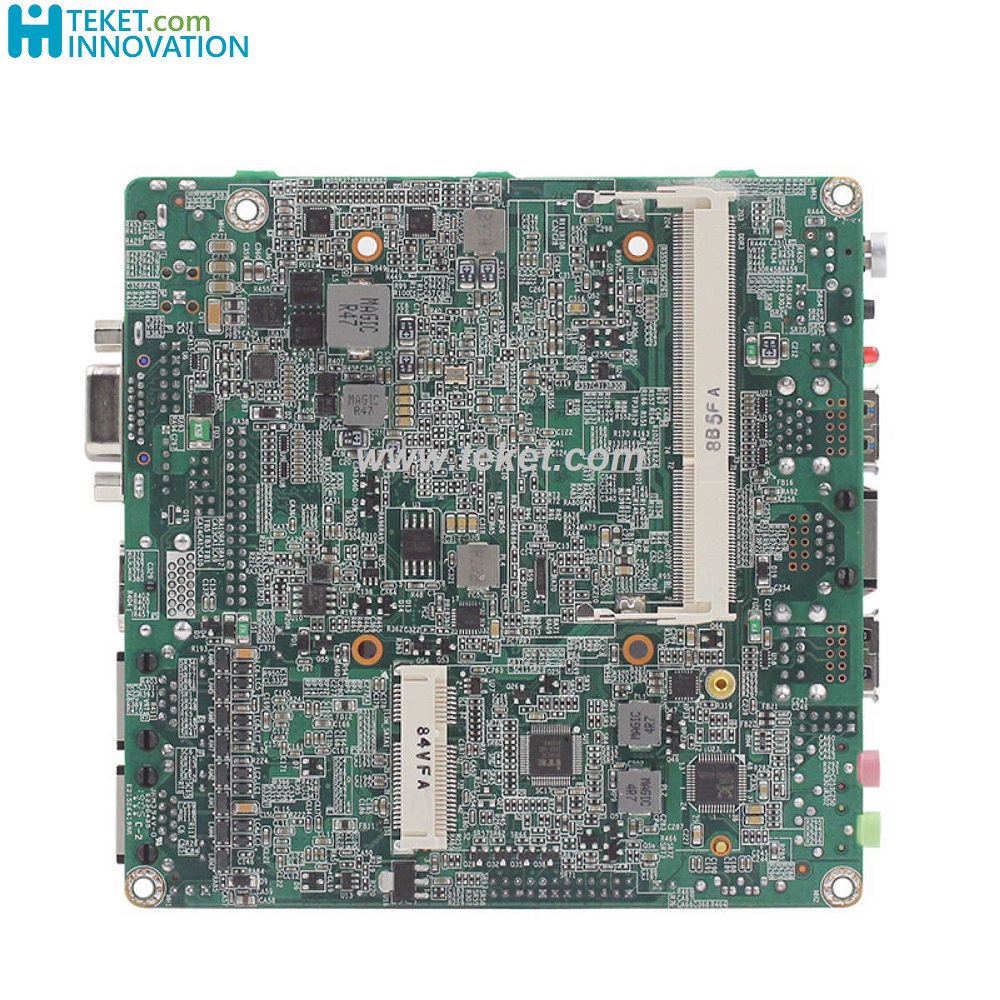

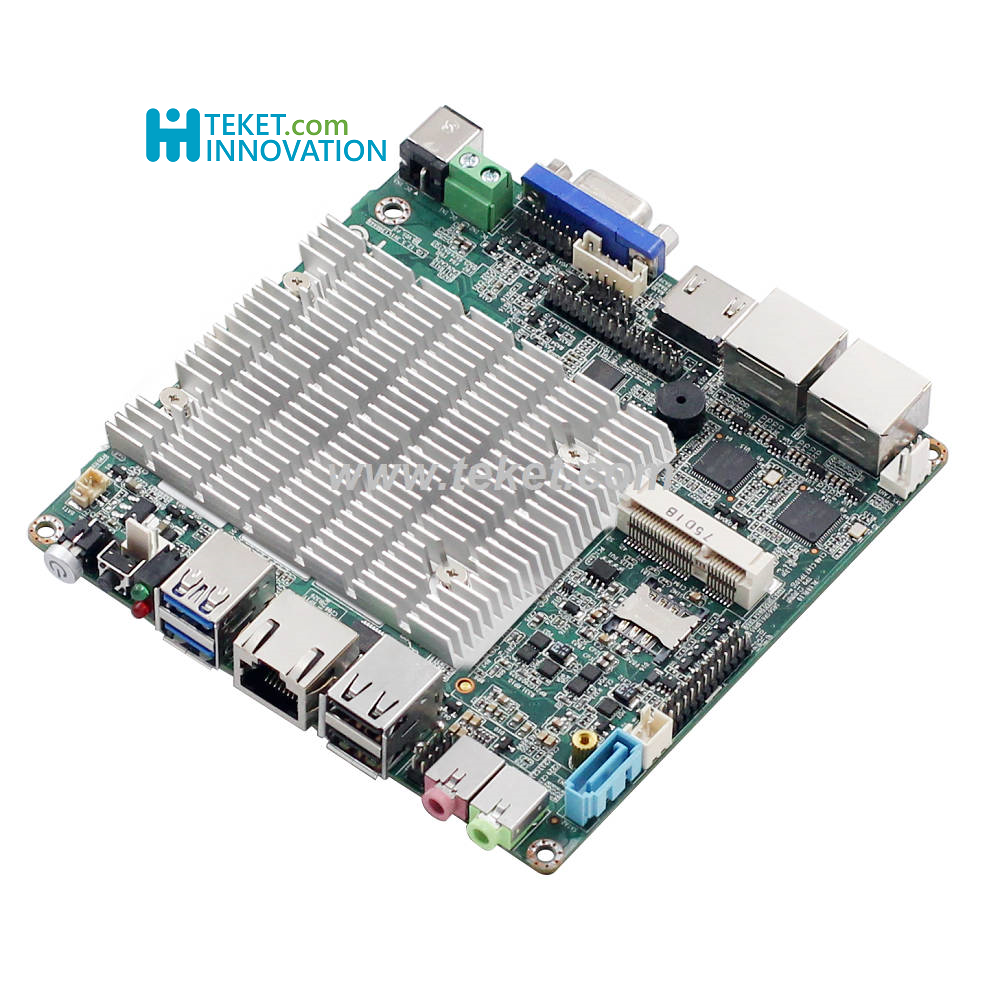

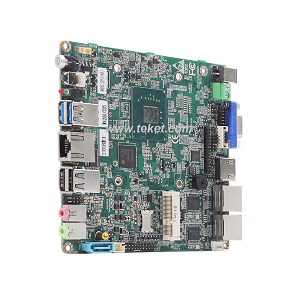

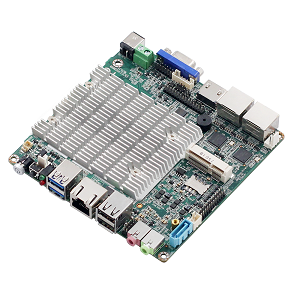

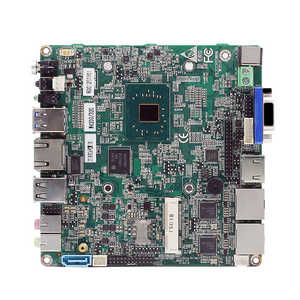

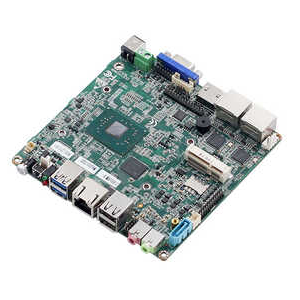

Intel Core Apollo lake N3450 E3940 N4200 Nano-ITX Motherboard NTX42AP with eMMC Dual LAN 12VDC

Intel® Celeron® Processor N3450 2M Cache, up to 2.20 GHz
Code Name Products formerly Apollo Lake
Launch Date Q3'16
Lithography 14 nm
Total Cores 4
Total Threads 4
Burst Frequency 2.20 GHz
Processor Base Frequency 1.10 GHz
Cache 2 MB L2 Cache
Scenario Design Power (SDP) 4 W
TDP 6 W


Intel® Pentium® Processor N4200 2M Cache, up to 2.50 GHz
Code Name Products formerly Apollo Lake
Launch Date Q3'16
Total Cores 4
Total Threads 4
Burst Frequency 2.50 GHz
Processor Base Frequency 1.10 GHz
Cache 2 MB L2 Cache
Scenario Design Power (SDP) 4 W
TDP 6 W

Introduction
NTX42AP is our company's standard low-power Nano-ITX (12*12) industrial motherboard, using Apollo lake series processors, the main features are as follows.

1.1 Main features
1.1.1 The onboard CPU supports Apollo lake series processors.
1.1.2 1 DDR3 SODIMM 204 Socket, maximum support 8GB DDR3L memory.
1.1.3 Onboard 32/64/128G EMMC (optional).
1.1.4 Onboard 2 Intel I211 Gigabit LAN
1.1.5 HDA ALC662 onboard, providing MIC/LINE-OUT and pin header interface.
1.1.6 1 Mini-PCIE card socket.
1.1.7 1 Mini-SATA card socket (optional).
1.1.8 1 SATA 2.0 hard disk interface.
1.1.9 2 USB 2.0 ports,
1.1.10 2 USB3.0 interfaces
1.1.11 Provide 1 RS232, RJ45 interface
1.1.12 Support HDI output.
1.1.13 Support RGB CRT output.
1.1.14 Support dual-channel 24-bit LVDS output and EDP output (only one of the two can be selected).
1.1.15 Two 3-Pin FAN interfaces.
1.1.16 Provide 8 GPIOs for users to choose.
1.1.17 1 power-on button with power indicator, 1 reset button, 1 power indicator, 1 hard disk indicator
1.1.18 Support 255 watchdog.

1.2 Power
Single input DC power supply 12-19V power supply.
Support AT/ATX power boot mode selection.


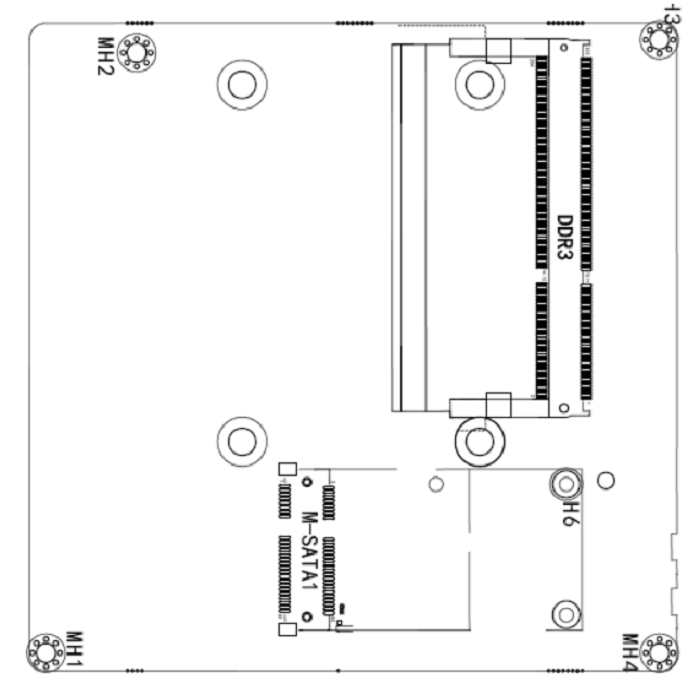

Specification

Processor system CPU Apollo lake series processor
CPU package BGA
Chipset Apollo lake single chip
BIOS EFI BIOS
Memory Technical architecture Single channel DDR3L 1066/1333/1600/1866MHz
Socket DDR3 SODIMM 204 Socket

Video
Graphics Controller Intel HD Graphics
Dual LVDS and EDP LVDS supports dual-channel 24-bit output, the highest resolution 1920 x 1200 EDP supports a highest resolution of 3840*2160 (LVDS and EDP display can only choose one)
VGA VGA supports a maximum resolution of 2048x1536
HDI maximum resolution support 3840*2160
Dual display VGA+HDI VGA+LVDS LVDS+HDI synchronous or asynchronous
Three display support LVDS+VGA+HDI three-screen display support synchronous or asynchronous

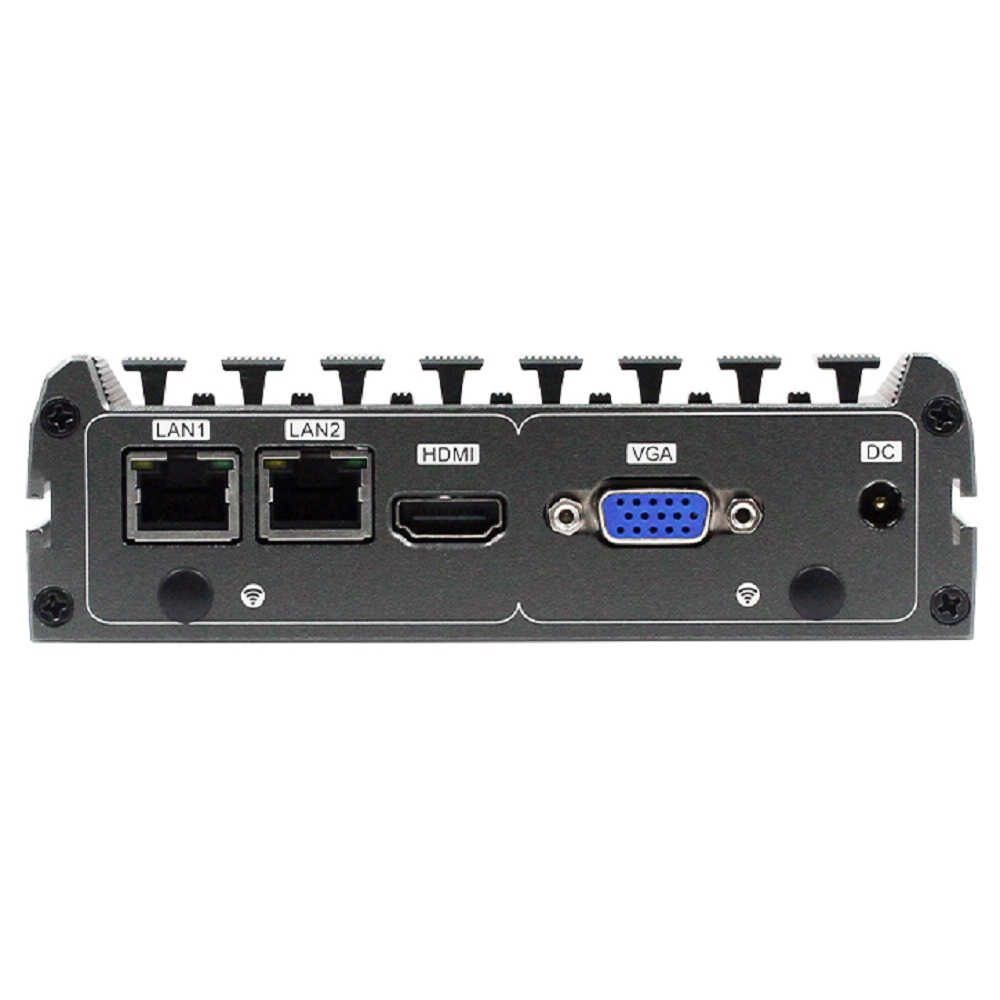

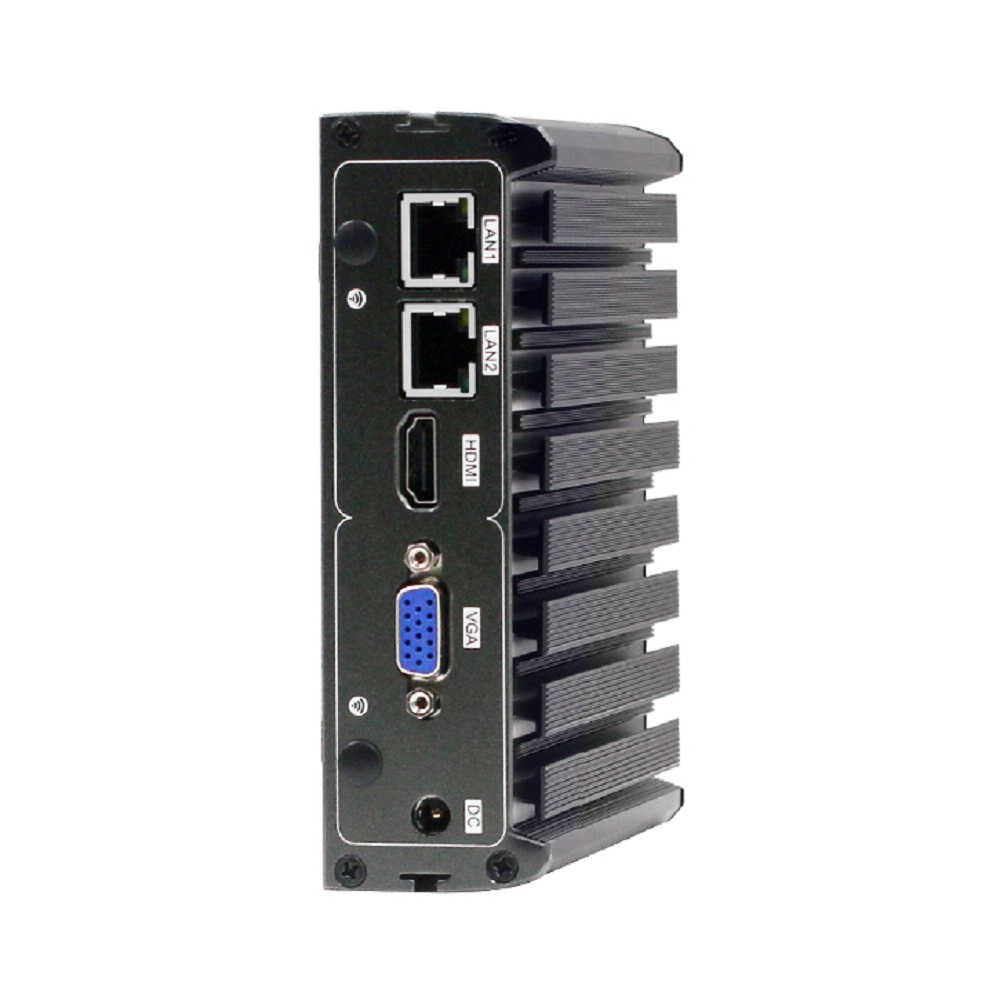

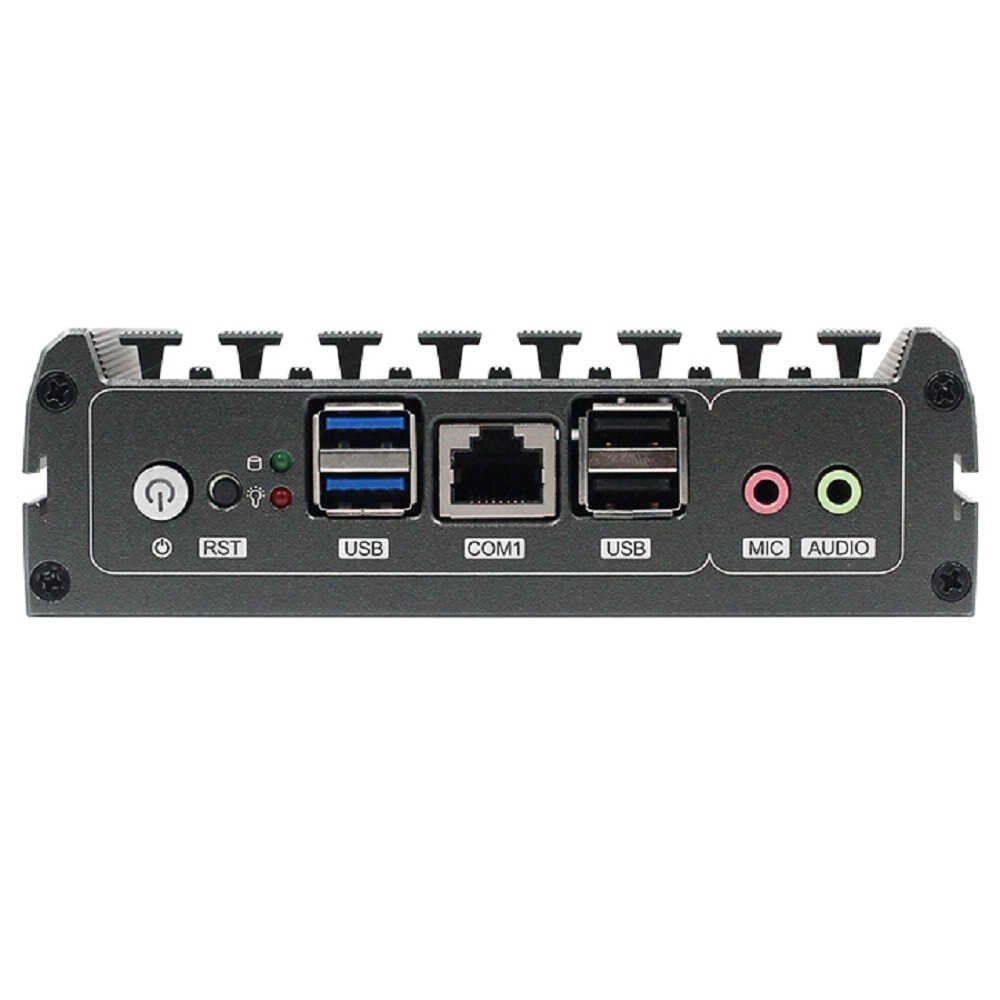

I/O backplane port

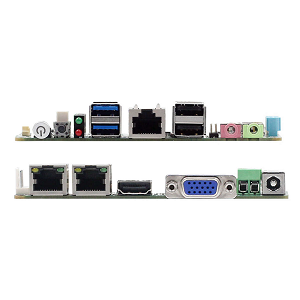

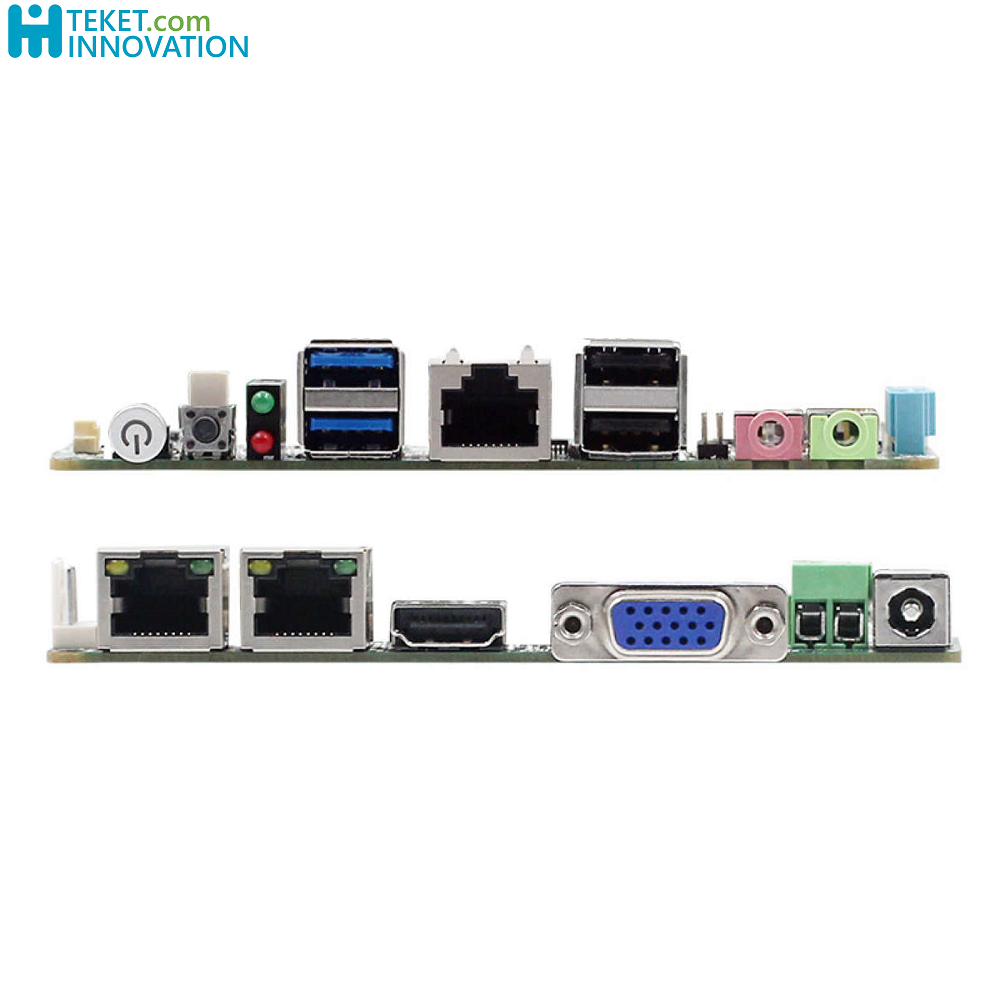

1*DC 1*VGA 1*HDI 2*LAN 1*LINE OUT 1*MIC IN 2*USB2.0 2*USB3.0 1*COM port (RJ45 interface) 1*power indicator and Hard disk indicator 1*reset button 1*quick switch button with indicator light

Network controller 2 Intel I211 Gigabit network cards, RJ45 interface
Audio controller Realtek HD ALC662 audio decoding (left and right channels + microphone)
Super I/O controller ITE8613

Hardware monitoring Watchdog timer 0-255 level, providing watchdog routines
Cooler aluminum radiator with fan (no fan available)

Input/output interface USB 2*USB2.0, 2*USB3.0 maximum support +5V/1A
Serial port 1 RS-232 (RJ45 interface)
GPIO 8-bit, provide routines, freely define input/output, 3.3V@24mA level

Expansion bus Mini-PCle 1 Mini-PCIe slot, only supports PCIE protocol modules

Storage
SATA 1 standard SATAIII interface, maximum transfer rate 6Gb/s
M-SATA 1 M-SATA Scoket, support SANDISK protocol, maximum transfer rate 6gb/s
EMMC 32/64/128G (optional)

Power supply Type of single input DC power supply, DC12V, +/-5%

Working environment
Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, non-condensing
Storage humidity 0% ~ 90% relative humidity, no condensation

The system supports Windows10 Linux (E3940 CPU can support Android)

Appearance size: 120 x 120 mm
Certification CE, ROHS, FCC

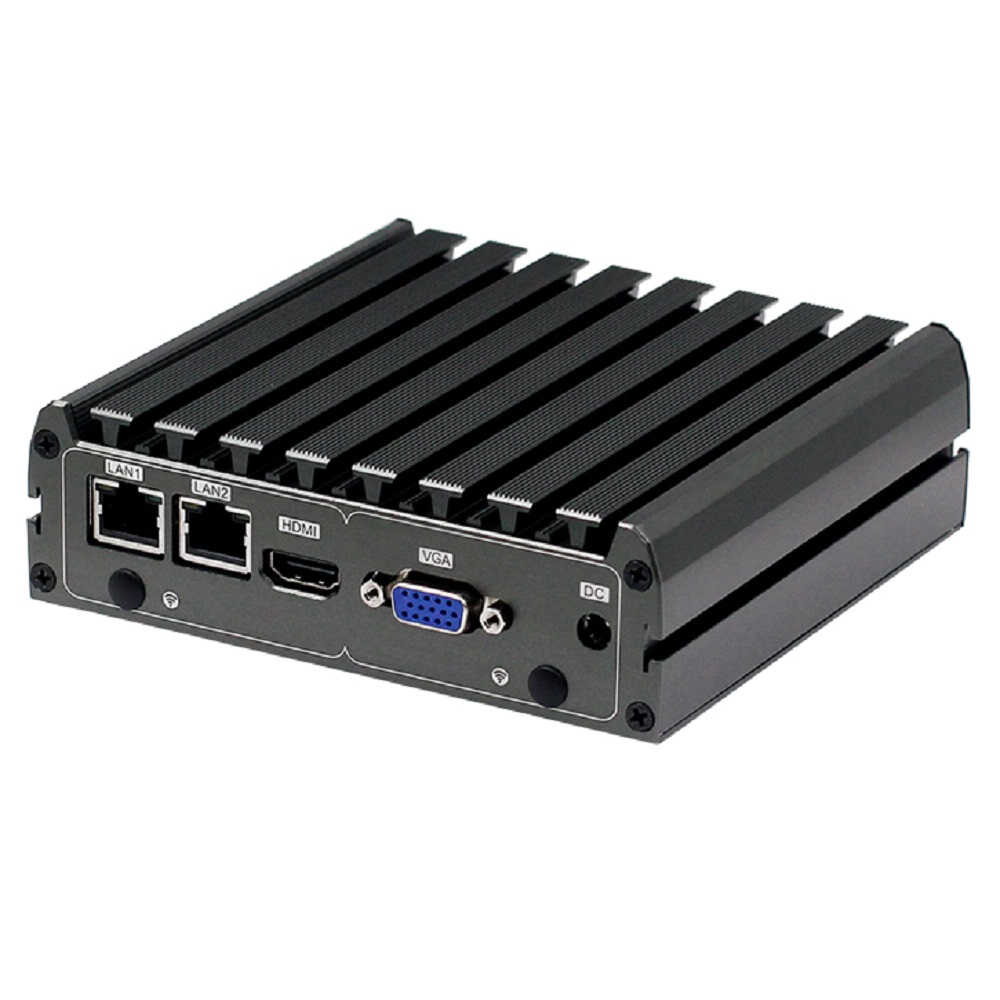

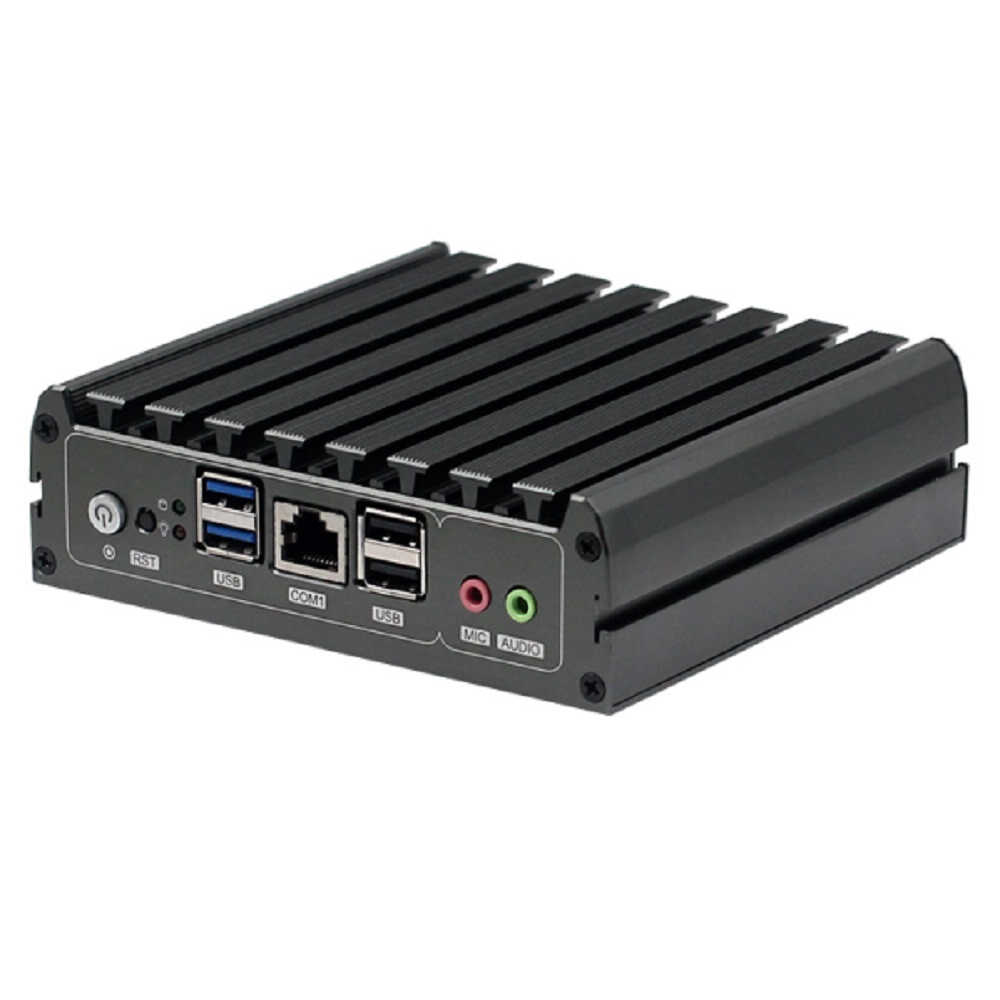

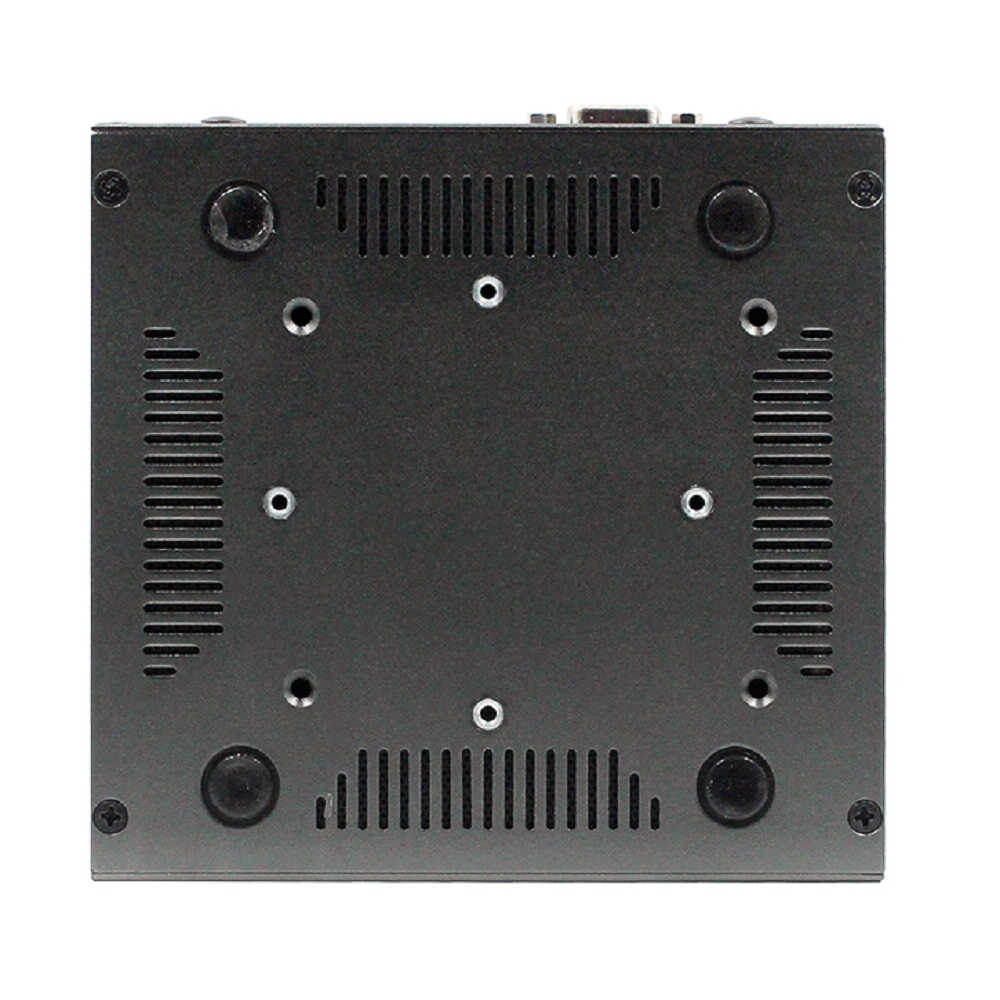

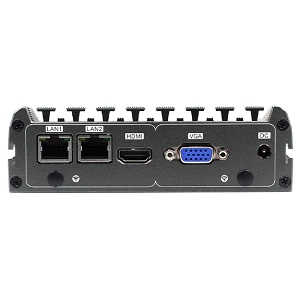

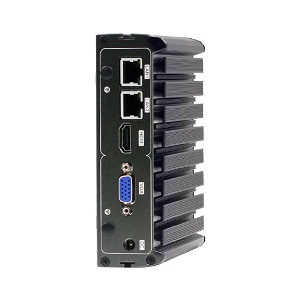

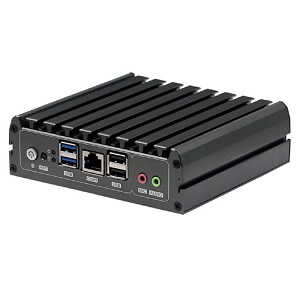

Full system model: SNTX42AP




Ording information
NTX42AP Ver:1.0(N3450),N3450,1.1-2.5GHz,Intel UHD500,1*SODDR3L,1*VGA,1*HDI,eMMC,GPIO,LVDS/eDP,2*LAN,4*USB,1*COM(RJ45),12VDC
NTX42AP Ver:1.0(E3940),E3940,1.1-2.5GHz,Intel UHD600,1*SODDR3L,1*VGA,1*HDI,eMMC,GPIO,LVDS/eDP,2*LAN,4*USB,1*COM(RJ45),12VDC
NTX42AP Ver:1.0(N4200),N4200,1.1-2.5GHz,Intel HD505,1*SODDR3L,1*VGA,1*HDI,eMMC,GPIO,LVDS/eDP,2*LAN,4*USB,1*COM(RJ45),12VDC
(eMMC as option, 32G/64G/128G)

Packing Details
Retail Pacakge: 1 Carton contain 16pcs.
Retail Box Size:20*20*7cm Carton Size:56*42*17cm
