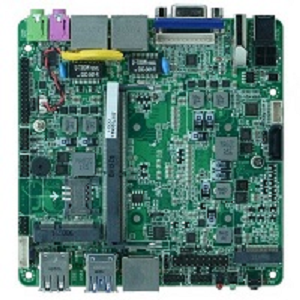

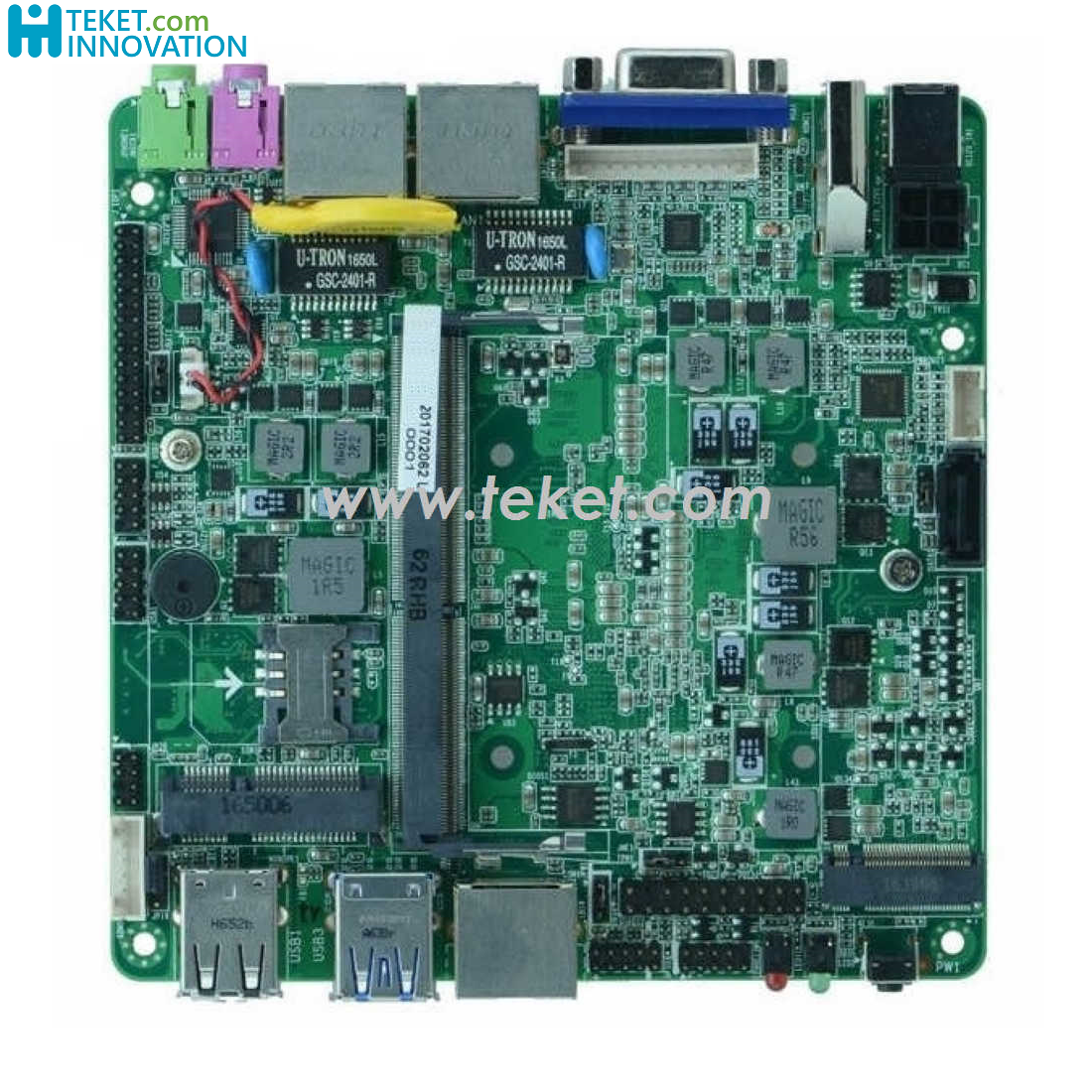

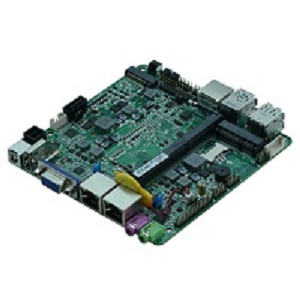

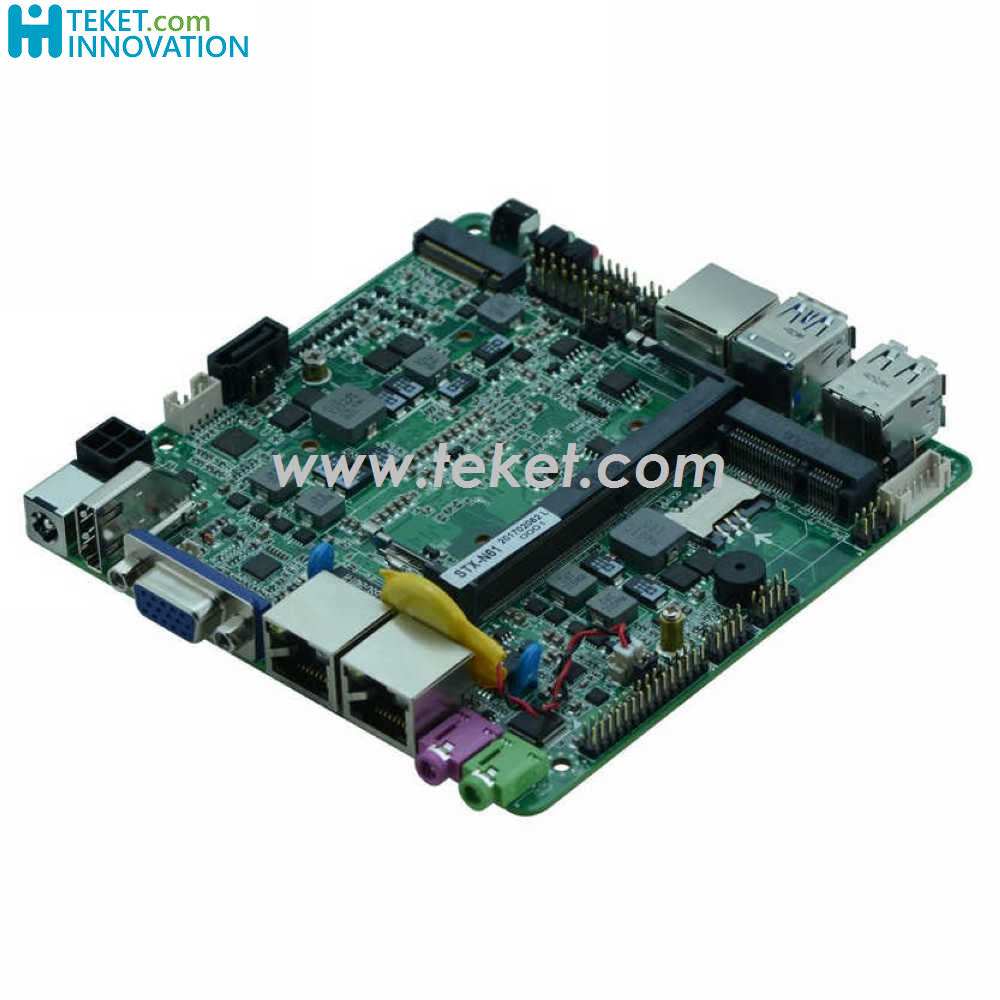

Intel Celeron 3855U i3-6100U Nano-ITX Motherboard NTX61 with 12VDC


NTX61 VER:1.0
Intel? Celeron? Processor 3855U 1.6GHz/I3 6100U 2.3GHz/I5 6300U 2.4GHz CPU
Intel? SKYLAKE-U Pentium/Celeron/I3/I5/I7 CPU available
1* DDR4 SODIMM Ram,Support 2133MHz,max upto 16GB
Intel? HD Graphics 510/520 Support DirectX 12 OpenGL 4.4,Support 4K/60Hz
1*VGA,1*HDMI1.4,1*EDP
2* Intel WGI219LM Gigabit LAN,Support WOL/PXE



Processor
Integrated Intel? Celeron? Processor 3855U 1.6GHz/I3 6100U 2.3GHz/I5 6300U 2.4GHz dual core processor
Compatible Intel? SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor
Chipset
SOC
Memory
1* DDR4 SODIMM , support 2133MHz memory, up to16GB
Display
Integrated Intel? HD Graphics 510/520, support DirectX 12 OpenGL 4.4,support 4K/60Hz
Provide 1*VGA, the highest resolution as :1920X1200@60Hz
1*HDMI1.4, the highest resolution as :4096X2304@24Hz
1* Embedded DisplayPort,the highest resolution as :4096X2304@60Hz
LAN
1* Intel WGI219LM Gigabit Ethernet,support wake on LAN/PXE
Storage
1* M.2 standard slot,support M.2 2242 standard SSD
1*7pin SATA3.0 HDD port,the transfer rate up to 6Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out
Expansion slots
1* Mini-PCIE slot, supportWIFI/3G module

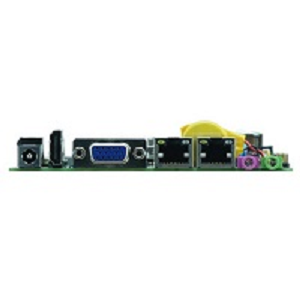

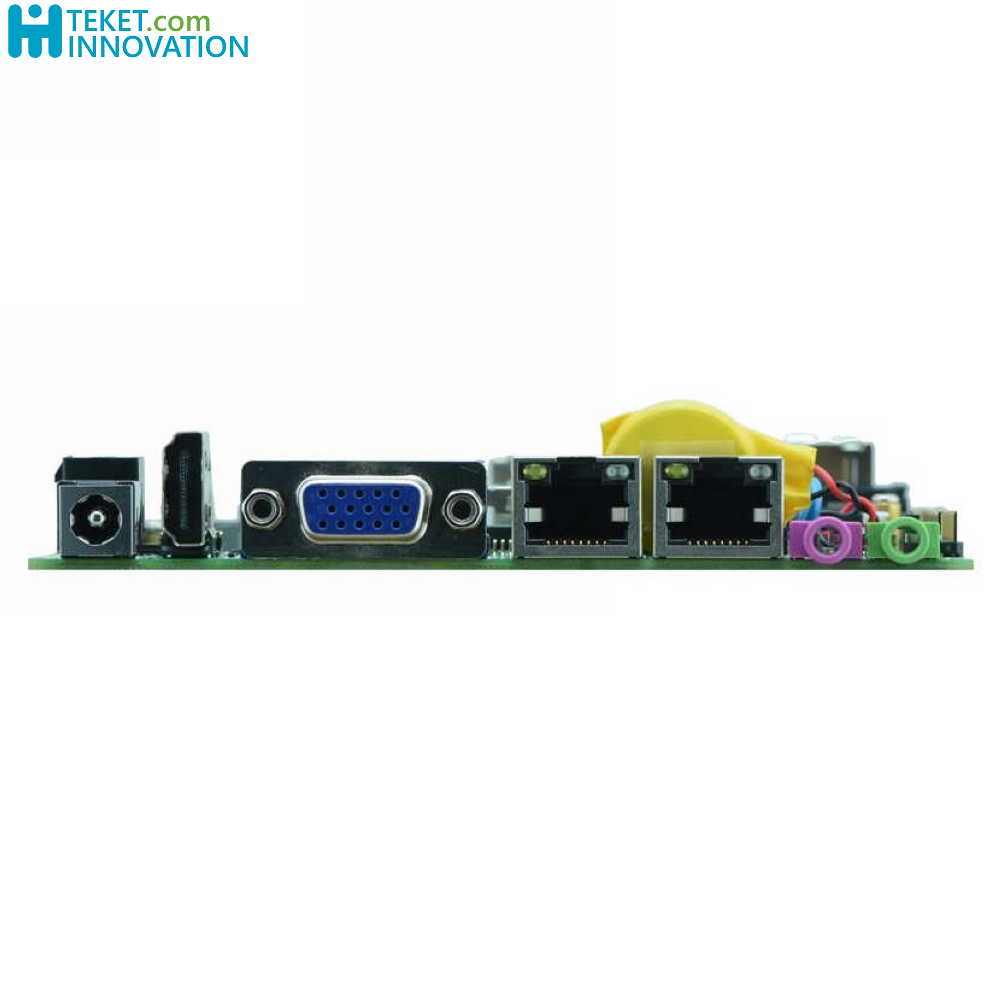

Back panel I/O
1* DC12V power input port
1* HDMI1.4
1* VGA
1* RJ45 Gigabit Ethernet connector
2*USB2.0
1* Line-out(Green),1*MIC(Violet)
Front panel I/O
2* USB2.0
2* USB3.0
1* CISCO COM serial port
1* Power LED,1* HDD LED
1* Power switch
Internal I/O
1* JVGA1 (1*12pin) the same signal witheDB15
1* Embedded DisplayPort ,2*15pin
2* USB2.0 ports 2*5pin,
1* PS/2 KB/MS connector 1*6pin
1* HDD power supply connector 1*4pin
1* TPM 2*10pin
1* GPIO
1* Front panel function buttons and indicator connector 2*5pin
1* 4pin ATX power port,support 12V power input/output
1* SIM card socket
FAN port
Support fanless cooling,reserve 1*3pin CPU fan port
GPIO
Support 4 way input/output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
DC 12V power input
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
120mm x 120mm

Ording info
NTX61 Ver:1.0, 3855U,1.6G,1*SODDR3L,1*VGA,1*HDMI,1*EDP,2*LAN(I219LM),8*USB,1*COM,12VDC
NTX61-I3 Ver:1.0,i3-6100U,2.3G,1*SODDR3L,1*VGA,1*HDMI,0*EDP,2*LAN(I219LM),8*USB,1*COM,12VDC

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
