>>Your Current Position: Intel Motherboard

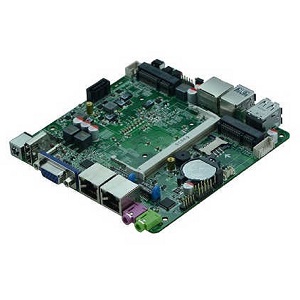

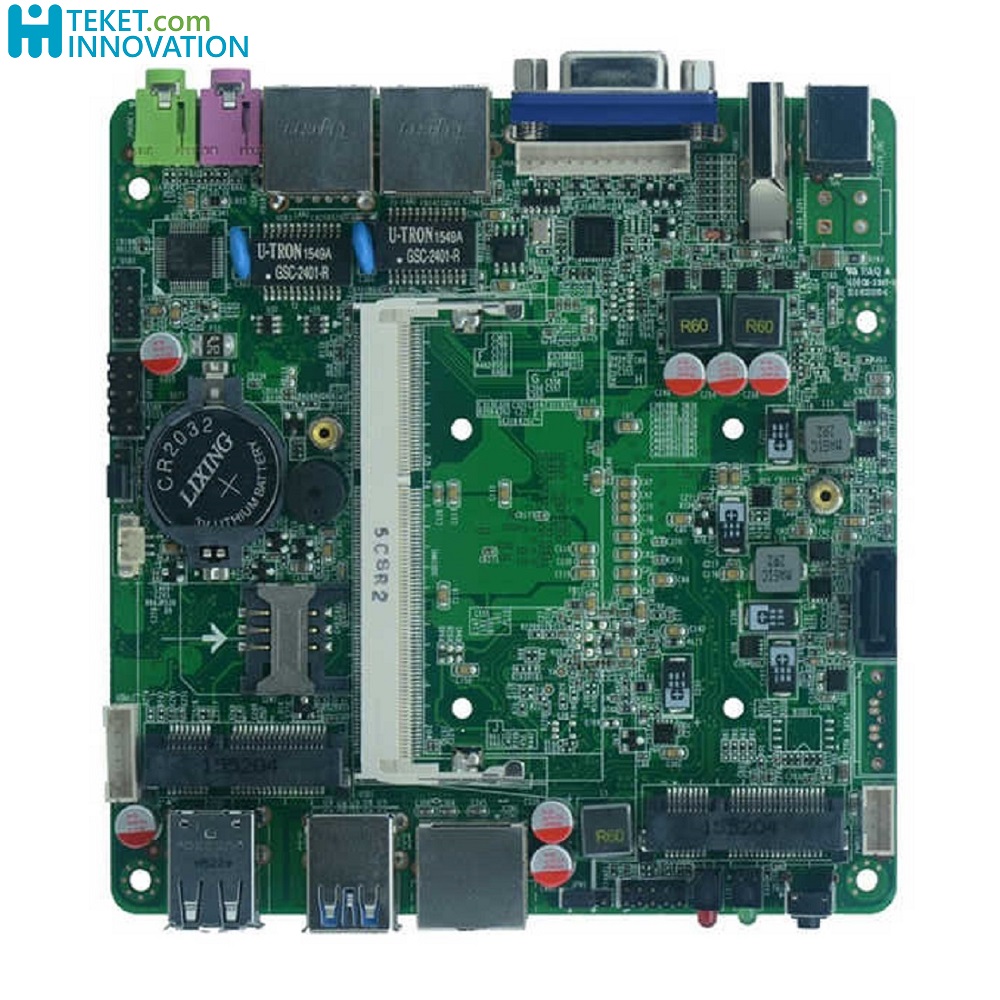

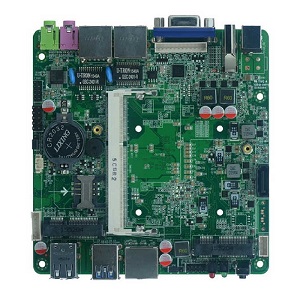

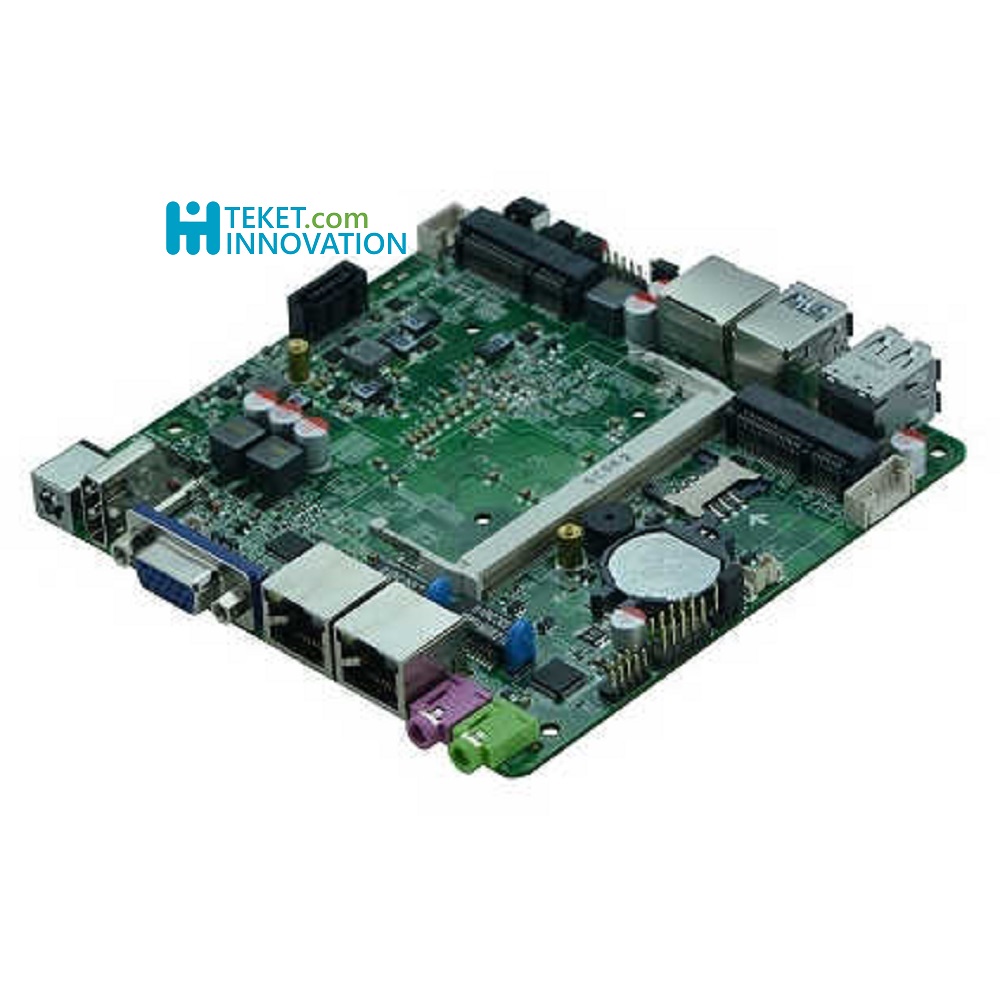

Intel i3-4005U,i3-4020Y, i5-4200U i7-4500U Nano-ITX Motherboard NTX92 with 12VDC


NTX92 VER:1.1
Intel?Haswell-U I3-4005U/4010U double core 4 thread CPU ,TDP 15W
Based on Intel?Haswell-U SOC chipset
2* RTL8111F Gigabit Ethernet(can do one LAN),Support Wake-on-LAN/PXE



CPU Intel?Haswell-U I3-4005U/4010U double core 4 thread CPU ,TDP 15W
Chipset Based on Intel?Haswell-U SOC chipset
Memory 1*SO DDRIII,only support 1600/1333MHz DDR3L/1.35Vmemory,up to 8GB
Graphics Integrated Intel?HD Graphics 4400
Supprot 1*VGA,1*HDMI
Support VGA;HDMI synchronous / asynchronous display
LAN 2* RTL8111F Gigabit Ethernet(can do one LAN),Support Wake-on-LAN/PXE
Storage 1* MSATA SSD
1* SATA Port
Audio Integrated ALC662 6-Channel audio controller ,support MIC/Line-out
Expansion Slots 1* Mini-PCIE support WIFI/3G module
1* MSATA support SSD/WIFI,(Default is SSD),SSD transfer rate up to 6Gbps
Real I/O
4*USB (USB2 and LAN2 is two choose one)
1* HDMI
1* VGA
2* RJ45 LAN
1* Line out(Green ),1* MIC(Violet)
1* CISCO standard COM
1* Power switch
1* 12V DC JACK input
Internal I/O
1* JVGA1(1*12pin) Same signal with DB15
1* RS232 COM Same signal with DB9
2* USB2.0 (2*5pin,with USB2 two choose one)
1* PS/2 KB/MS connector(1*6Pin)
1* SIM card socket
1* PWROUT (Hard disk Power supply connector
1* FP1(2*5pin front panel function buttons and indicator connector)
1* 4pin ATX 12V input/output interface
FAN Interface
Support non FAN cooling,,reserve 1* 3pin CPUFAN
GPIO
1* GPIO (Support 4-way GPIO function)
BIOS
AMI 64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power Input
DC 12V single power supply
Operating Temp -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 5%-95%(relative humidity; non-condensing)
Dimension 120mm x 120mm

Ording info
NTX92_I3 Ver:1.1(4005U),i3-4005U,1.7G,1*SODDR3L,1*VGA,1*HDMI,noLVDS,2*LAN,6*USB,1*COM,12VDC
NTX92_I3 Ver:1.1(4020Y),i3-4020Y,1.5G,1*SODDR3L,1*VGA,1*HDMI,noLVDS,2*LAN,6*USB,1*COM,12VDC
NTX92_I5 Ver:1.1(4200U),i5-4200U,1.6G,1*SODDR3L,1*VGA,1*HDMI,noLVDS,2*LAN,6*USB,1*COM,12VDC
NTX92_I7 Ver:1.1(4500U),i5-4500U,1.8G,1*SODDR3L,1*VGA,1*HDMI,noLVDS,2*LAN,6*USB,1*COM,12VDC

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
