Intel Haswell Broadwell Pentium Celeron i3-3160,i5-4460 and i7-4790 OPS Motherboard OPS-H81 190mmx170mm

OPS-H81 VER1.0
Support Intel?Haswell/ Broadwell Core? i7/i5/i3/Pentium/Celeron LGA1150 Processor
Adopt Intel? H81 Express chipset, Compatibleintel 8/9 series chipset
2*DDR3.0 SODIMM, support double channel 1600/1333 MHz memory,up to 16GB

CPU
Support Intel?Haswell/Broadwell Core? i7/i5/i3/Pentium/Celeron LGA1150 Processor
Chipset
Adopt Intel? H81 Express chipset, Compatible intel 8/9 series chipset
Memory
2*DDR3.0 SODIMM,,support double channel 1600/1333 MHz memory,up to 16GB
Graphics
Integrated Intel?HD Graphics
Support DirectX* 11.2/12,OpenGL 4.3,Support synchronous/asynchronous display
Provide 1*VGA, 1*HDMI
LAN
1* RTL8111F Gigabit Ethernet support wake on LAN/PXE
Storage
Provide 1* 2.5 inchSATA3.0 notebook hard disk interface,can be installed directly on the hard disk ,the ,the transfer rate up to 6Gbps
1* MSATA slot,support SSD/WIFI(Default is SSD),the transfer rate up to 6Gbps
1* SATA2.0
Audio
Onboard ALC662 6-channel high fidelity audio controller,support MIC/Line-out
Expansion Slots
1* Mini-PCIE Slot,support WIFI/3G Module,
1* support OPS-C+ standard slotJAE_TX25 (80pin)
1* supportOPS-C+ standard slotHRS FX18-40S(40pin Reserved optional)

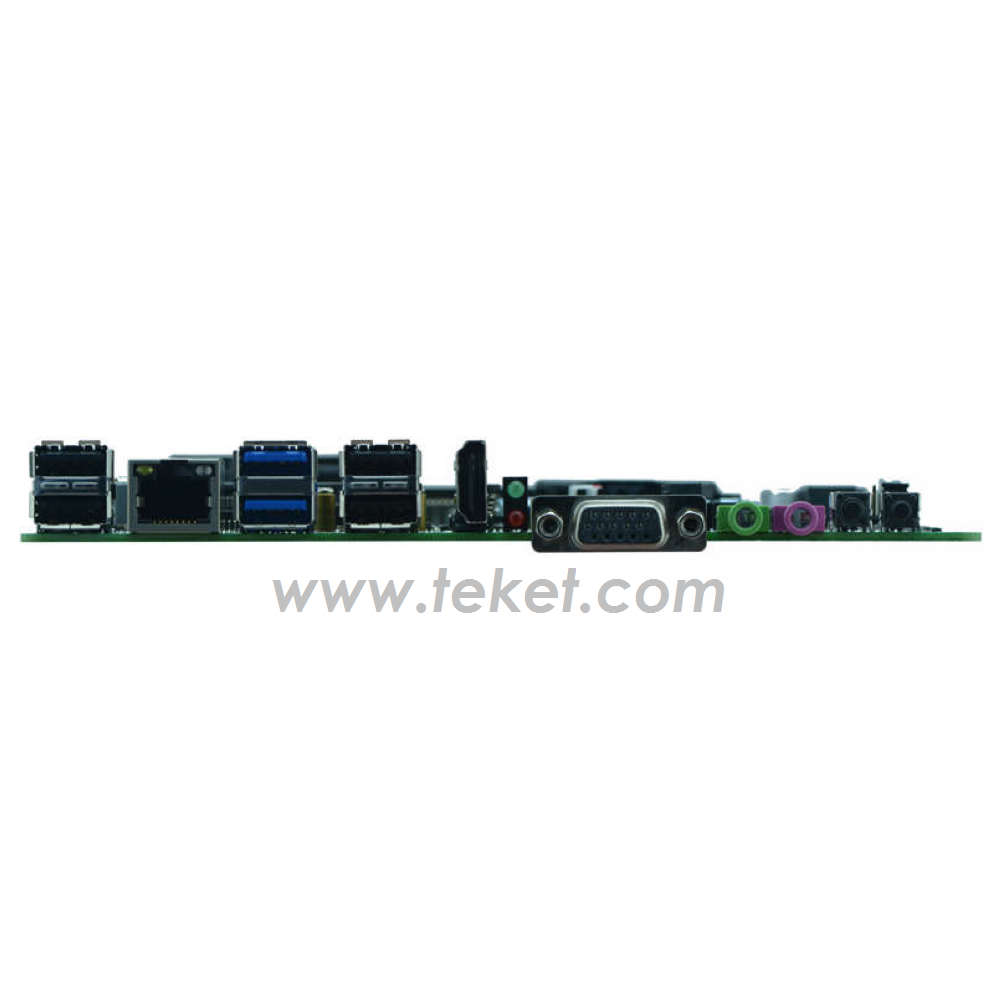

Front panel I/O
1* RJ-45 Gigabit Ethernet connector
2* USB 3.0
4* USB 2.0
1* VGA
1* HDMI
1* Mic(Red) 1* Line Out(Green)
1* Power switch,1* Reset switch
1* HDD/Power LED
Back panelI/O
1* support OPS-C+ standard slotJAE_TX25 (80pin)
1* supportOPS-C+ standard slotHRS FX18-40S (40pin Reserved optional)
Internal I/O
1* JVGA 1*12pin( the same signal with DB15)
1* RS232 serial port 2*5pin
1* front panel function buttons and indicator connector 2*5Pin
1* PS/2 KB/MS connect 1* 6Pin
1* PWROUT (HDD powersupply connector)
1* SIM card socket
1* 4pin ATX 12~19V Power input/output Connector(Optional )
1* GPIO 2* 5Pin
FAN Interface
1*4pin CPUFAN ,1* 3pin system FAN
GPIO
Support 4 way input and output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
provide 12V~19V power supply through OPS-C standard slot JAE_TX25 or adopt DC19V power input
Operating Temp.
-10°C~60°C
Storage Temp
-20°C~70°C
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
190mm x 170mm

Order Informatiom
OPS-H81 LGA1150,2*SODDR3,1*VGA,1*HDMI,no LVDS,1*LAN(RTL8111F),9*USB,1*COM,19VDC

Haswell/H81
OPS-H81
Based on Intel Haswall platform OPS-C+ Model
Adopt Intel? H81Express speed chipset,
1* RTL 8111F Gigabit Ethernet, support wake on LAN/PXE
Integrated Intel? HD Graphics,support VGA、HDMI display output
1* support OPS-C+ standard slotJAE_TX25 (80pin)
Through OPS-C+ standard slot JAE_TX25 provide 12~19V power supply

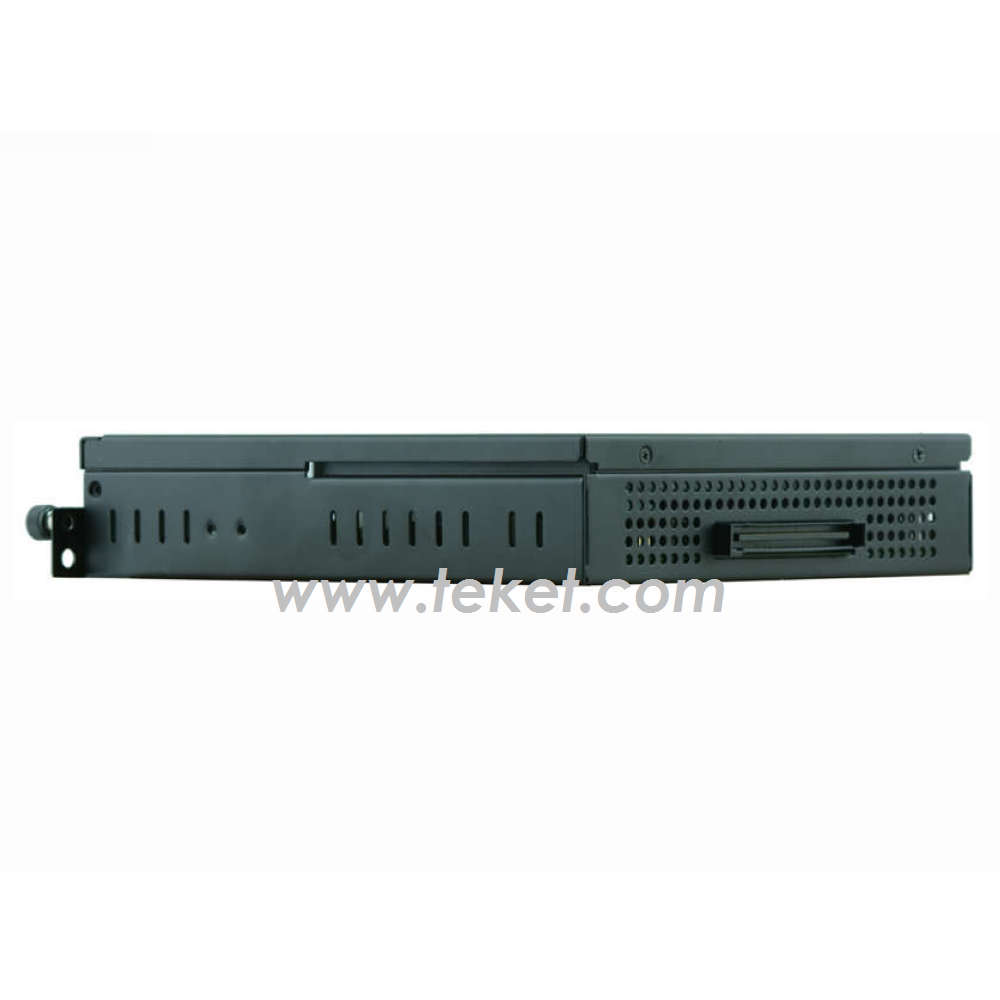

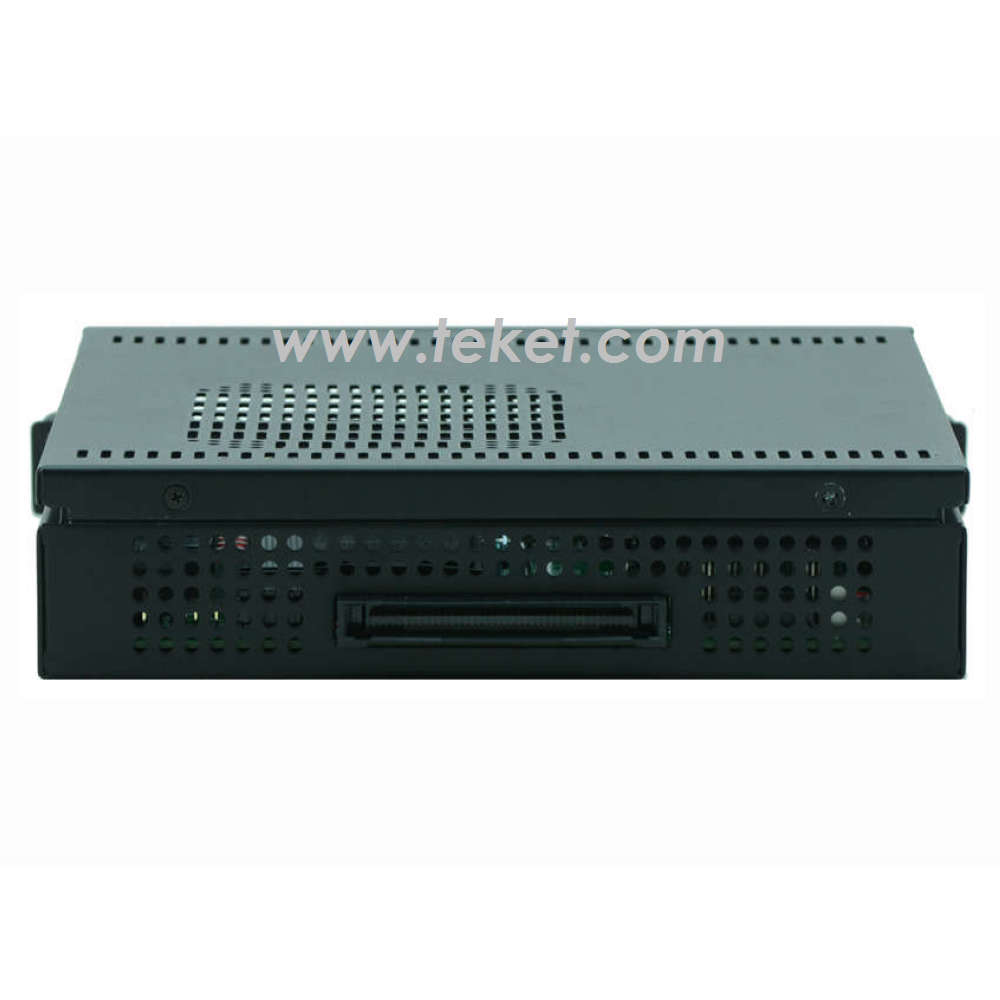

High quality galvanized steel sheet

Chassis
Colour
Black
Dimension
204mm*195.5mm*41.8mm(L*W*H)
Structure
OPS-C andOPS-C+ standard Chassis
material
High quality galvanized steel sheet
Motherboard
Model
OPS87 VER:1.0
Processor
Support Intel?Haswell/Broadwell Core? i7/i5/i3/Pentium/Celeron LGA1150 processor
Graphics
Intel?HD Graphics
Memory
1* DDR3/4GB memory,up to 16GB
Storage
HDD
Support 2.5’HDD extend,standard configuration 500G
CF
N/A
SSD
Support 1* MSATA SSD extend

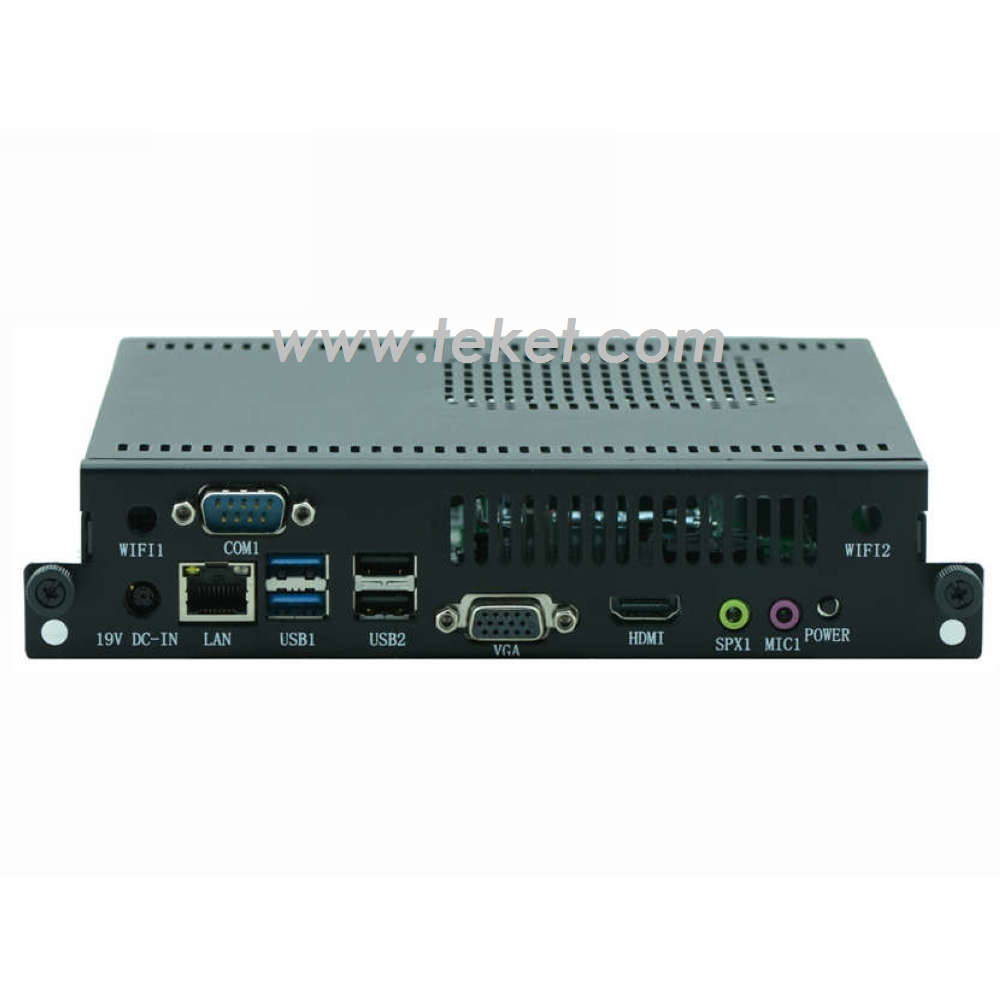

System Feature
LAN
1* Lan(RTL8111F Gigabit Ethernet)
USB
2*USB3.0 4*USB2.0
Serial port
1* COM
display
1* VGA/1*HDMI display output
Audio
1* MIC,1*Line-out
Expansion slot
1* support OPS-C+ standard slotJAE_TX25 (80pin)
1* supportOPS-C+ standard slotHRS FX18-40S (40pin Reserve optional)
Indicator
1* Power LED,1* HDD LED
system control
1* power switch,1* reset switch
Antenna
2* WIFI/3G SMA antenna(Optional)
Power
Power
19V/6.32A Adapter,throughOPS-C+ standard slot JAE_TX25 provide12~19V Power
Reliability
Installation
OPS slot type installation
Operating Temp.
0℃~45℃
Storage Temp.
-20℃~70℃
Relative humidity
5%-95%, no condensing
Vibration
0.5g rms/5-500HZ/random/operating

Order Informatiom
OPS-I33160(4G,500G) I3-4160/3.6Ghz,OPS-H81,4G RAM,500G HDD,1*LAN(RTL8111F),6*USB,no WIFI,Win7 support
OPS-I54460(4G,500G) I5-4460/3.2Ghz,OPS-H81,4G RAM,500G HDD,1*LAN(RTL8111F),6*USB,no WIFI,Win7 support
OPS-I74790(8G,500G) I7-4790/3.6Ghz,OPS-H81,8G RAM,500G HDD,1*LAN(RTL8111F),6*USB,no WIFI,Win7 support
OPS-I33160(4G,128G) I3-4160/3.6Ghz,OPS-H81,4G RAM,128G SSD,1*LAN(RTL8111F),6*USB,no WIFI,Win7 support
OPS-I33160(4G,256G) I3-4160/3.6Ghz,OPS-H81,4G RAM,256G SSD,1*LAN(RTL8111F),6*USB,no WIFI,Win7 support
OPS-I33160(2G,500G) I3-4160/3.6Ghz,OPS-H81,2G RAM,500G HDD,1*LAN(RTL8111F),6*USB,no WIFI,Win7 support
