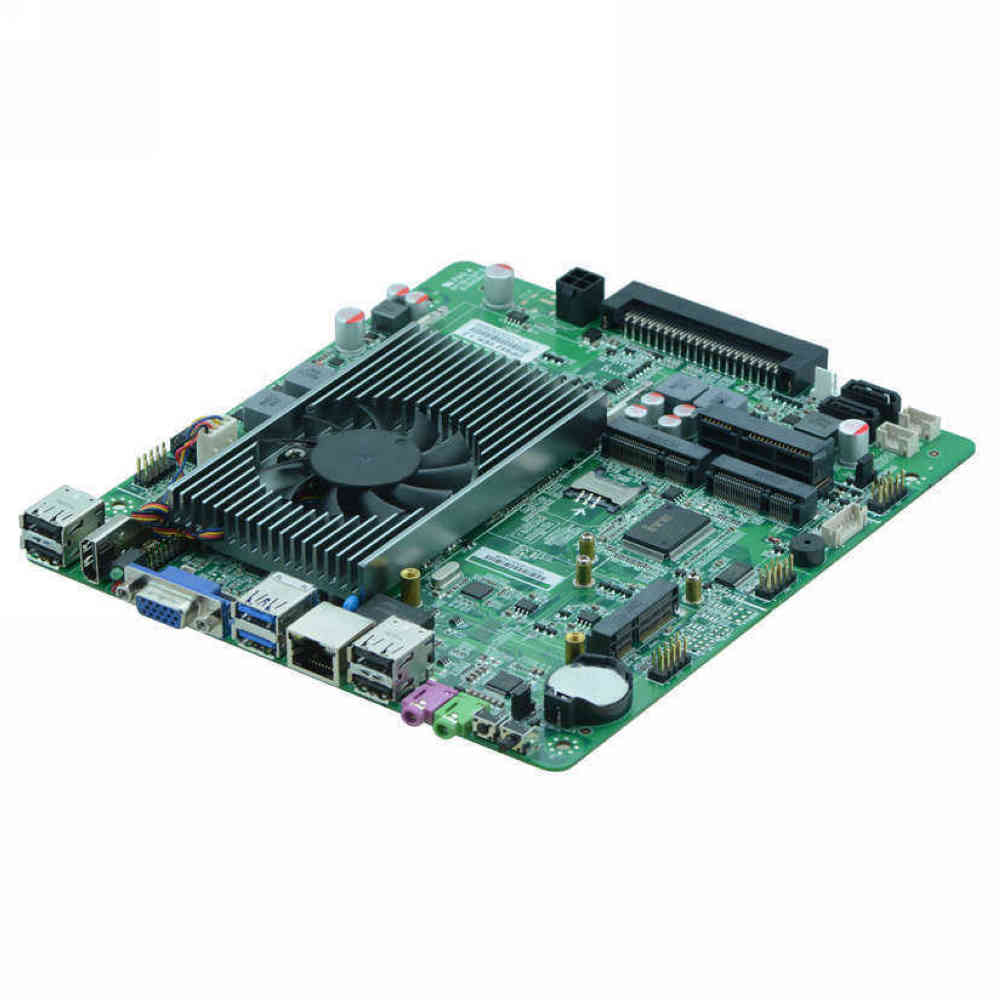

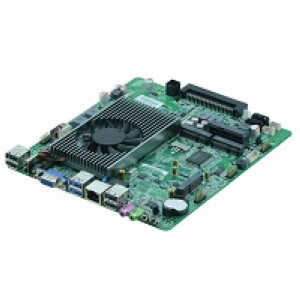

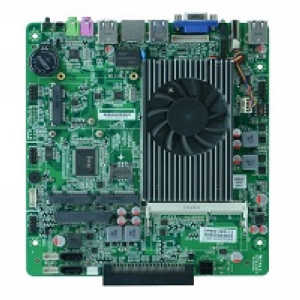

Intel Haswell-U OPS Motherboard OPS-I54258U 190mmx170mm

Haswell-U
OPS-I54258U VER1.2
Integrated Intel?Haswell-U I5-4258U 2.40GHz dual core processor,TDP28W
Compatible Intel Celeoron,core?I3/I5/I7 Haswell/Broadwell-U Processor
Adopt Intel?Haswell-U/Broadwell-U SOC platform
Support single channel SODIMM 1600/1333MHz DDR3L/1.35V Memory,up to 8GB

CPU
Integrated Intel?Haswell-U I5-4258U 2.40GHz dual core processor,TDP28W
Compatible Intel Celeoron,core?I3/I5/I7 Haswell/Broadwell-U Processor
Chipset
Adopt Intel?Haswell-U/Broadwell-U SOC platform
Memory
Support single channel SODIMM 1600/1333MHz DDR3L/1.35V Memory,up to 8GB
Graphics
Integrated Intel? HD Graphics 5100
Support DirectX 11.2/12,OpenGL4.3,Support synchronous/asynchronous display
1* VGA the highest resolution is:1920X1200@60HZ,
1* HDMI1.4 the highest resolution is:3280X2000@60HZ
LAN
1* RTL8111F Gigabit Ethernet,support wake on LAN/PXE
Storage
Provide 1 *2.5 inchSATA 3.0 Notebook hard disk place,can installed hard disk directly7
1* MSATA slot support WIFI(Optional)/SSD(Default),the transfer rate up to 6Gbps
2* standard 7PIN SATA(Depending on the specific CPU model to support this 2*SATA)
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out
Expansion slots
Provide 2* Mini-PCIE slot,support WIFI/3G Module
Note:MINIPE1 don’t support WIFI.
1* JAE TX25 OPS_C standard slot(80pin)

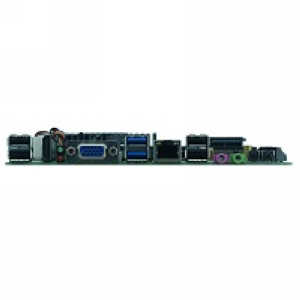

Rear I/O
4* USB 2.0
2* USB3.0
1* HDMI1.4
1* VGA DB15
1* RJ-45 Gigabit Ethernet
1* Line out (Green)、1* MIC(Violet)
1* power switch
1* reset switch
1* HDD LED,1*power LED
1* JAE_TX25 OPS_C standard slot(80Pin)
Internal I/O
2* USB 2.0 (2*5Pin Optional)
1* JVGA1 1*12Pin same signal with DB15
1* JHDMI 2*8Pin same signal with HDMI
1* PS/2 KB/MS connector 1*6Pin
1* RS232 serial port 2*5Pin(Optional)
1*GPIO 2*5Pin
1* front panel function buttons and indicator connector 2*5Pin
2* HDD power supply connector
1* SIM card socket
1* 4pin ATX power interface(can do 12V -19Vpower input/output interface)
Fan interface
1*4pin CPU Intelligent fan interface,1*3pin system fan interface
GPIO
Support 4 way input/output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Provide 12V-19V power supply through the TX25 OPS_C JAE standard slot or Adopt DC 12V power supply
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
190mm x 170mm

Order Informatiom
OPS-I54258U J1900,2.00G,1*SODDR3,1*VGA,1*HDMI,no LVDS,1*LAN(RTL8111F),6*USB,1*COM,12VDC

Haswell/H81

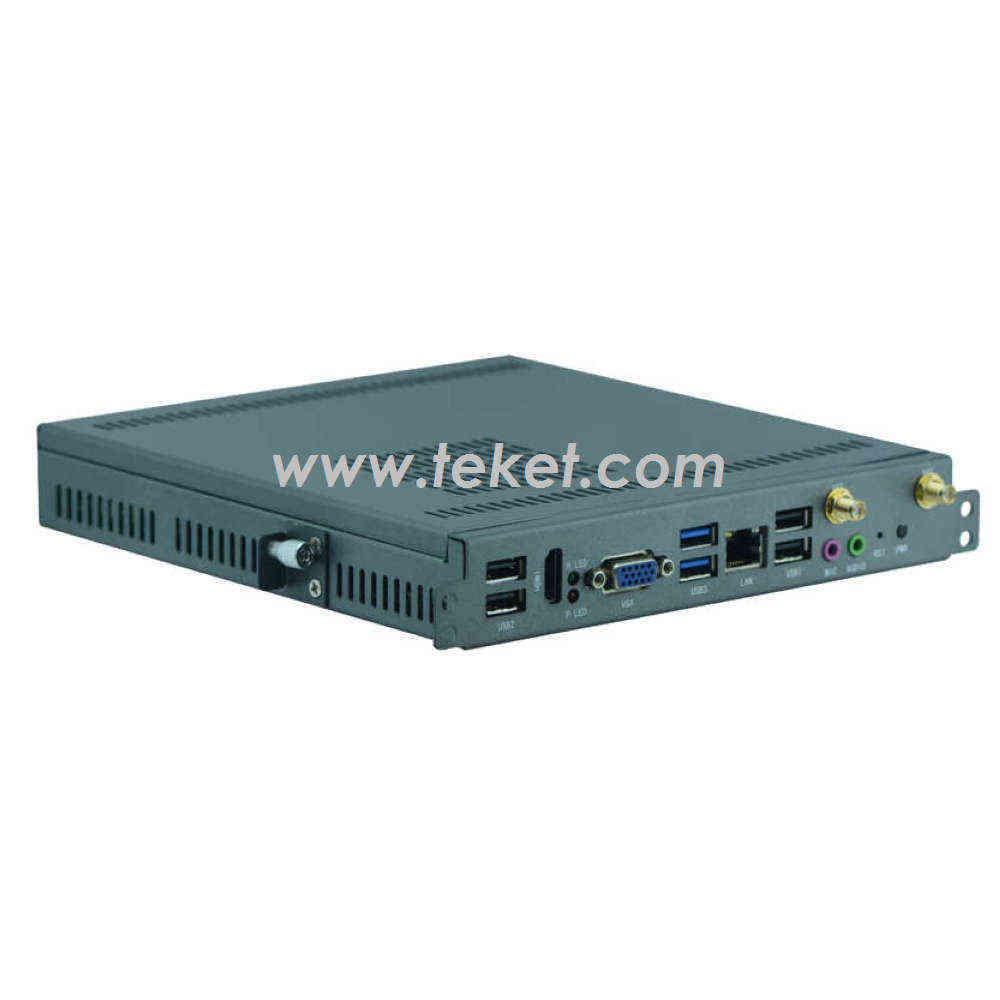

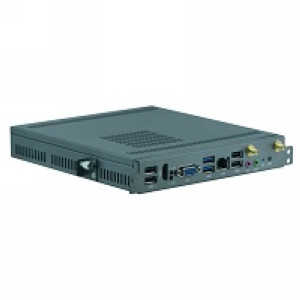

SOPS-I54258U
Adopt Intel?Haswell-U/Broadwell-U SOC platform
Integrated Intel?Haswell-U I5-4258U 2.40GHz dual core processor.
1* RTL 8111F Gigabit Ethernet,support wake on LAN/PXE
Integrated Intel? HD Graphics 5100

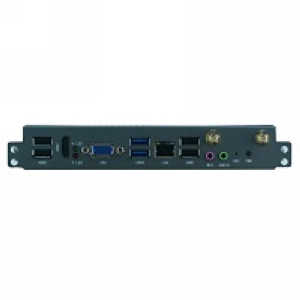

Chassis
Colour
Black
Dimension
196mm*180mm*31mm(L*W*H)
Structure
Compatible with OPS-C standard chassis
material
High quality galvanized steel sheet
Motherboard
Model
OPS52
Processor
Integrated Intel?Haswell-U I5-4258U 2.40GHz dual core processor
Graphics
Integrated Intel? HD Graphics 5100
Memory
1* DDR3/1.35V/4GB memory,up to 8GB
Storage
HDD
Support 1* 2.5 inch HDD expansion
CF
N/A
SSD
Support 1* MSATA SSD expandion,standard configuration 128G
System Feature
LAN
1* LAN(RTL 8111F Gigabit Ethernet)
USB
2*USB3.0 4*USB2.0
Serial port
N/A
display
1* VGA/1*HDMI display output
Audio
1* MIC,1*Line-out
Expansion slots
1* JAE TX25 OPS_C standard slot(80pin)
Indicator
1* Power LED,1* HDD LED
System control
Power switch
Antenna
2* WIFI/3G SMA antenna(Optional)
Power
Power
12V/5A Adapter
Reliability
Installation
OPS slot type installation
Operating Temp.
0℃~45℃
Storage Temp.
-20℃~70℃
Relative humidity
5%-95%, no condensing
Vibration
0.5g rms/5-500HZ/random/operating

Order Informatiom
SOPS-I54258U(4G,128G) I5-4258U/3.2G,4G RAM, 128G SSD, 1*LAN(RTL8111F0,1*COM,6*USB,noWIFI,Win7 support
