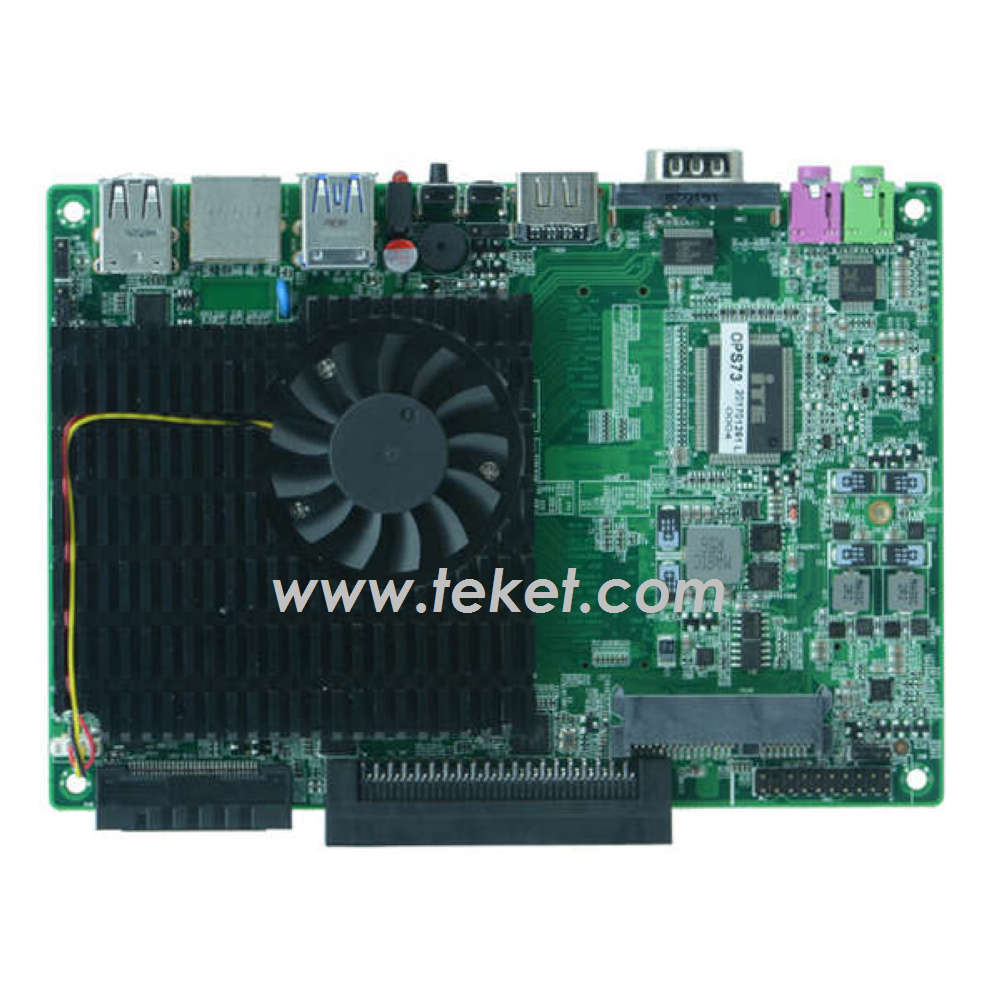

Intel Kabylake OPS Motherboard OPS-I57300U 165mmx115mm
Kabylake
OPS-I57300U VER:1.2
Integrated Intel? Kabylake I5-7300U 2.6GHz dual core processor
support dual channel SODIMM 2133MHz DDR4 memory, up to 32GB
Integrated Intel?HD Graphics620
Provide 1*HDMI-IN port
1*Intel I219-LM Gigabit Ethernet ,support wake on LAN、Vpro(AMT) function
1*M.2 2230(KEY E) standard slot,support M.2 standard WIFI

Processor
Integrated Intel? Kabylake I5-7300U 2.6GHz /Skylake-U I3-6100U 2.6GHz dual core processor
Chipset
PCH-U
Memory
Support dual channel SODIMM 2133MHz DDR4 memory, up to32GB
Graphics
Integrated Intel?HD Graphics620,support4K/60Hz
Provide 1*HDMI-IN port
LAN
1*Intel I219-LM Gigabit Ethernet , support wake on LAN/Vpro(AMT) function(6100U do not support Vpro function)
Storage
Provide 1* SATA 2.5 inch Netbook place,can be installed directly on the hard disk
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out.
Expansion slots
1*M.2 2230(KEY E) standard port,support M.2 standardWIFI
1* supportOPS+ standard slot FX18-60P1(60Pin)
1* support OPS+ standard slot JAE_TX1(80pin)

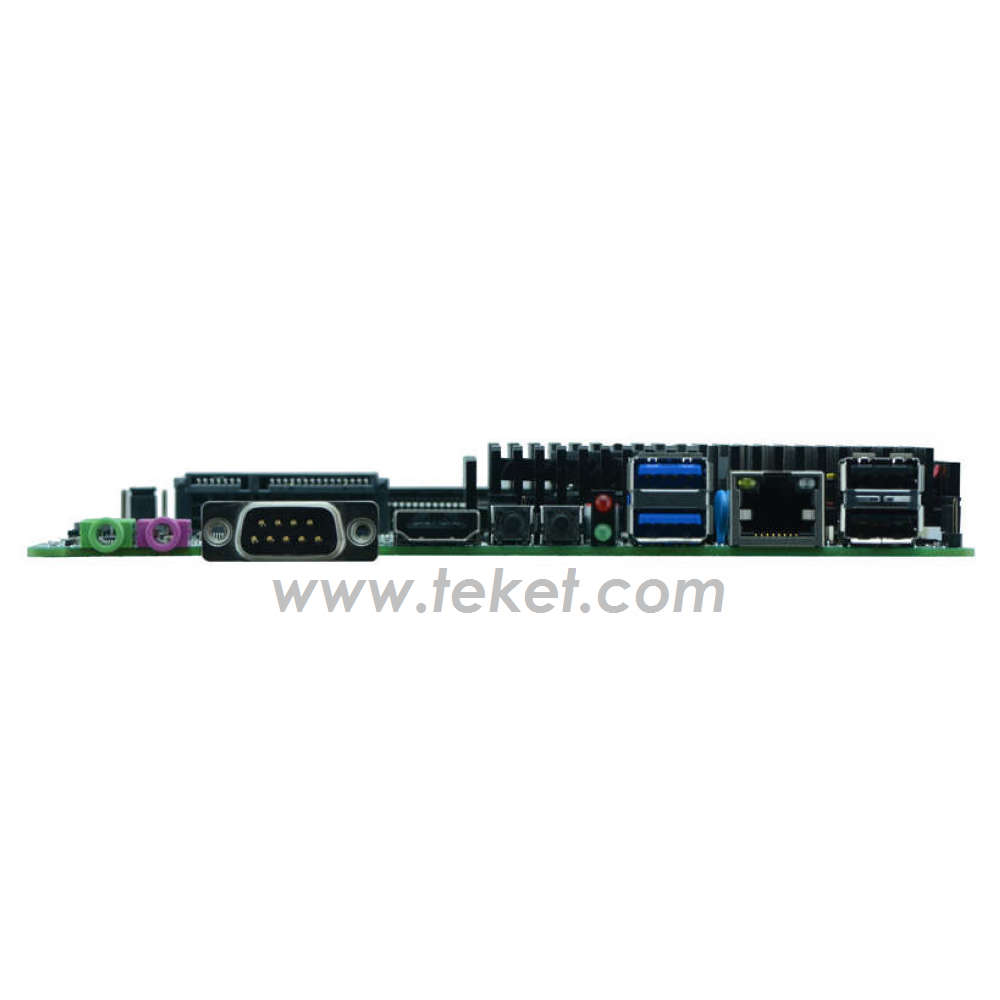

Rear I/O
1*Line-out(Green),1*MIC(Red)
1*DB9 COM serial port
1*HDMI-IN port
1* power switch,1* reset switch
1* HDD LED,1* Power LED
2*USB3.0 ports
1*RJ45 Gigabit Ethernet connector
2*USB2.0 ports
1* support OPS+ standard slot JAE_TX1(80pin)
1* supportOPS+ standard slot FX18-60P1(60Pin)
Internal I/O
1*TPM1.2 secure chip port 2*10pin
FAN interface
1*3pin system fan port
BIOS
128Mb SPI Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
provide 12V~19V power supply through OPS+ standard slot JAE_TX25
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
165mm x 115mm

Order Informatiom
OPS-I57300U I5-7300U/2.6G-2.5G,4G RAM, 128G SSD, 1*LAN(RTL8111F0,1*COM,6*USB,noWIFI,Win7 support
