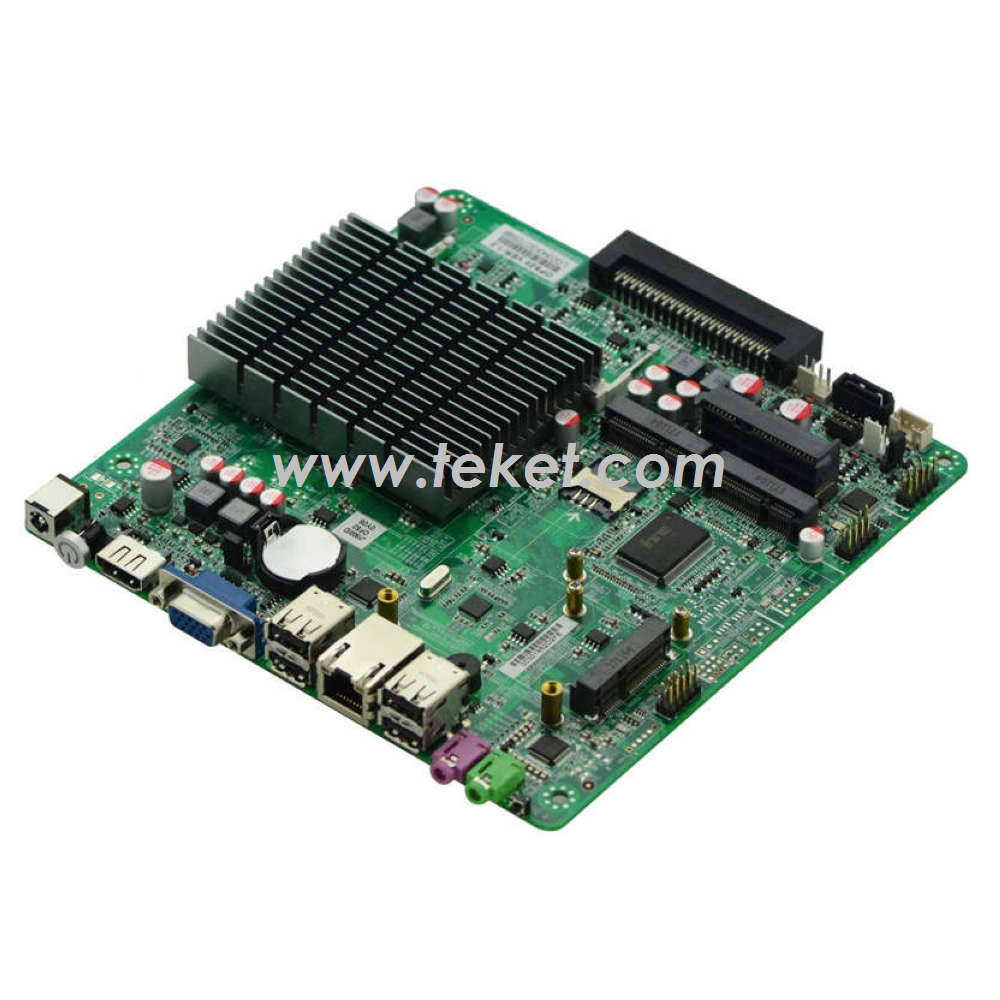

Intel Baytrail OPS MINI-ITX Motherboard OPS-J1900M 170mmx170mm

Bay Trail /J1900
OPS-J1900M VER1.2
Integrated Intel?J1900/2.00GHz Quad core processor,TDP10W
Compatible Intel? Bay Trail -I/M/D full seriesCPU, flexible choice for customers
Based on Intel? Bay trail SOC platform
Support single channel SODIMM 1600/1333MHz DDR3L/1.35V memory,up to 8GB

CPU
Integrated Intel?J1900/2.00GHz Quad core processor,TDP10W
Compatible Intel? Bay Trail -I/M/D full seriesCPU, flexible choice for customers
Chipset
Based on Intel? Bay trail SOC platform
Memory
Support single channel SODIMM 1600/1333MHz DDR3L/1.35V memory,up to 8GB
Graphics
Integrated Intel?HD Graphics
Provide 1*VGA,1*HDI
Support VGA;HDI synchronous/asynchronous display
LAN
1*Realtek RTL8111F Gigabit Ethernet support wake on LAN/PXE
Storage
Provide 1* SATA 2.5 inch Notebook hard disk interface,can be installed the hard disk directly(with the 7pin SATA2.0 two choose one)
1* standard 7PIN SATA2.0 (with the 2.5 inch HDD disk two choose one by SATA1_SW1)
1* MSATA slot,support SSD,the transfer rate up to 3Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,
Expansion slots
2* Mini-PCIE slot ,support WIFI/3G module
1* MSATA slot support SSD ,the transfer rate up to3Gbps
1* accord with OPS-C standard slot JAE_TX25 (80Pin)
Rear I/O
4* USB 2.0 ports
1* HDI port
1* VGA port
1* RJ-45 Gigabit Ethernet port
1* Line out(Green)、1* MIC(Red)
1* 12V DC power input connector
1* power switch
1* support one key restore function button
1* accord withe OPS-C standard slot JAE_TX25 (80Pin)
Internal I/O
2* USB 2.0 ports 2*5Pin
1* JVGA1 port 1*12Pin (the same signal with DB15)
1* PS/2 KB/MS port 1*6Pin
1* RS232 serial port 2*5Pin(Optional)
1*GPIO 2*5Pin
1* Front panel function buttons and indicator port 2*5Pin
1* HDD power supply connector
1* SIM card socket
1* 4pin ATX power connector(can do 12 power input/output connector)
FAN interface
Fanless Cooling design ,reserve 1*4pin CPUFAN,1*3pin system fan
GPIO
Support 4-way input/output GPIO
BIOS
AMI 64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 12V power supply or provide 12V power supply through OPC-C standard slot JAE_TX25
Operating Temp.
-10℃～60℃
Storage Temp.
-20℃～70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm

Order Informatiom
OPS-J1900M J1900,2.00G,1*SODDR3,1*VGA,1*HDI,no LVDS,1*LAN(RTL8111F),6*USB,1*COM,12VDC

Bay Trail/J1900

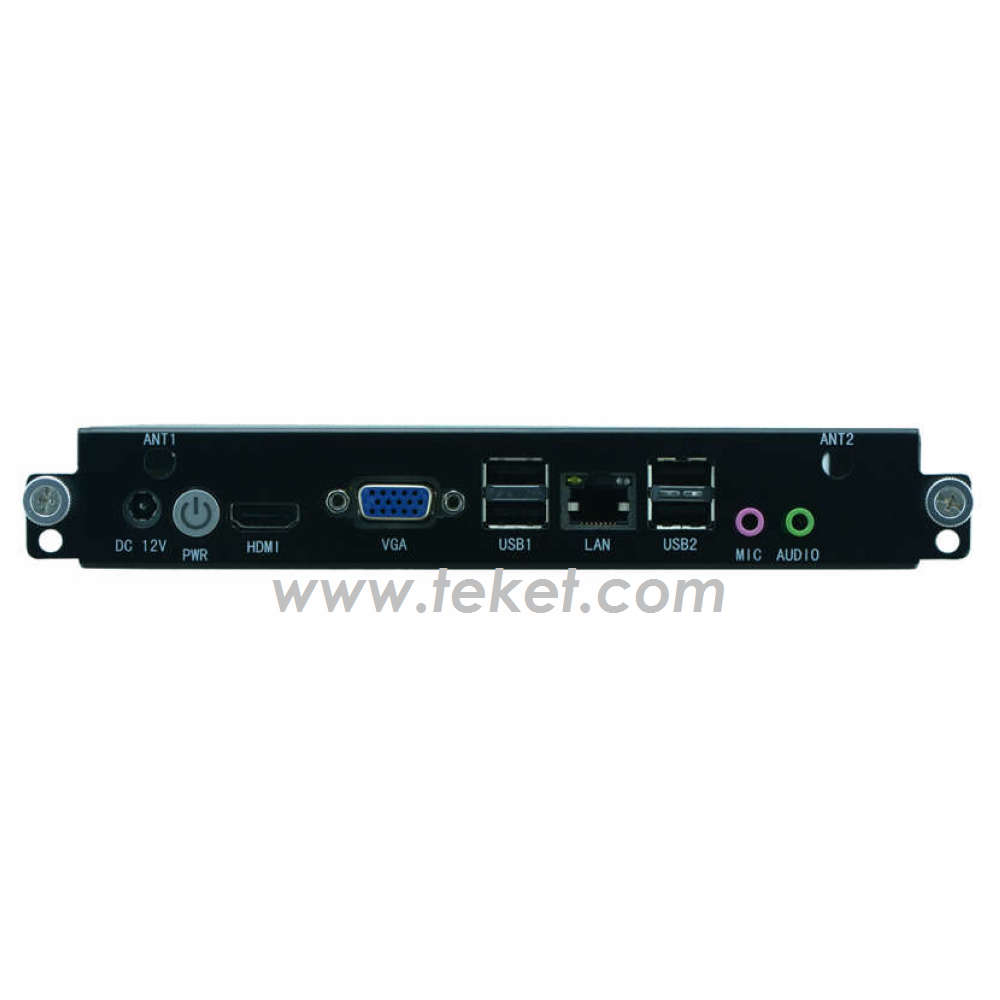

SOSP-J1900M
Bsed on Intel? Bay trail SOC platform
Integrated Intel? Celeron J1900 @ 2.0GHz quad core processor.
1* RTL 8111F Gigabit Ethernet, support wake on LAN/PXE
Integrated Intel? HD Graphics, support VGA/HDI display output
Fanless Cooling structure
High quality galvanized steel sheet

Chassis
Colour
Black
Dimension
180mm*176mm*30mm（L*W*H）
Structure
Compatible with OPS-C standard chassis
material
High quality galvanized steel sheet
Motherboard
Model
OPS20 VER:1.1
Processor
Integrated Intel? Celeron J1900 @ 2.0GHz processor
Graphics
Integrated Intel? HD Graphics
Memory
1* 4GB DDR3L/1.35V memory,up to 8GB
Storage
HDD
Support 1* 2.5 inch HDD extend，standard configuration 500G
CF
N/A
SSD
N/A
System Feature
LAN
1* LAN（RTL 8111F Gigabit Ethernet）
USB
4*USB2.0
Serial port
N/A
display
1* VGA/1*HDI display output
Audio
1* MIC,1*Line-out
Expansion slots
1* JAE TX25 OPS_C standard slot（80pin）
Indicator
N/A
System control
Power switch
Antenna
2* WIFI/3G SMA antenna（Optional）
Power
Power
12V/5A Adapter
Reliability
Installation
OPS slot type installation
Operating Temp.
0℃～45℃
Storage Temp.
-20℃～70℃
Relative humidity
5%-95%, no condensing
Vibration
0.5g rms/5-500HZ/random/operating

Order Informatiom
SOPS-J1900M(2G,500G) J1900/2.00G,OPS20,2G RAM,500G HDD,1*LAN(RTL8111F),4*USB,no WIFI,Win7 support
SOPS-J1900M(4G,500G) J1900/2.00G,OPS20,4G RAM,500G HDD,1*LAN(RTL8111F),4*USB,no WIFI,Win7 support
