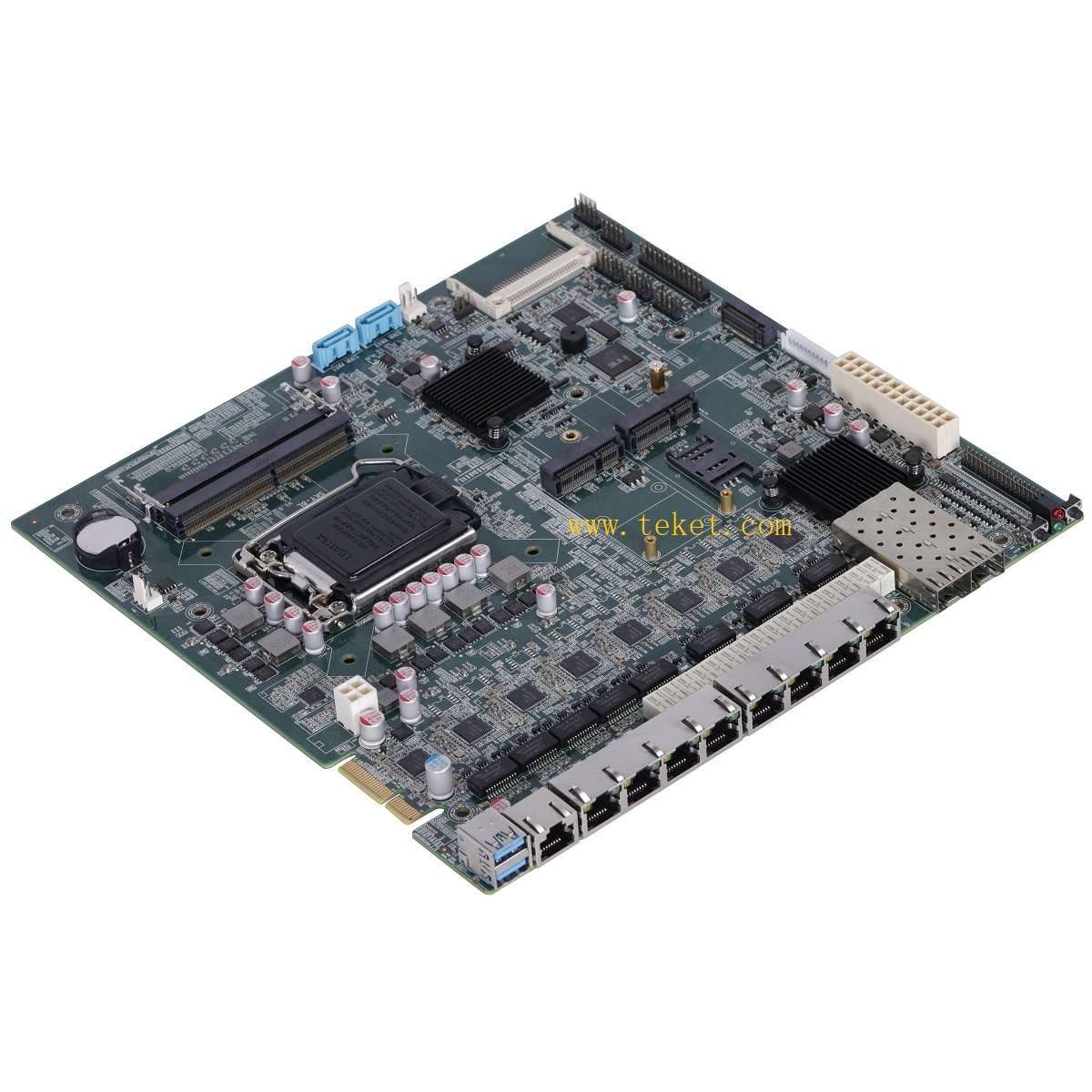

Motherboard Specification:
Model QM110LE
Separate Processor
Support Intel 1151 Socket processors:
Skylake Core i3/i5/i7 Processors:I3-6100,I3-6300,I5-6400,I5-6500,I7-6700,etc.
Kaby lake Core i3/i5/i7 Processors:I3-7100,I3-7300,I5-7500,I7-7700,etc.
Processor Quantity
Only support 1 piece processor on the motherboard.
Memory
2*DDR4 Memory channel,up to 32GB RAM.
Network Card
8*Intel i210-AT Gigabit Network card;
2*Intel i350-AM2 Gigabit Optical network card.
Audio
Not Applicable
Graphics Card
Integrated Intel HD Graphics 530/630 on CPU,
support 4K,1080P,H264,3D play.
Display
1*VGA pin
Hard Disk(Storage)
2*SATA3.0 , 1*MSATA3.0 , 1*M.2 , 1*CF
Power Supply
24 pins ATX power
Heat Sink
Standard 115X heat sink;Thin,cool,mute fan.
Form Factor
ATX,248*248mm(L*W)
I/O Interfaces
2*USB3.0 , 1*RJ45-COM , 8*LAN , 2*optical , 1*Power , 1*Restart
Built-in Pins
1*VGA , 6*USB , 1*COM , 1*LPT , 1*LAN-LED , 2*FAN , 1*SIM Card slot
Expansion Bus
1*Mini-PCIE slots,support WIFI,4G,Bluetooth,GPS,MSATA;
1*PCIEX4.
Operating System
Win XP , Win7(32bit,64bit) , Win 8.1 , Win 10 , Linux.
System Monitor
/ Watch dog
Support CPU temperature monitor, fan speed,system temperature.
BIOS
AMI BIOS;
Support read only,power on,timing switch,remote switch,intelligently identify devices.
Operating Environment
Working temperature :-10℃~60℃
Relative humidity:5%~95%,non-condensation.
Fitted Chassis
2U chassis U108
Options
3G/4G/WIFI/Bluetooth module,Cable,RAM,SSD,HDD,etc.

Order Information
QM110LE H110,LGA1151,8*INTEL i211,VGA,mSATA,mini PCIe,1*VGA,2*COM,8*USB,Optical fiber module(optional)
QM110LEO H110,LGA1151,8*INTEL i211,VGA,mSATA,mini PCIe,1*VGA,2*COM,8*USB,Optical fiber module

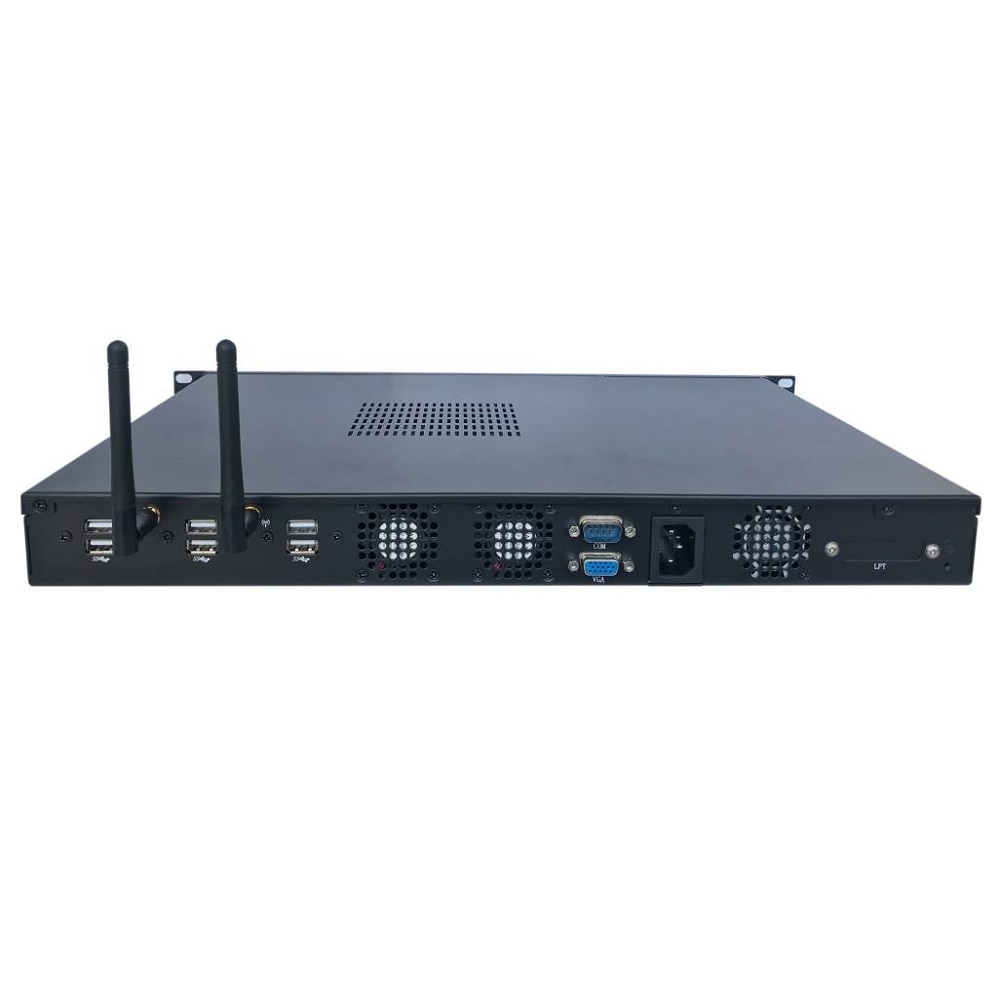

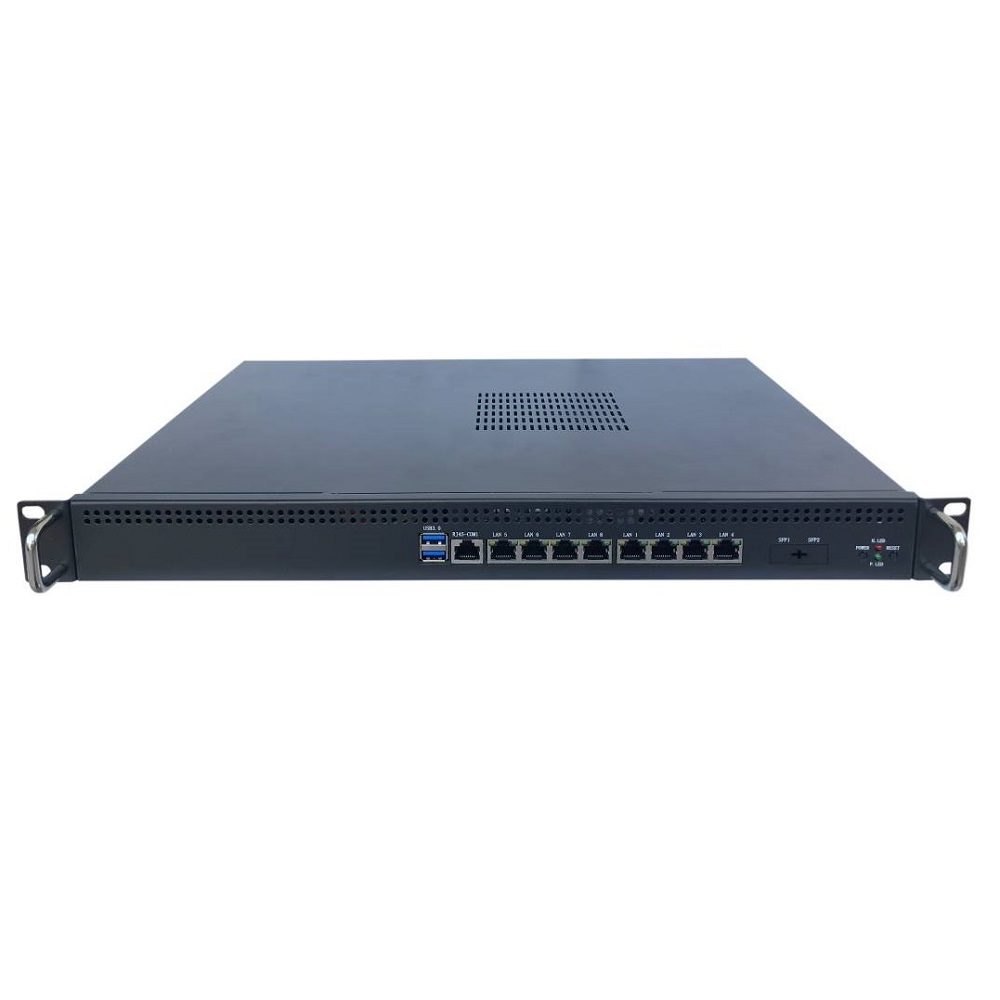

1U series firewall appliance


Order Information
1U-QM110LE
1U-QM110LEO
