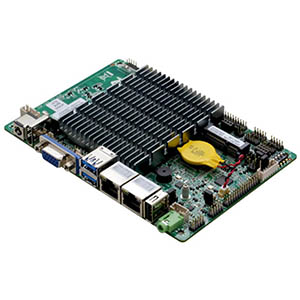

SBCE41 VER:1.1E

processor

Integrated Intel Eleron J4125 2.0GHz quad core quad threaded processor, TDP 10W

Compatible with Intel Gemini Lake full range of CPUs for customers to choose from flexibly

Chipset

SOC

Memory

1 * SODIMM slot, supporting single channel 2400MHz DDR4 memory, up to 8GB

Display

Integrated Intel UHD Graphics 600 Core Graphics Card

1 * VGA, 1 * HDMI interface, 1 * LVDS interface

Network

2 * RTL8111H Gigabit network card, supporting wake-on-LAN and PXE functions

Storage

1 * 7pin SATA3.0 hard disk interface, with a transmission rate of 6Gbps

1 * MSATA slot, SSD solid-state drive supporting Intel protocol, with a transmission rate of 6Gbps

Audio

On board ALC897 7.1+2 channel high fidelity audio controller, supporting MIC/Line out. power amplifier

Suggest using 4Ω3W horn

Expansion Slots

1 * Mini PCIE slot, supporting WIF/4G modules

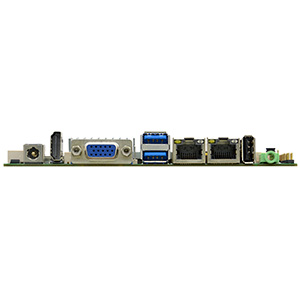

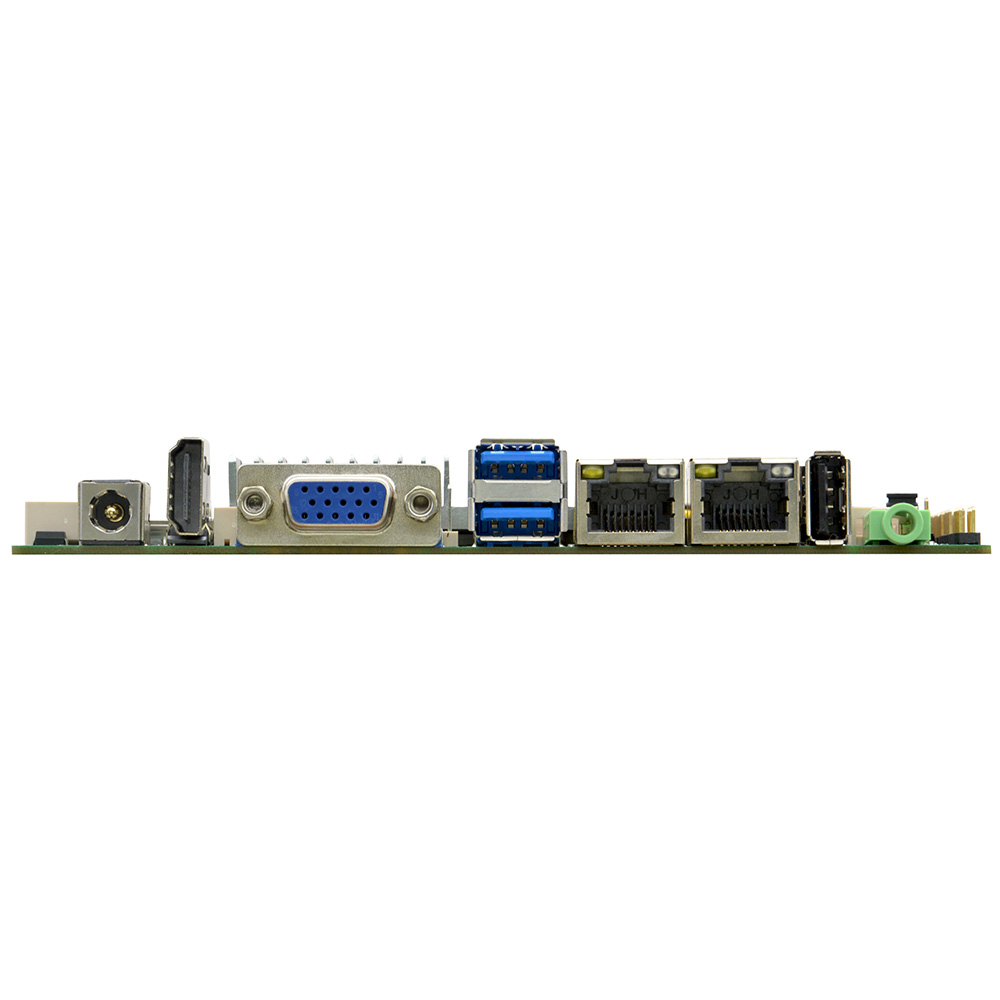

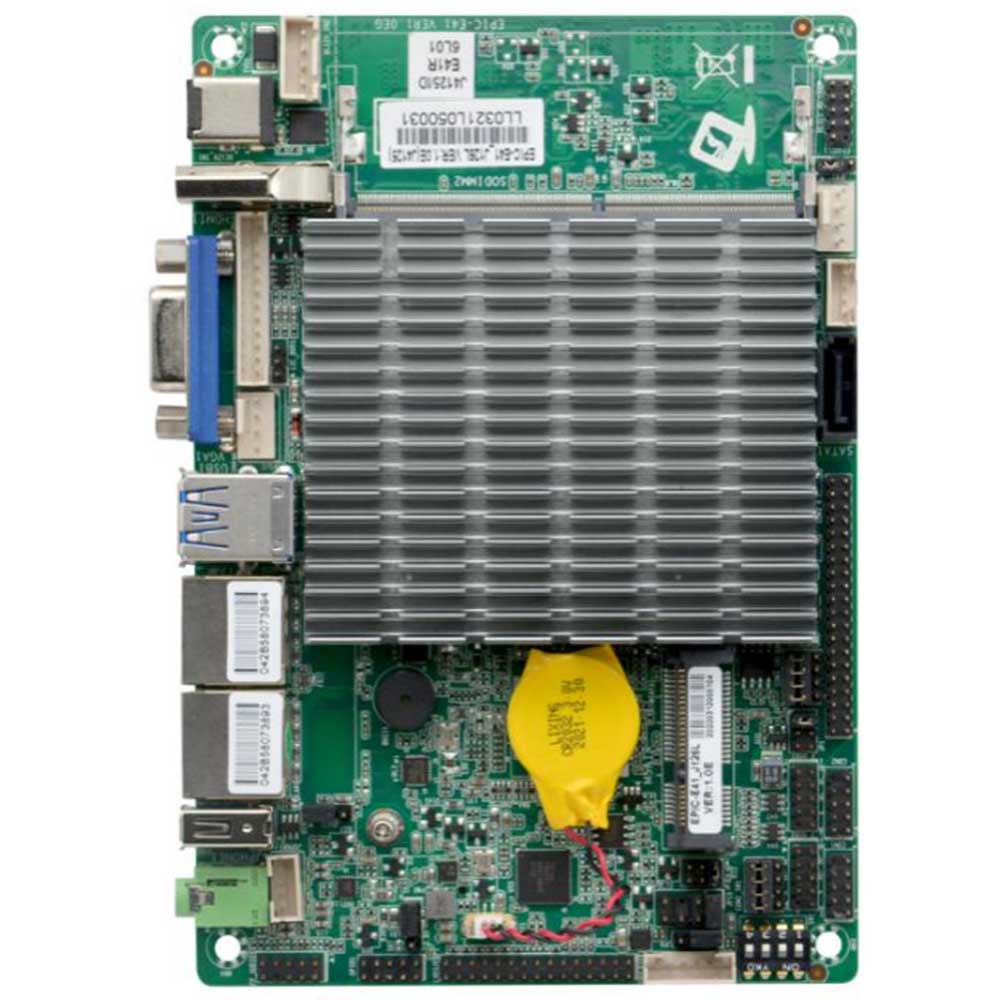

Backplane I/O interface

1 * DC 12V power input interface

1 * VGA display interface

1 * HDMI display interface

2 * USB3.0 interface, 1 * USB2.0 interface

2 * RJ45 Gigabit Network Interface

1 * Line out (green)

Built-in I/O interface

1 * DC power interface, 1 * 4pin supports 12V power input and output

1 * JVGA interface 1 * 12pin, with the same signal as DB15

1 * LVDS interface 2 * 15pin

1 * Screen backlight power supply interface 1 * 6pin

4 * USB2.0 interface, 2 * 5pin

6 * RS232 serial interface, COM2/COM3 supports RS485/422 function,

1 * Hard disk power interface 1 * 4pin

1 front audio interface 2 * 5pin

1 * Amplifier interface 1 * 4pin

1 * SIM card slot

1 * Front panel function button and indicator light interface 2 * 5pin

Fan interface

No fan cooling, reserved 1 * 4pin CPU intelligent fan interface, 1 * 4pin system fan interface

Note: It can support fans with heat sinks. Customers are requested to decide whether to use passive or active heat dissipation based on their own structural design. If you need fans with heat sinks, please contact the salesperson

GPIO

Supports 4-way input/output GPIO

BIOS

64Mb Flash ROM

watchdog

Support hardware reset function (256 levels, 0-255 seconds)

operating system

Windows 10/Linux

Power supply type

Using DC 12V power supply

working temperature

-10℃～60℃

Storage temperature

-20℃～70℃

Working humidity

5% -95% relative humidity, non condensing

Dimensions

148mm x 102mm
