>>Your Current Position: Intel Motherboard

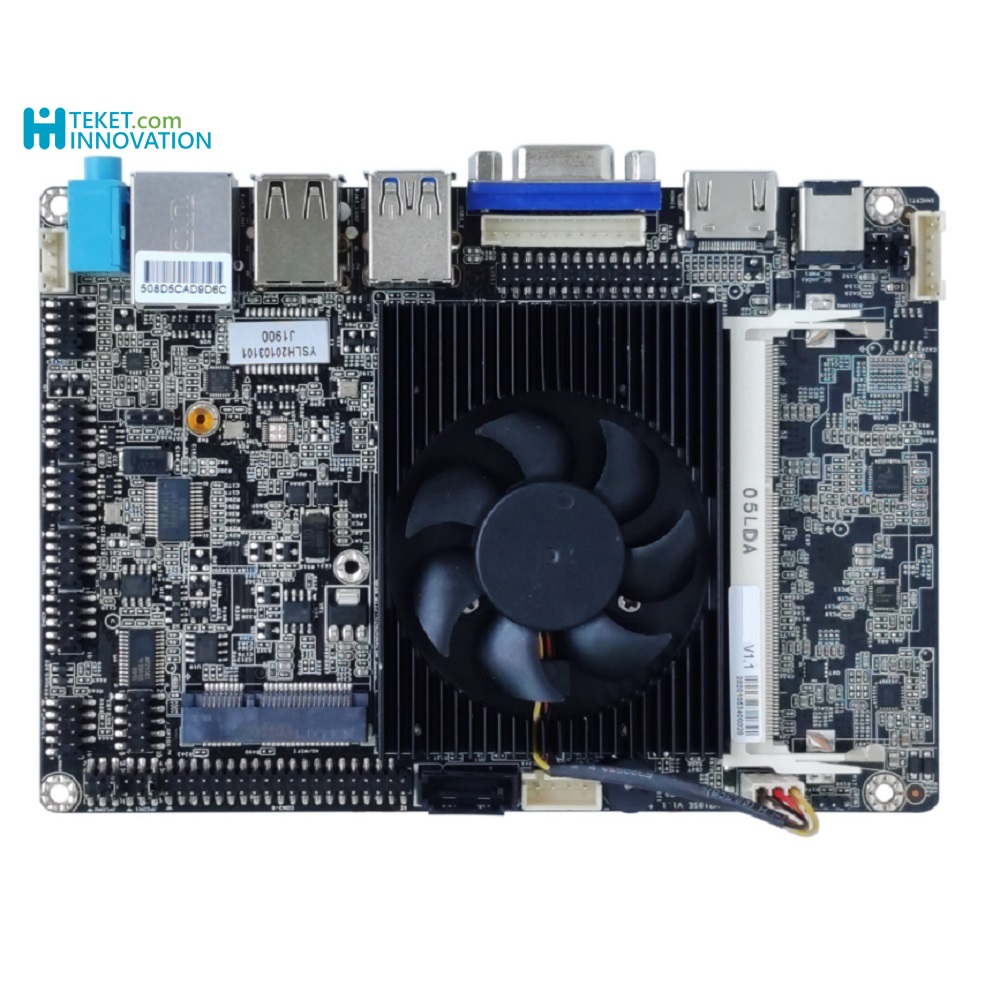

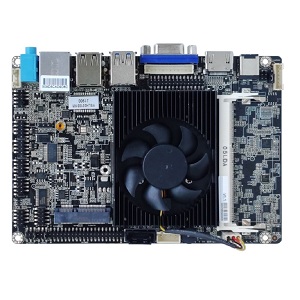

Intel Baytrail J1900/J1800/J2900 SBC 3.5" embedded industral board SBC35N21

For Embedded Industral
Integrated Intel?J1900/2.0GHz quad core processor,TDP10W
1* SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Integrated Intel HD Graphics
1* VGA,1*HDI,1*LVDS/1*EDP
2* RTL8111H Gigabit Ethernet , support wake on LAN/PXE
2*RS232 serial ports,6*USB

Intel® Celeron® Processor N2930 (2M Cache, up to 2.16 GHz)
Launch Date Q1'14
# of Cores 4
# of Threads 4
Processor Base Frequency 1.83 GHz
Burst Frequency 2.16 GHz
TDP 7.5 W
Scenario Design Power (SDP) 4.5 W
ocessor Graphics ‡ Intel® HD Graphics
Graphics Base Frequency 313 MHz
Graphics Burst Frequency 854 MHz

Intel? Celeron? Processor N2920 (2M Cache, up to 2.00 GHz)
Launch Date Q4'13
# of Cores 4
# of Threads 4
Processor Base Frequency 1.86 GHz
Burst Frequency 2 GHz
TDP 7.5 W
Scenario Design Power (SDP) 4.5 W
Processor GraphicsIntel? HD Graphics
Graphics Base Frequency 313 MHz
Graphics Burst Frequency 844 MHz

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz)
Launch Date Q4'13
# of Cores 4
# of Threads 4
Processor Base Frequency 2 GHz
Burst Frequency 2.42 GHz
TDP 10 W
Processor GraphicsIntel? HD Graphics
Graphics Base Frequency 688 MHz
Graphics Max Dynamic Frequency 854 MHz

Model
SBC35N21 Ver1.10

Processor
Integrated Intel?J1900/2.0GHz quad core processor,TDP10W
Chipset
Based on Intel? BayTrail platform
Memory
1* SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Graphics
Integrated Intel HD Graphics
1* VGA_OUT (1920*1080@60hz,12pin,1*12pin,2.0mm)
1*VGA DB15 1920*1080@60hz
1*HDI 1.4 1920*1080@60hz
1*LVDS (1920*1080@60hz,30pin,2*15pin,2.0mm)
or
1*EDP (1920*1080@60hz,30pin,2*15pin,2.0mm)
(1*INVERT1,LVDS backlight control, 6pin,1*6pin,2.0mm)
(1*LVDS-PWR,LVDS working voltage,control,6pin,2*3pin,2.0mm)
Network
2* RTL8111H Gigabit Ethernet , support wake on LAN/PXE
1*MINI-PCIE Interface, support WIFI.3G/4G/BT etc.
Storage
1* SATA HDD interface ,the transfer rate up to 3Gbps
1*MSATA-PWR Interface, 4pin 1*4pin,2.54mm

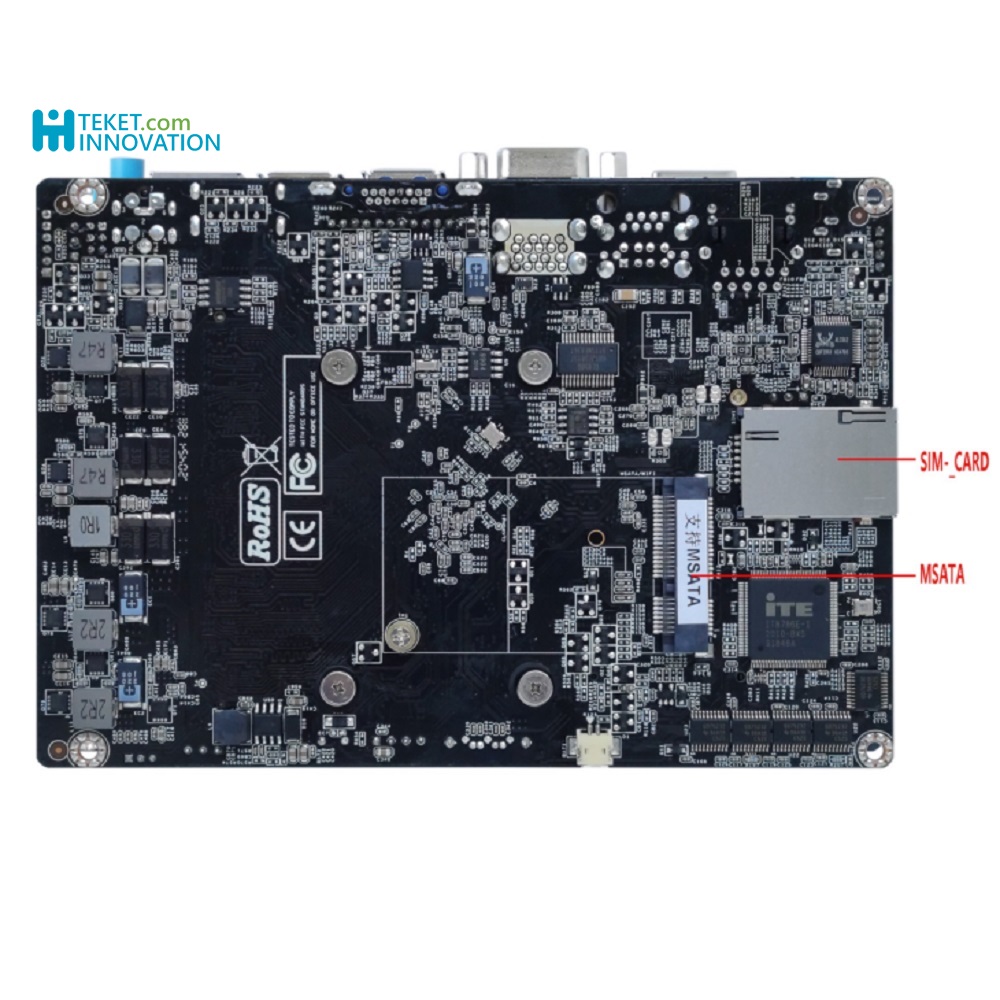

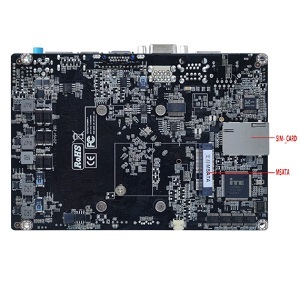

1* MSATA 2.0 slot,support Intel protocol SSD,the transfer rate up to 3Gbps
Audio
Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.
Support amplifer 8Ω5W trumpet
Expansion slot
1* Mini-PCIE slot,support WIF/4G module

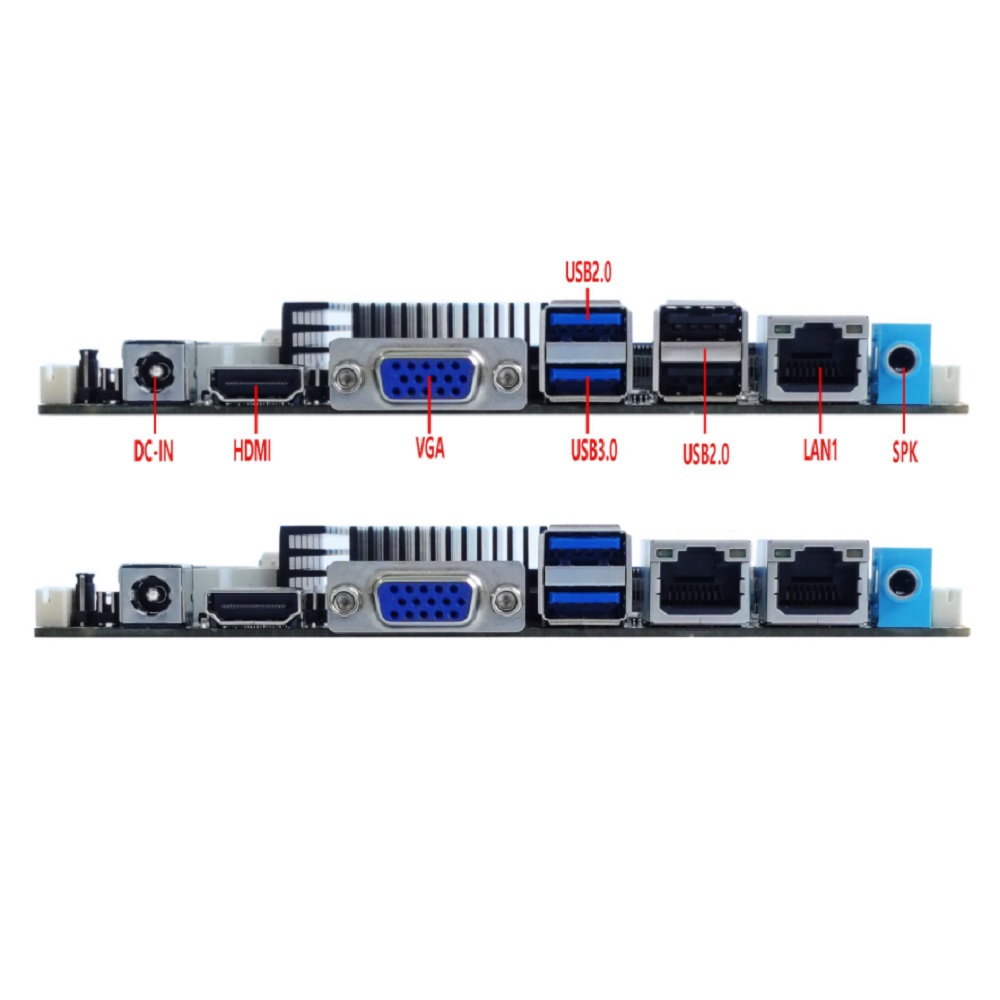

Rear I/O
1* DC 12V power input
1* HDI
1* VGA
1* USB3.0 ,2* USB2.0
1/2* RJ45 Gigabit Ethernet connectors
1* Line-out

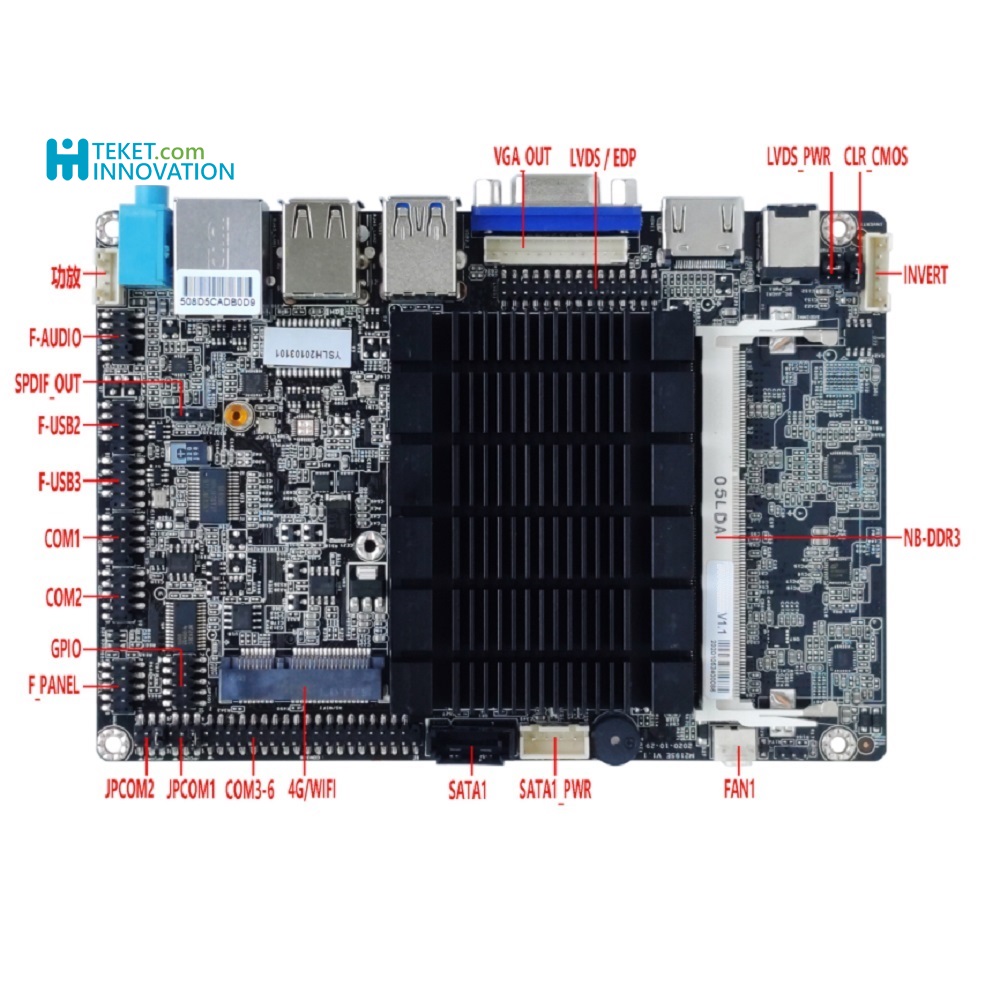

Internal I/O

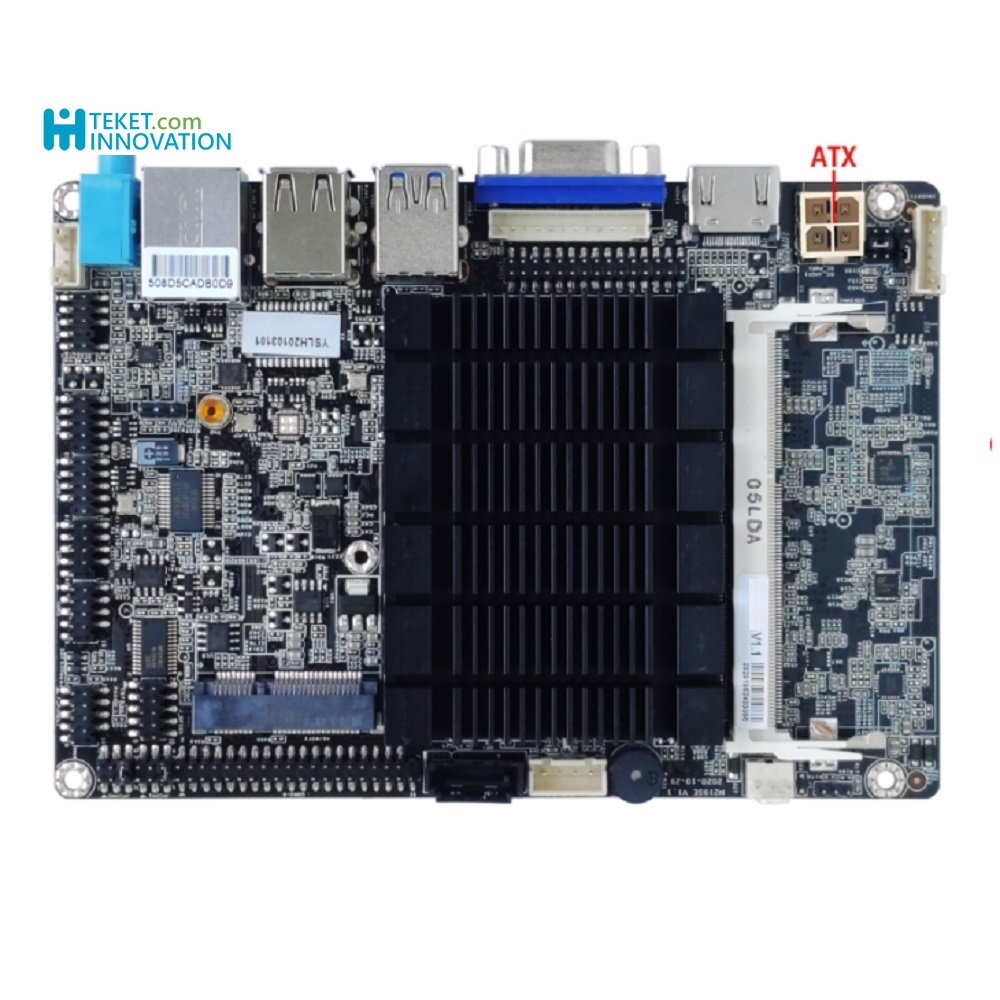

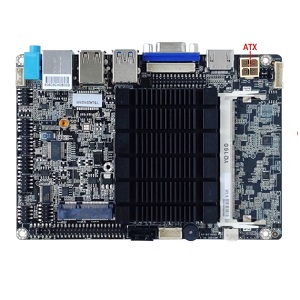

1* 4pin ATX power port ,support 12V power input/output
1* JVGA 1*12pin
1* EDP ,2*15pin,
3* USB2.0,2*5pin
2* RS232 serial ports 2*5pin ,COM2 support RS485/422 function
1*JTPM,2*8pin
1 * front audio port 2*5pin
1* power amplifier 1*4pin
1* JSIM,2*3pin
1* Front panel switching button and LED indicator port 2*5Pin
FAN interface
Fanless cooling ,Reserve 1*4pin CPU intelligent fan interface ,1*4pin system fan interface
GPIO
Support 4 way input/output GPIO
BIOS
64Mb Flash ROM
Watch dog
Support hardware reset function (L256, 0~255 seconds)
OS
Windows 10/Linux
Power input
Adopt DC 12V power supply
Working Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Working Humidity
5%-95% relative humidity, non-condensing
Dimension
148mm x 102mm

Order Information:
SBC35N21 v1.10 J1900/2.00G,1*SODDR3L,1*VGA,1*HDI,1*LVDS,0*eDP,1*LAN(RTL811H),7*USB,6*COM(COM2 for RS485),DC12V
SBC35N21 v1.10 J1900/2.00G,1*SODDR3L,1*VGA,1*HDI,1*LVDS,0*eDP,2*LAN(RTL811H),5*USB,6*COM(COM2 for RS485),DC12V
(Need to be specifically mentioned if you need a fanless version)
