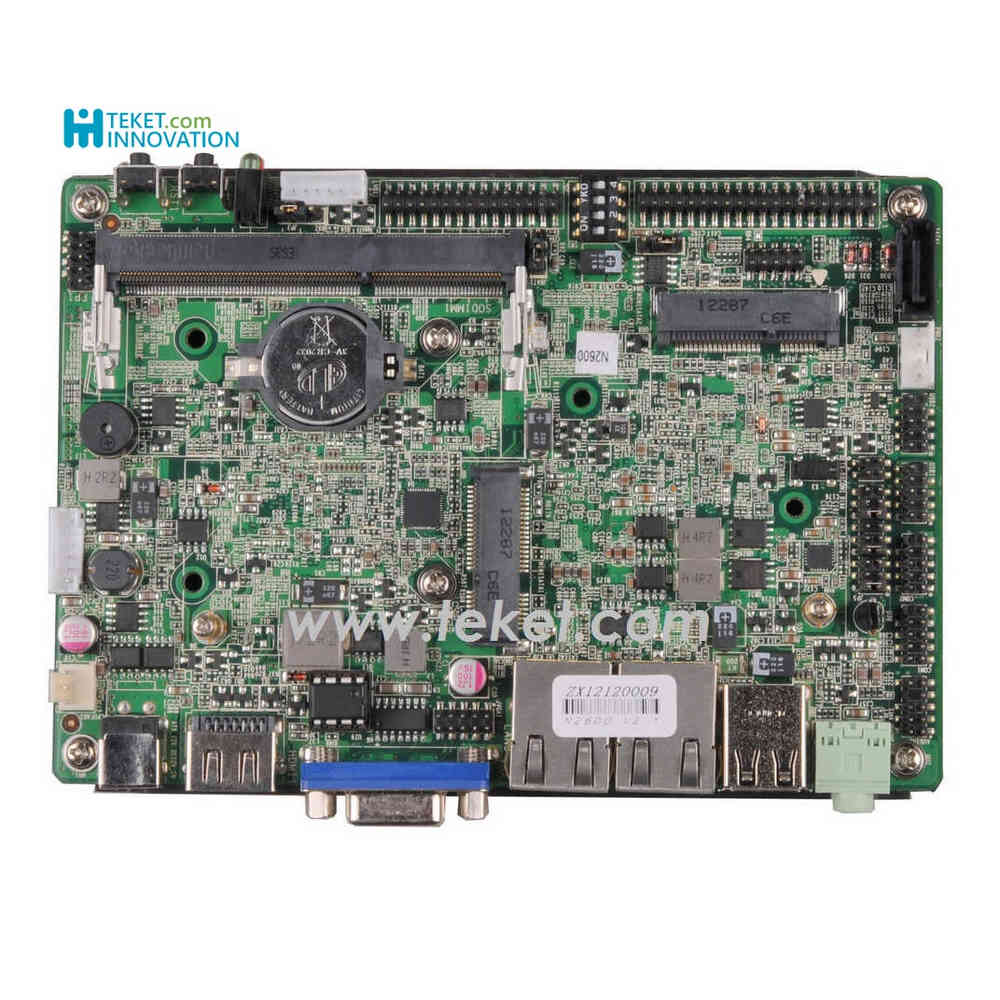

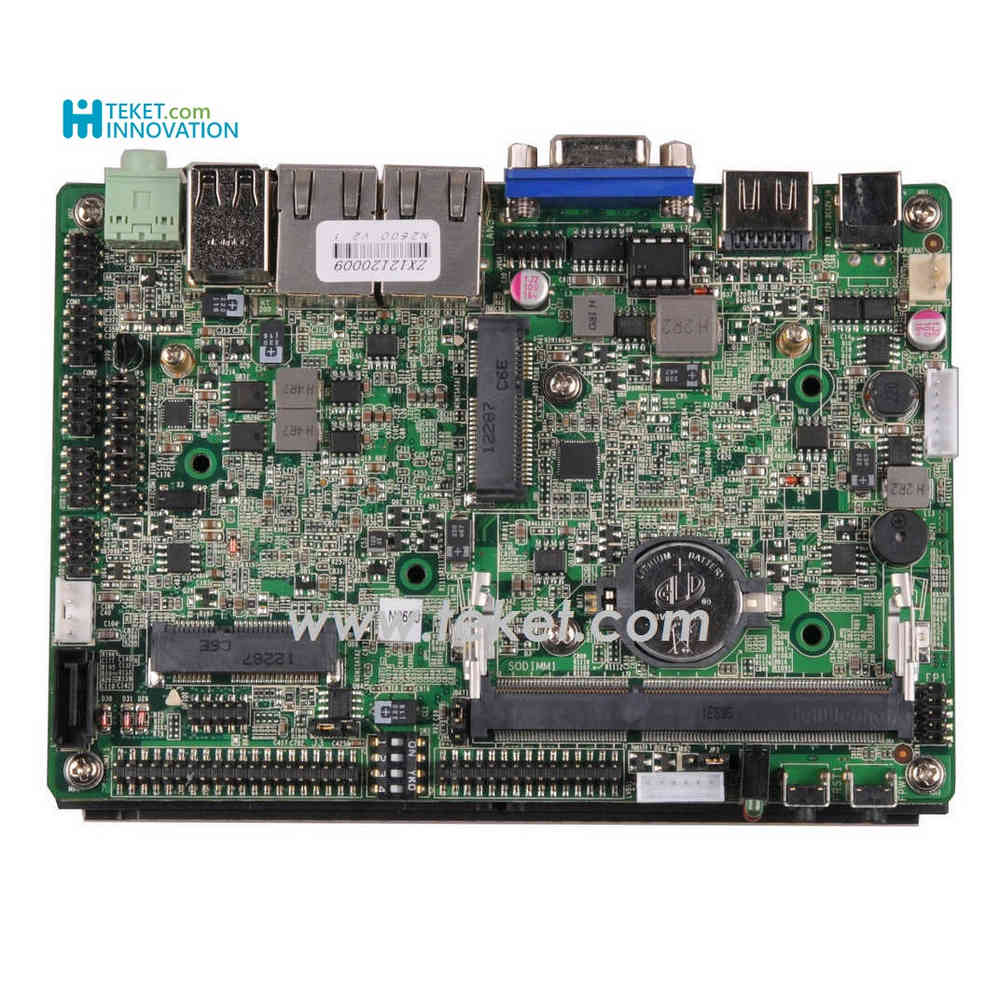

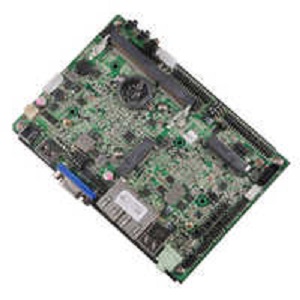

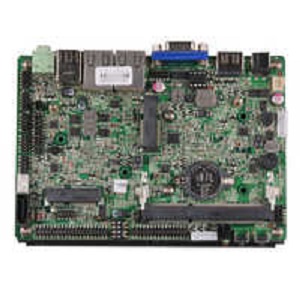

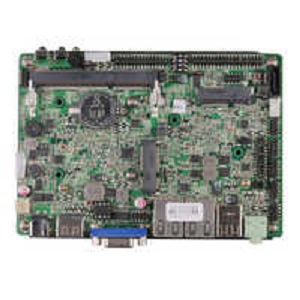

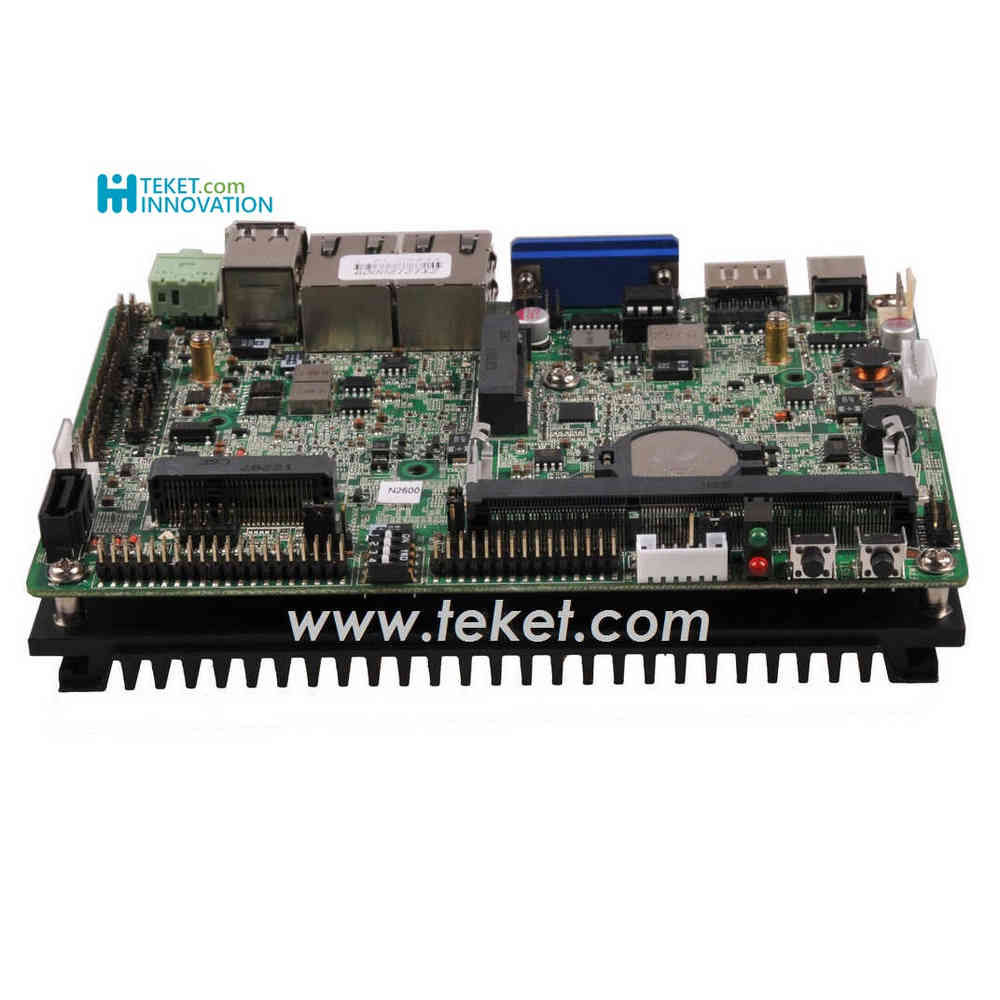

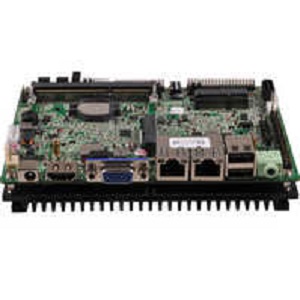

Intel Atom SBC 3.5" Motherboard SBC35N26 dual lan ports

For Industral
Atom N2600
SBC35N26 VER:1.2
Integrated Intel® Atom N2600 1.66GHZ dual core processor( N2800 1.86GHZ dual core processor optional)
Adopt Intel® NM10 Express chipset
1* DDR3 SODIMM ,support 1333/1066MHz memory, up to 4GB
Integrated 2* Realtek RTL8111F Gigabit EthernetSupport wake on LAN/PXE

1),This board have two mini pcie slot, one full height for msata ssd (for example teket msata-008m), one half height for wifi card (for example intel 3945abg), Our company can provide msata ssd and wifi card too.

2),This baord support 1080p playback, 12v dc in, support fanless, support audio interface, two lan ports, x86-based platform support all kinds of OS included Ubuntu. this is standard intel platform and this platform have good compatibility. industrail grade.



CPU
Integrated Intel® Atom N2600 1.66GHZ dual core processor( N2800 1.86GHZ dual core processor optional)
Chipset
Adopt Intel® NM10 Express chipset
Memory
1* DDR3 SODIMM ,support 1333/1066MHz memory,up to4GB
Graphics
Integrated Intel® 3600 Graphics
Provide 1*VGA、1*HDMI , 1* support single channel24bit LVDS,
Support single display, double display mode, extended mode
LAN
Integrated 2* Realtek RTL8111F Gigabit Ethernet
Support wake on LAN/PXE
Storage
Provide 1* SATA2.0 HDD interface, the transfer rate up to3Gbps
Provide 1* MSATA slot,support WIFI(optional),SSD(support intel protocol,the transfer rate up to3Gbps)
Audio
Onboard ALC662 6-channel high fidelity audio controller,support MIC/Line-out,amplifier
Amplifier proposed using 3Ω2W speakers
Expansion slots
1* Mini-PCIE slot supportWIFI/3G module

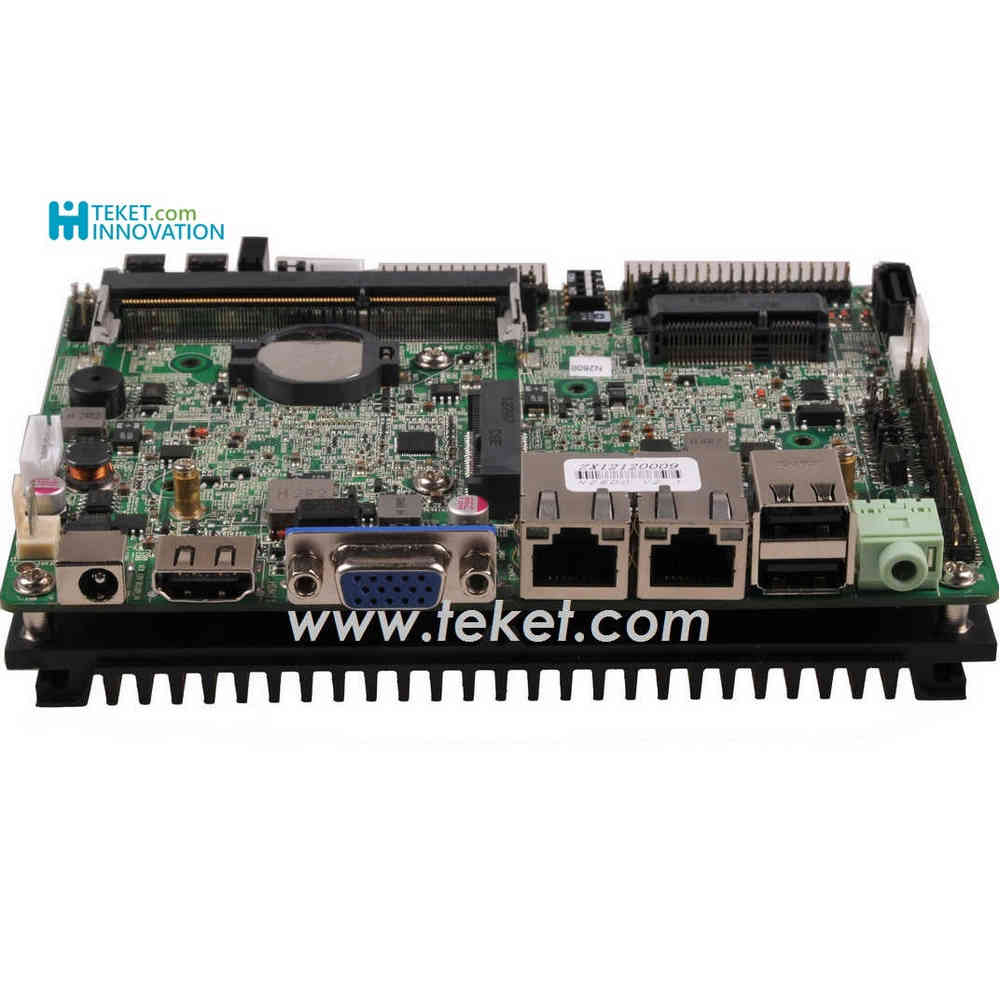

Rear I/O
1* 12V DC power input
1* HDMI
1* VGA
2* USB 2.0
2* RJ-45 Gigabit Ethernet connector
1* Line out (Green)
1* power switch
1* reset switch
1* Power/HDD LED
Internal I/O
1* 4pin ATX 12V power input/output interface
1* JVGA1 2*5Pin same signal with DB15
1* support single channel 24bit LVDS 2*10pin
1* LVDS Backlight power supply connector 1*6Pin
1* front panel audio connector 2*5pin
1* front panel power amplifier connector 1*4Pin
4* USB 2.0 2*5Pin
1* front panel function buttons and indicator connector 2*5pin
6* RS232 serial port, COM2 supportRS485/422
1* HDD power supply interface
1* PS/2 KB/MS connector 1*6Pin
FAN interface

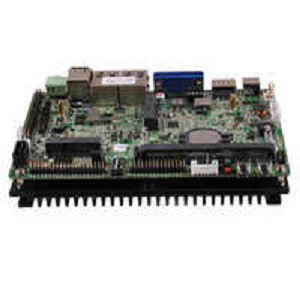

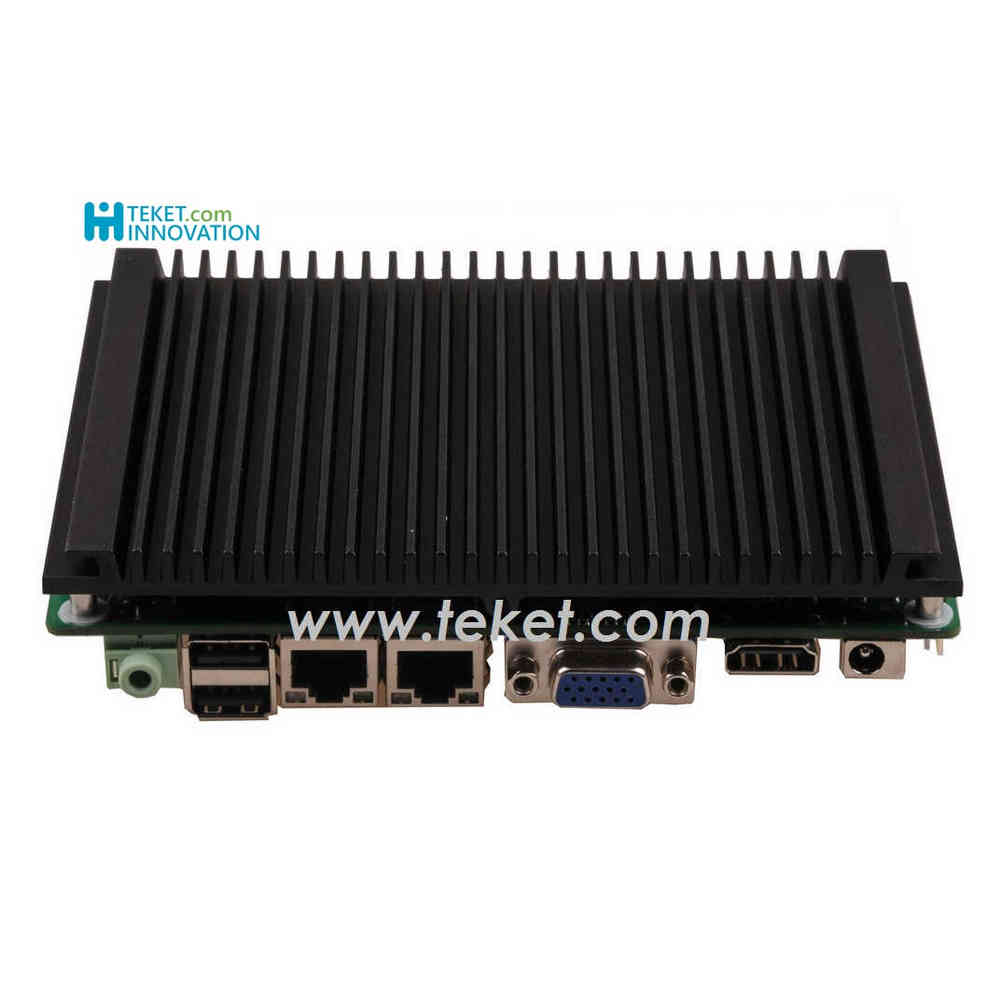

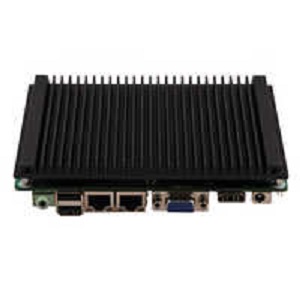

Fanless Cooling design , Reserve 1* 3pinCPU FAN interface
GPIO
Support 4 way input and output GPIO
BIOS
16Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 12V power supply
Operating Temp.
-10℃~60℃
Storage Temp
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
148mm x 102mm


Order Information
SBC35N26 ver1.2 3.5",N2600,1.66G,1*SODDR3,1*VGA,1*HDMI,1ch24bitLVDS,2*LAN(RTL8111F),6*USB,6*COM(COM2 for RS485/422),12VDC
SBC35N28 ver1.2 3.5",N2600,1.86G,1*SODDR3,1*VGA,1*HDMI,1ch24bitLVDS,2*LAN(RTL8111F),6*USB,6*COM(COM2 for RS485/422),12VDC
