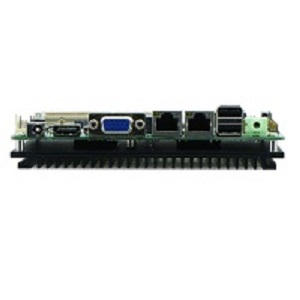

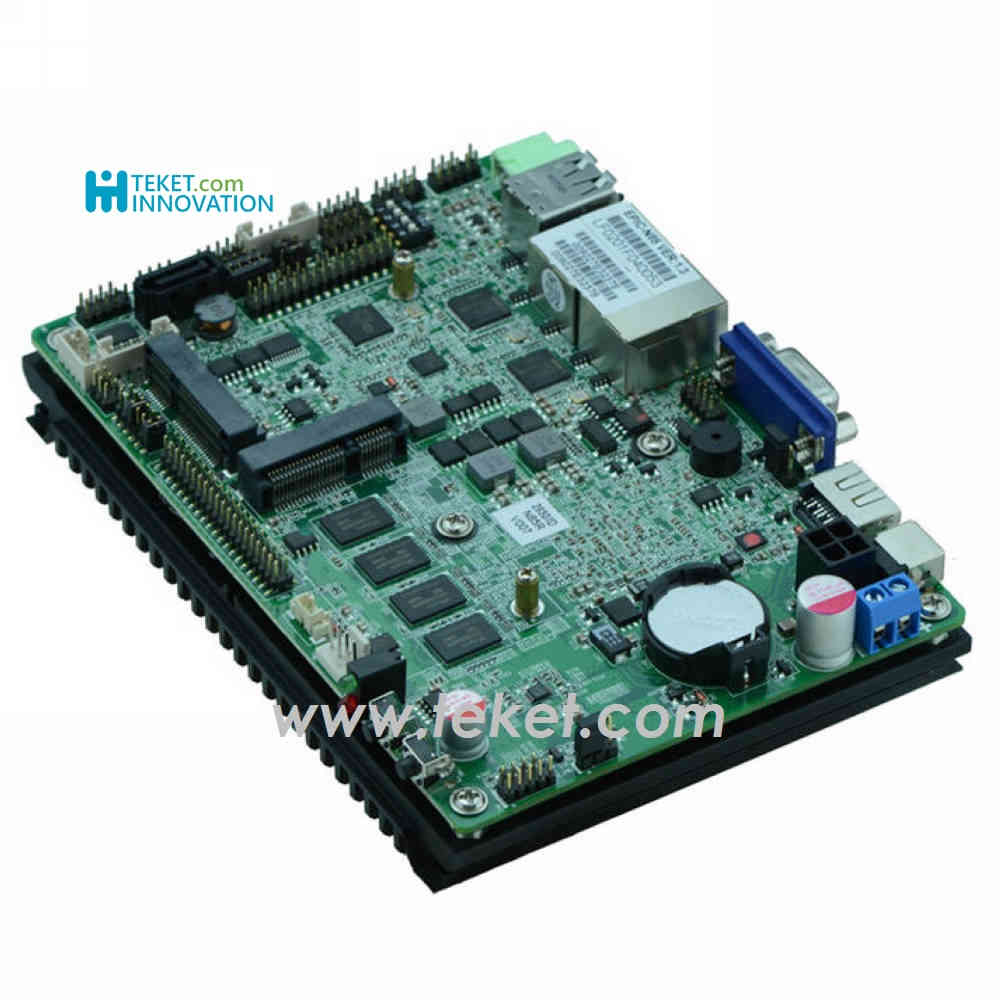

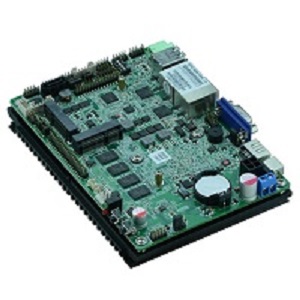

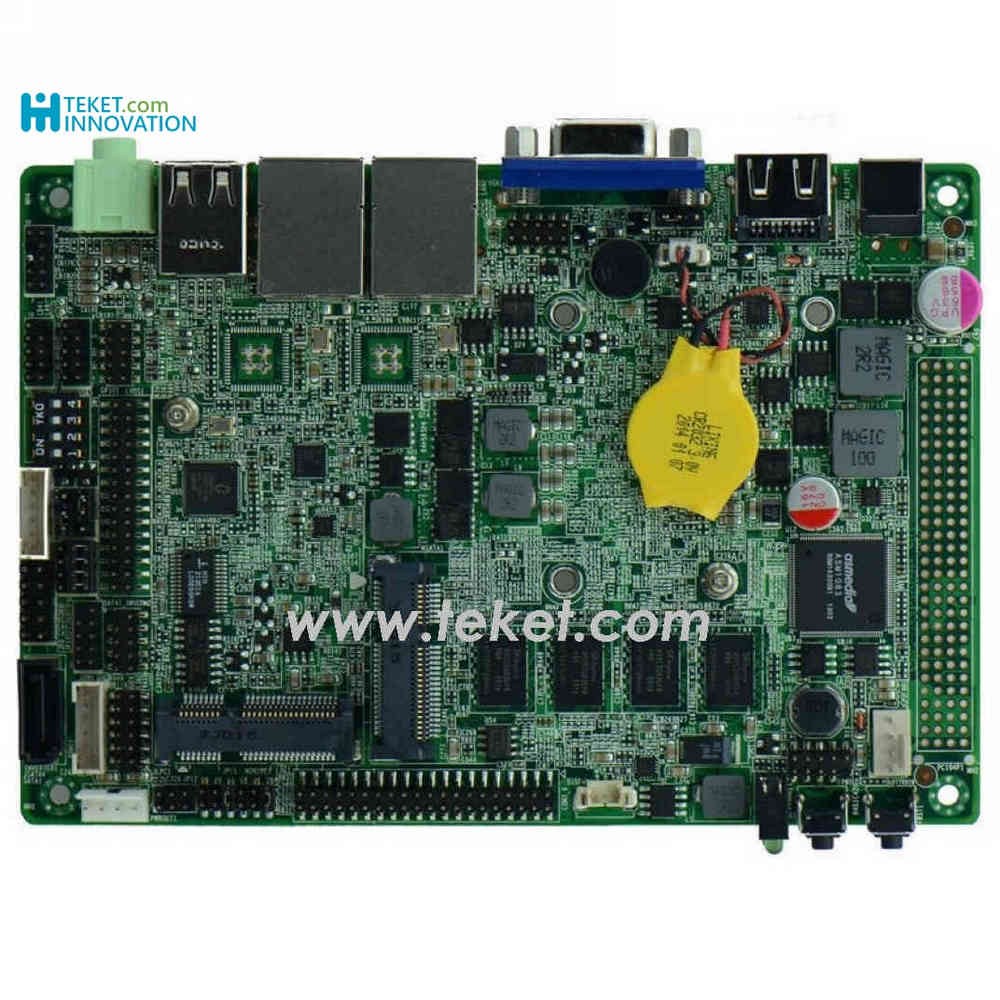

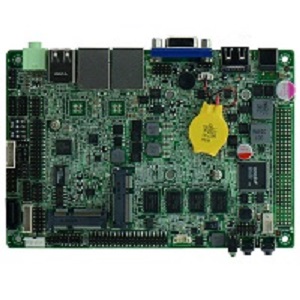

For Embedded Industral
Bay Trail /N2930
SBC35N29 VER:1.3
Integrated Intel®N2930/1.83GHz Quad core processor,TDP7.5W
Based on Intel® Bay trail SOC platform
Onboard DDR3L 4GB high speed memory
Integrated Intel®HD Graphics

1),This board have two mini pcie slot, one full height for msata ssd (for example teket msata-008m), one half height for wifi card (for example intel 3945abg), Our company can provide msata ssd and wifi card too.

2),This baord support 1080p playback, 12v dc in, support fanless, support audio interface, two lan ports, x86-based platform support all kinds of OS included Ubuntu. this is standard intel platform and this platform have good compatibility. industrail grade.

Intel® Celeron® Processor N2930 (2M Cache, up to 2.16 GHz)
Launch Date Q1'14
# of Cores 4
# of Threads 4
Processor Base Frequency 1.83 GHz
Burst Frequency 2.16 GHz
TDP 7.5 W
Scenario Design Power (SDP) 4.5 W
ocessor Graphics ‡ Intel® HD Graphics
Graphics Base Frequency 313 MHz
Graphics Burst Frequency 854 MHz

Intel? Celeron? Processor N2920 (2M Cache, up to 2.00 GHz)
Launch Date Q4'13
# of Cores 4
# of Threads 4
Processor Base Frequency 1.86 GHz
Burst Frequency 2 GHz
TDP 7.5 W
Scenario Design Power (SDP) 4.5 W
Processor GraphicsIntel? HD Graphics
Graphics Base Frequency 313 MHz
Graphics Burst Frequency 844 MHz

Intel? Celeron? Processor J1900 (2M Cache, up to 2.42 GHz)
Launch Date Q4'13
# of Cores 4
# of Threads 4
Processor Base Frequency 2 GHz
Burst Frequency 2.42 GHz
TDP 10 W
Processor GraphicsIntel? HD Graphics
Graphics Base Frequency 688 MHz
Graphics Max Dynamic Frequency 854 MHz

Model
SBC35N29 VER:1.3
CPU
Integrated Intel®N2930/1.83GHz Quad core processor,TDP7.5W
Chipset
Based on Intel® Bay trail SOC platform
Memory
Onboard DDR3L 4GB high speed memory
Graphics
Integrated Intel®HD Graphics

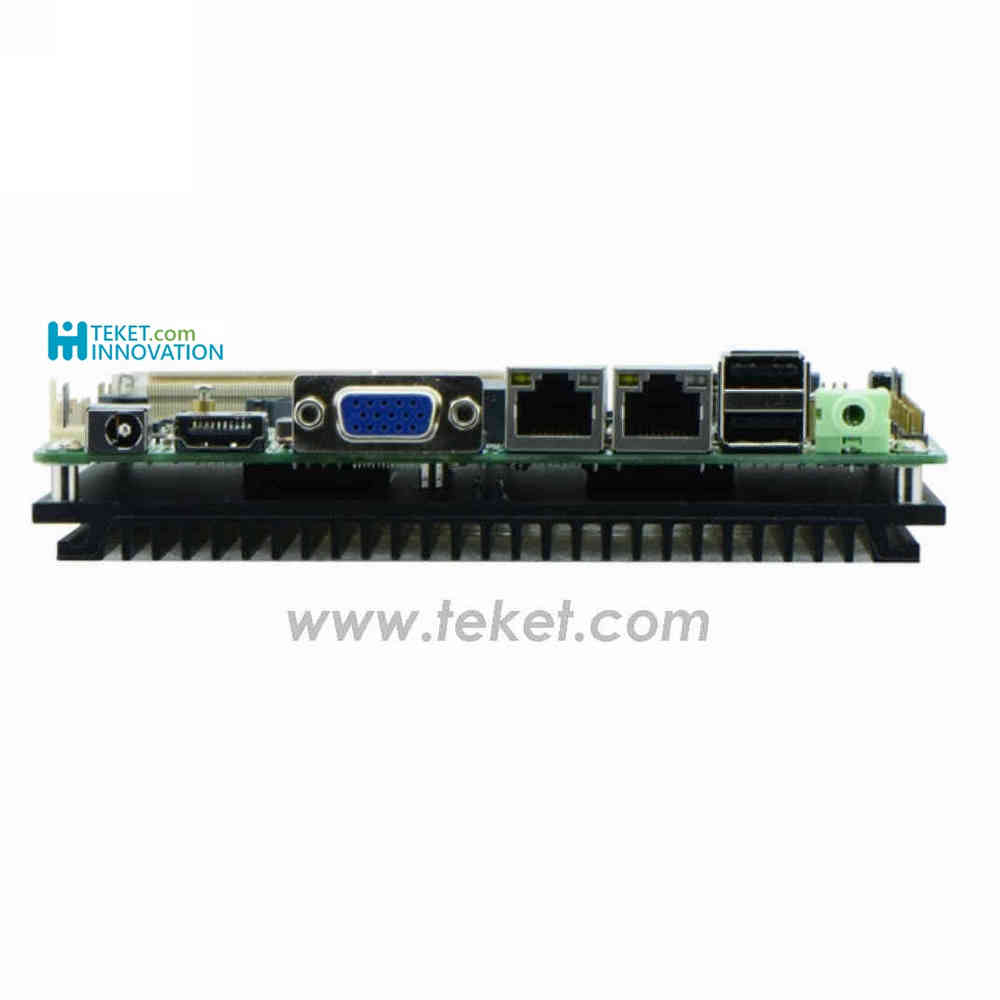

Provide 1*VGA,1*HDI,1*LVDS (support dual channel 24BIT)
Support VGA;HDI;LVDS synchronous/asynchronous display
LAN
2* Intel 82583V Gigabit Ethernet, support wake on LAN/PXE
Storage
Provide 1* SATA2.0 HDD interface the transfer rate up to3Gbps
1* MSATA slot , support SSD/WIFI,the SSD transfer rate up to 3Gbps
1* JSATA hard disk pin interface, with SATA two choose one
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,
Expansion slots
1* Mini-PCIE slot ,supportWIFI/3G module
Rear I/O
1* HDI
1* VGA
2* RJ-45 Gigabit Ethernet connector
2* USB 2.0
1* Line out( Green)
1* 9~36V DC power input
1* power switch
1* RESET
1* power/HDD LED
Internal I/O
1* 4pin ATX power interface（can do 9~36V wide voltage power input/output interface）
4* USB 2.0 2*5Pin
1* JVGA 2*5Pin
1* PS/2 KB/MS connector 1*6Pin
6* RS232 serial port, COM2 supportRS485/RS422
1* front panel audio connector2*5pin
1* front panel function buttons and indicator connector 2*5Pin
1* LVDS 2*15pin, support dual channel24bit(double 8)
1* LVDS backlight power supply connector
1* HDD power supply connector
1* SIM card socket
1* 2P blue power element
FAN interface
Fanless Cooling design,Reserve 1*4pin CPU FAN interface,1* 3pin system Fan interface
GPIO
Support 4 way input and output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
DC_8V~36V power input
Operating Temp.
-10℃～60℃
Storage Temp.
-20℃～70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension

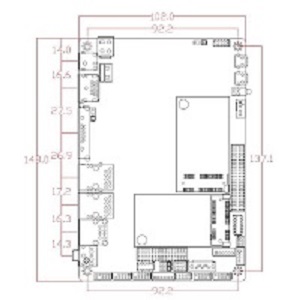

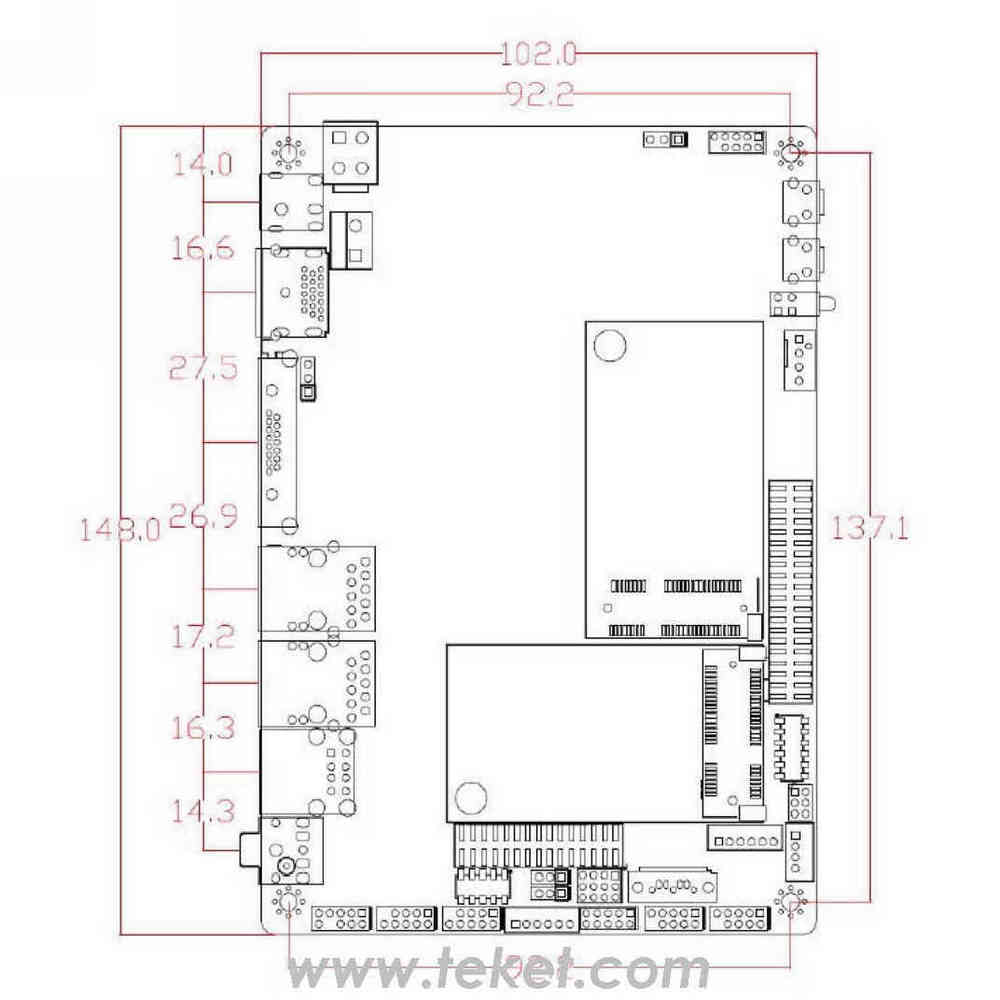

146mm x 102mm

Order Information
SBC35N29 v1.3 N2930/1.83G,4G onboard,Intel HD,LAN 2*82583V,Audio ALC66,Dual 24bit LVDS,1*VGA,6*USB,6*COM,RS485/RS422(COM2).DC8-36V

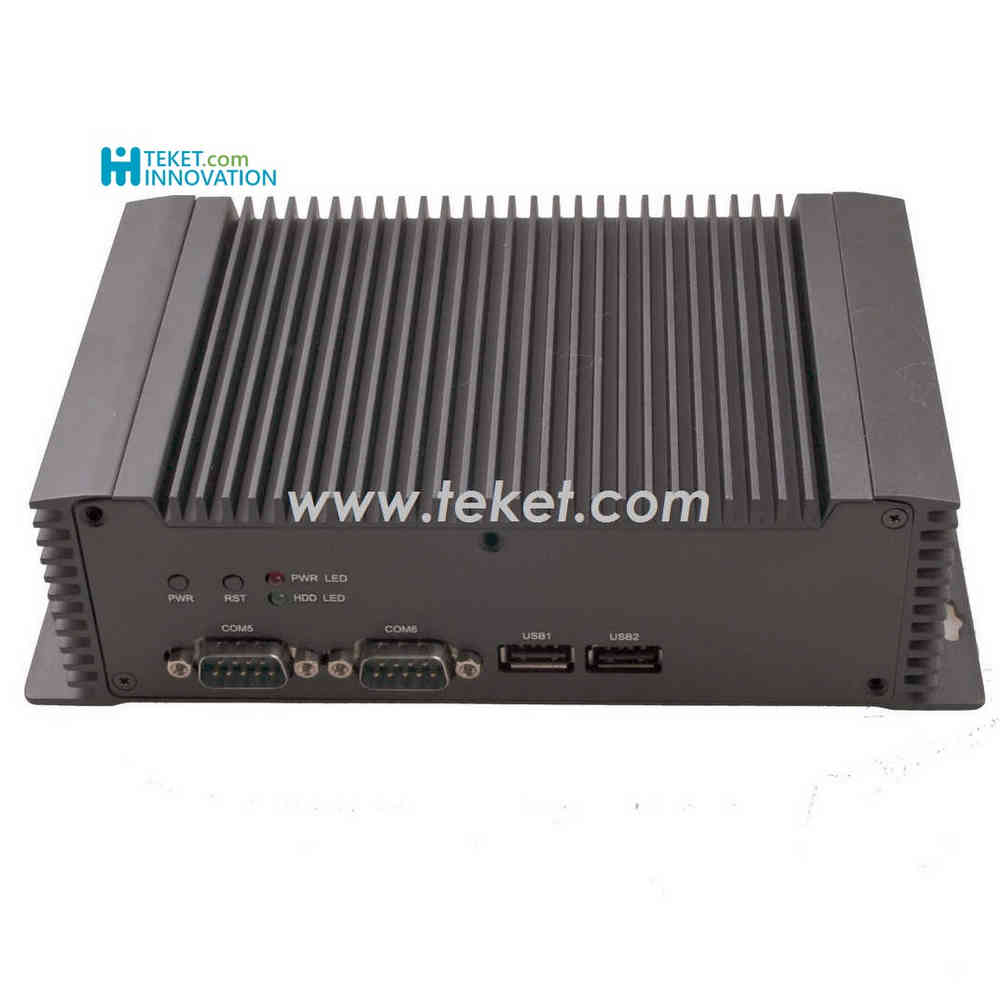

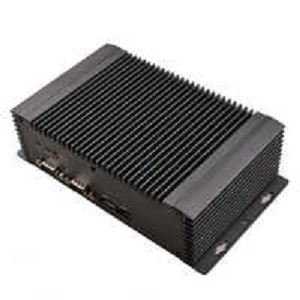

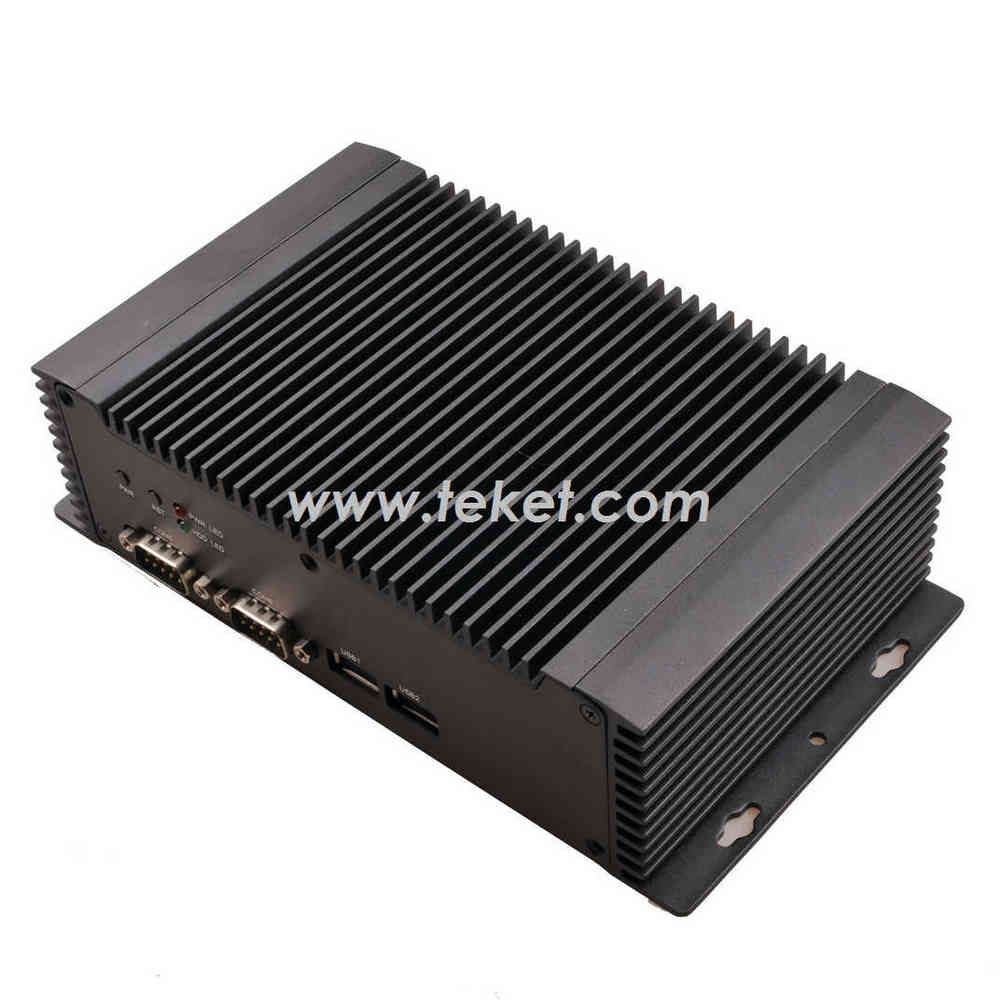

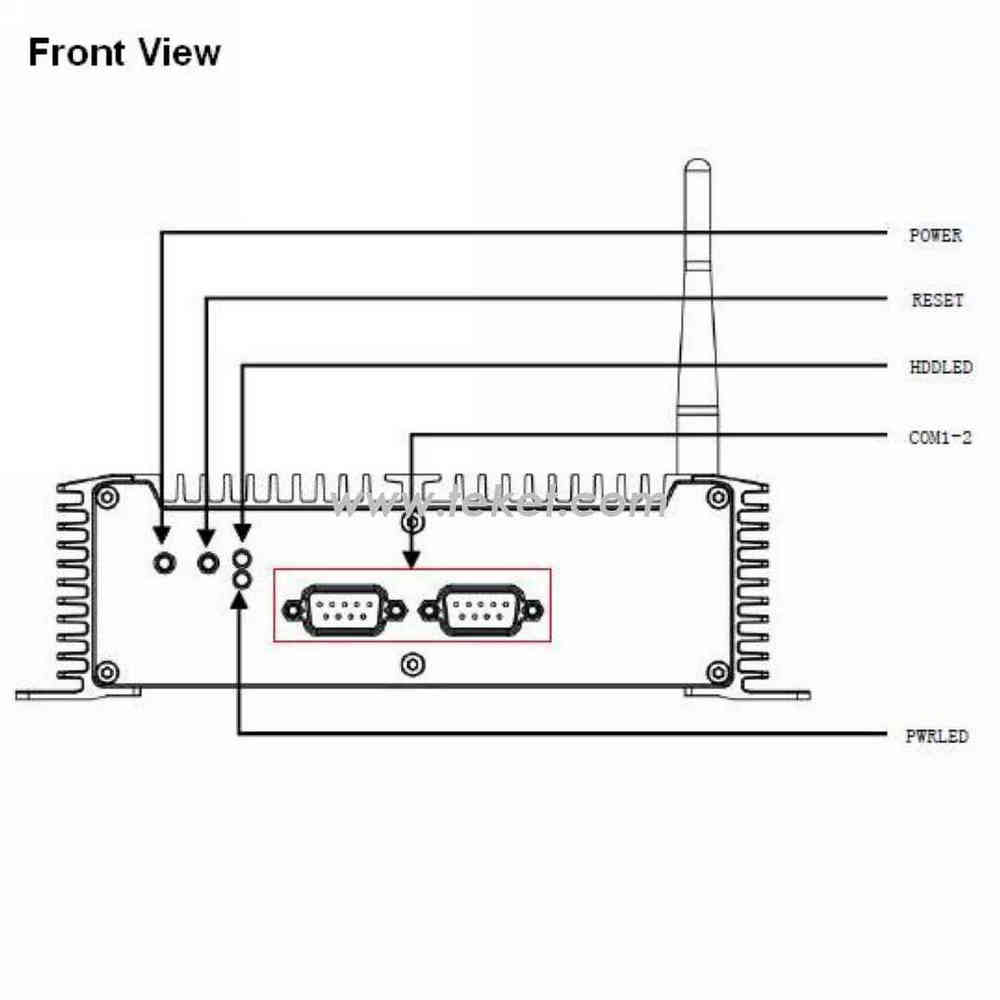

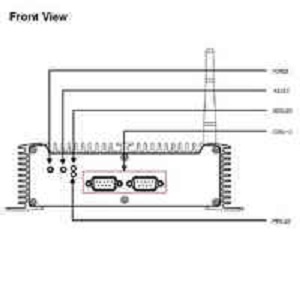

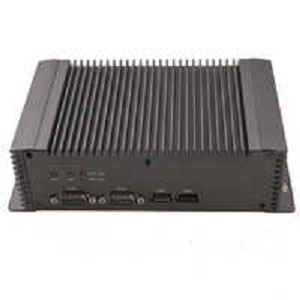

3.5" Embedded fanless Industral PC
model: N29ECM-HDI
Fanless heat sink structure
AI alloy chassis, compact structure, flexible installation
Supports WIFI and 3G network expansion,provides 1*SIM card slot
1xVGA/1xHDI
2*Intel 82583V Gigabit Ethernet port ,supports Wake On LAN

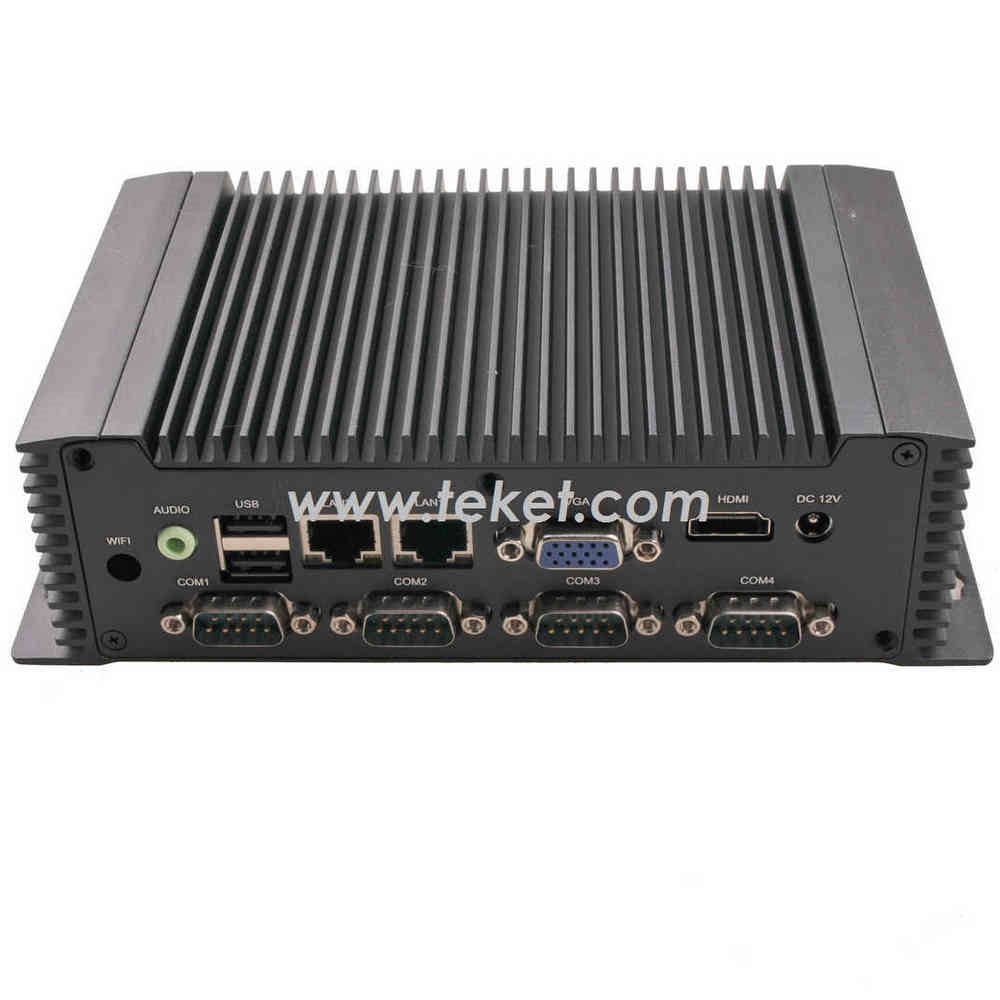

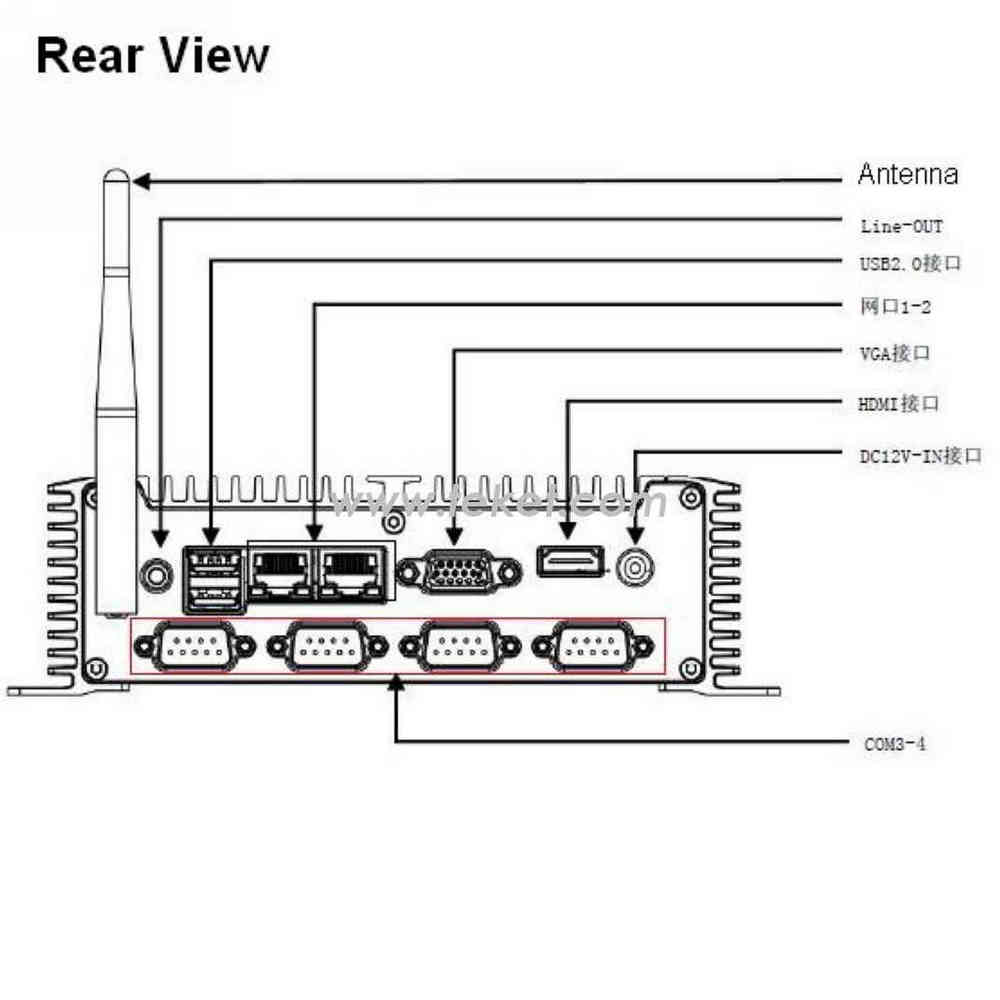

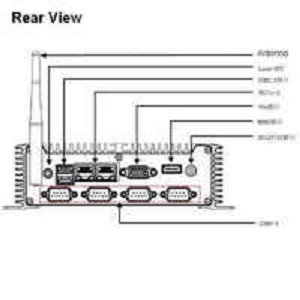

Rich I/O:6xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHMDI

Chassis
Color:Black
Size: 182mm*108mm*63.5mm (L*W*H)
Structure: AI alloy Fanless design

Material: AI alloy
Motherboard

Model No. SBC35B29 (N2930)
Processor: BAY Trail platform N2930 CPU
Graphics: Intel®HD Graphics
Memory: onboard 4G memory
Storage
2.5’ HDD: N/A
CF: N/A
SSD: optional
System Feature
Ethernet: 2* LAN (Intel 82583V)
USB: 6* USB2.0
Serial Port: 6* COM, COM2 supports RS485
Display: 1* VGA / 1*HDI
Audio: 1* MIC,1*Line-out
Expansion Interface
2* MINIPCIE (one is MSATA,the other one is WIFI interface)
Indicator
1 for power state, 1 for HDD
System Control
Power switch
Wireless
2* WIFI/3G SMA antenna (optional)
Power
12V/5A adapter (support 8V~36V input)
Reliability
Installation
Desktop or wall-mounted
Operating T -10°C~60°C
Storage T -20°C~70°C
Relative humidity 5%-95%, no condensing
Vibration 0.5g rms/5~500Hz/random operating



order information
N29ECM-HDI: N2930/2.0Ghz,SBC35N29 board, 4G RAM, 2*LAN(intel 82583V),6*COM,6*USB
