>>Your Current Position: Intel Motherboard

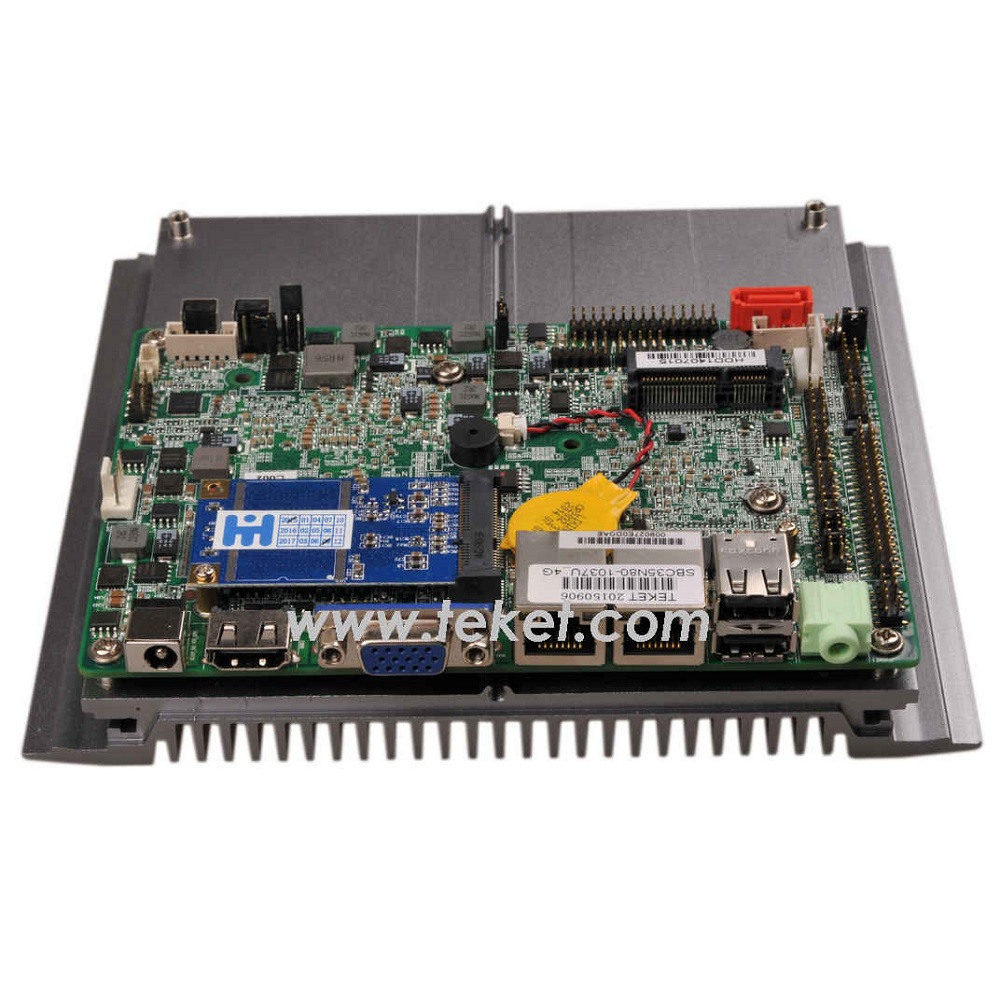

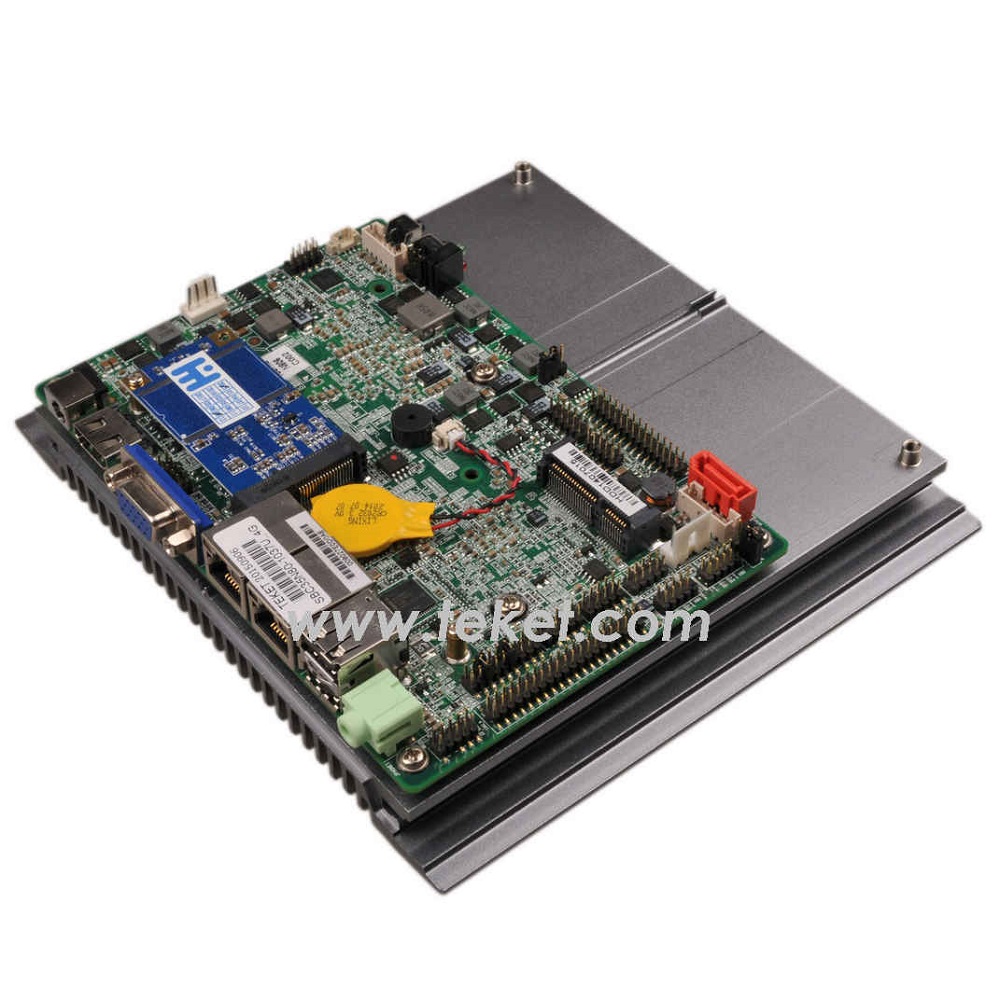

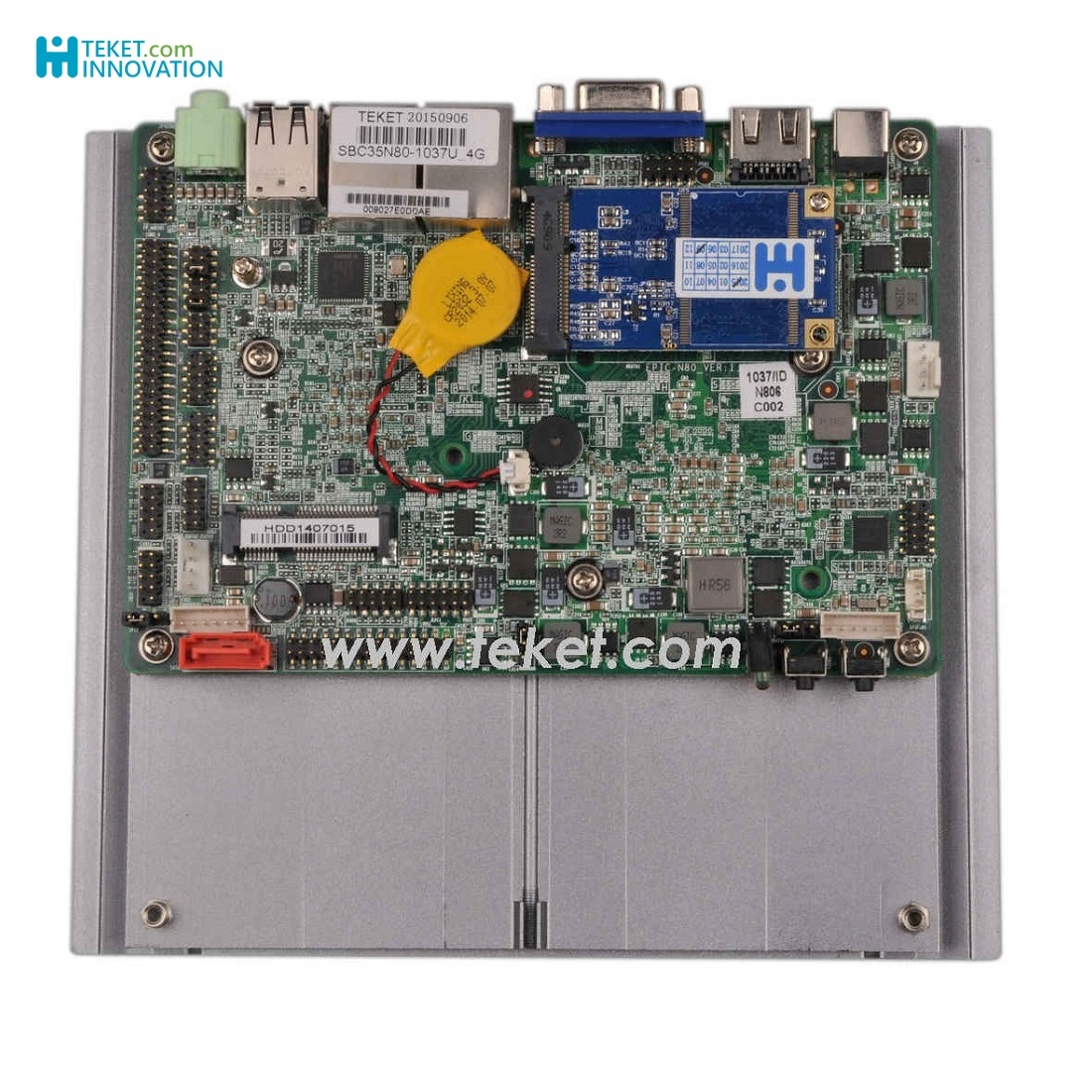

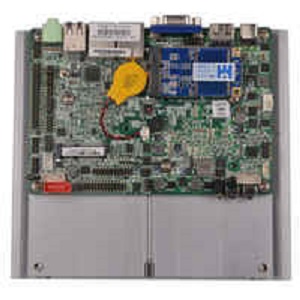

SBC 3.5" Intel I3-3217U Embedded Industral Board SBC35N80

For Enbedded Industral
Celeron-U
SBC35N80 ver1.2
Integrated Intel® 1037U 1.8GHz 22nm dual core processor TDP 17W
Intel® Sandy /Ivy Bridge Celeron/I3/I5/I7 BGA1023 low power processor
Adopt Intel® NM70 Express chipset
2* Intel® 82583V Gigabit Ethernet, support wake on LAN/PXE

1),This board have two mini pcie slot, one full height for msata ssd (for example teket msata-008m), one half height for wifi card (for example intel 3945abg), Our company can provide msata ssd and wifi card too.

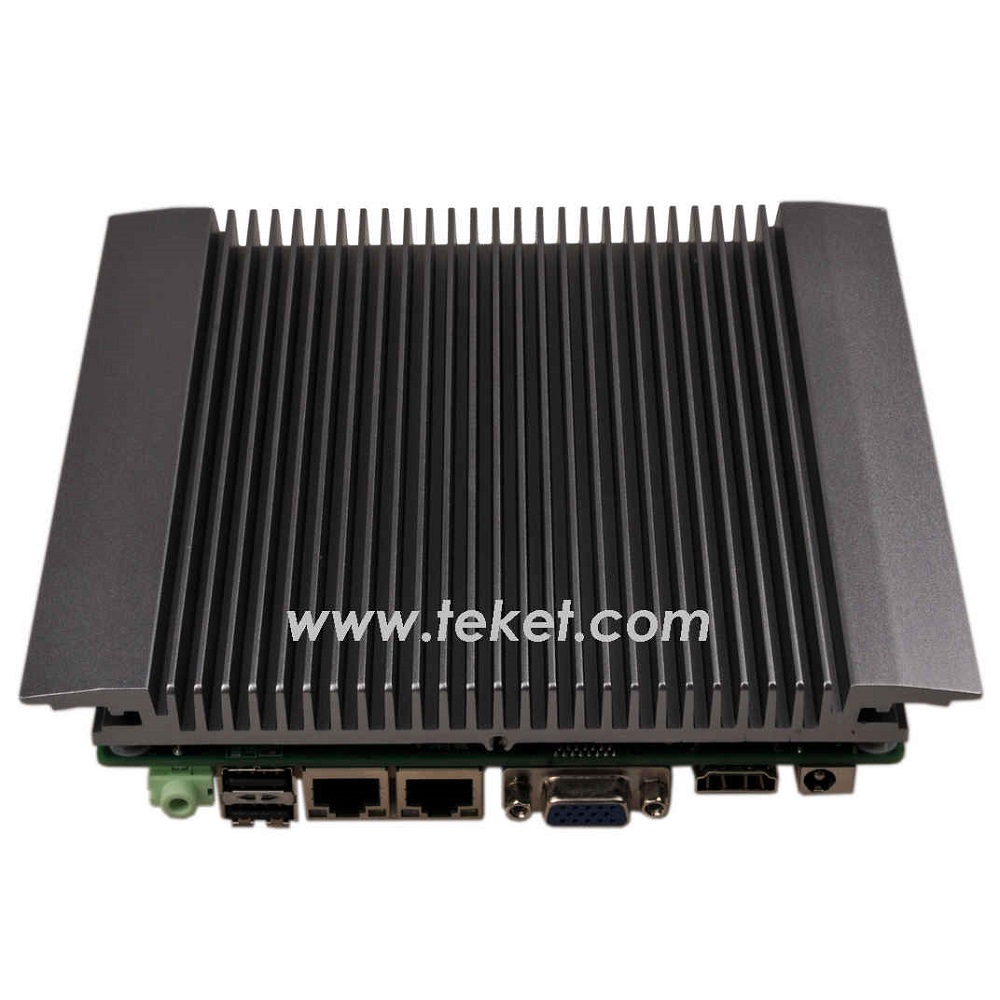

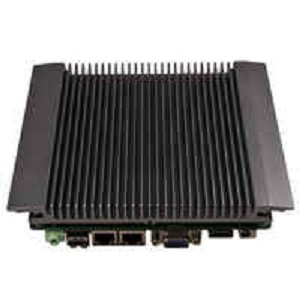

2),This baord support 1080p playback, 12v dc in, support fanless, support audio interface, two lan ports, x86-based platform support all kinds of OS included Ubuntu. this is standard intel platform and this platform have good compatibility. industrail grade.



CPU Intel® CPU I3-3217U on Board
Intel® Core™ i3-3217U Processor (3M Cache, 1.80 GHz)
Family: 3rd Generation Intel® Core™ i3 Processors
Release: Q2'12 Launch Date: Q2'12
# of Cores 2
# of Threads 4
Clock Speed 1.8 GHz
Intel® Smart Cache 3 MB
DMI 5 GT/s
Instruction Set 64-bit
Instruction Set Extensions AVX
Lithography 22 nm
Max TDP 17 W
Processor Graphics ‡: Intel® HD Graphics 4000

CPU
Integrated Intel® 1037U 1.8GHz 22nm dual core processor TDP 17W
Compatible Intel® Sandy /Ivy Bridge Celeron/I3/I5/I7 BGA1023 low power processor
Chipset
Adopt Intel® NM70 Express chipset
Memory
Onboard DDR3 2GB or4GB high speed memory
Graphics
Integrated Intel®HD Graphics
Provide 1*VGA,1*LVDS,dual channel 24bit,1*HDMI display output
Support single display, double display, double extension
LAN
2* Intel® 82583V Gigabit Ethernet, support wake on LAN/PXE
Storage
1* SATA2.0 HDD interface, the transfer rate up to 3Gbps
1* MSATA slot, support WIFI,SSD, the transfer rate up to 6Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller,support MIC/Line-out.
Expansion slots
1* MPCIE slot,support WIFI,USB WIFI,3G module

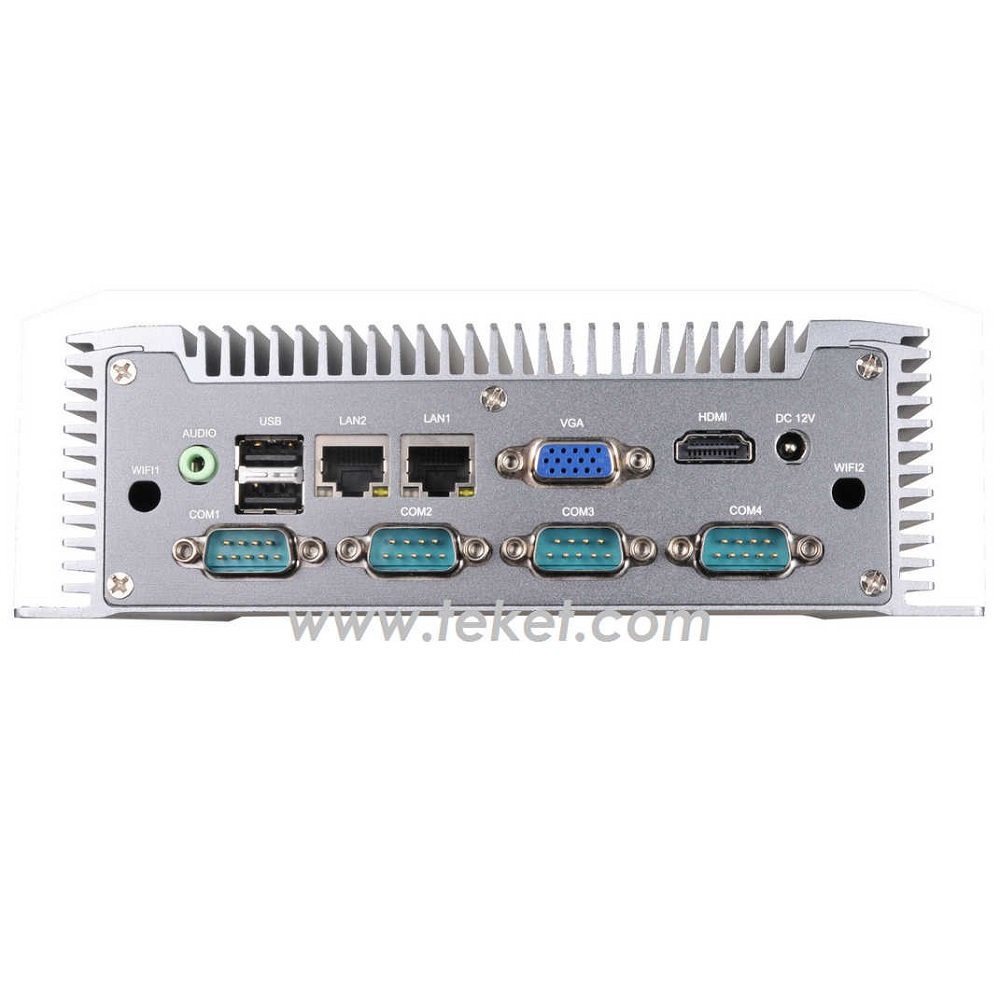

Rear I/O
2* USB 2.0
1* HDMI
1* VGA
2* RJ-45 Gigabit Ethernet
1* Line out (Green)
1* 12V DC_JACK power input
1* power switch,1* Reset switch (front panel)
1* power/HDD LED (front panel)
Internal I/O
1* LVDS 2*15pin
1* LVDS backlight power supply connector1*6pin
1* JVGA1 2*5pin,same signal with DB15
6* RS232 serial port,COM2 support485/422
1* TPM 2*6pin
4* USB 2.0 2*5pin
1* PS/2 KB/MS connector 1*6Pin
1* front panel audio connector front audi interface 2*5pin
1* front panel function buttons and indicator connector 2*5pin
1* JSATA2 2*5pin
1* SIM card socket
1* HDD power supply
FAN Interface
1* 4pin CPU Intelligent fan interface,1*3pin system fan interface
GPIO
support 4 way input/output GPIO
BIOS
AMI 32Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
DC_12V power input
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)

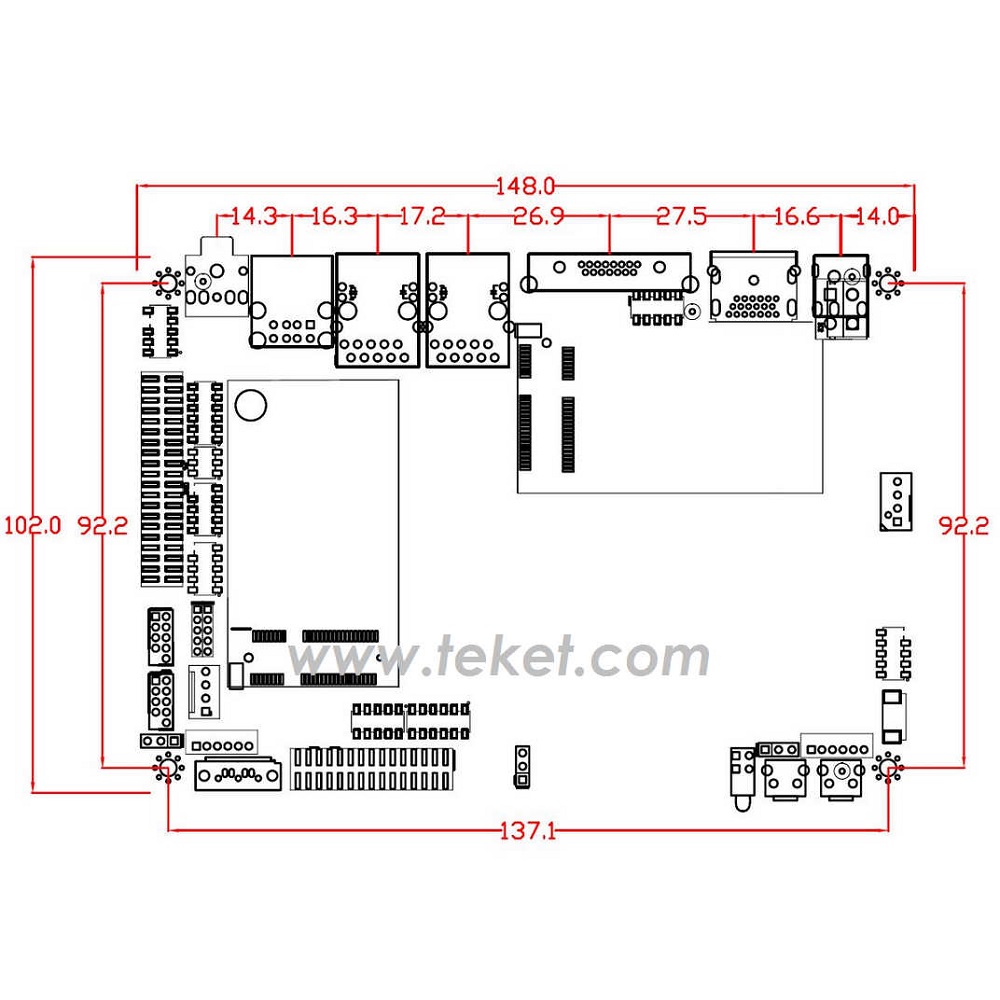

Dimension

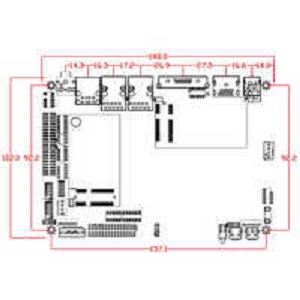

148mm x 102mm

Order Information
SBC35N80-1037U_2G ver1.2 3.5",1037U,1.80G,2G RAM,1*VGA,1*HDMI,2ch24bitLVDS,2*LAN(Intel82583V),6*USB,6*COM,12VDC
SBC35N80-1037U_4G ver1.2 3.5",1037U,1.80G,4G RAM,1*VGA,1*HDMI,2ch24bitLVDS,2*LAN(Intel82583V),6*USB,6*COM,12VDC
SBC35N80-I33217U_4G ver1.2 3.5",3217U,1.80G,4G RAM,1*VGA,1*HDMI,2ch24bitLVDS,2*LAN(Intel82583V),6*USB,6*COM,12VDC
SBC35N80-I53337U_4G ver1.2 3.5",3317U,1.70G,4G RAM,1*VGA,1*HDMI,2ch24bitLVDS,2*LAN(Intel82583V),6*USB,6*COM,12VDC
