>>Your Current Position: Intel Motherboard



3.5" Celeron 1037U or I3--3217U embedded industral board Al-In-One 12VDC

Intel Celeron 1037U 1.8Ghz,HD Graphics,built-in 2G RAM,2*MINI PCIe,2*LAN,6*COM,LVDS,HDMI+VGA,2*USB,1*SATA+1*SATA3.0,GPIO,SLIM,3G slot

Intel I3 3217U 1.7-2.6Ghz, HD Graphics,built-in 2G RAM,2*MINI PCIe,2*LAN,6*COM,LVDS,HDMI+VGA,2*USB,1*SATA+1*SATA3.0,GPIO,SLIM,3G slot

Intel? Celeron? Processor 1037U (2M Cache, 1.80 GHz) Q1'13
Launch Date Q1'13
Processor Number 1037U
# of Cores 2
# of Threads 2
Clock Speed 1.8 GHz
Intel? Smart Cache 2 MB
DMI 5 GT/s
Instruction Set 64-bit
Instruction Set Extensions SSE4.1, 4.2
Embedded Options Available No
Lithography 22 nm
Max TDP 17 W
Processor Graphics ? Intel? HD Graphics

Intel® Core™ i3-3217U Processor (3M Cache, 1.80 GHz)
Family: 3rd Generation Intel® Core™ i3 Processors
Release: Q2'12 Launch Date: Q2'12
# of Cores 2
# of Threads 4
Clock Speed 1.8 GHz
Intel® Smart Cache 3 MB
DMI 5 GT/s
Instruction Set 64-bit
Instruction Set Extensions AVX
Lithography 22 nm
Max TDP 17 W
Processor Graphics ‡: Intel® HD Graphics 4000

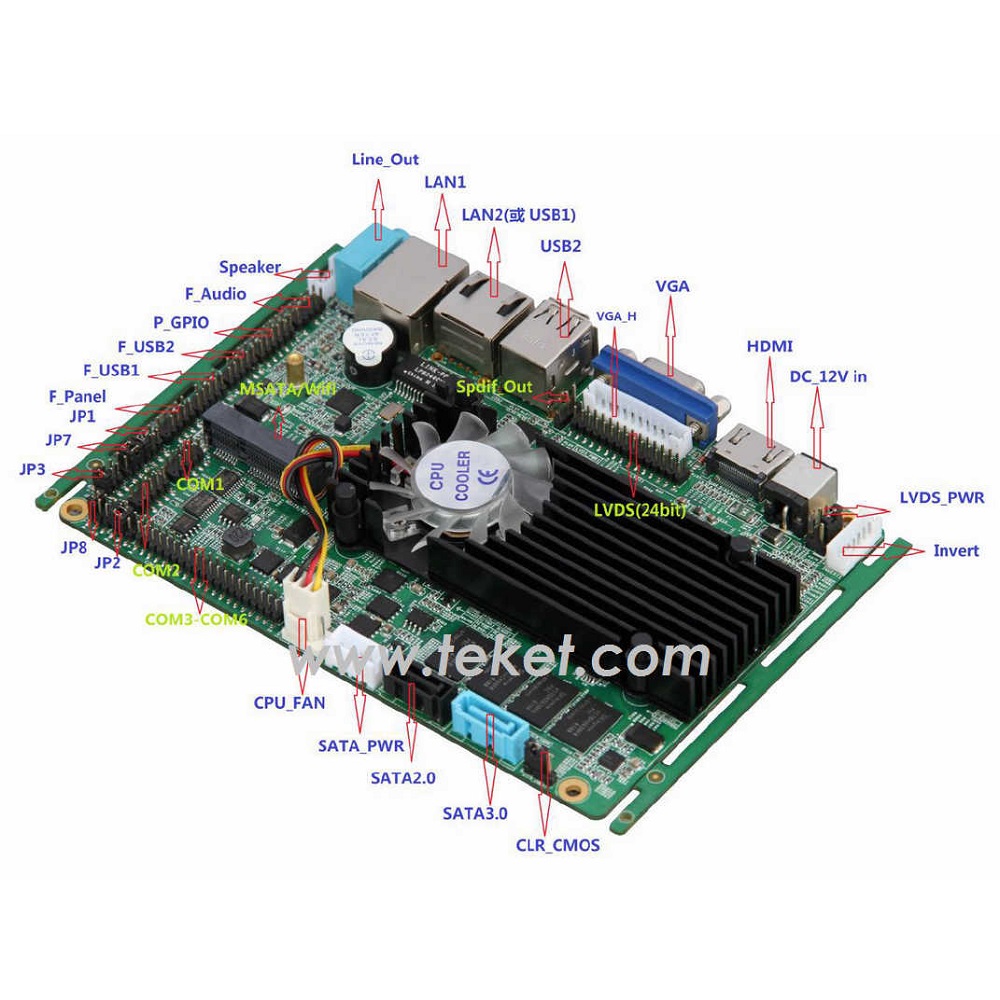

SBC35S6E spec:

Intel I3 3217U cpu,
1*SO DIMM DDR3, support 1066/1333 up to 8G
2*MINI-PCIe, support SSD/WIFI/3G, one for msata, other for wifi as default config
6*RS232 serial ports,all onboard header
1*RTL8111E, network wake up

Realtek ALC662 6 channels audio

Display Intel HD Graphics
1*VGA, 1*HDMI, 1*LVDS
Support HDMI1/VGA Synchronous/Asynchronous
Support LVDS/VGA Synchronous/Asynchronous
Support LVDS/HDMI1 Synchronous/Asynchronous
Support HDMI1/HDMI2 Synchronous/Asynchronous
1*MINI PCIe support WIFI/3G
1*MINI PCIe support SSD/WIFI SSD
Realtek ALC662 6CH support MIC Line-out
2*SATAII
1*SATAIII(blue)
1*12VDC power supply
1*fan

It's the latest evolution of 3.5 inch form factor industrial Motherboard with Dual GBE Lan
It is based on Intel Celeron 1037U or I3-3217U +NM70 chipset.Provide 2 Mini-PCIE and 1 Sim Slot to support Wifi/GPS/3G/MSATA
Onboard 2GB Ram, SATA (1 Sata 3.0, 2x Sata 2.0)and MSATA storage modes.
It supports 1080P HD and independent Dual view, 1 HDMI and 1 VGA . Dual Channel 24bit LVDS.

Motherboard Type
145x105mm,3.5 inch
Processor
Intel Celeron 1037U,Dual core 1.8G processor or I3-3217U 1.7-2.6Ghz processor
System Memory
Onboard 2GB Ram
Chipset
1037U+NM70 or I3-3217+HM76
Ethernet
2*Realtel 8111E,GBE RJ45
BIOS
32M AMI BIOS
Wake-on-LAN
Support WOL,PXE
Watchdog
Trigger a system reset when the timer overflows
H/W Status Monitoring
Monitor the state of voltage, temperature and rotational
speed of the fan
Expansion Interface
2xMini-PCIE,1xSim Slot.support Wifi/GPS/3G
Battery
Lithium battery
Power Supply
DC 12V Single power supply
Temperature
-10℃ - 60℃
Storage Temperature




Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Order Information
SBC35S6E-1037U
SBC35S6E-I33217U

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
