For Enbedded Industral
SBC40N42 VER:1.3
Bay Trail/J1900
Integrated Intel?J1900/2.00GHz Quad core processor,TDP10W
Based on Intel? Bay trail SOC
Support single channel 1600/1333MHz DDR3L/1.35V Memory, up to8GB
Integrated 1* Realtek RTL8111F Gigabit Ethernet, can do 2* Gigabit Ethernet support wake on LAN/PXE

1),This board have two mini pcie slot, one full height for msata ssd (for example teket msata-008m), one half height for wifi card (for example intel 3945abg), Our company can provide msata ssd and wifi card too.

2),This baord support 1080p playback, 12v dc in, support fanless, support audio interface, two lan ports, x86-based platform support all kinds of OS included Ubuntu. this is standard intel platform and this platform have good compatibility. industrail grade.

Model No.
SBC40N42 VER:1.3
CPU
Integrated Intel?J1900/2.00GHz Quad core processor,TDP10W
Chipset
Based on Intel? Bay trail SOC
Memory
Support single channel 1600/1333MHz DDR3L/1.35V Memory, up to8GB
Graphics
Integrated Intel?HD Graphics
Provide 1*VGA,1*HDI,1*LVDS(support dual channel 24BIT)
Support VGA;HDI;LVDS synchronous/asynchronous display
LAN
Integrated 1* Realtek RTL8111F Gigabit Ethernet, can do 2* Gigabit Ethernet support wake on LAN/PXE
Storage
Provide 1* SATA2.0, the transfer rate up to3Gbps）
1*MSATA slot，support SSD which support Intel protocol,the transfer rate up to 3Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier
Amplifier proposed using2Ω5W speakers
Expansion slots
Provide1* Mini-PCIE slot,support WIFI、3G module。
1* MSATA slot,supportWIFI(Optional)、SSD（Defalut SSD，support Intel protocol,the transfer rate up to 3Gbps）

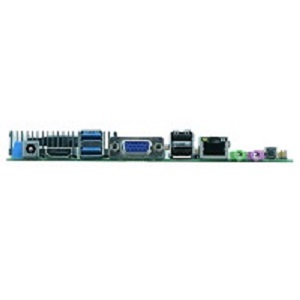

Rear I/O
1* 12V DC power input
1* HDI
1* VGA
1* RJ-45 Gigabit Ethernet connector(D26 support 2* Gigabit Ethernet connector)
1* USB3.0
3* USB 2.0 (SBC40N42-D26 support1*USB2.0, D16 support3*USB2.0)
1* Line out(Green)
1* MIC(Red)
1* power switch
Internal I/O
1* 2Pin power input（12V input/output power interface）
4* USB 2.0 2*5Pin(SBC40N42-D26 support4*USB2.0, D16 support2* USB2.0)
1* JVGA 1*12Pin
1* PS/2 KB/MS connector 1*6Pin
6* RS232 serial port, COM3 supportRS485/RS422 .
1* front panel audio connector 2*5pin
1* front panel power amplifier connector1*4Pin
1* LVDS 2*15pin，support dual channel 24bit(double 8)
1* LVDS backlight power supply connector
1* front panel function buttons and indicator connector 2*5Pin
1* HDD power supply connector
1* SIM card socket
Fan interface
1*4pin CPU fan
GPIO
support 4 way input/output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 12V power supply
Operating Temp.
-10℃～60℃
Storage Temp.
-20℃～70℃
Humidity
5%-95% (relative humidity; non-condensing)

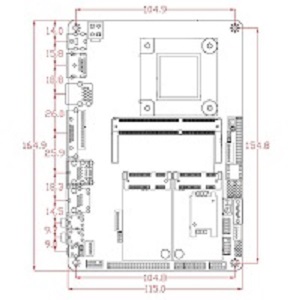

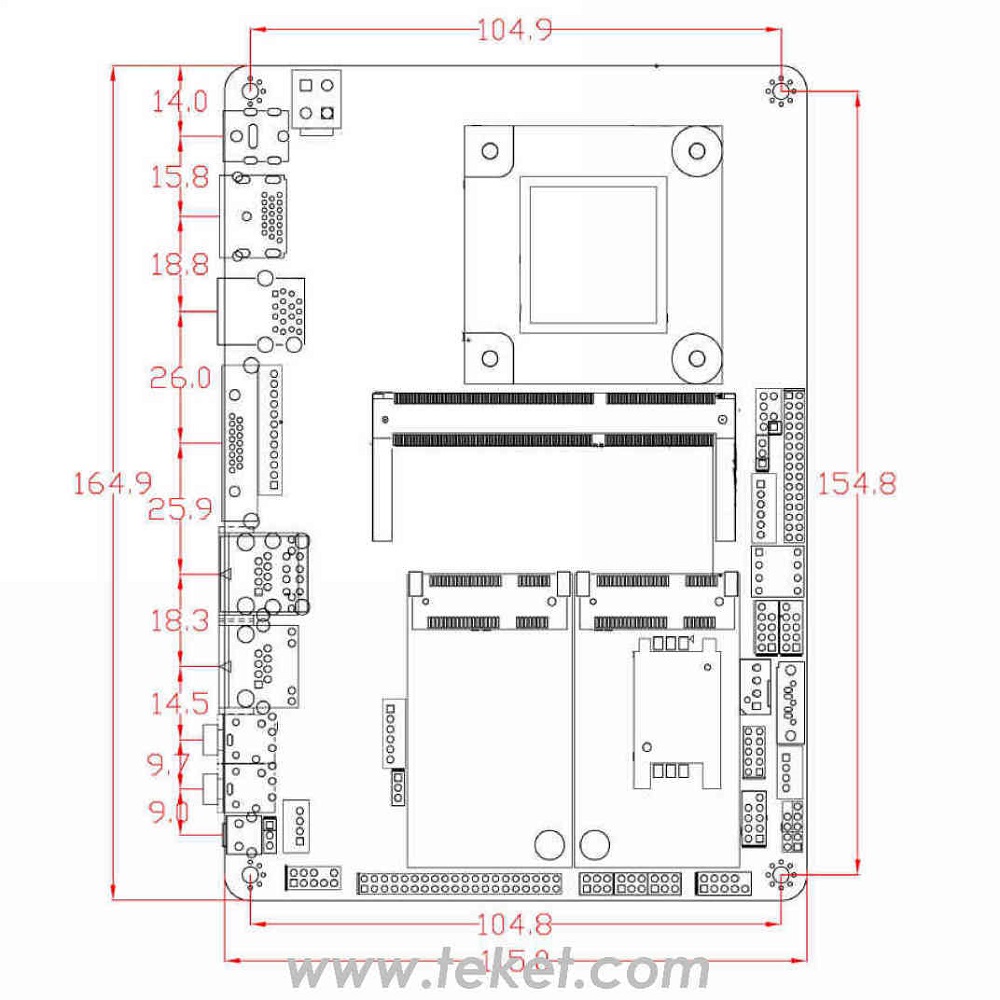

Dimension
165mm x 115mm

Order Information
SBC40N42-D16 ver1.1 4.0",J1900,2.0G.4C,1*SODDR3,1*VGA,1*HDI,2*24bitLVDS,1*LAN(RTL8111F),6*USB,6*COM,12VDC
SBC40N42-D26 ver1.3 4.0",J1900,2.0G.4C,1*SODDR3,1*VGA,1*HDI,2*24bitLVDS,2*LAN(RTL8111F),6*USB,6*COM,12VDC
