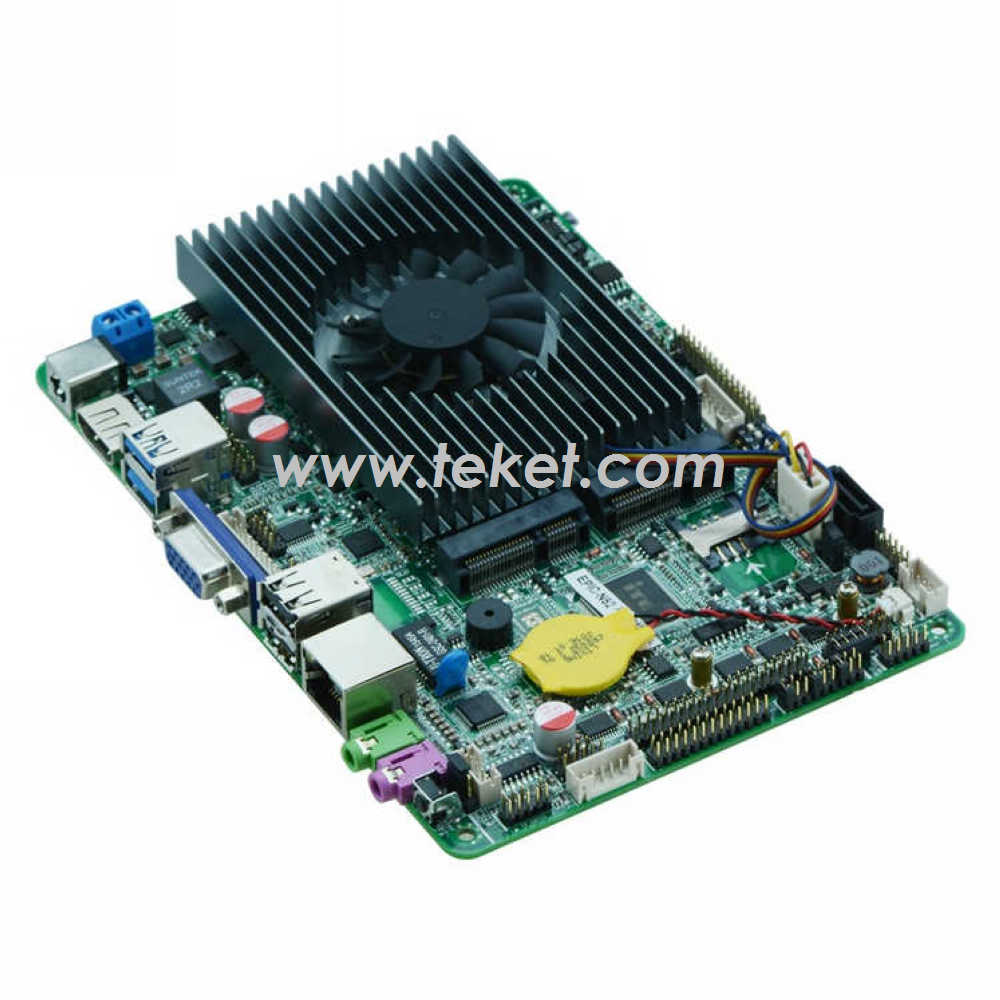

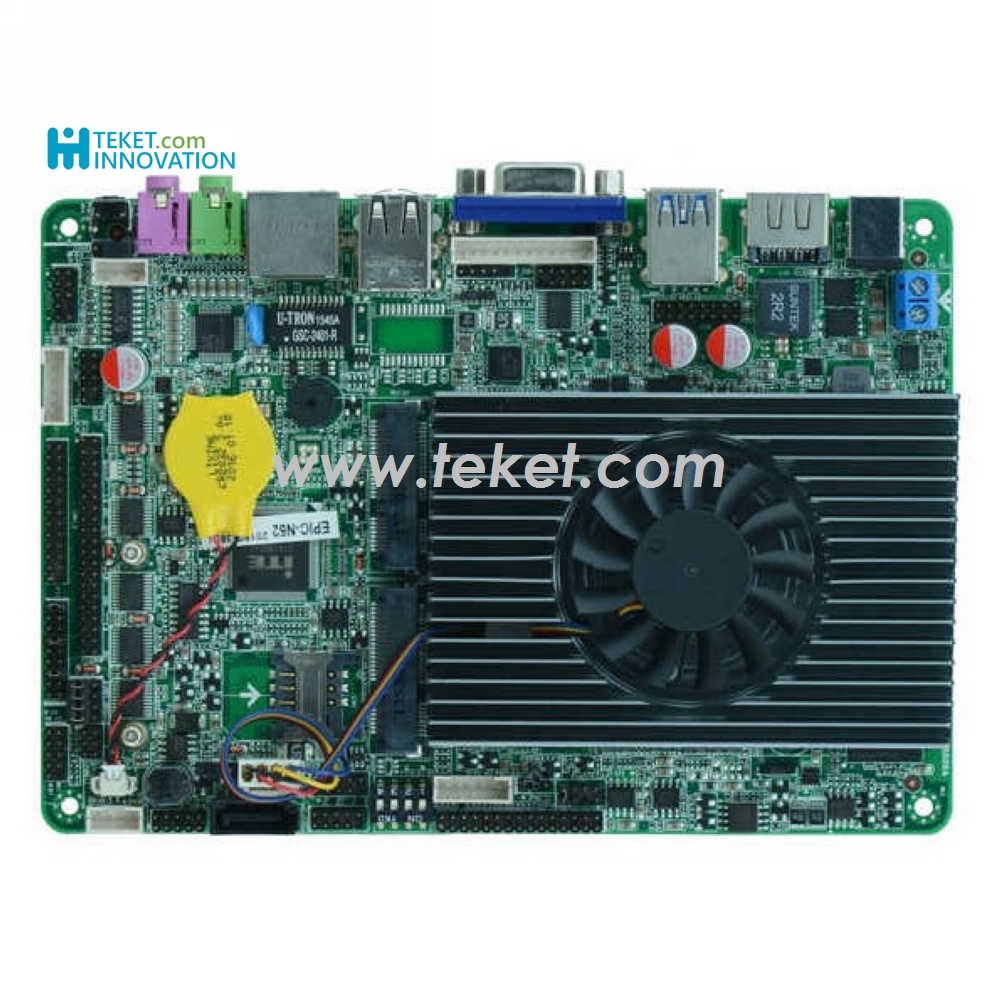

For Enbedded Industrial

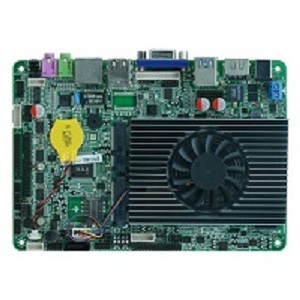

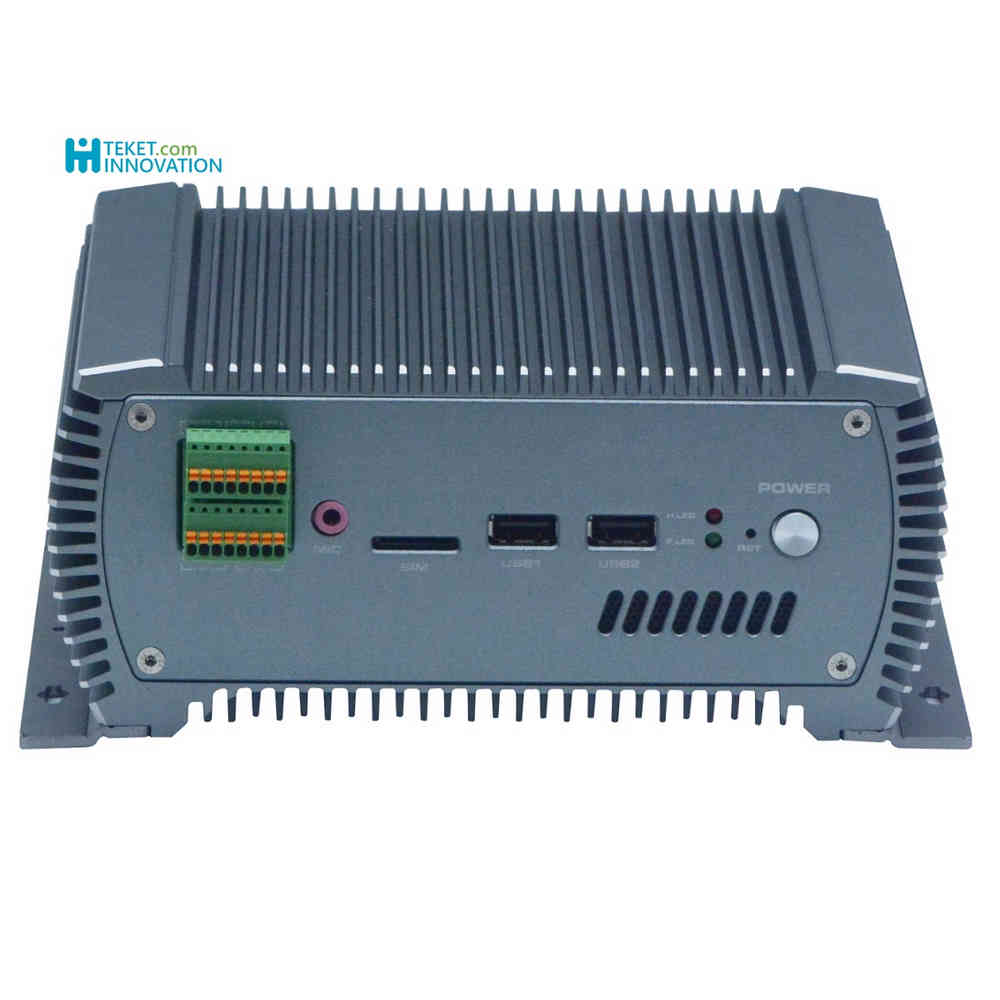

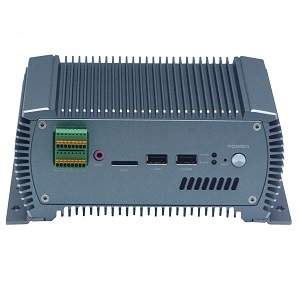

SBC40N52 VER:1.2
Integrated Intel? Core(TM) I3-4010U CPU@1.70GHZ dual core processor, TDP15W
Integrated Intel?HD Graphics
Integrated 1* or 2* Realtek RTL8111F Gigabit Ethernet(LAN2 andUSB2 two choose one,),support wake on LAN/PXE

Model No.
SBC40N52 VER:1.2
CPU
Integrated Intel? Core(TM) I3-4010U CPU@1.70GHZ dual core processor, TDP15W
Chipset
Haswell-U orBroadwell-U SOC
Memory
Onboard DDR3L 2GB or4GB memory
Graphics
Integrated Intel?HD Graphics
Provide 1*VGA,1*HDI,1*LVDS (support dual channel 24BIT)
Support VGA;HDI;LVDS synchronous/asynchronous display
LAN
Integrated 1* or 2* Realtek RTL8111F Gigabit Ethernet(LAN2 andUSB2 two choose one,),support wake on LAN/PXE
Storage
1* SATA3.0 HDD interface,the transfer rate up to 6Gbps
1* MSATA slot,support WIFI(optional )/SSD(default ), the SSD transfer rate up to 6Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out. Amplifier
Amplifier proposed using 2Ω5W speakers
Expansion slots
1*Mini-PCIE slot,support WIFI/3G module

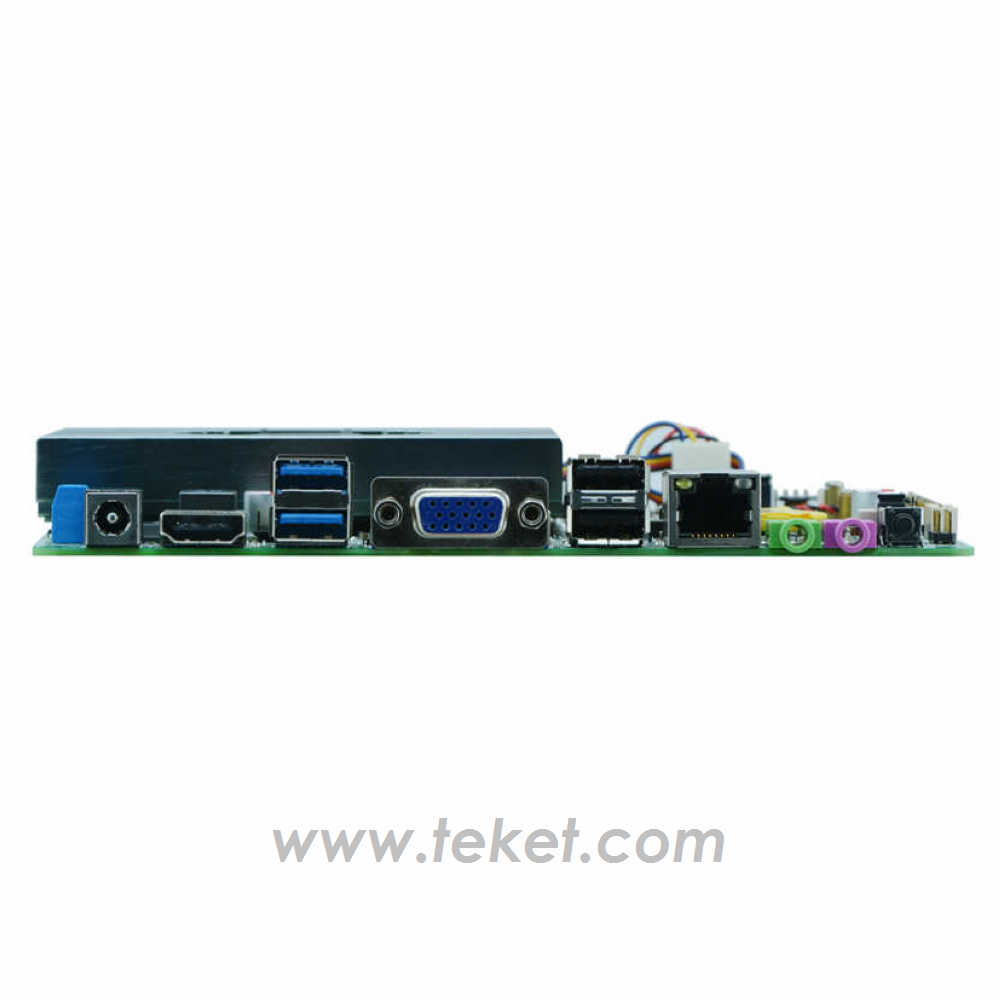

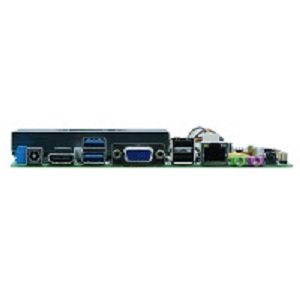

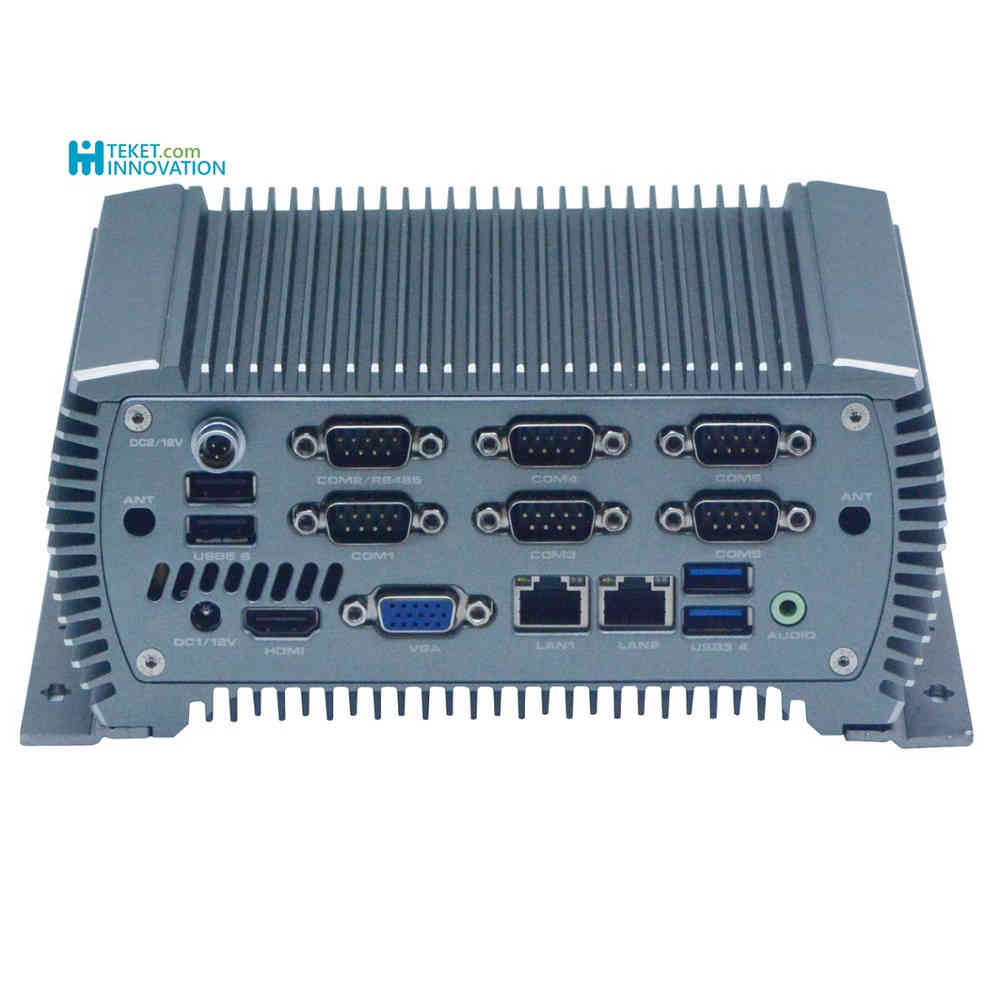

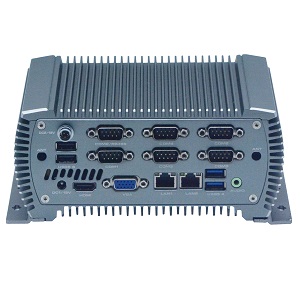

Rear I/O
2* USB3.0
2* USB2.0 (LAN2 andUSB2 two choose one, please refer to order information)
1* HDI
1* VGA
1* RJ-45 Gigabit Ethernet connector(LAN2 andUSB2 two choose one ,please refer to order information)
1* Line out(Green)
1* MIC（Violet）
1* 12V~36V DC power input
1* power switch
Internal I/O
1* LVDS (2*15pin), support dual channel24BIT LCD display
1* LVDS Backlight power supply interface (1*6pin)
1* JHDI (2*8Pin), the same signal with HDI
1* JVGA1 1*12pin ,the same signal with DB15
6* RS232 serial port, COM2 supportRS232/485/422, COM3 supportRS232/485
1* LPT (2*13pin)
4* USB2.0 2*5pin (F_USB2 andUSB2 two choose one)
1* USB2.0(1*5Pin)
1* PS/2KB/MS connector(1*6Pin)
1* front panel audio connector (2*5pin)
1* power amplifier interface(1*4pin)
1* SIM card socket
1* HDD power supply interface
1* front panel function buttons and indicator connector(2*5pin)
1* 4pin ATX 12V~36V power input/output interface or 1*2pin blue power element
FAN Interfae
1*4pin CPUFAN
GPIO
Support 4 way input and output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
DC 12V~36V power input
Operating Temp.
-10℃～60℃
Storage Temp.
-20℃～70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
165mm x 115mm

Order Information
SBC40N52-D16 Ver:1.2 i3-4010U,1.70G,4G onboard,1*VGA,1*HDI,2ch24BITLVDS,1*LAN(RTL8111F),7*USB,6*COM,12-36VDC
SBC40N52-D26 Ver:1.2 i3-4010U,1.70G,4G onboard,1*VGA,1*HDI,2ch24BITLVDS,2*LAN(RTL8111F),7*USB,6*COM,12-36VDC
