For Industral
*Integrated Intel® I5-6360U 2.0GHz dual core processor, TDP15W
*Compatible with Intel® SKYLAKE-U Pentium/Celeron/I3/I5 I7 28w low power consumption processor
*Onboard DDR3L 4GB Express memory
*Integrated Intel® HD Graphics 540
*2* Intel® 211AT Gigabit Ethernet, support Wake On LAN / PXE
*8* USB,6* RS232 serial ports

Processor
Integrated Intel® I5-6360U 2.0GHz dual core processor, TDP15W
Compatible with Intel® SKYLAKE-U Pentium/Celeron/I3/I5 I7 28w low
power consumption processor
Chipset
SOC
Memory
Onboard DDR3L 4GB Express memory
Display
Integrated Intel® HD Graphics 540
1* VGA, support 1920x1200@60Hz
1* HDI1.4, support 4096x2304@24Hz
1* support dual channel 24bit LVDS port
Network
2* Intel® 211AT Gigabit Ethernet, support Wake On LAN / PXE
Storage
1* 7pin SATA3.0 HDD port, transmission rate up to 6Gbps
1* JSATA pin HDD port 2*5pin
1* MSATA SSD slot, transmission rate up to 6Gbps
Audio
Integrated ALC662 6-channel high fidelity audio controller, support MIC、Line_out, power amplifier, power amplifier suggest to use 2Ω5W speaker
Expansion
1* MPCIE slot, support WIFI, 3G, 4G module

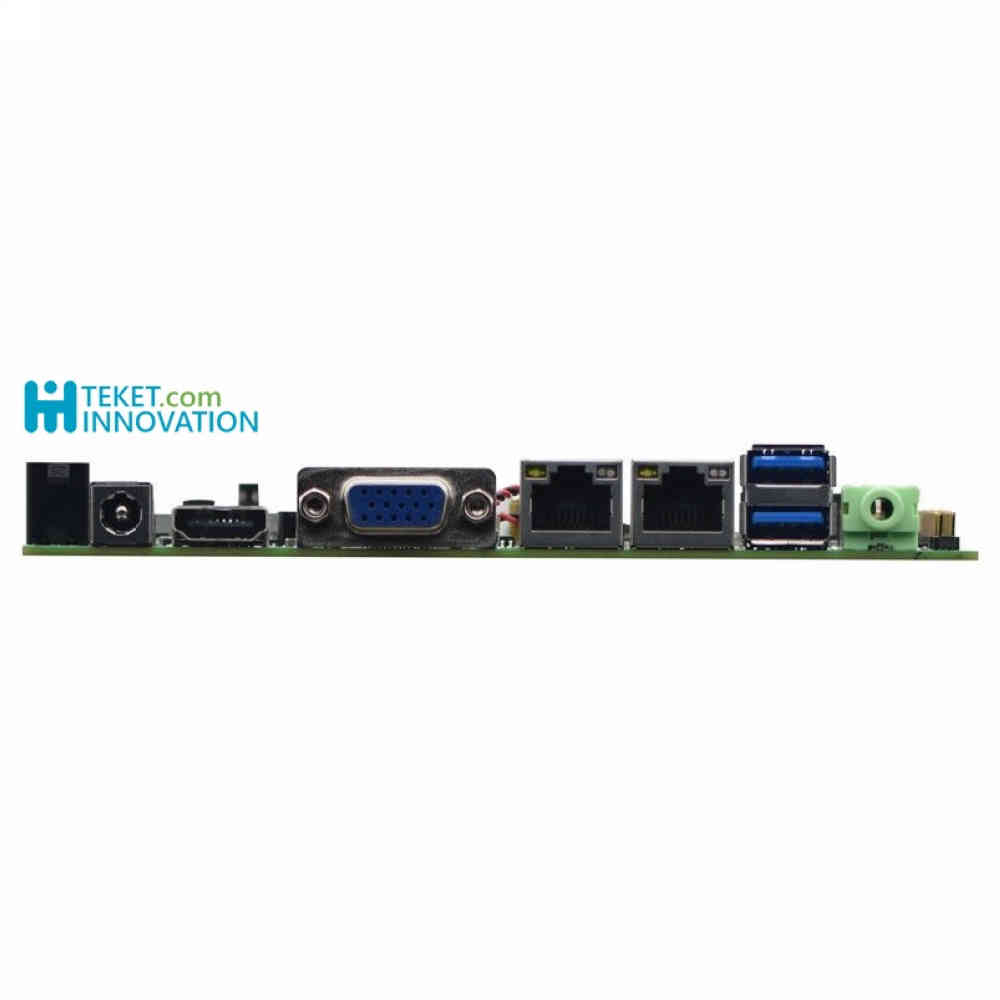

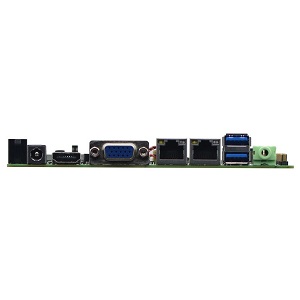

Rear I/O
2* USB 3.0
1* HDI
1* VGA
2* RJ-45 Gigabit LAN port
1* Line out (green)
1* 12V DC_JACK input
1* Power switch, 1* Reset switch (front panel)
1* Power/HDD indicator LED(front panel)
Built in I/O
1* LVDS port 2*15pin
1* LVDS screen backlight power supply port 1*6pin
6* RS232 COM port, COM2 support 485/422
6* USB 2.0 port 2*5pin
1* PS/2 MS/KB port 1*6Pin
1* Front audio port 2*5pin
1* Power amplifier port 1*4pin
1* HDD power supply port 1*4pin
1* Front panel function button and LED interface 2*5pin
1* SIM socket
1*4 pin ATX power supply connector, support 12V input output
Fan connector
1* 4pin CPU smart fan connector
GPIO
Support 4 ways input output GPIO
BIOS
AMI 64Mb Flash ROM
Watchdog
Support hardware reset function(L256, 0~255 seconds)
Power input
DC_12V
Working Temp.
-10℃～60℃
Storage Temp.
-20℃～70℃
Humidity
5%-95% relative humidity, non-condensing
Dimension
148mm x 117mm

Order Information
SBC40N55-3855U,1.6Ghz,4G onboard,1*VGA,1*HDI,1*2ch/24bitsLVDS,2*LAN(WGI211AT),8*USB,6*COM,1*RS485/RS422,DC12V
SBC40N55-I56360U,2.0Ghz,4G onboard,1*VGA,1*HDI,1*2ch/24bitsLVDS,2*LAN(WGI211AT),8*USB,6*COM,1*RS485/RS422,DC12V
