>>Your Current Position: VIA Embedded Motherboard

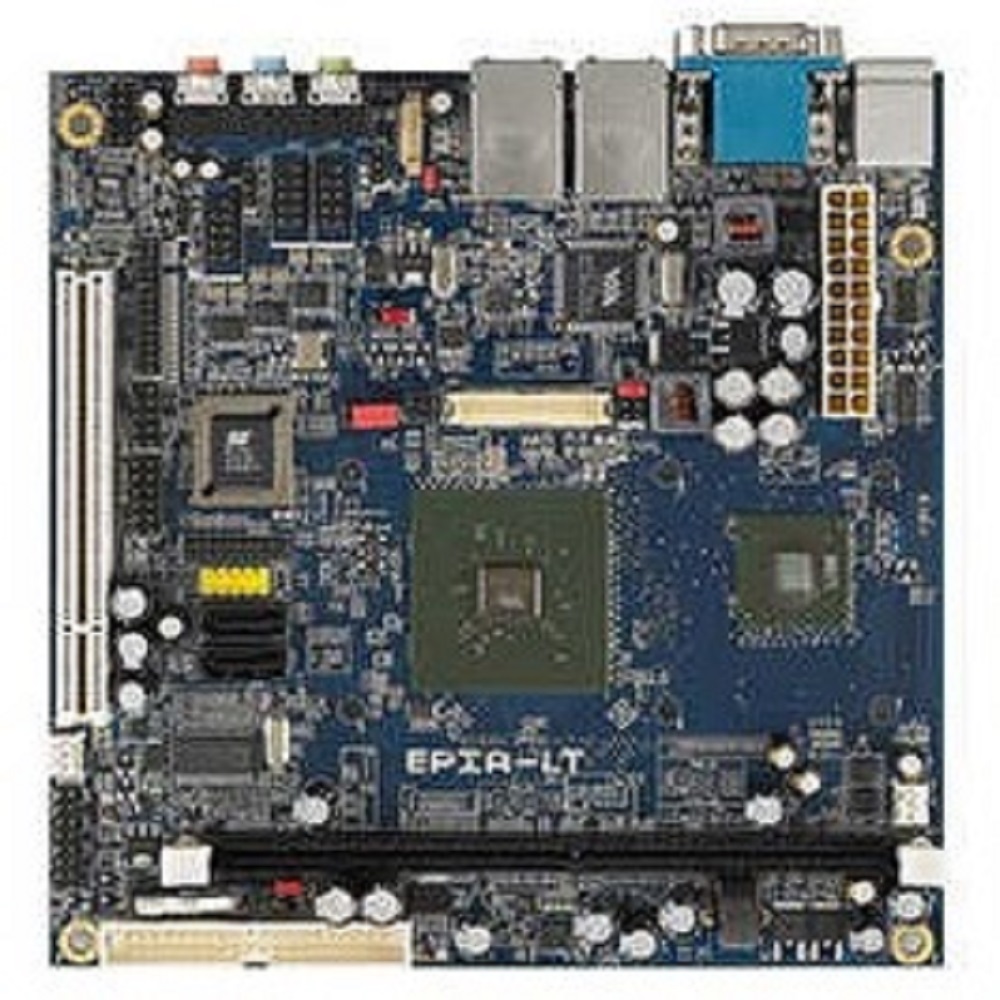

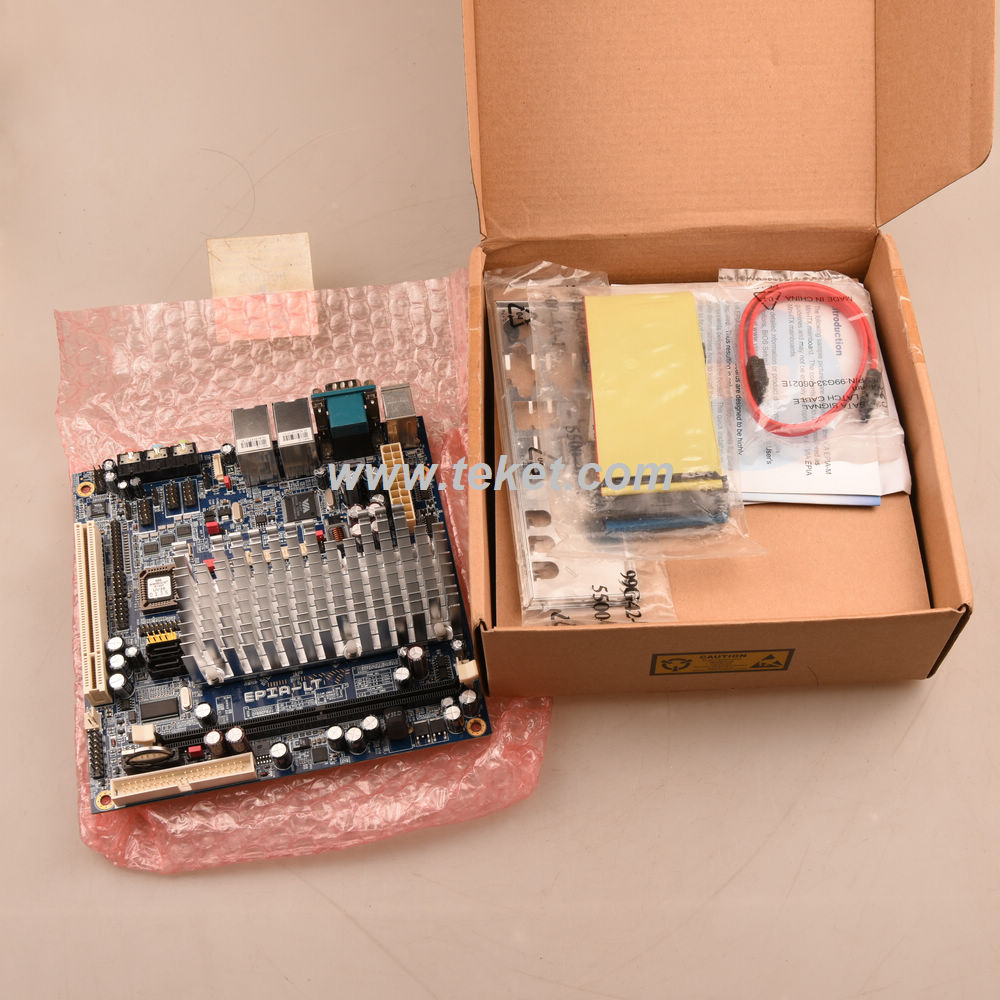

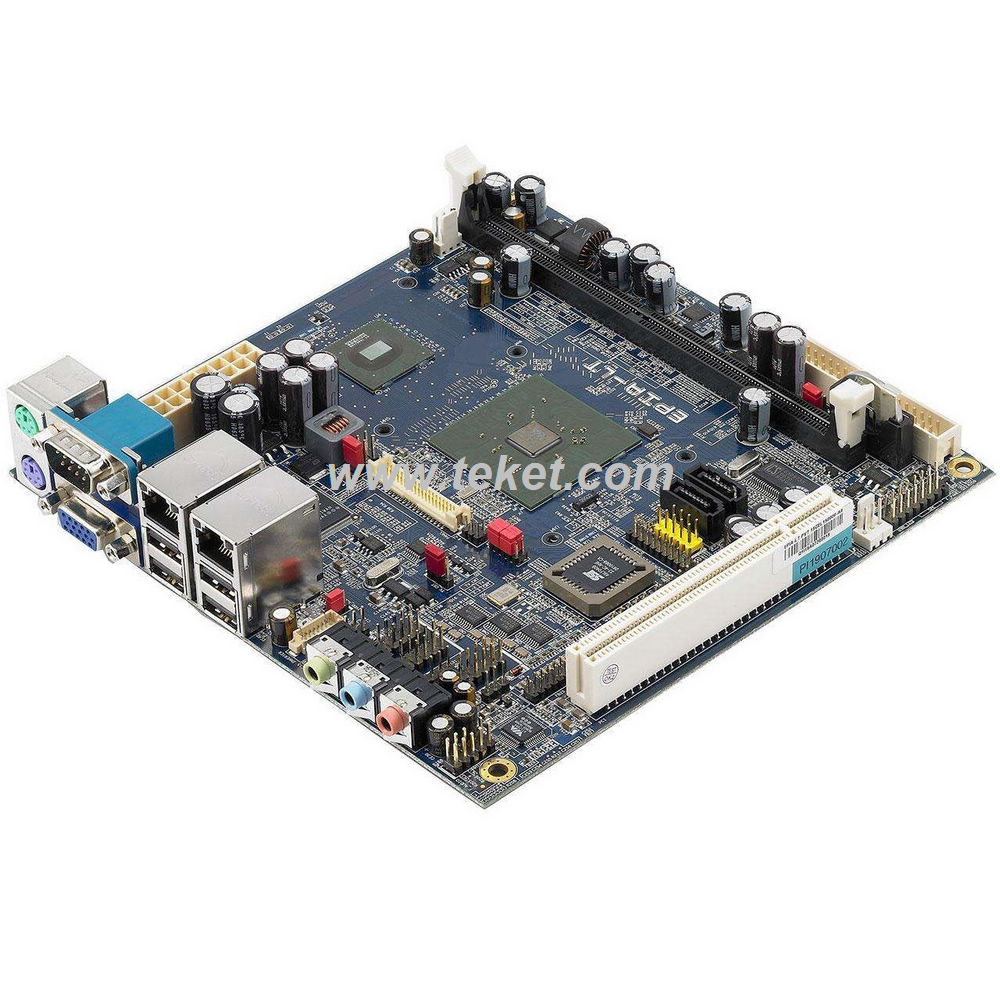

VIA EPIA LT-Series Mini-ITX Board LT15000AG LT10000EAG

Integrated VIA Chrome® Pro II 3D/2D AGP graphics with MPEG-2 and WMV9 decoding acceleration
Supports DDR2 533/667 DIMM socket
Supports dual-channel LVDS
Supports two 10/100 Mbps Ethernet (optional for one Gigabit LAN)
Supports four COM ports (COM 2/3/4 with 5 V/12 V select)

VIA EPIA LT Mini-ITX Board Meeting customer’s requirements for connectivity and versatility, the VIA EPIA LT mainboard, featuring the VIA CX700 system media processor, offers a number of innovative features for the fast-growing x86-based embedded market. Boasting the market-leading ultra low power consumption 1.5GHz or fanless 1.0GHz VIA C7® processors, the VIA EPIA LT platform provides typically exceptional performance per watt and comes with extensive I/O including two LAN ports and native support for one dual-channel LVDS, four COM ports, a PCI slot and up to six USB 2.0 ports.

Comprehensive digital multi-media experience is achieved with VIA’s Chrome® Pro II IGP integrated graphics processor featuring 2D/3D graphics and MPEG-2 video decoding acceleration, while the VIA Vinyl Multi-channel HD audio chip provides an exceptional listening experience. Additionally, the boards will support the forthcoming MFX module for system security, energy efficiency and data protection, featuring key storage, wake-up and event logging functions.

Supporting up to 1GB of 533MHz DDR2 memory, the ultra efficient VIA V4 bus interface drives rich connection alternatives. With both dual-channel LVDS support and two 10/100 fast Ethernet modules, with a Gigabit option, the VIA EPIA LT-Series is tailor-made for key embedded applications such as high end Point of Sales and digital signage systems, as well as many other networked applications.

VIA EPIA LT-Series Mini-ITX Board

Featuring both dual-LAN and dual-channel LVDS, the new VIA EPIA LT mainboard is the complete solution for high-end POS, digital signage and networked systems.

Meeting customer's requirements for connectivity and versatility, the VIA EPIA LT mainboard, featuring the VIA CX700 system media processor, offers a number of innovative features for the fast-growing x86-based embedded market. Boasting the market-leading ultra low power consumption 1.5GHz or fanless 1.0GHz VIA C7? processors, the VIA EPIA LT platform provides typically exceptional performance per watt and comes with extensive I/O including two LAN ports and native support for one dual-channel LVDS, four COM ports, a PCI slot and up to six USB 2.0 ports. Additionally, project-based customers are able to opt for a VIA CX700M2-based version that offers TV-out functionality.

Comprehensive digital multi-media experience is achieved with VIA's UniChrome? Pro II IGP integrated graphics processor featuring 2D/3D graphics and MPEG-2 video decoding acceleration, while the VIA Vinyl Multi-channel HD audio chip provides an exceptional listening experience. Additionally, the boards will support the forthcoming MFX module for system security, energy efficiency and data protection, featuring key storage, wake-up and event logging functions.

Supporting up to 1GB of 533MHz DDR2 memory, the ultra efficient VIA V4 bus interface drives rich connection alternatives. With both dual-channel LVDS support and two 10/100 fast Ethernet modules, with a Gigabit option, the VIA EPIA LT-Series is tailor-made for key embedded applications such as high end Point of Sales and digital signage systems, as well as many other networked applications.

Key Features:

Integrated VIA UniChrome? Pro II 3D/2D AGP graphics with MPEG-2/4 and WMV9 decoding acceleration
Supports DDR2 533/667 DIMM socket
Supports dual-channel LVDS
Supports two 10/100 Mbps Ethernet (optional for one Gigabit LAN)
Supports four COM ports (COM 2/3/4 with 5 V/12 V select)

--------------------------------------------------------------------------------

Specification
If you have questions about the model names; please refer to the Model Name Definition for EPIA/VB boards.VIA EPIA LT-Series Mini-ITX Board Specifications
Model Name VIA EPIA LT15000G
VIA EPIA LT10000EG
Processor 1.5GHz VIA C7? Processor
1.0GHz Fanless VIA C7? Processor
Chipset VIA CX700M2 Unified Digital Media IGP chipset
System Memory 1 x DDR2 533 DIMM socket
Up to 1GB Memory Support
VGA Integrated VIA UniChrome? Pro II 3D/2D AGP graphics with MPEG-2 video decoding acceleration
Expansion Slots 1 x PCI Slot
Onboard IDE 1 x UltraDMA 133/100/66/33 connector
Onboard LAN 1 x VIA VT6107 10/100 Mbps Fast Ethernet controller
1 x VIA VT6107 10/100 Mbps Fast Ethernet controller or manufacturing option for VT6122 Gigabit Ethernet controller
Onboard Audio VIA VT1708A High Definition Audio Codec
Onboard I/O Connectors 1 x USB pin header for 2 USB 2.0 ports
1 x LPC connector
3 x Serial port pin headers for COM2/3/4 (with 5V/12V select jumper)
1 x PCI slot
1 x Digital I/O pin header
2 x SATA connectors
1 x MFX pin header
1 x Front panel audio pin header
1 x LPT pin header
1 x LVDS module connector, for 18/24-bit dual channel LVDS panel
1 x LVDS panel power selector pin header
1 x LVDS inverter pin header
1 x CIR pin header (convertible to KB/MS)
2 x Fan connectors for CPU & system fans
1 x Front panel connector
1 x ATX power connector
Back Panel I/O 1 x VGA connector
1 x COM port
2 x RJ-45 LAN connectors
4 x USB 2.0 ports
3 x Audio jacks for Line-out, Line-in, & Mic-in
1 x PS2 mouse port
1 x PS2 keyboard port
BIOS AMI BIOS
LPC 2/4/8Mbit flash memory
Operating System Windows 2000/XP, Linux, Win CE, XPe
System Monitoring & Management AC Power failure recovery
RTC timer to Power On
Wake-on LAN/KB/MS
Watch Dog Timer
Operating Temperature 0-50
Operating Humidity 0% ~ 95% (relative humidity ; non-condensing)
Form Factor Mini-ITX (6-layer)
17 cm x 17 cm

Ordering Information:

Model Name CPU Frequency Description
LT15000AG 1.5GHz C7? Mini-ITX Board, VGA, LVDS, 4 x COM, Dual LAN, 4 x GPI & 4 x GPO, IDE, SATA
LT10000EAG 1.0GHz C7? Mini-ITX Board, VGA, LVDS, 4 x COM, Dual LAN, 4 x GPI & 4 x GPO, IDE, SATA
* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration; A is for configured without TV-out.
* The specification is subject to change without prior notice.
