VIA EPIA-M840 Mini-ITX Board

VIA EPIA-M840 Mini-ITX Board

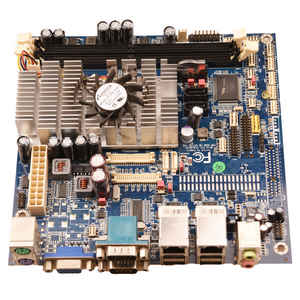

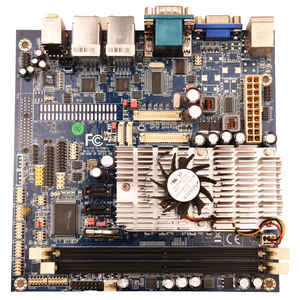

EPIA-M840
Brings a high-performance VIA Nano E-Series processor, dual Gigabit LAN and 2 x dual channel LVDS to industrial applications

The VIA EPIA-M840 packs the latest VIA Nano E-Series processor, dual Gigabit LAN, eight COM ports and two dual channel 24-bit LVDS channels making an ideal solution for a range of embedded applications including the latest industrial automation, kiosk, POI and HMI applications.

The VIA EPIA-M840 is available in both active and passive cooling configurations with a choice of either a fanless 1.2GHz or a performance oriented 1.6GHz VIA Nano E-Series processor. The VIA VX800 media system processor supports 2 of DDR2 DIMM system memory and provides DirectX9 integrated graphics, crystal clear HD audio and Gigabit networking and advanced video acceleration for MPEG-2, WMV9 and VC1 video formats, plus a VMR capable HD video processor.

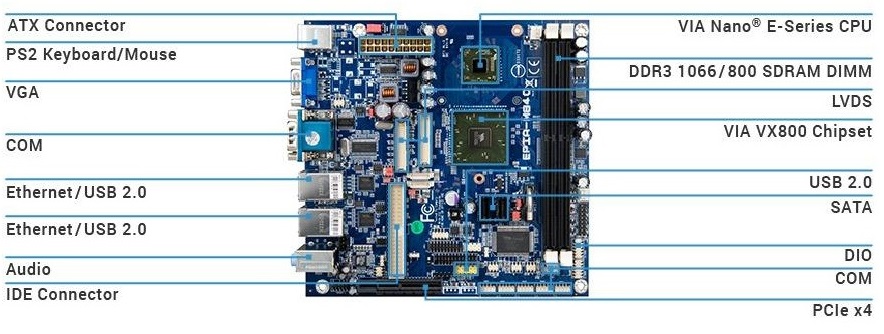

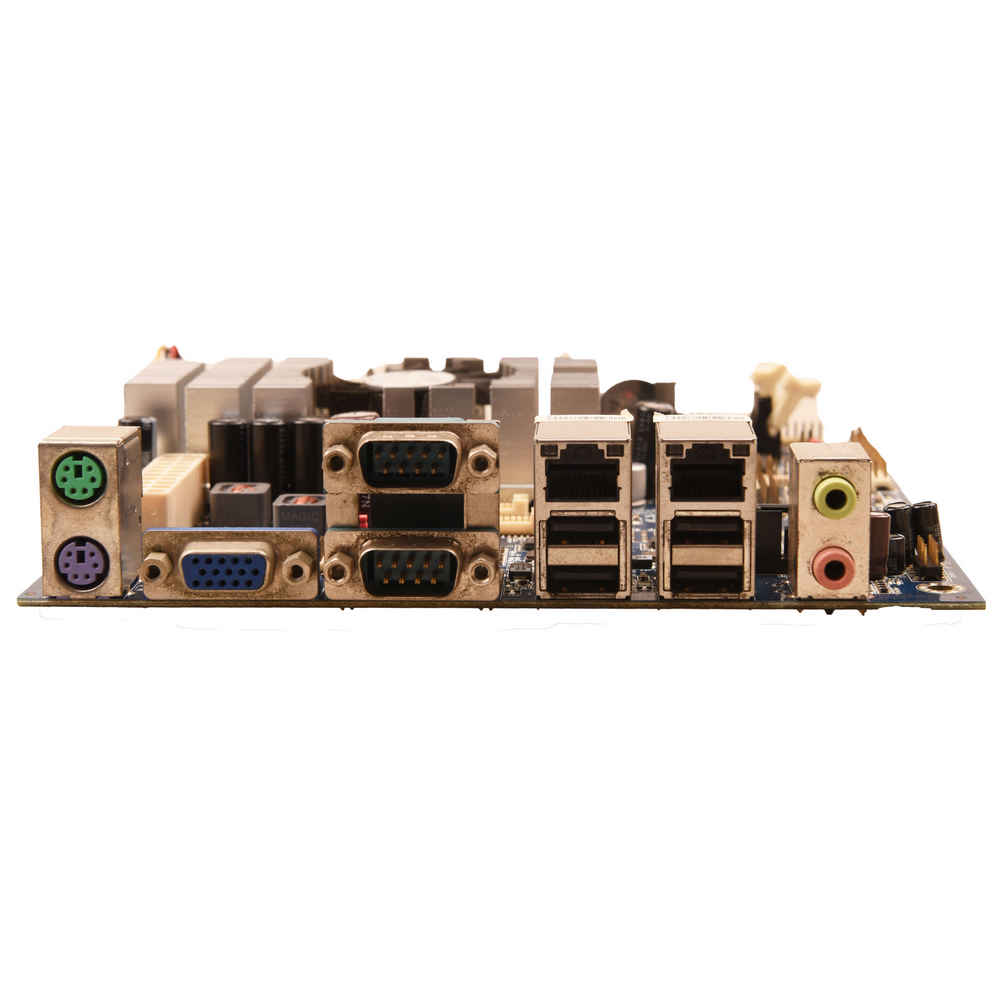

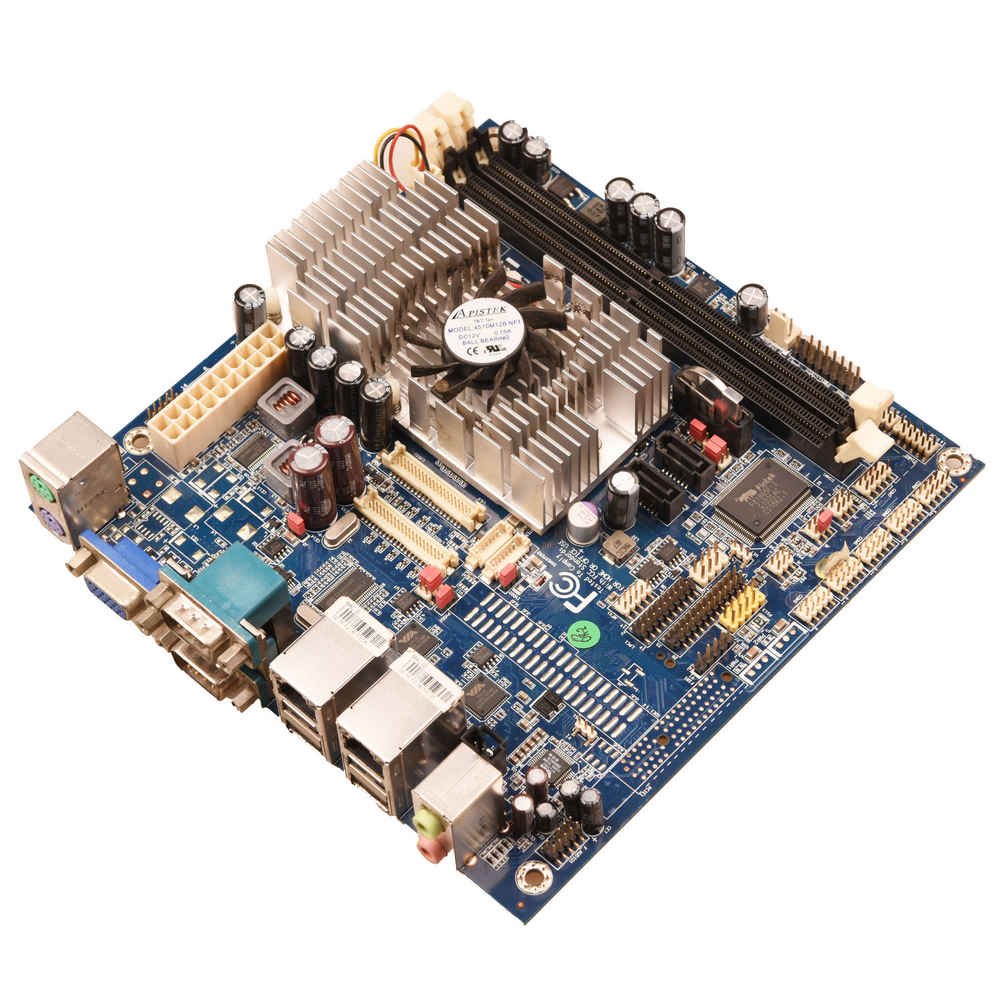

Rear panel I/O includes dual Gigabit LAN ports, PS/2 support, a VGA port, two RS-232 5v/12v selectable COM ports, four USB 2.0 ports and audio jacks. On board pin headers provide 2 x dual channel 24-bit LVDS support (including backlight control), an additional six COM ports, a further two USB ports, LPT support, Digital I/O, SIR and LPC headers, a PCIe x4 slot and Compact Flash socket.

Key Features
VIA Nano E-Series Processor
Active and Passive cooling configurations
Integrated VIA Chrome9? HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration
Support for VGA and dual channel LVDS displays
Supports Dual Gigabit Ethernet
Supports PCIe x4 slot
Eight COM ports
Six USB 2.0 ports
Supports HD audio
Designed for advanced Industrial Automation, Kiosk and HMI applications


EPIA-M840 Specifications

Model Name EPIA-M840
Processor 16/16P: 1.6GHz VIA Nano® E-Series (with fan)
12E/12PE: 1.2GHz VIA Nano® E-Series (fanless)
Chipset VIA VX800 Unified Digital Media IGP chipset
BIOS Award BIOS, 4/8Mbit Flash memory
System Memory 2 DDR2 533/667 DIMM sockets
Up to 4GB memory size
Storage 2 SATA connectors (pin#7 powered with selectable GND/5V)
2 SATA 3.5” HDD power support (for DC-In SKU only)
Graphics Integrated VIA Chrome®9 HC3 DX9 2D/3D graphics with VC1, MPEG-2, WMV9
decoding acceleration
Onboard IDE UltraDMA 133/100 pin connector with 2.54mm 40-pin
LAN 2 VIA VT6130 Gigabit LAN controllers
Audio VIA VT1708S High Definition Audio Codec
Super I/O Fintek F81865-I
Expansion I/O 1 PCIe x4 slot
Onboard I/O 1 CF Type I
2 USB ports
1 Front audio pin header
1 PS/2 keyboard/mouse pin header
6 RS-232 pin headers (powered with selectable 5V/12V)
1 LPT pin header
2 Digital I/O pin headers (GPI x 8 + GPO x 8)
1 System temperature reading pin header
1 Front panel pin header
2 Smart fan connectors for CPU/Sys
1 SIR pin header (IRDA 1.0)
1 LPC pin header
1 SMBUS supporting VIA MFX-01 module
1 S/PDIF-out pin header
1 PCIe x4 slot
2 Dual-channel 24-bit LVDS
2 Backlight control connectors for inverter power and brightness control
Back Panel I/O 4 USB 2.0 ports
1 VGA port
2 COM (powered with selectable 5V/12V)
2 Gigabit Ethernet ports
3 Audio jacks (Line-out, Mic-in, Line-in)
1 PS/2 KB/MS port
Power Supply ATX Power (for EPIA-M840-16 & EPIA-M840-12E)
12V DC-in (for EPIA-M840-16P & EPIA-M840-12PE)
Operating System Windows® 7, WES, Windows® CE, Linux
System Monitoring and Management Keyboard Power-on, Timer Power-on
System power management, AC power failure recovery
Wake-on LAN, Watch Dog Timer
Operating Temperature 0°C ~ 60°C
Operating Humidity 0% ~ 95% (non-condensing)
Form Factor Mini-ITX (17cm x 17cm, 6.7" x 6.7")
Compliance CE/FCC/RoHS

Ordering Information:

Model Name CPU Frequency Description
M840-16 1.6 GHz Nano? E Mini-ITX Board with 1.6GHz Nano? E CPU running at 1.6GHz, 1 PCIe x4, 8 COMs, 1 CF, 2 GLAN, 2 LVDS
M840-12E 1.2 GHz Nano? E Mini-ITX Board with 1.2GHz Nano? E CPU, 1 PCIe x4, 8 COMs, 1 CF, 2 GLAN, 2 LVDS

* Model Name Definition: E is for fanless configuration.
* The specification is subject to change without prior notice.
