VIA EPIA-M900 Mini-ITX Board

VIA EPIA-M900 Mini-ITX Board

Offers choice of VIA QuadCore E-Series or VIA Nano X2 E-Series dual core processor with the VIA VX900H MSP, the most complete choice for HD small form factor devices

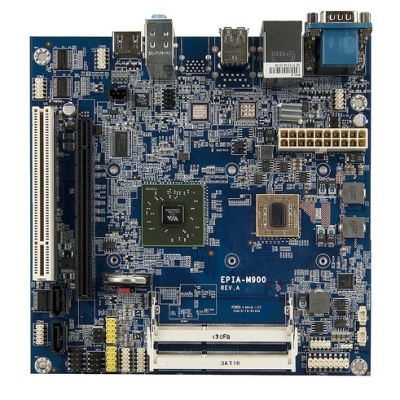

The VIA EPIA-M900 Mini-ITX board pairs the choice of the latest 1.2GHz VIA QuadCore E-Series processor or a 1.6GHz VIA Nano X2 E-Series dual core processor with the VIA VX900H media system processor to provide a high-performance, scalable solution for a wide array of advanced digital signage, POS, Kiosk, ATM, home automation, healthcare and media client systems.

In addition enabling support for up to 8GB of DDR3 system memory, the VIA VX900H features the latest ChromotionHD 2.0 video engine, boasting comprehensive hardware acceleration for the latest VC1, H.264, MPEG-2 and WMV9 HD formats at screen resolutions of up to 1080p without incurring a heavy CPU load. Display connectivity support includes onboard HDI and VGA ports with pin headers for dual channel 24-bit LVDS.

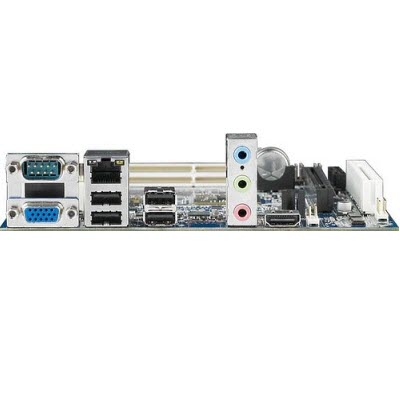

Rear panel I/O includes a Gigabit LAN port, HDI port, VGA port, four USB 2.0 ports, one COM port and three audio jacks. An onboard PCIe x16 slot (with effective speed up to PCIe x8) and one PCI slot is accompanied with pin headers providing one dual channel 24-bit LVDS support (including backlight control), an additional three COM ports, a further four USB 2.0 ports and one USB device port, LPC support, 2 Digital I/O, SPDIF out and an SMBus header.



•High-performance 64-bit VIA QuadCore E-Series or VIA Nano X2 E-Series dual core processor
•Hardware acceleration for VC1, H.264 and WMV9 HD video
•On board HDI and VGA ports, plus dual channel 24-bit LVDS
•Support for up to 8GB of DDR3
•Support for HD DVD and Blu-ray audio content protection
•Supports two SATA, one Gigabit Ethernet (optional for one more), eight USB 2.0 ports, four COM ports
•Supports PCI and PCIe slot
•Supports one VGA, one HDI and one dual-channel 24-bit LVDS panel


Ordering Information:

Model Name CPU Frequency Description
EPIA-M900-16L 1.6GHz Nano™ X2 E Mini-ITX Board with Nano™ X2 E CPU, 2 SATA, GigaLAN, PCI, PCIe, 8 USB 2.0, 4 COM, VGA, HDI, LVDS
EPIA-M900-12LQ 1.2GHz QuadCore E Mini-ITX Board with QuadCore E CPU, 2 SATA, GigaLAN, PCI, PCIe, 8 USB 2.0, 4 COM, VGA, HDI, LVDS

* Model Name Definition: E is for fanless configuration.
* The specification is subject to change without prior notice
* Model Name Definition: L is configured with GigaLAN. Q is configured with QuadCore processor.
